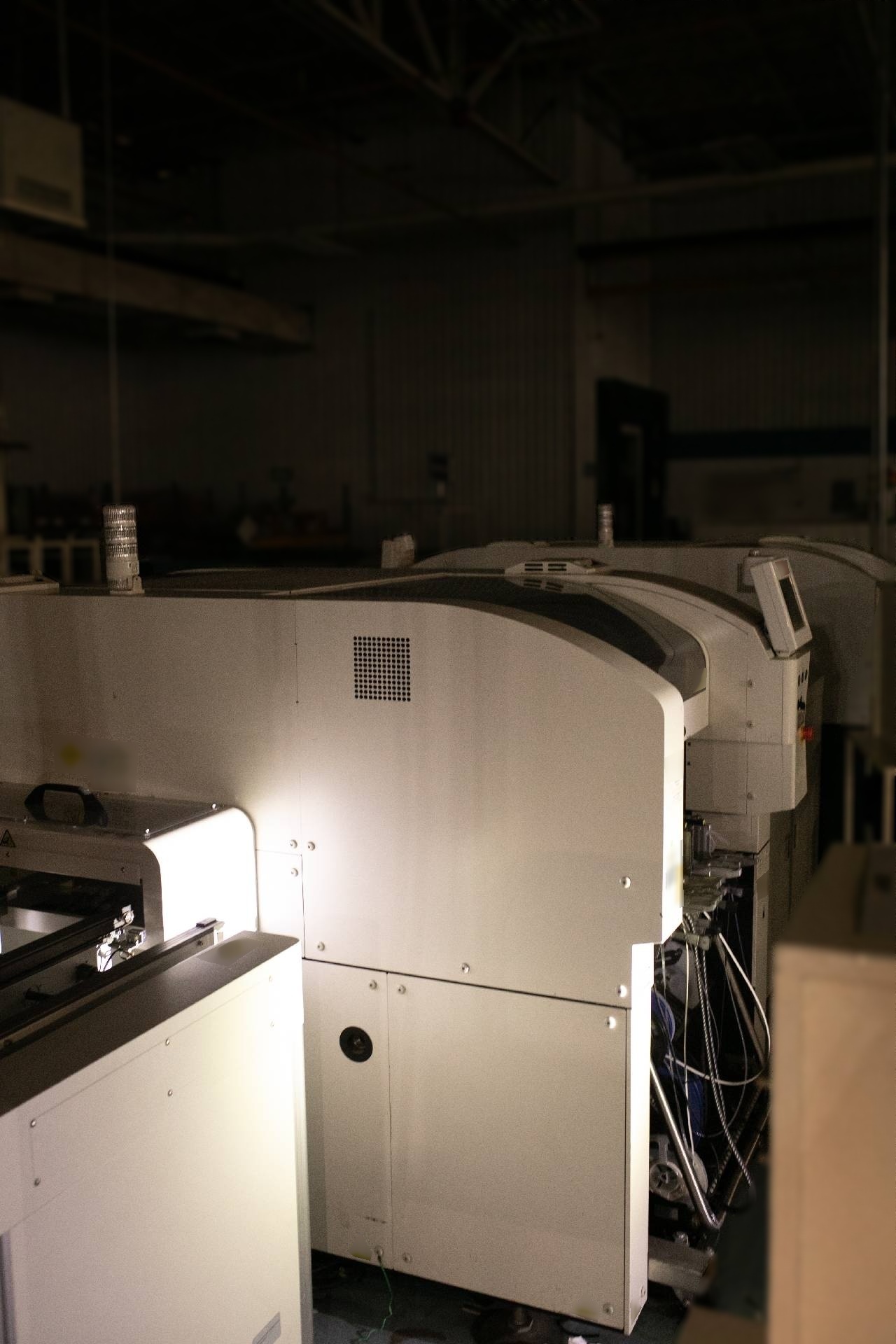

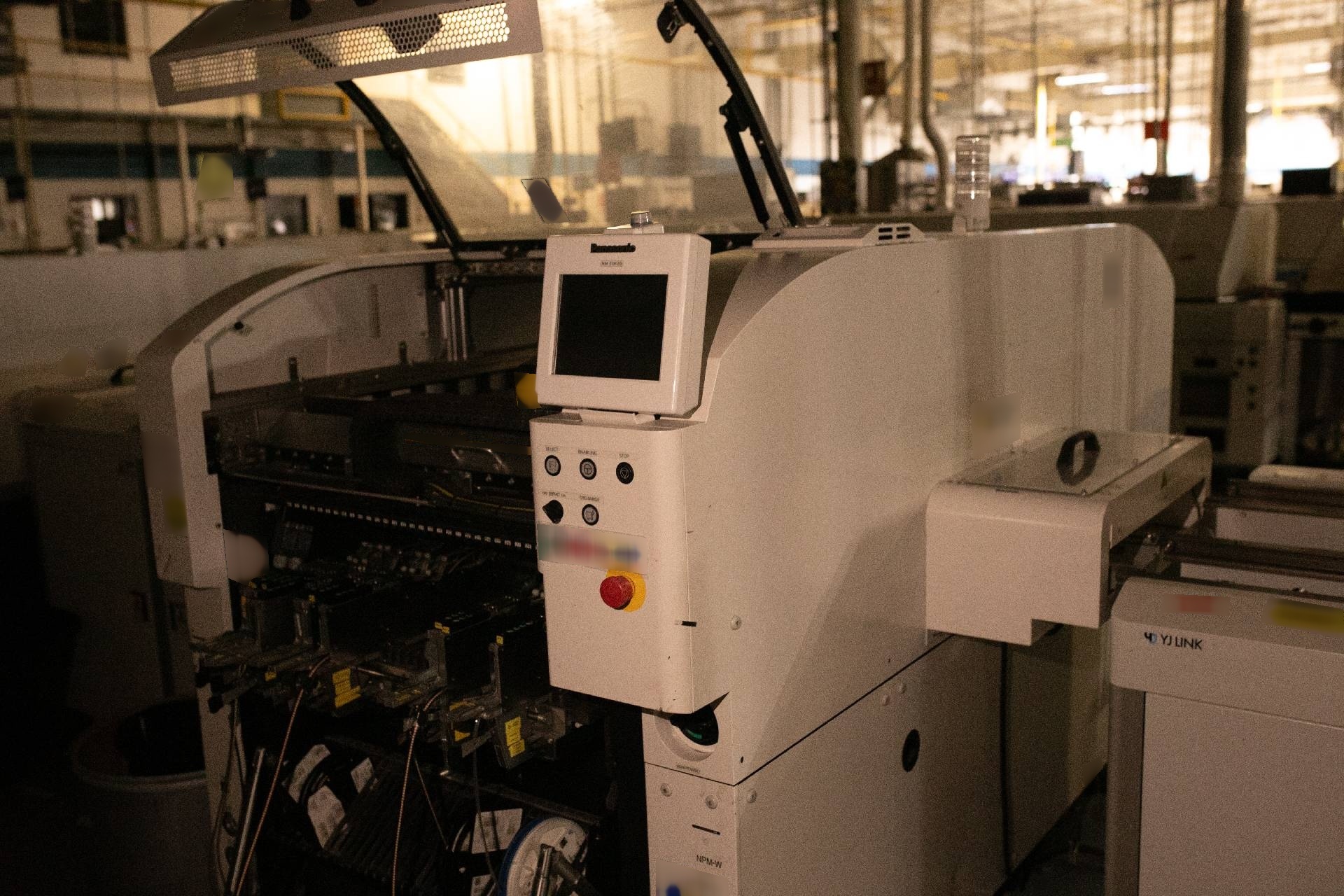

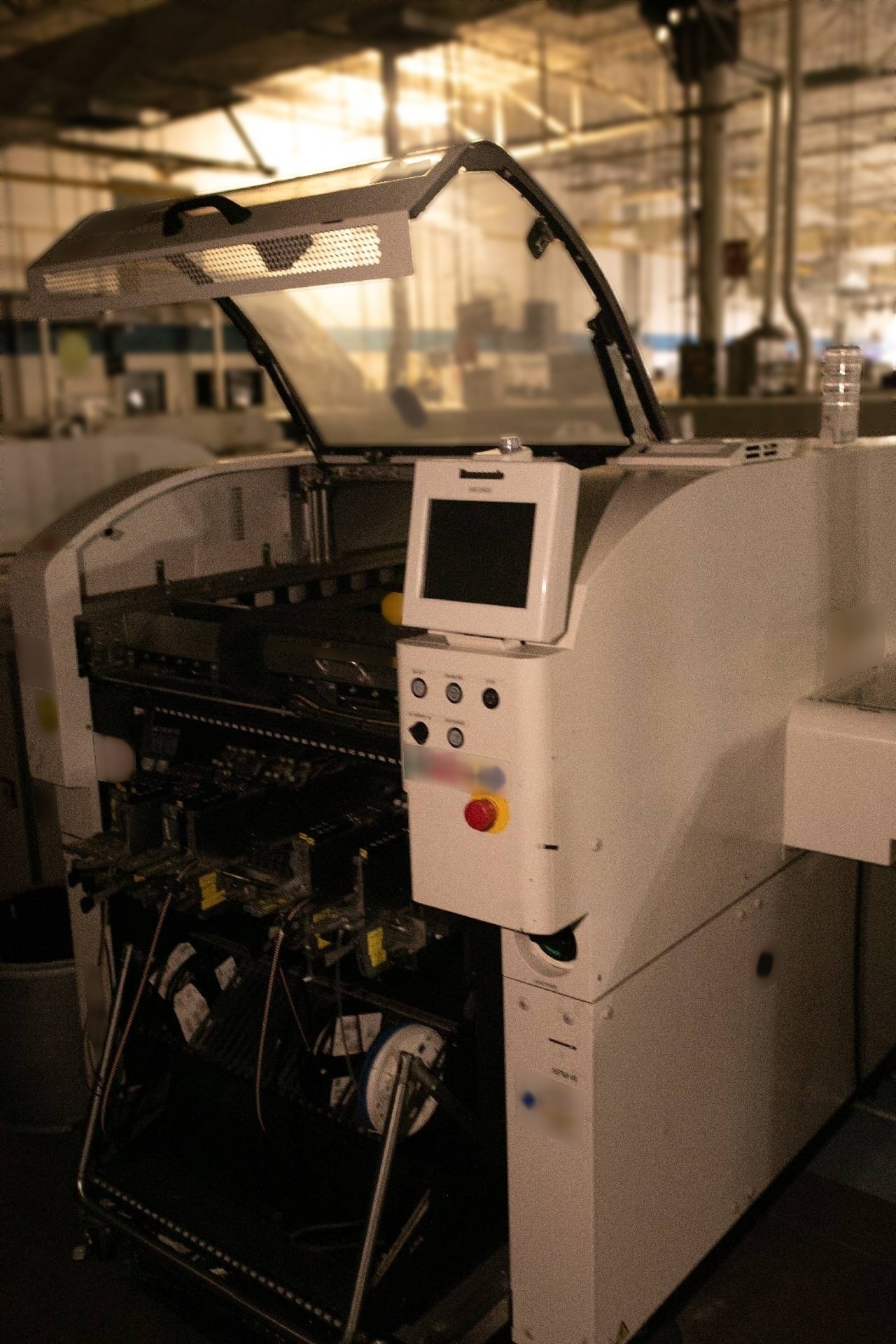

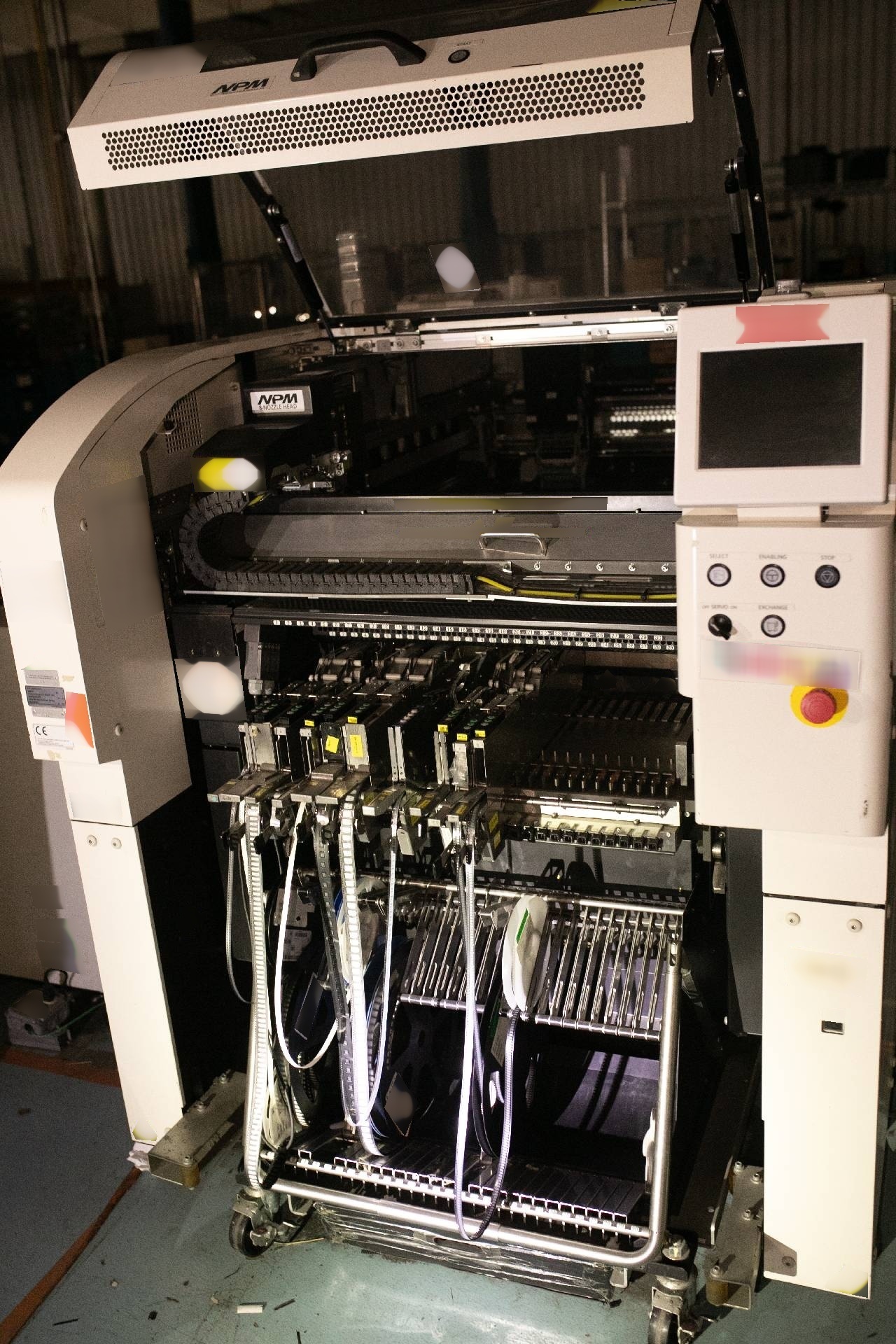

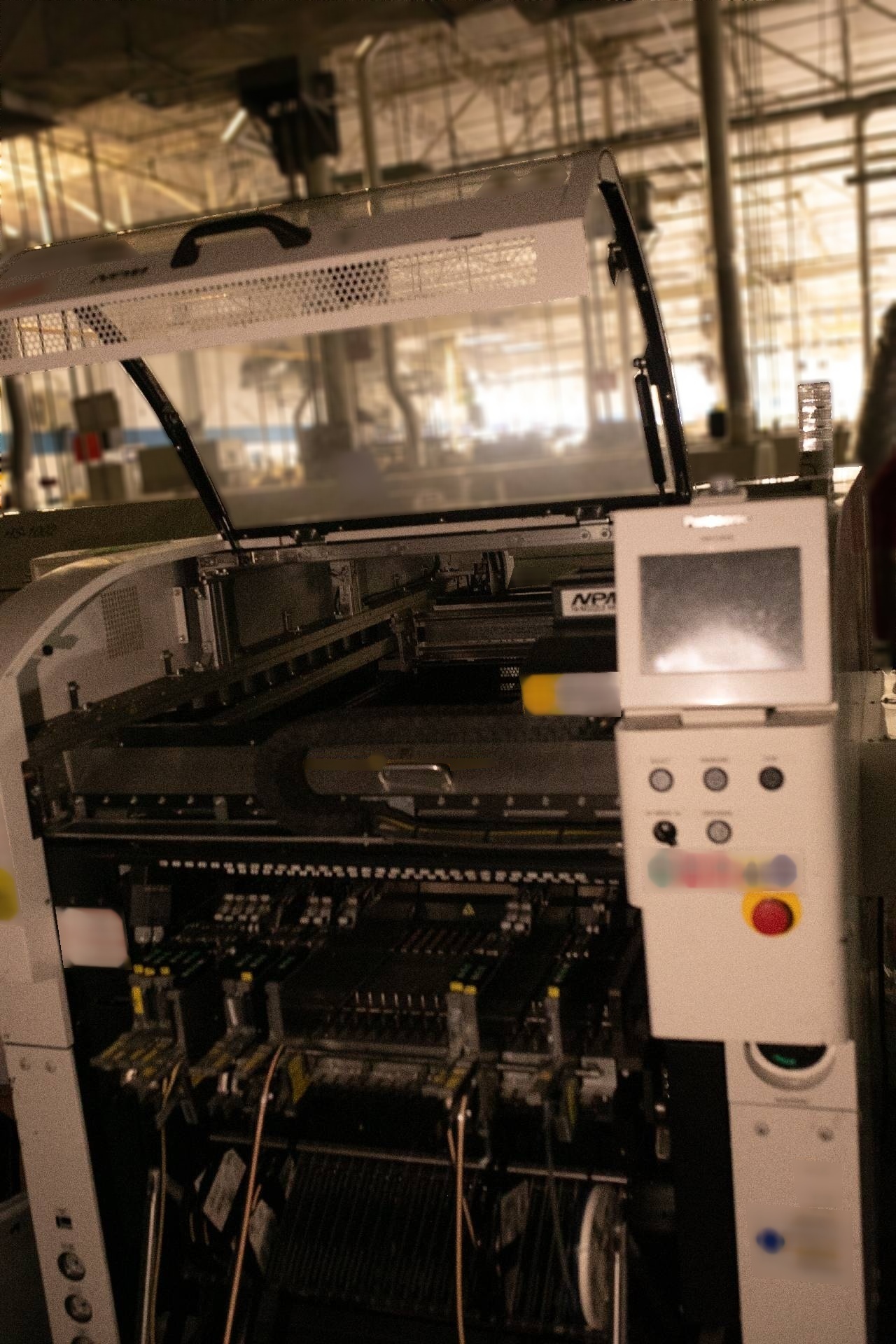

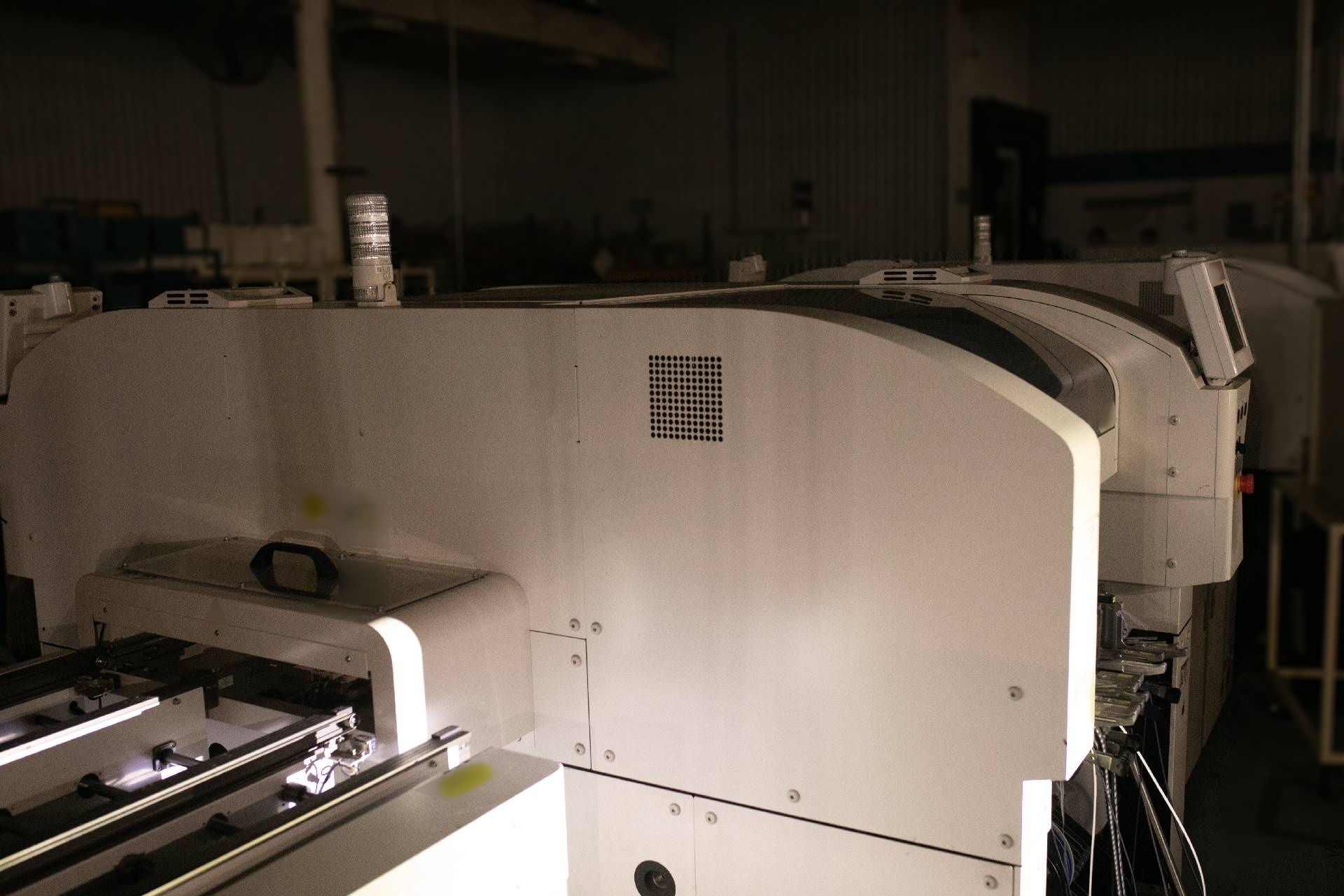

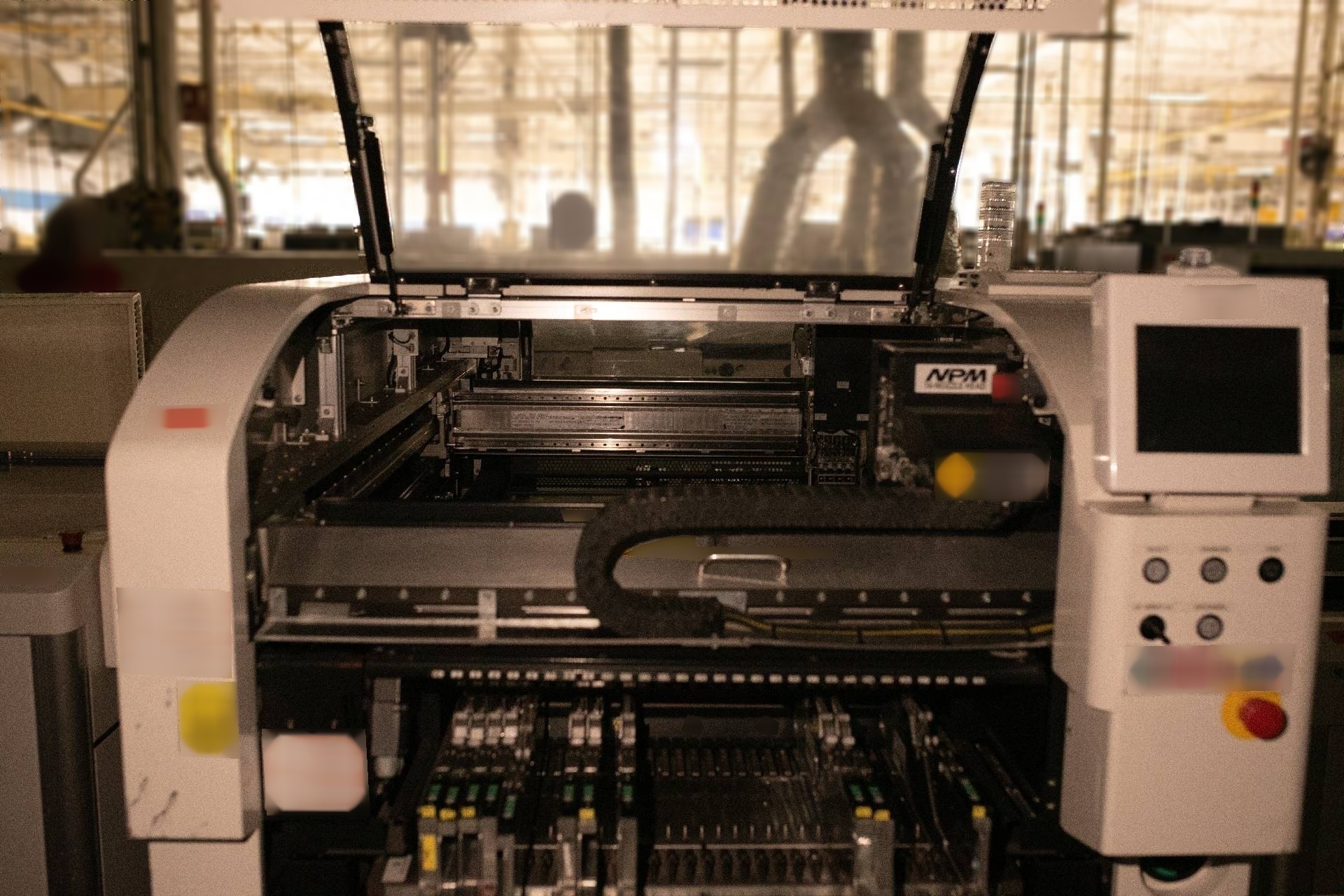

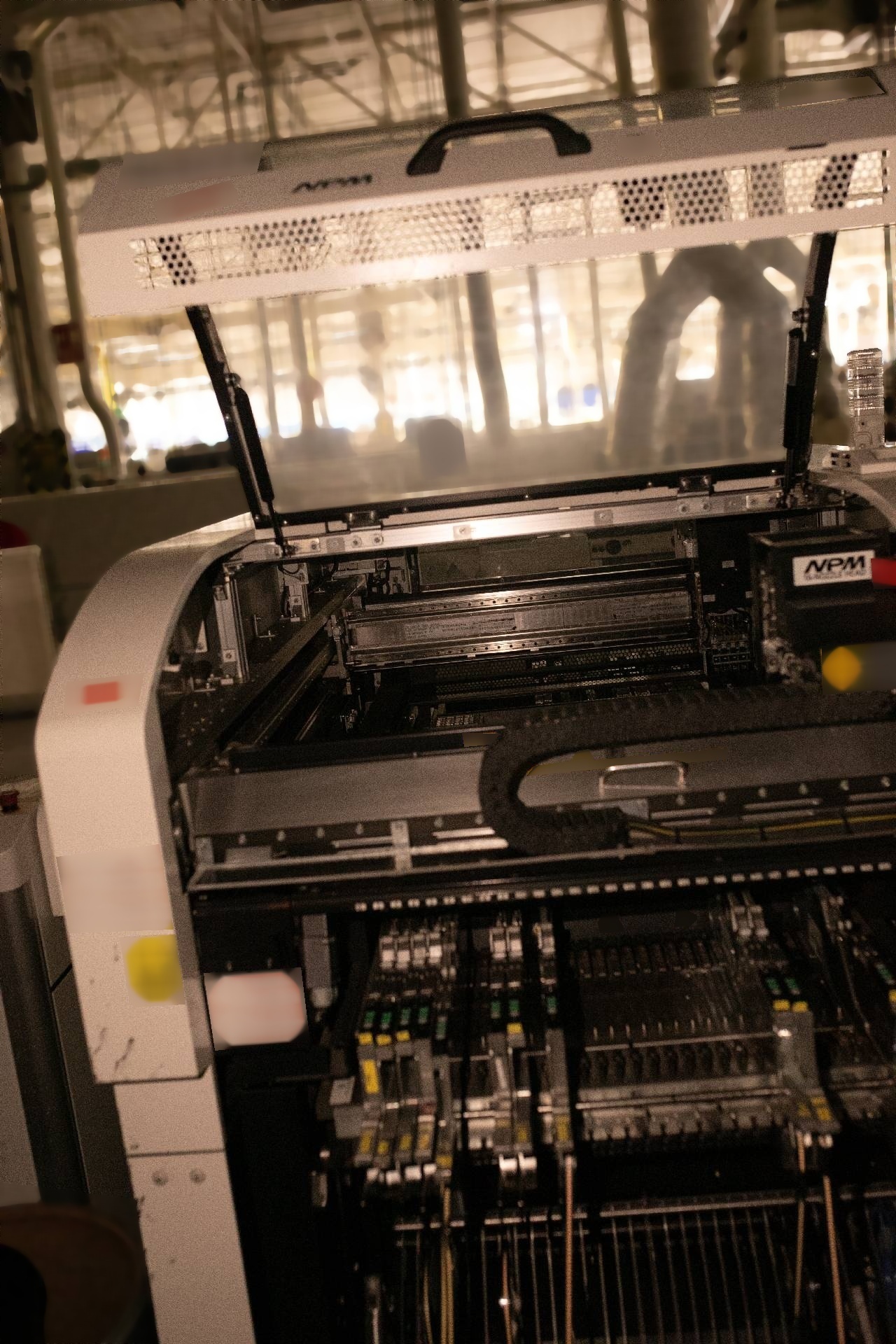

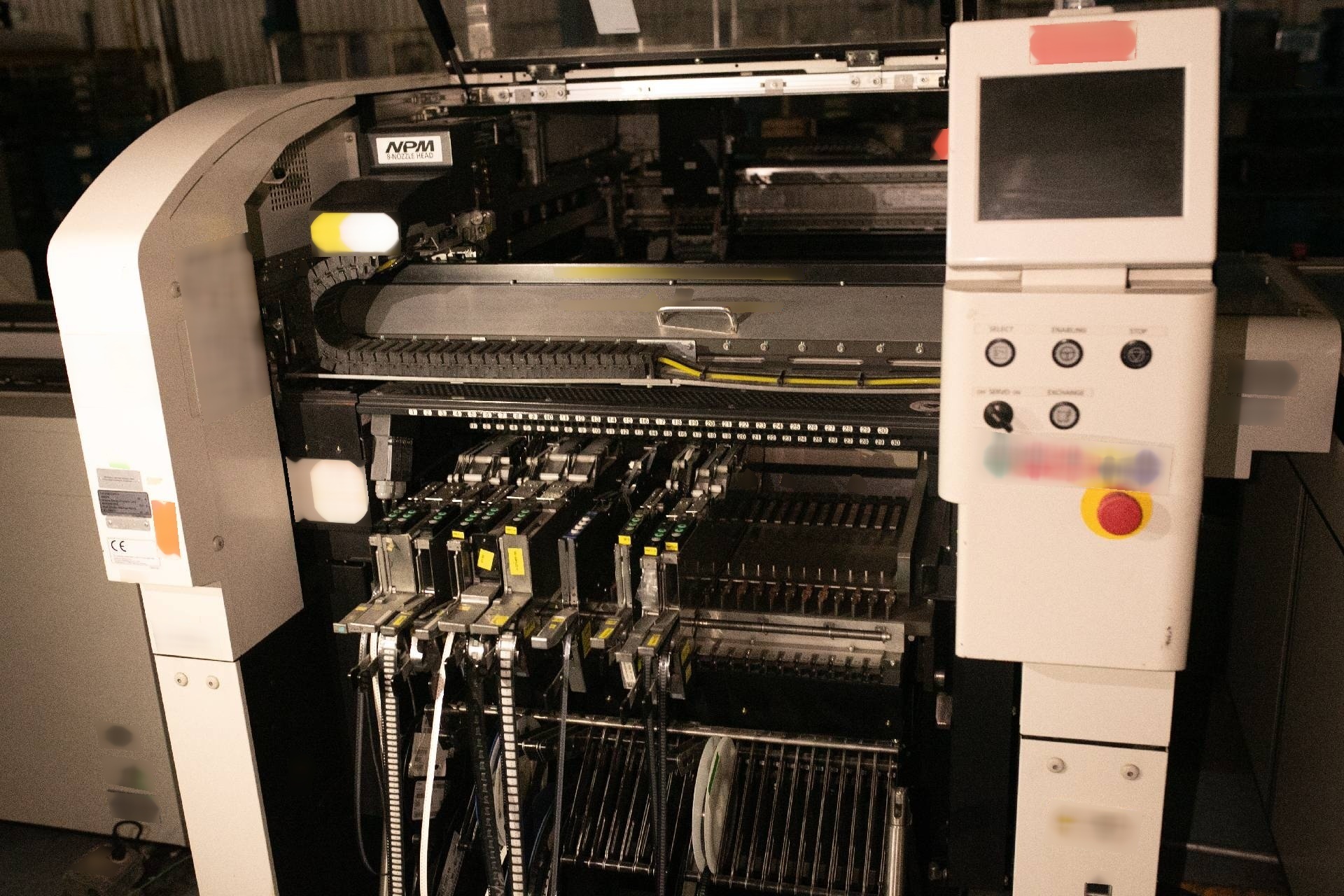

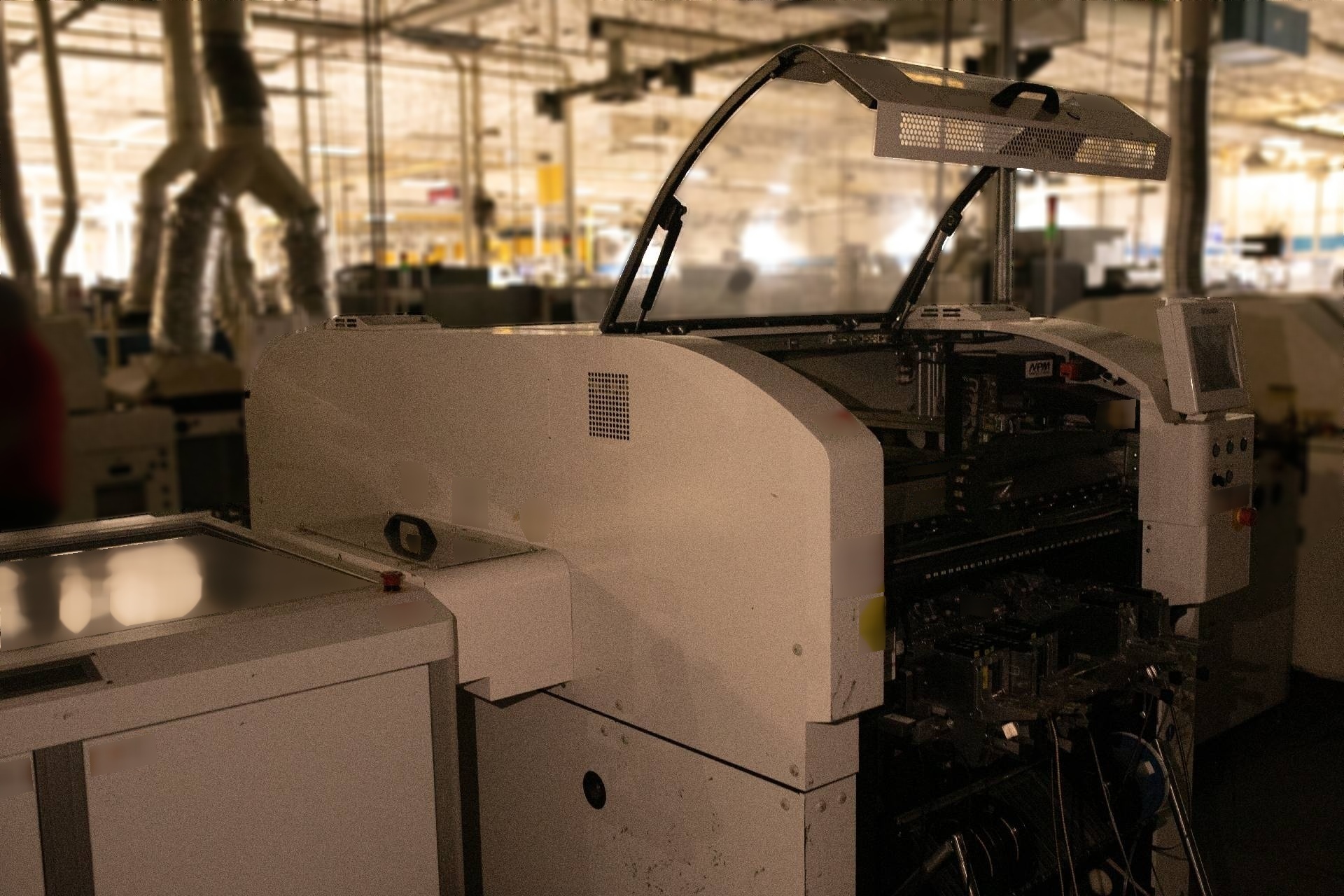

Used PANASONIC NPM-W #293821041 for sale

PANASONIC NPM-W is a PC board assembly and manufacturing equipment, designed to provide reliable, flexible and high-performance solutions for all kinds of PCB fabrication and assembly. The machine is designed for both high-volume processing of small to medium-sized PCBs, as well as highly accurate assembly of ultra-fine, miniature components. It can support a wide range of circuit board configurations and product sizes, from small pitch fine-pitch connectors to large, complex components. NPM-W features two independent assembly lines, motor-driven by linear transfer systems and robots. The complete assembly line includes a pick-and-place system that can handle components up to 0201 inch pitch, an inspection station with automatic board rework capability and an optional AOI (Automatic Optical Inspection) unit. The PC boards are loaded on the transfer machine for presentation to the robotic assembly. The movement of the board is controlled by either a manual or automatic mounting tool. The robot arm is then programmed to pick up the individual components and insert them into the PCBs, with minimal stress on the components. In addition, PANASONIC NPM-W is equipped with a through-hole soldering machine, which is controlled with a pre-defined soldering program and automatic fluxer. The PLC control allows for the programming of several different soldering parameters, such as soldering time, solder amount, and contact time. Once the PC board is soldered, the machine can carry out an optional automatic X-ray inspection to confirm the platform compliance and solder quality. Furthermore, NPM-W can also be used for SMT (surface mount technology) assembly, with a fully automated standalone process. This includes the use of an integrated screen printer with vacuum nozzle for precision placement of solder paste, as well as a high-speed chip mounter for placing components such as connectors, BGA's, and lead-free components. Finally, PANASONIC NPM-W offers a wide variety of other features and options, such as a reflow oven, an automatic feeder for mounting components and parts, and an automatic optical inspection asset. These features make NPM-W an ideal model for high-speed and high-quality PCB assembly. With its robust technology and reliable performance, it is an ideal tool for any type of PCB fabrication and assembly.
