Screen Printers

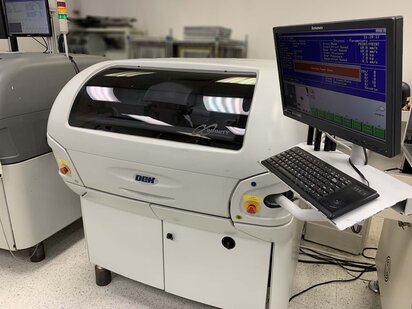

Screen Printer.

Screen printers, 2005 vintage.

Screen printer Powered up 1997 vintage.

Screenprinter manual table with drawers for stencil storage.

Screen printer, 2006 vintage.

Semiautomatic screen printer Does not includes vision, mechanical centering Spares available Currently warehoused 1996 vintage.

Screen printer Flow: Left to right Front fixed Understencil wiper 1998 vintage.

Screen printer Under stencil cleaner Auto paste dispenser Shutter camera, green camera Power requirements: 110V, 60 Hz Currently installed, not under power Cannot be demonstrated 1996 vintage.

Screen Printers, 1992 vintage.

Screen printer Bottom bearing not operational.

Screen printers Under stencil (vacuum) Windows NT Hours run: ~7500 PCB flow: Left to right, front fixed PCB flow direction can be changed Inspection system: 2.5D Auto stencil cleaner Auto pin guidance option Dismantled Stored in a warehouse 2003 vintage.

Screen printer Includes Y snugger Flow: Left to right Currently warehoused 2000 vintage.

Screen printer Software version: SP05 B04 2000 vintage.

Screen printer Prohead 2D Flow: Left to right Front fixed Understencil wiper / Vacuum 2005 vintage.

Screen printer Includes: Green camera Auto flex tooling Under stencil wipe & vac Auto paste dispense 1997 vintage.

Screen printer and paste dispenser, 1998 vintage.

Stencil printers BOARD HANDLING Maximum Board Size (X x Y) 23" x 20" (584mm x 508mm) Minimum Board Size (X x Y) 3" x 2" (75mm x 50mm) Board Thickness 0.03" to 0.20" including warpage, (0.8mm to 5.0mm) Maximum Board Weight 10 lbs. (4.5kg) Minimum Board Edge Clearance 0.19" (5mm), 0.12" (3mm) - Optional Maximum Underside Clearance 0.59" (15mm) Transport Speed Adjustable Transport Height From Floor 34" - 38" (860mm - 960mm) Transport Track Feed Direction Left-to-Right, Right-to-Left, Left-to-Left and Right-to-Right Triple Track Conveyor Lengths 52" (1320mm), 60" (1524mm), 68" (1727mm) Method of Board Hold-Down Positive edge-clamps (front and rear) Method of Board Support Independent, moveable magnetic support pins PRINT PARAMETERS Maximum Print Area (X x Y) 22" x 19.6" (559mm x 498mm) Snap-off Speed 0.008" - 0.39"/sec, (0.2mm - 10mm/sec) Print Speed 0.2" - 7.87"/sec, (5mm - 200mm/sec) Print Pressure Up to 44 lbs (20 kg) Print Stroke 20" (508mm) Stencil Frame Size 29" x 29" (737mm x 737mm) standard Smaller Frame Accommodations By use of optional Adapters VISION Vision Field-of-View (FOV) 0.40" x 0.40" (10mm x 10mm) Fiducial Types Standard shape fiducials. See SMEMA standards. Camera System Single roving camera module with dual beam optics PERFORMANCE Vision Alignment Repeatability +/- 0.001” (+/- 0.025mm) at 6 sigma (Cp greater than or equal to 2.0*) verified with glass plate capability test** Vision Alignment Accuracy +/- 0.001” (+/- 0.025mm) at 6 sigma (Cp greater than or equal to 2.0*) verified with CeTaQ™ CmController™ capability test** Print Deposit Repeatability and Accuracy +/- 0.002” (+/- .050mm) at 6 sigma (Cp greater than or equal to 2.0*) verified with CeTaQ™ CmController™ capability test** CYCLE TIME Standard Performance 16.2 seconds*** Speed Enhancement Package 12.5 seconds*** Speed Enhancement Package 11.0 seconds*** and Triple Track Conveyor System FACILITIES Power Requirements 110 - 240V, 50/60Hz (+/-10%) Air Supply Requirements **** 5 CFM at 90 psi, Clean Air Supply 2006 vintage.

Screen printer (4) Posts Currently warehoused 1998 vintage.

Screen printer.

Screen printer.
