Solar Production Equipment

Dispensing systems Operating pressure: 10 bar max Servo motor Pneumatic cylinder Drum pump 440V, 60Hz, 17kW Air supply: 4.5 barG 2011 vintage.

Flasher With KUKA robot (40) Modules / Hour 2009 vintage.

EVA Sheet cutter 2009 vintage.

Tabber / Stringer layout system 2011 vintage.

system.

Solar cell wafer processing system 2011 vintage.

Laminator With GLAS/GLAS water cooling unit Maximum laminating area: 1 m x 1.7 m Module with water cooling Cycles: 7900 pcs 2008 vintage.

Frame Presses.

Laminators Solar panels Includes: Lamination (2) modules per batch Power: 75 kW PV Modules: Glass-backside-foil / Glass-glass 2008 vintage.

Laminator 2009 vintage.

Glass feeder conveyor line.

Lifetime inspection system Scan silicon block inspection 2016 vintage.

Simulator 2011 vintage.

Wafer transfer system Unload inline system into carriers Carrier type: RENA RCC100 Inline speed: >0.5 and <4m/min Transport height: 950mm +/-50mm Supply voltage: 380 - 480VAC +/-10% Connected load: 0.5 kVA Full power current: 1A Frequency: 50/60Hz Connection cable: 3 phase + PE Prefuse max: 16A Cross section recommended: 2.5mm2 Cross section max.: 4mm2 Air consumption: 0 Nm3/h Lane: 1 2012 vintage.

System, 2009 vintage.

Wet bench station, 6" 2008 vintage.

PECVD System, 6" Material: Poly Silicon Process: Ammonia & Silane gas Ammonia gas panel and fume scrubber Chambers Chamber 1 - Load lock chamber (load) Chamber 2 - Heating chamber Chamber 3 - Deposition chamber Chamber 4 - Cooling of chamber Chamber 5 - Load-lock chamber (unload) Pnuematics: Compressed air: 5-7 bar oil free Connections: Festo 10 mm Process gas distribution: Central Connection of gas pipes: VCR4 Cooling Water: Pressure 4-6 bars Inlet temperature: max 20 C Water flow: max. 4000 l/h 1 1/4" Pin connectors Voltage: 400V +/- 5%, 3 phase, 60 Hz Power: 160 Kw 2005 vintage.

Laminator Features: PLC & Touch-screen control system Touch-screen parameter (3) Pairs of photoelectric supervise barrier Conductive oil heating station separated with machine Overheating sensor with heating plate Disconnection detector Specifications: Production rate: (3) Panels / Hour Laminating area size: 2100 × 1100mm Maximum thickness of laminate: 35mm Vacuum degree: 30-100 pa Working temperature range: 130-180°C Temperature uniformity: ± 1.5℃ Power supply: 380VAC, 3 phase, 4 wires, 50 Hz. Peak power: 38kW.

Inverter Specifications: Input DC: U MPP minimum: 380V U MPP maximum: 850V U DC maximum: 1000V I DC maximum: 29A Overvoltage protection: type 3 Output AC: P rated: 10.0kW P maximum: 10.0kW I maximum: 18A Grid connection: 400V, 3-phase, 50/60Hz Cos phi: 0.9i tp 0.9C Own consumption at night: <0.5W Overvoltage protection: type 3 Efficiency: Eta EU: 97.4% Maximum efficiency: 98.0% Ambient conditions: T minimum: -25°C T maximum: 55°C T maximum for P rated: 45°C Cooling: natural convection Maximum installation: 2000m Operating noise: <45 dBA.

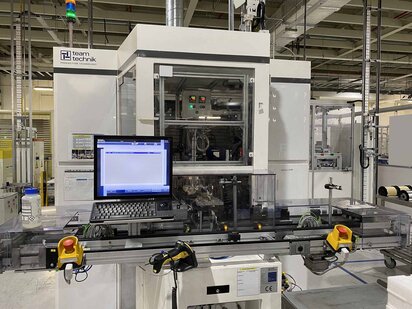

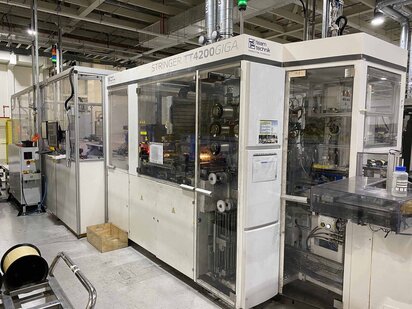

Stringer system 2011 vintage.
