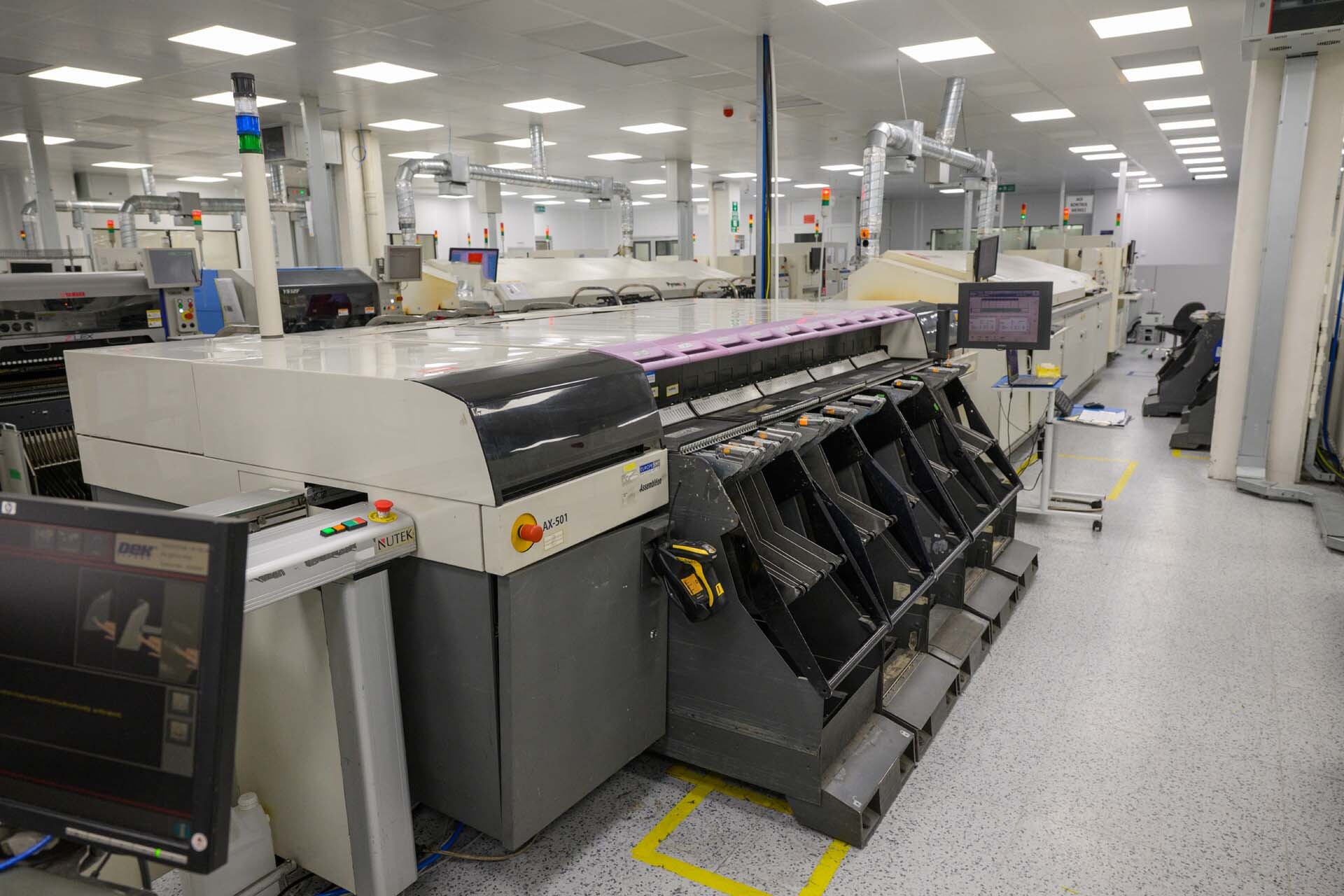

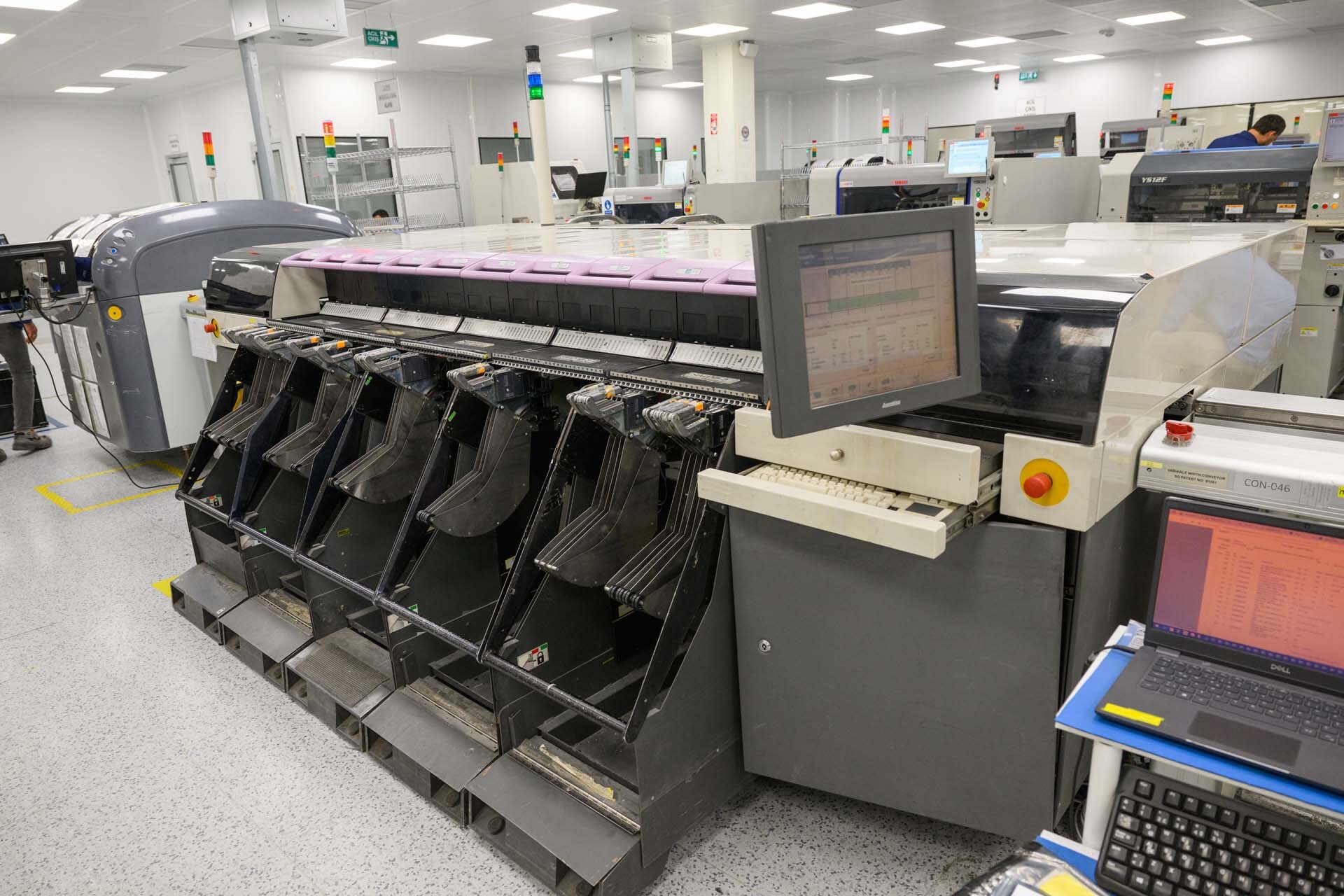

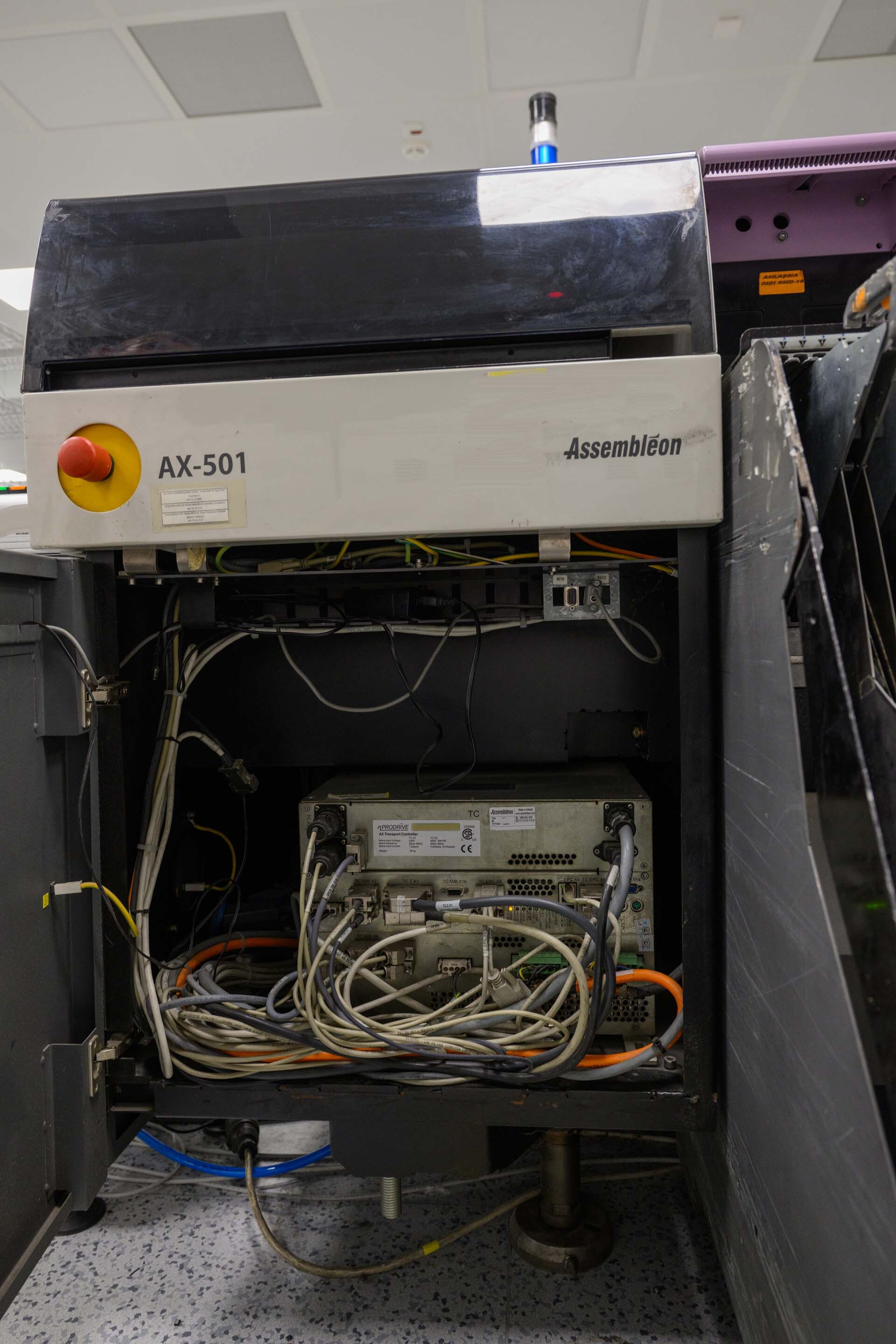

Used PHILIPS / ASSEMBLEON AX501 #293831703 for sale
URL successfully copied!
Tap to zoom

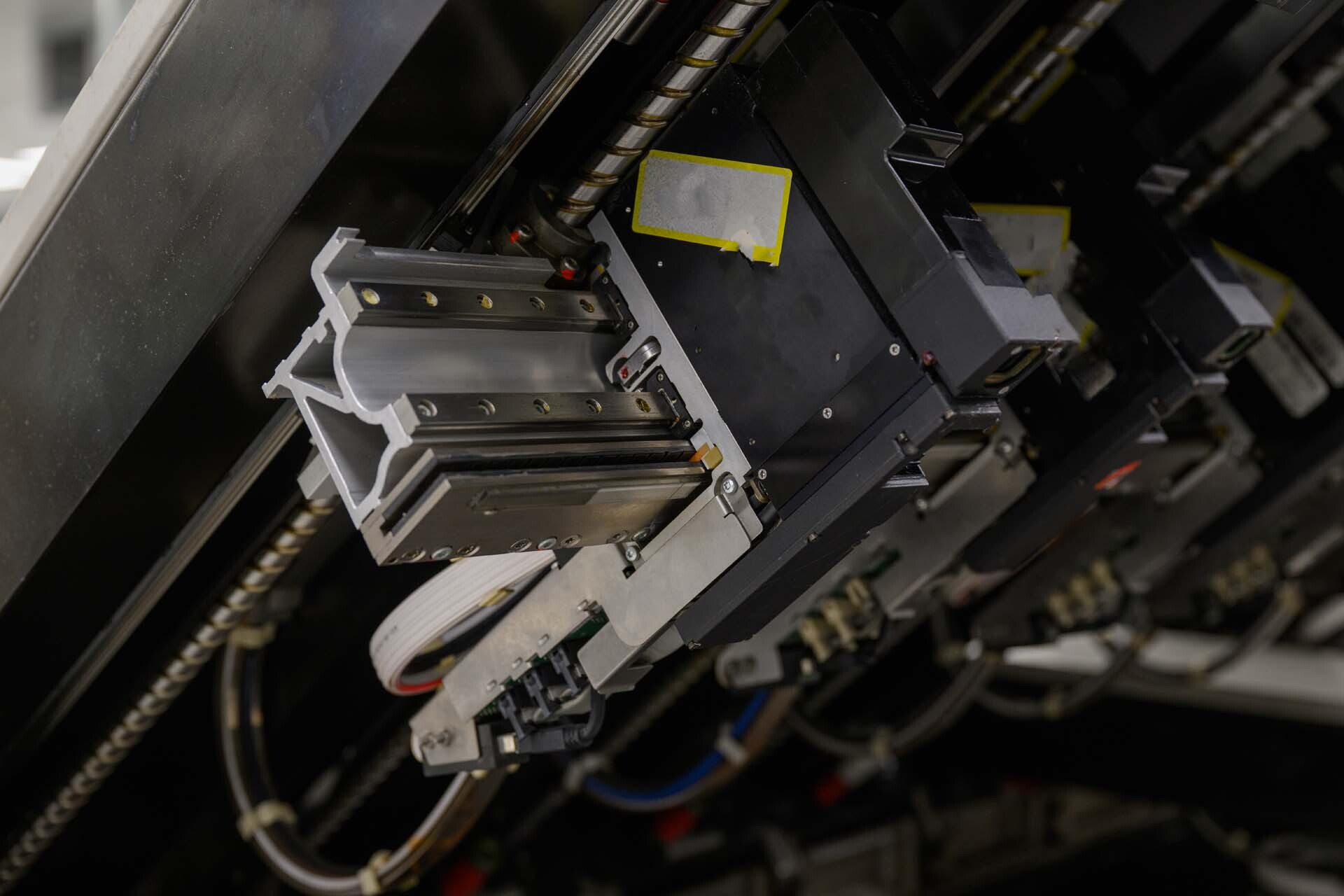

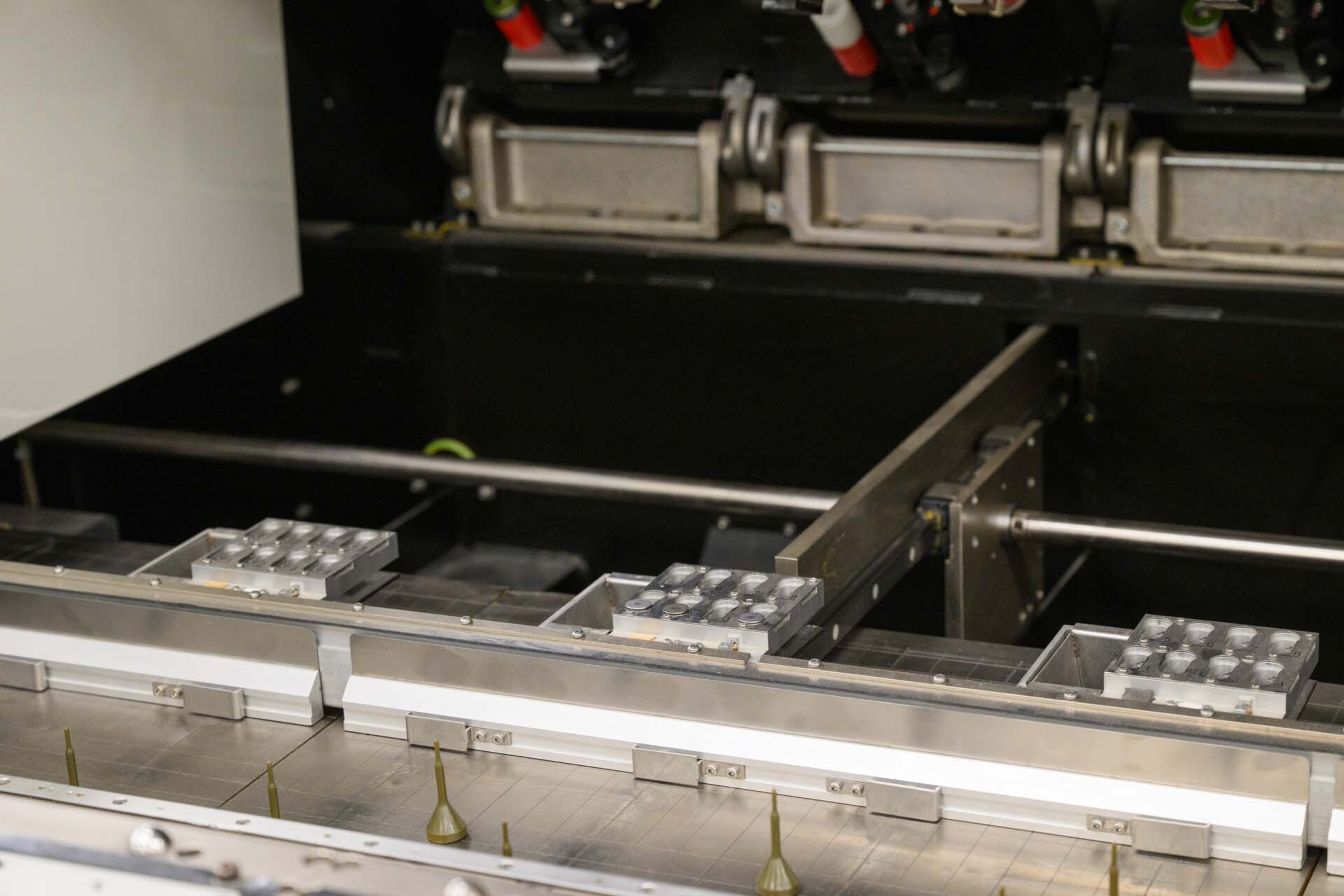

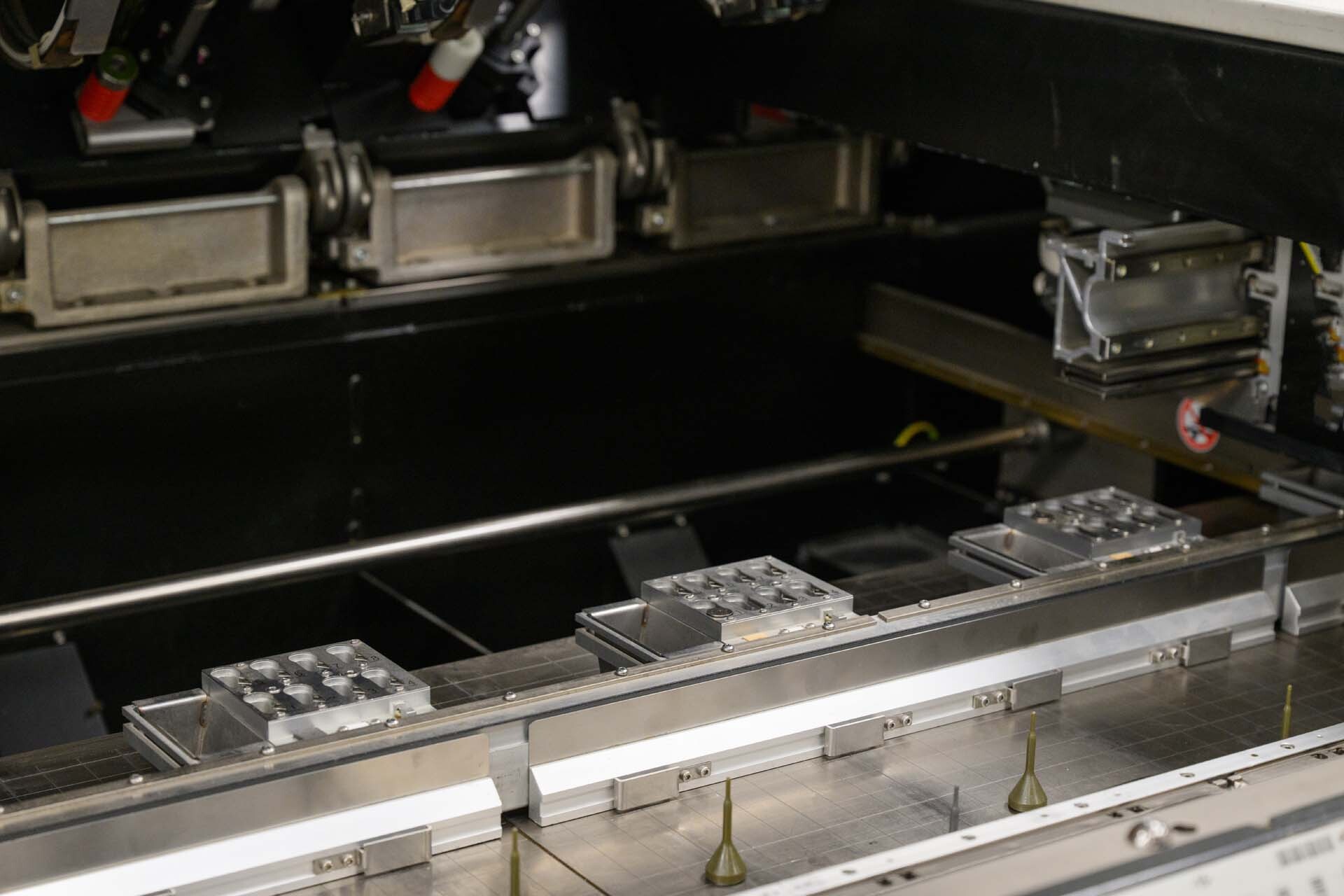

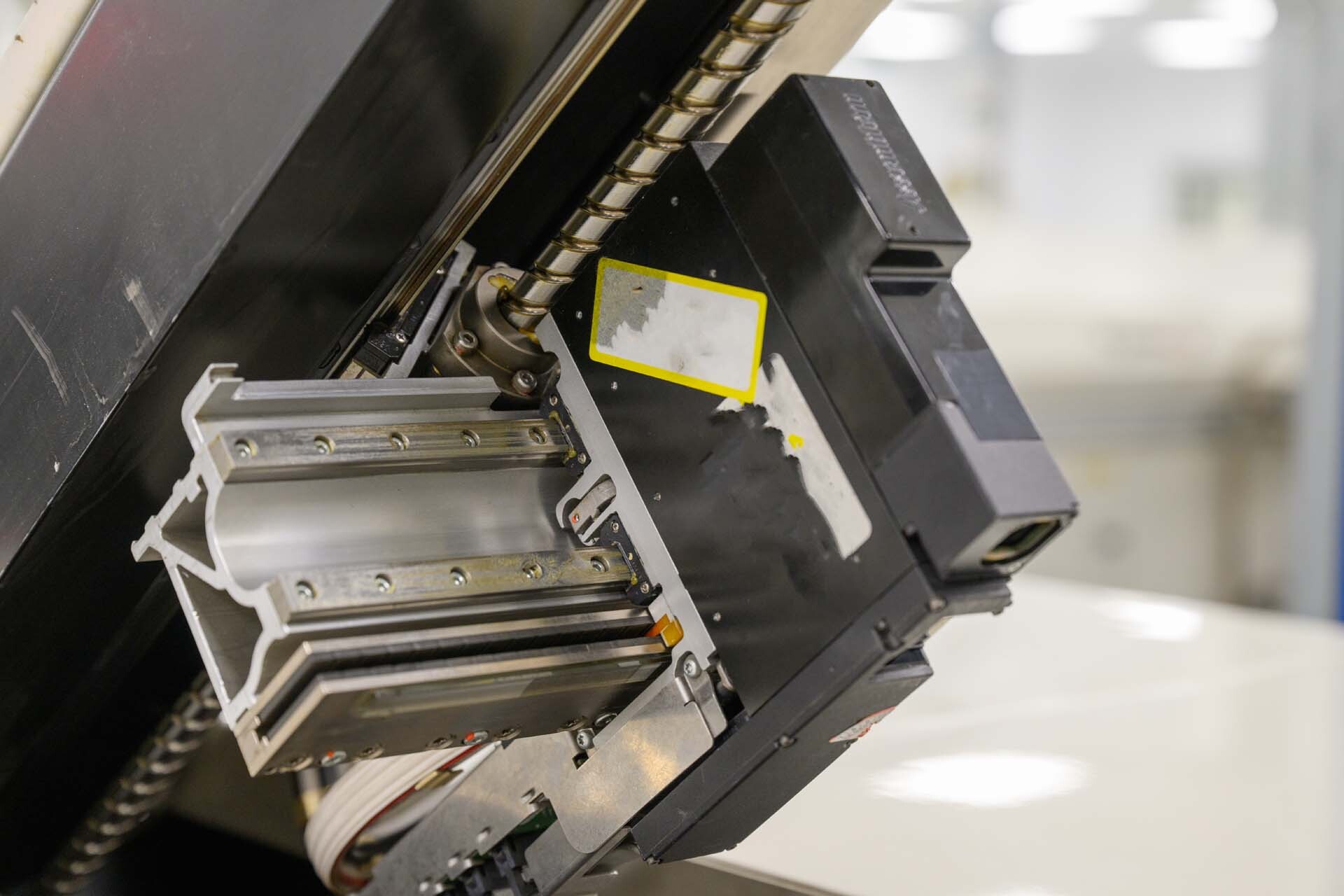

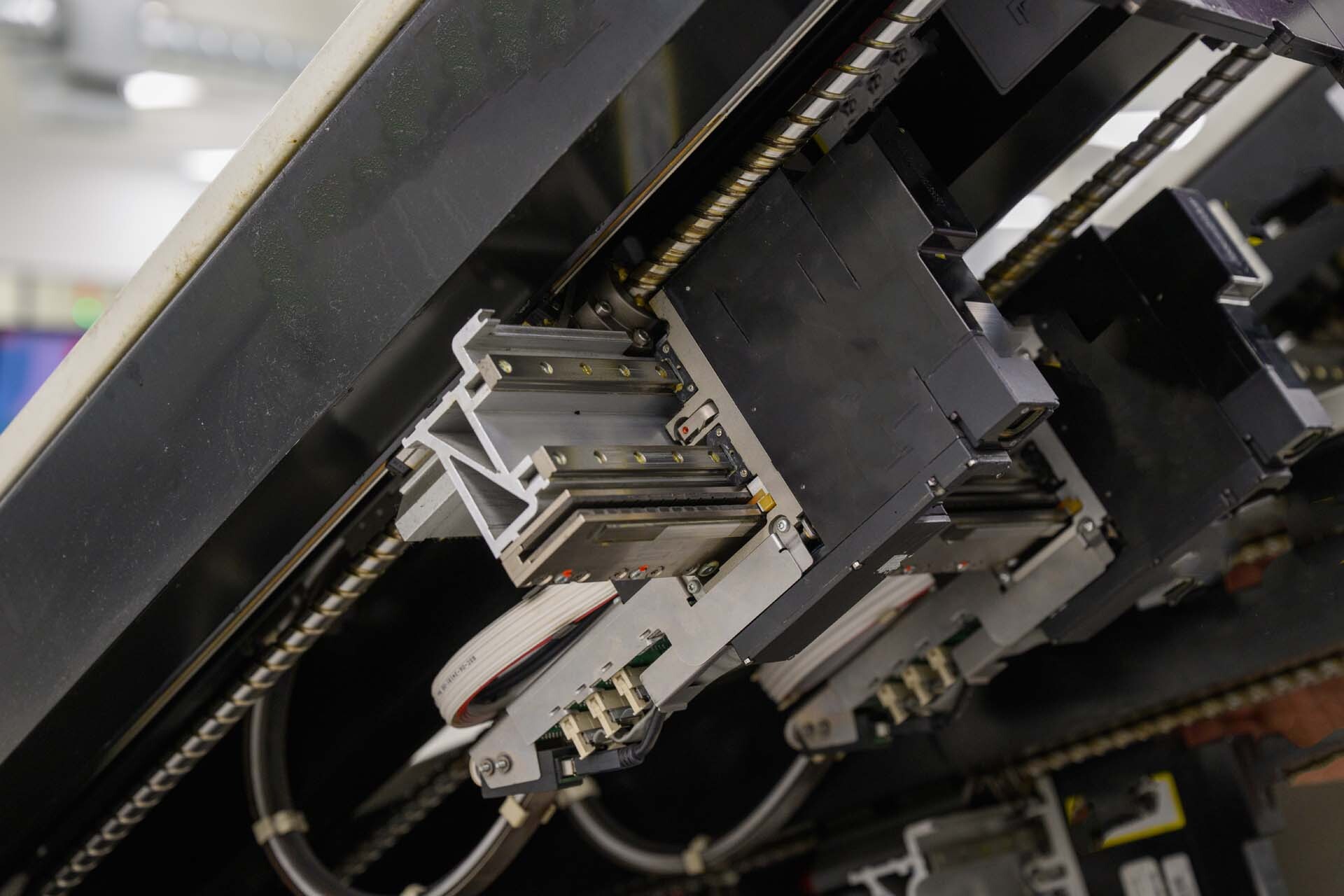

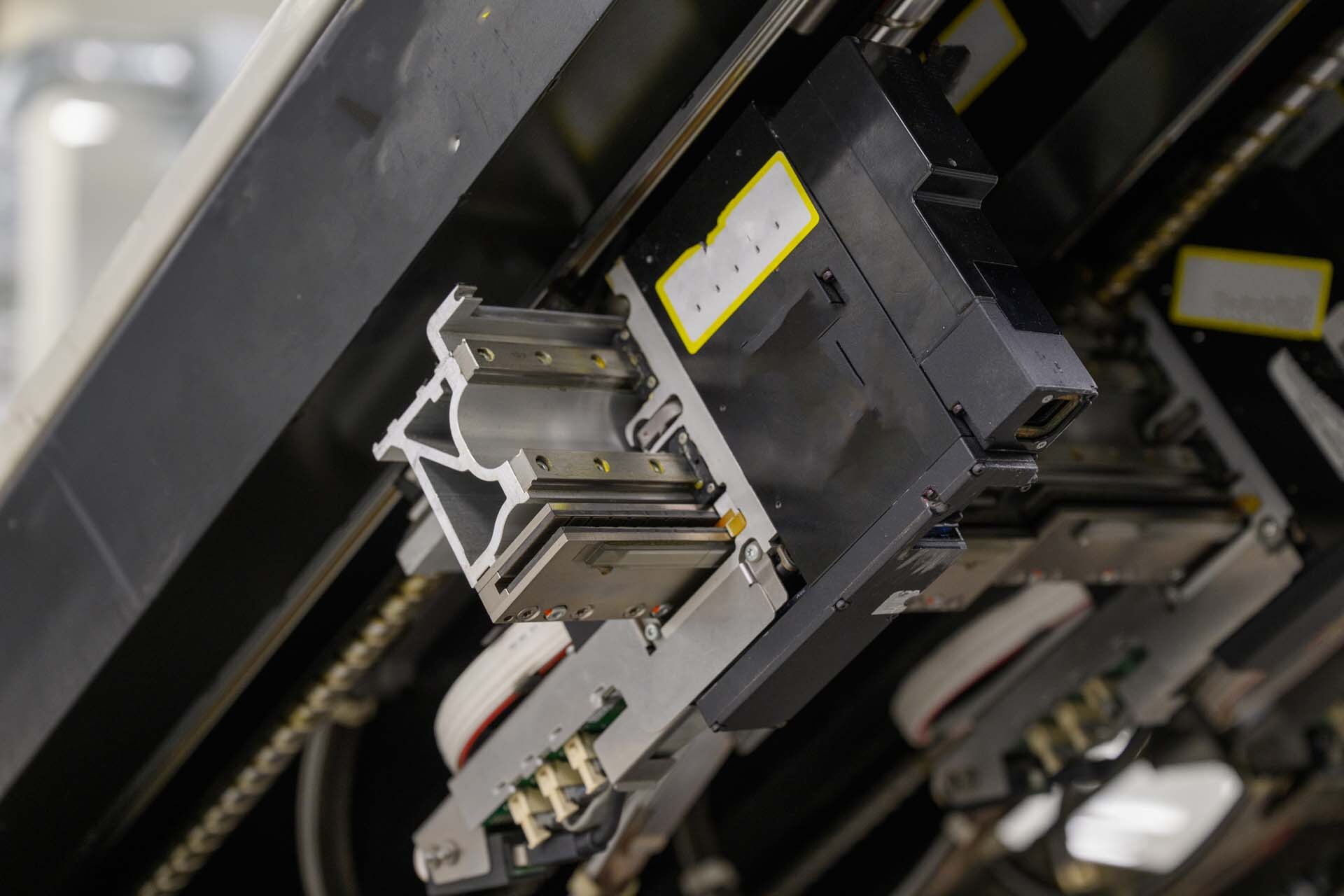

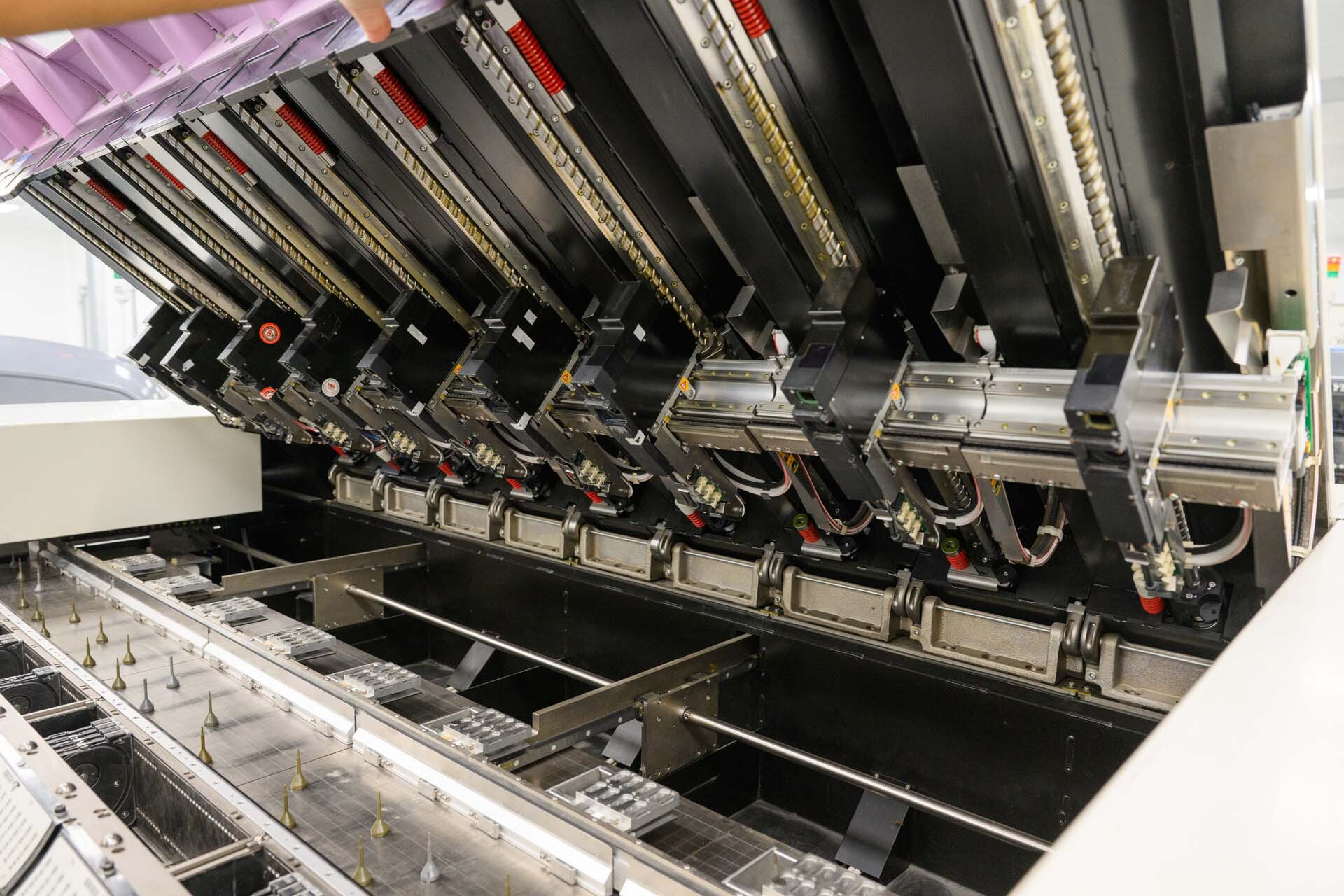

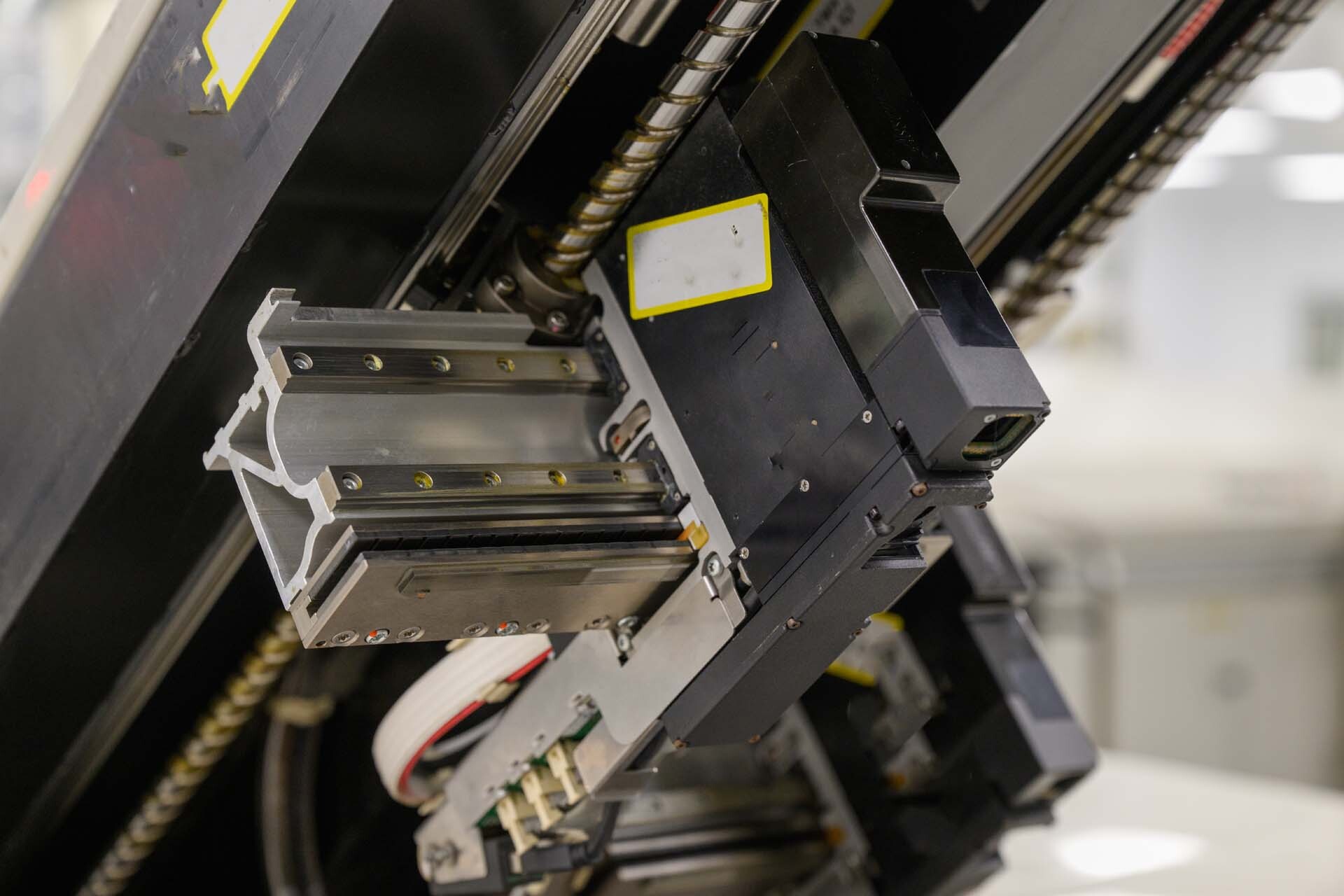

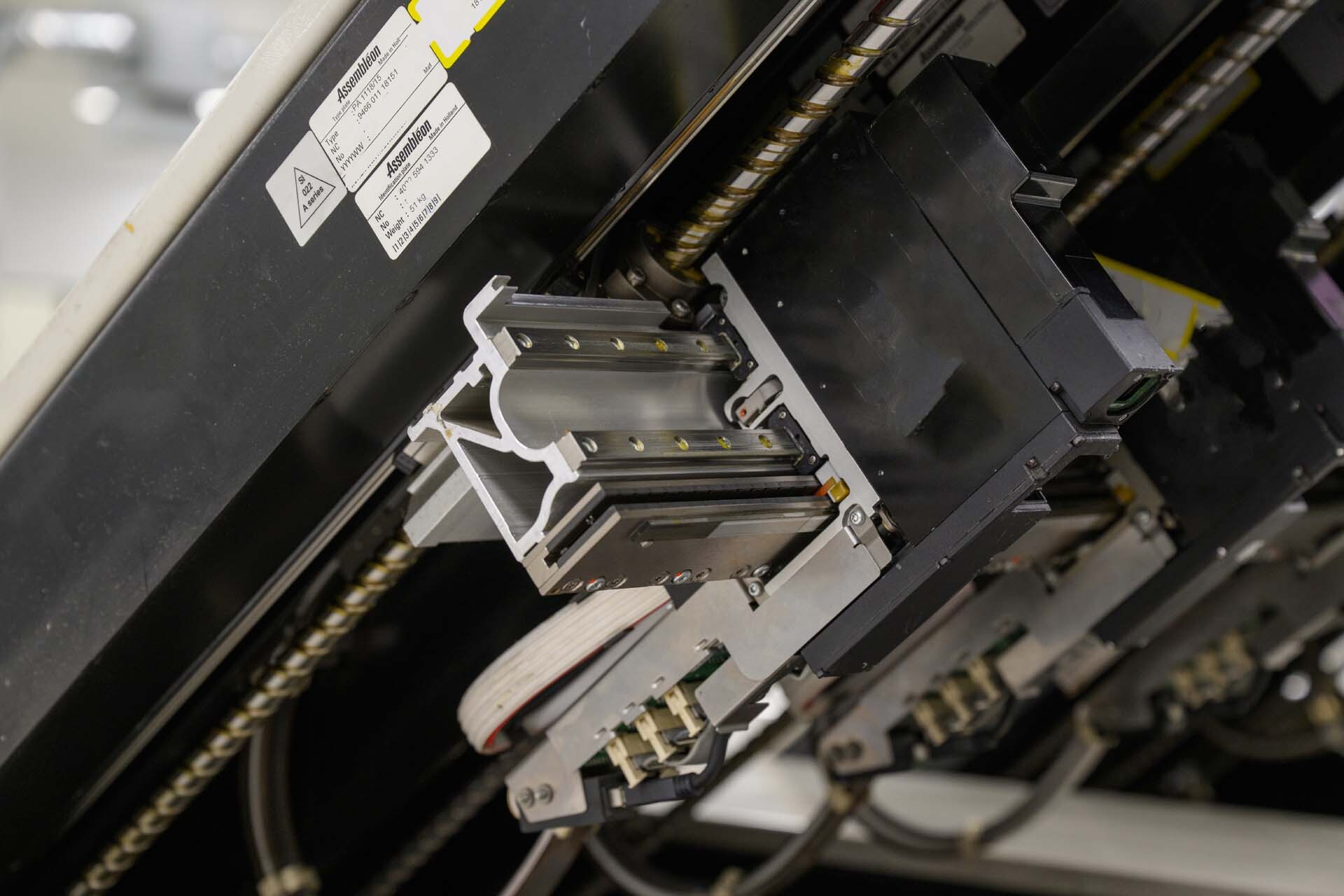

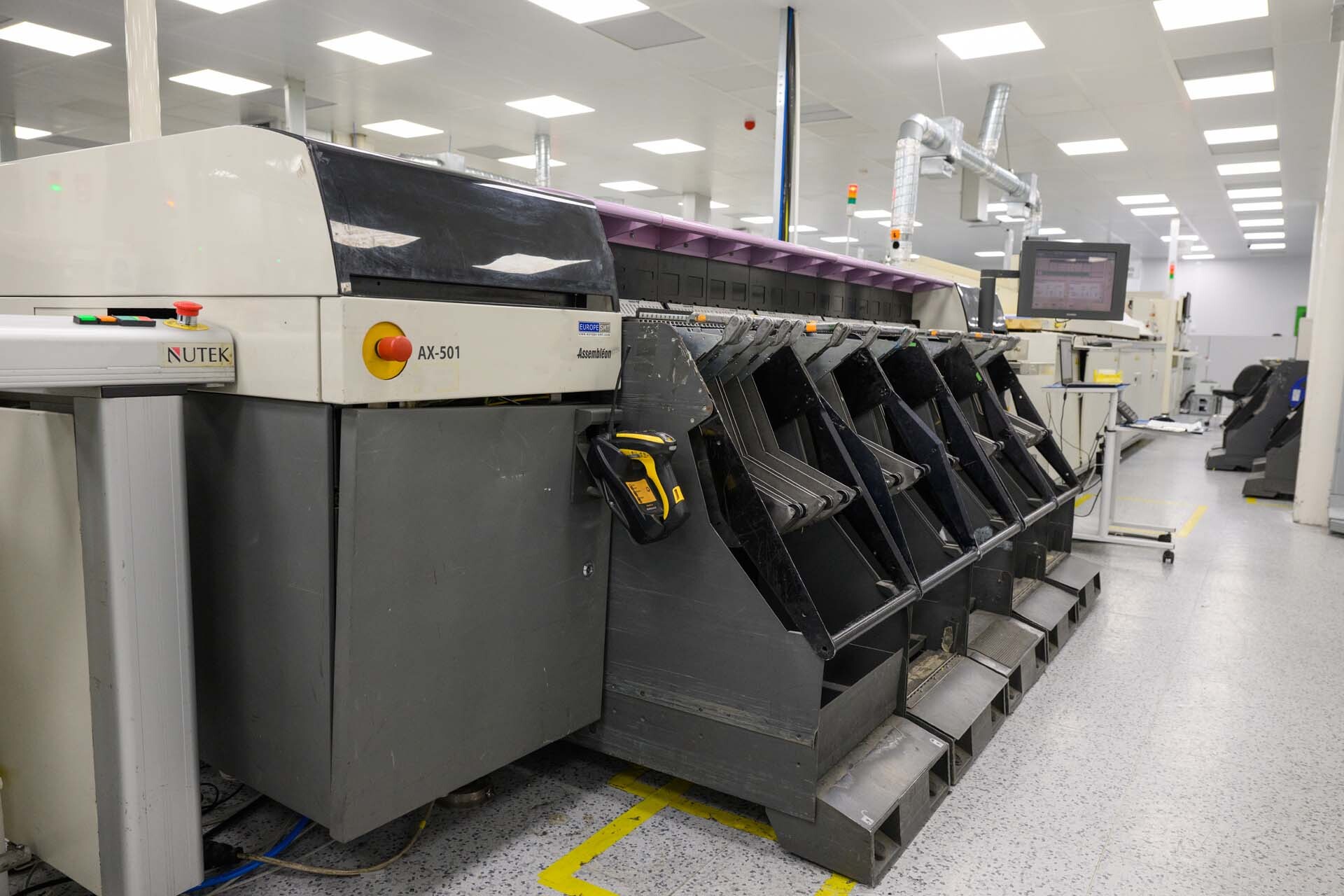

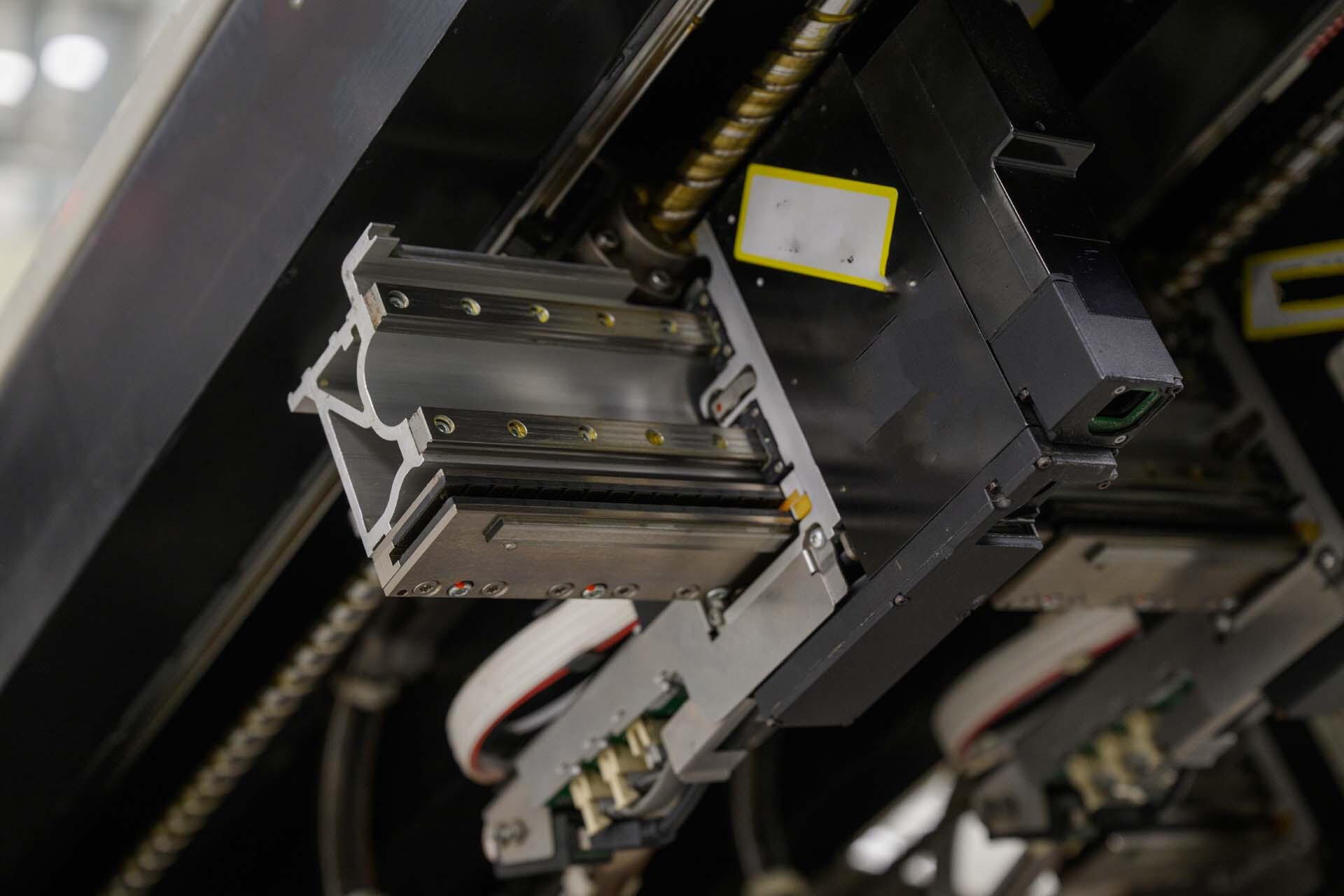

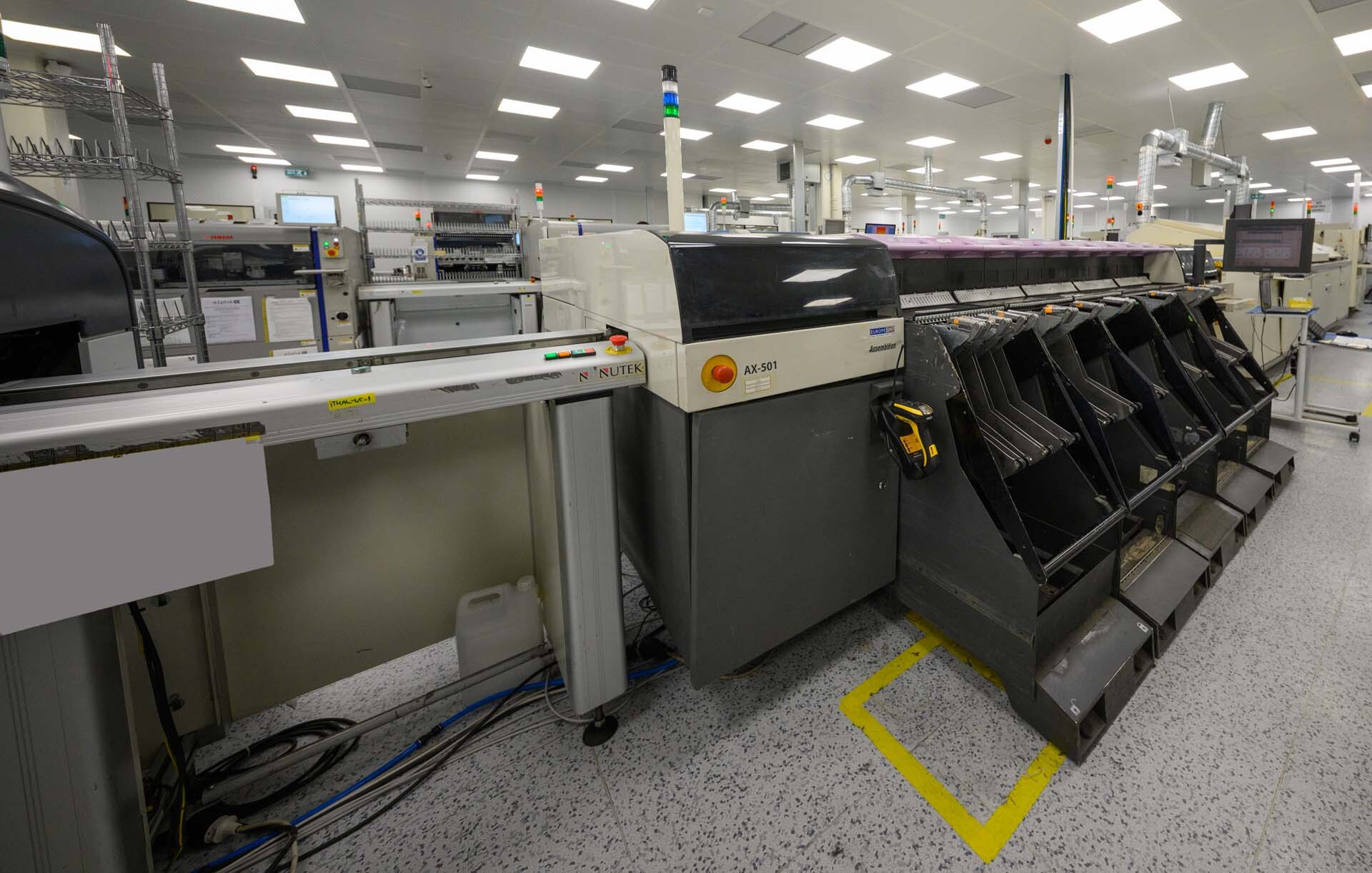

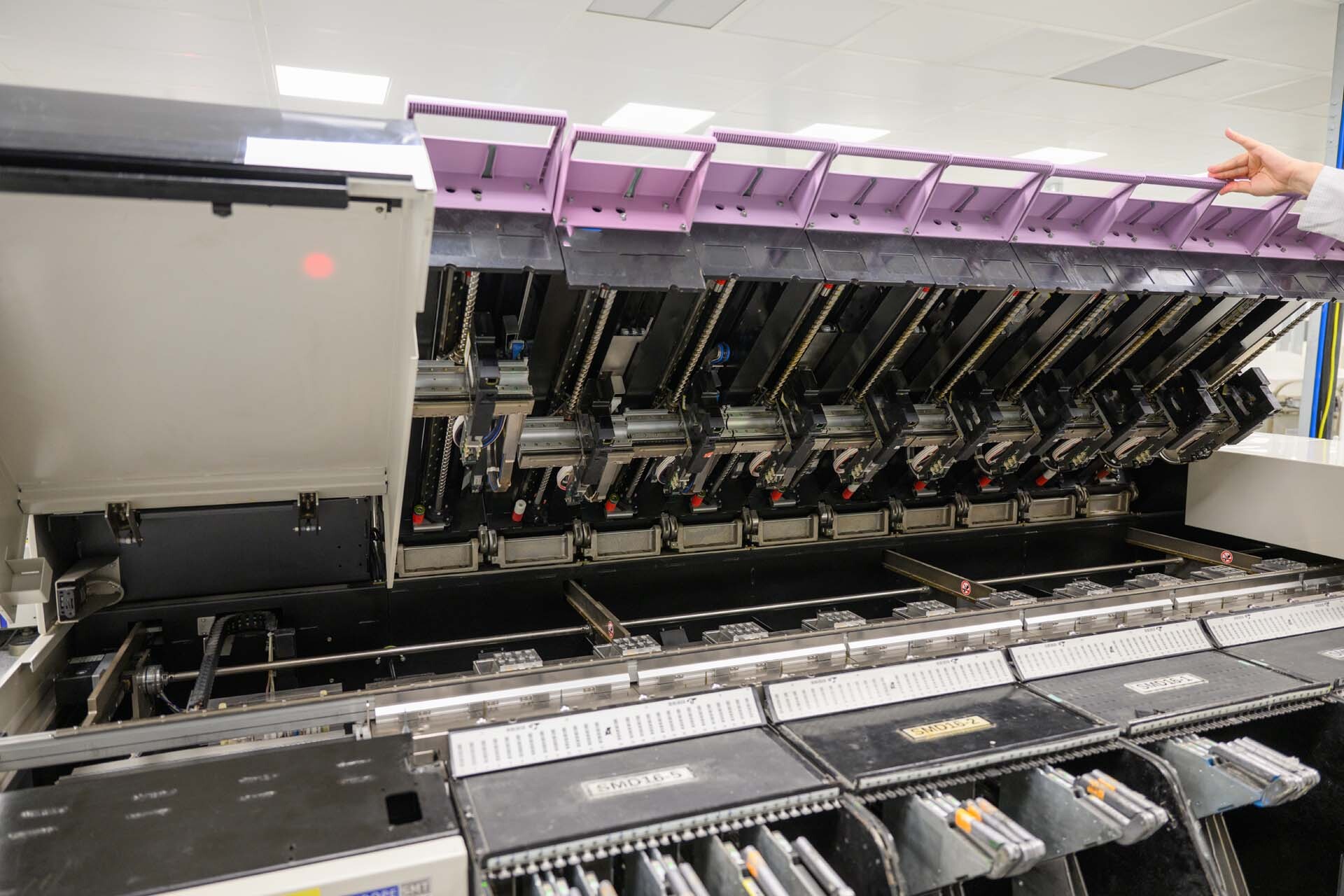

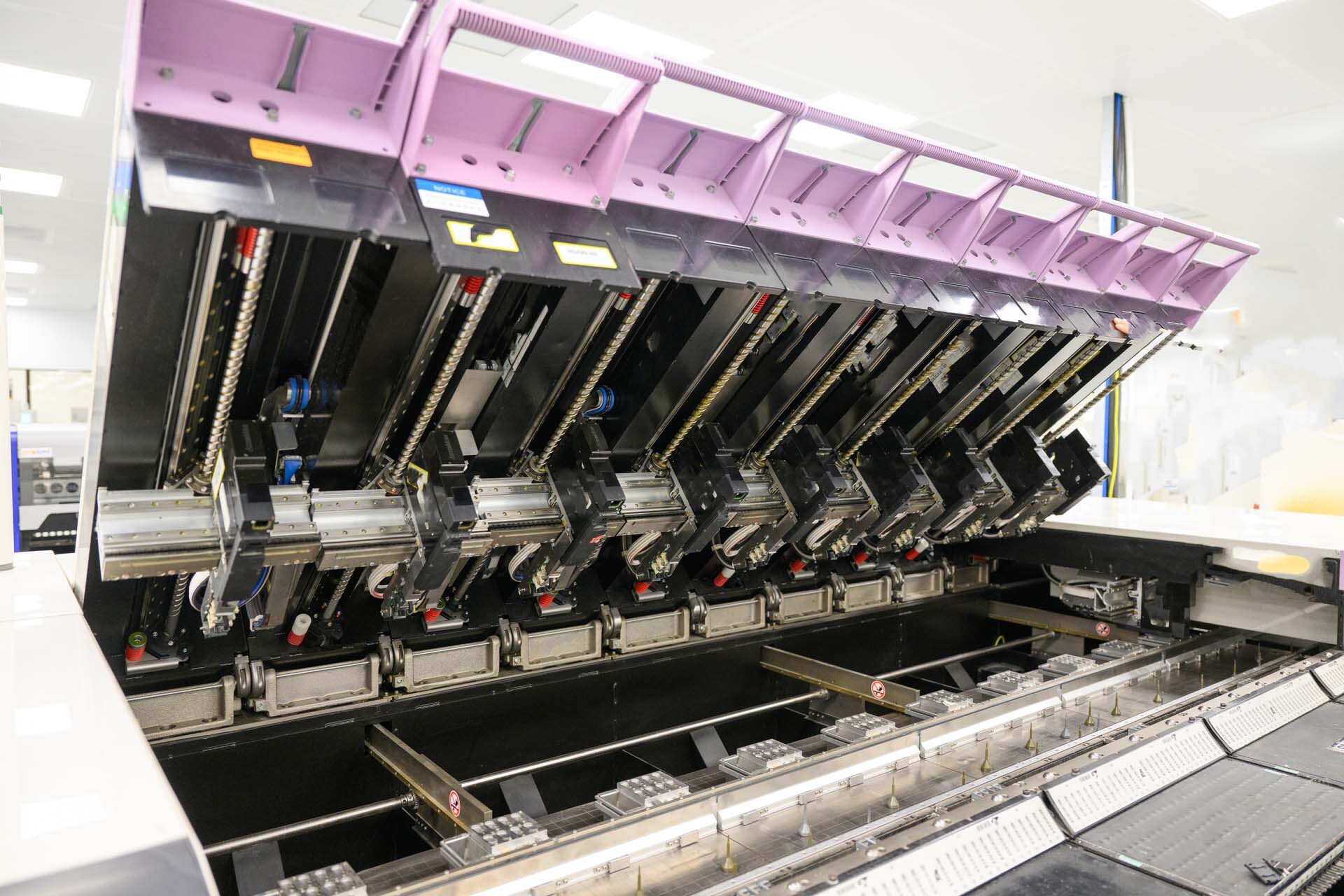

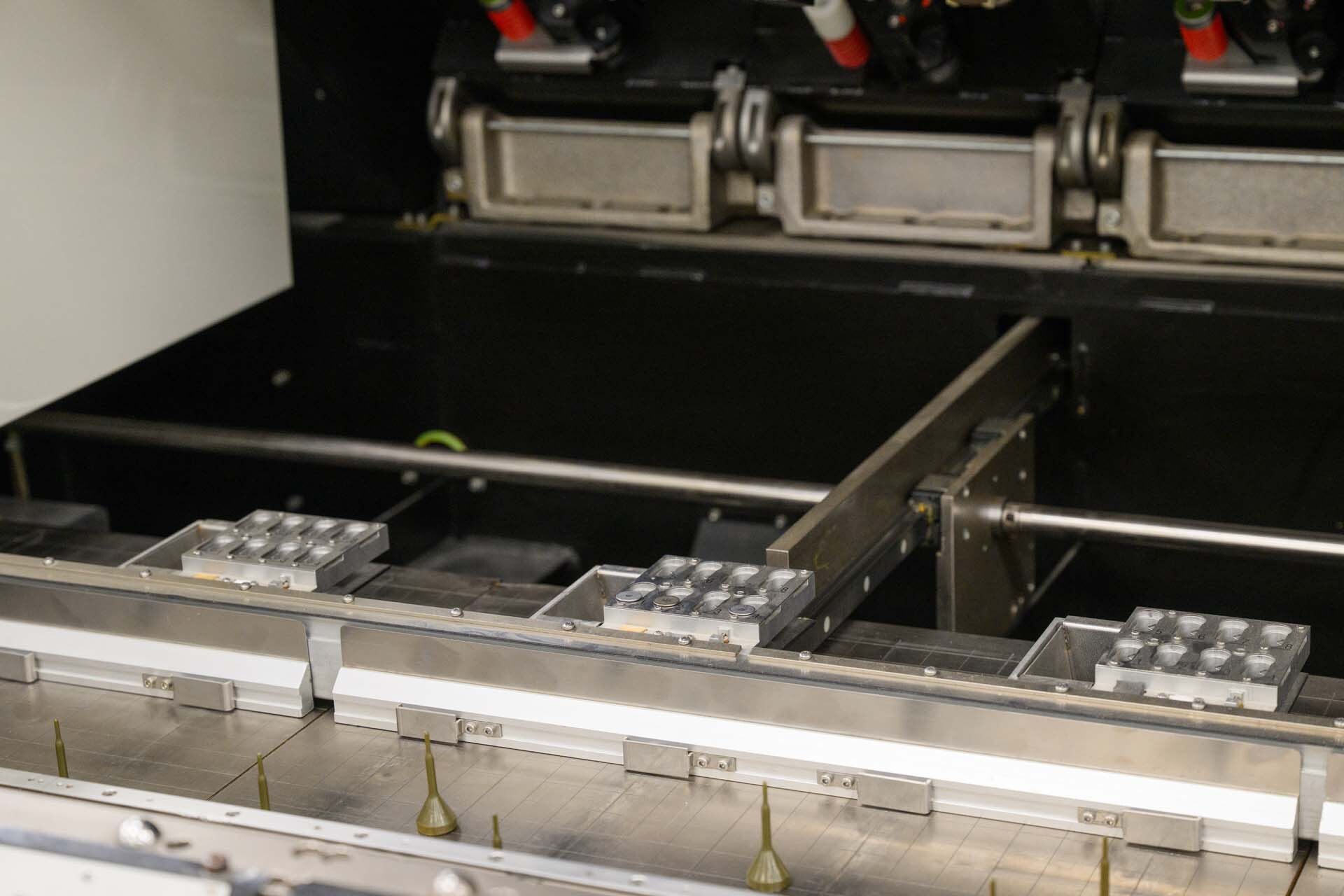

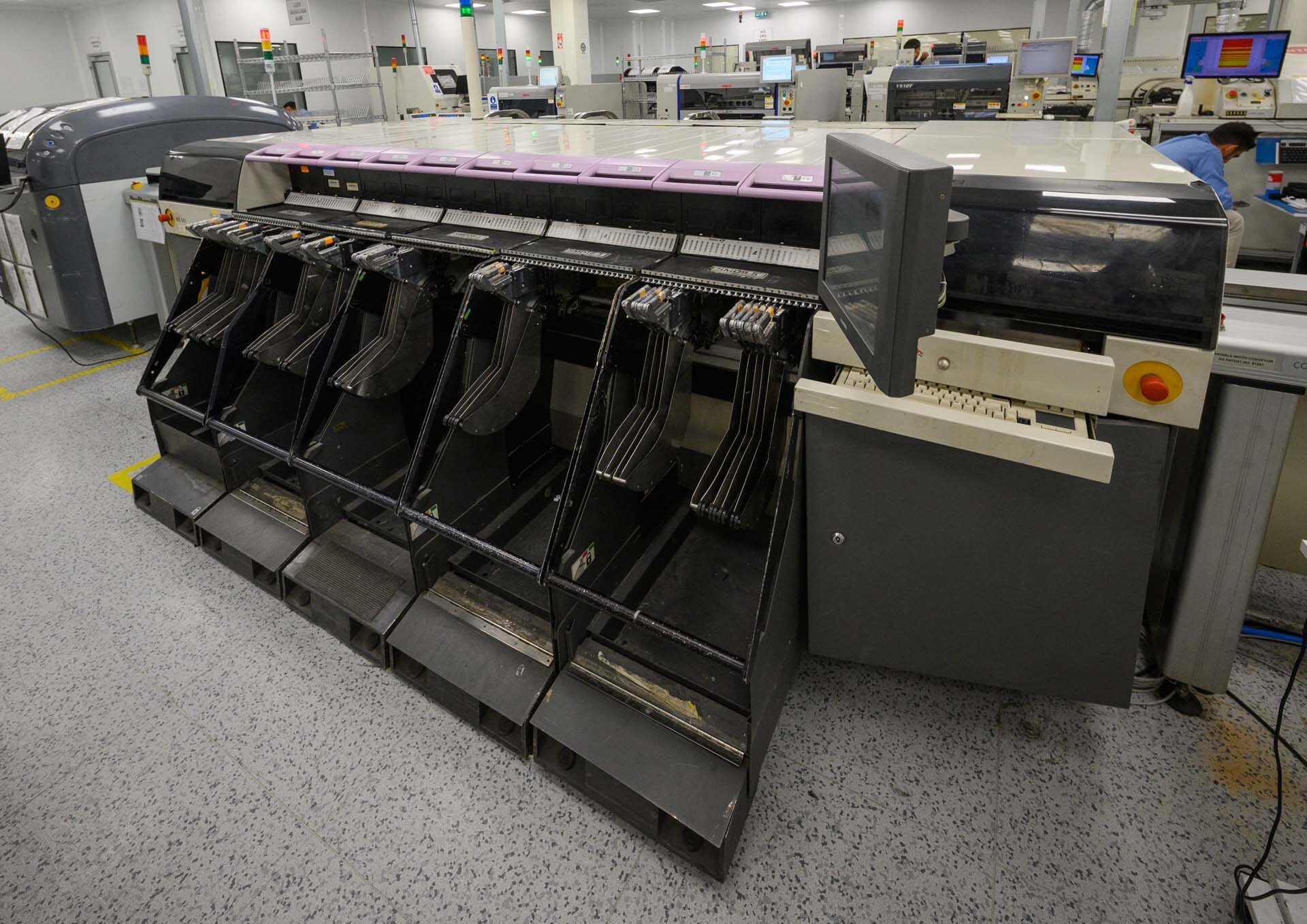

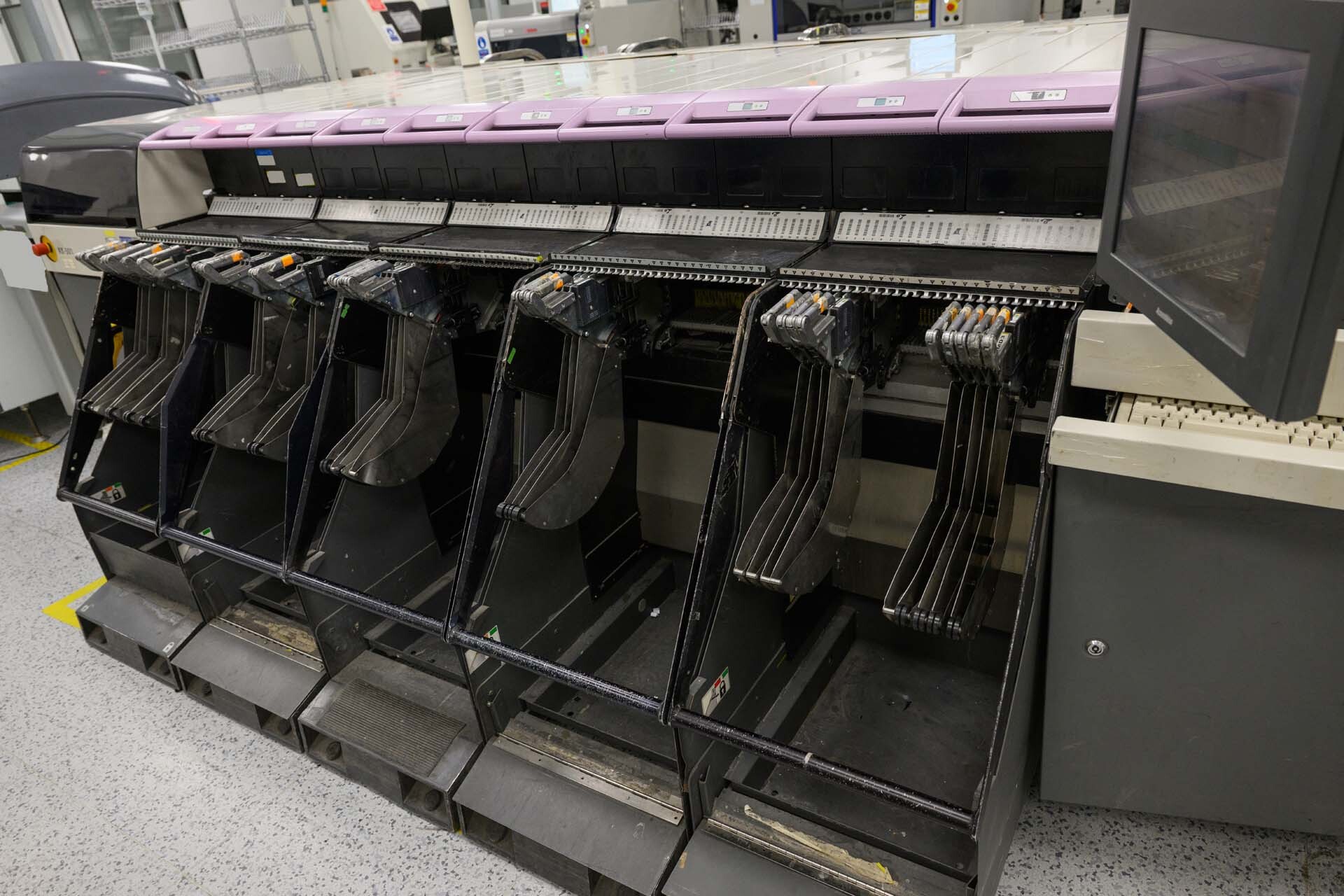

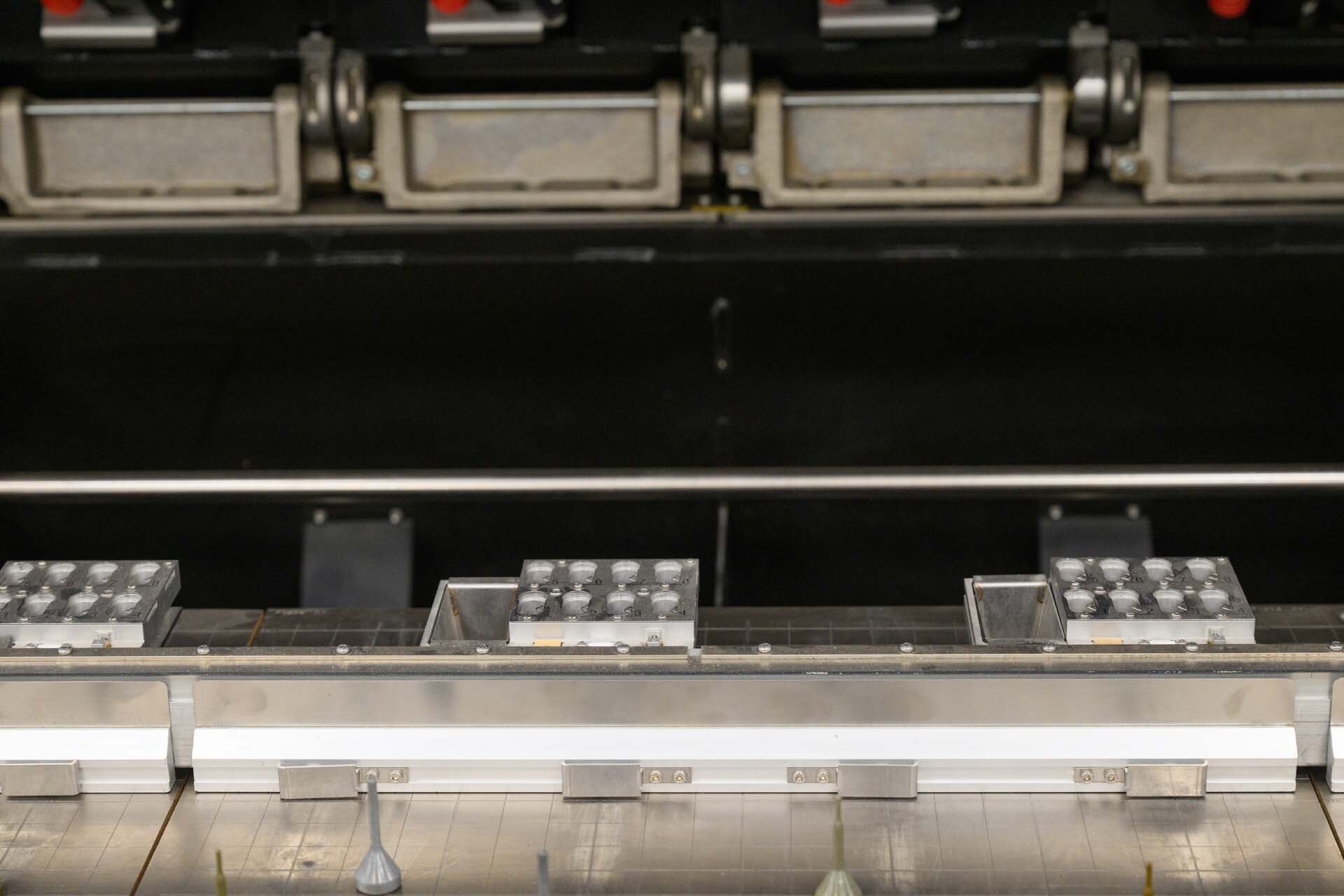

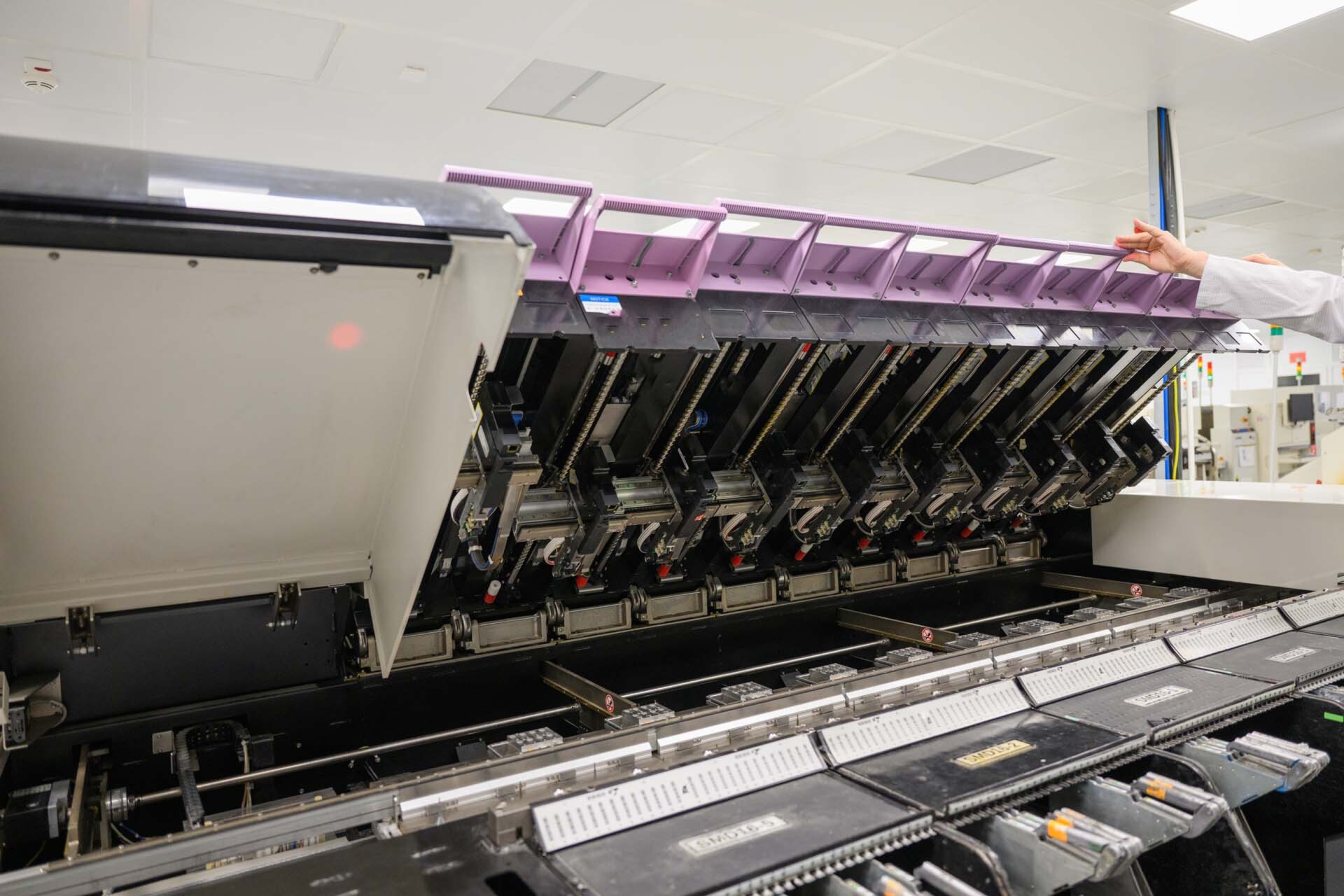

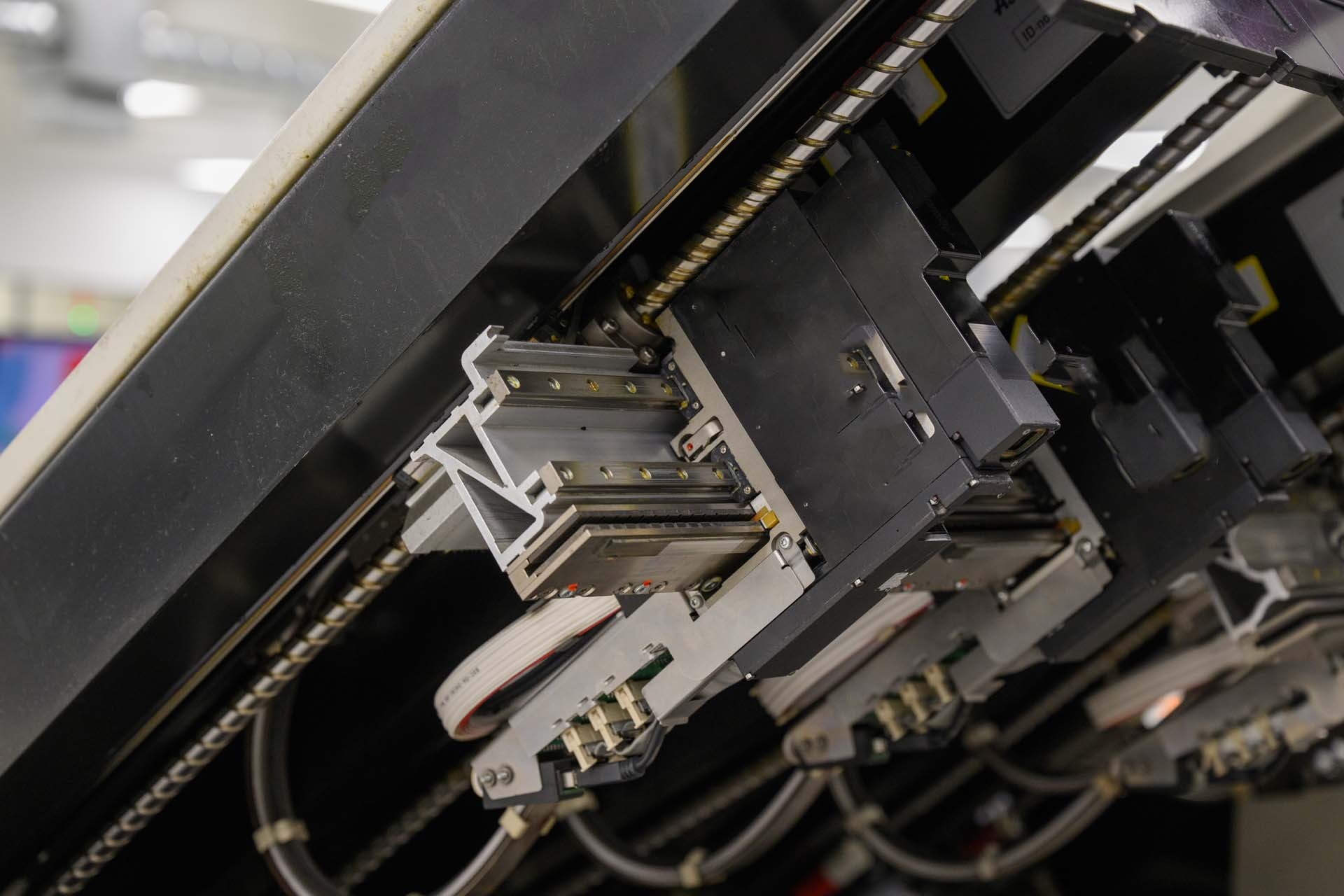

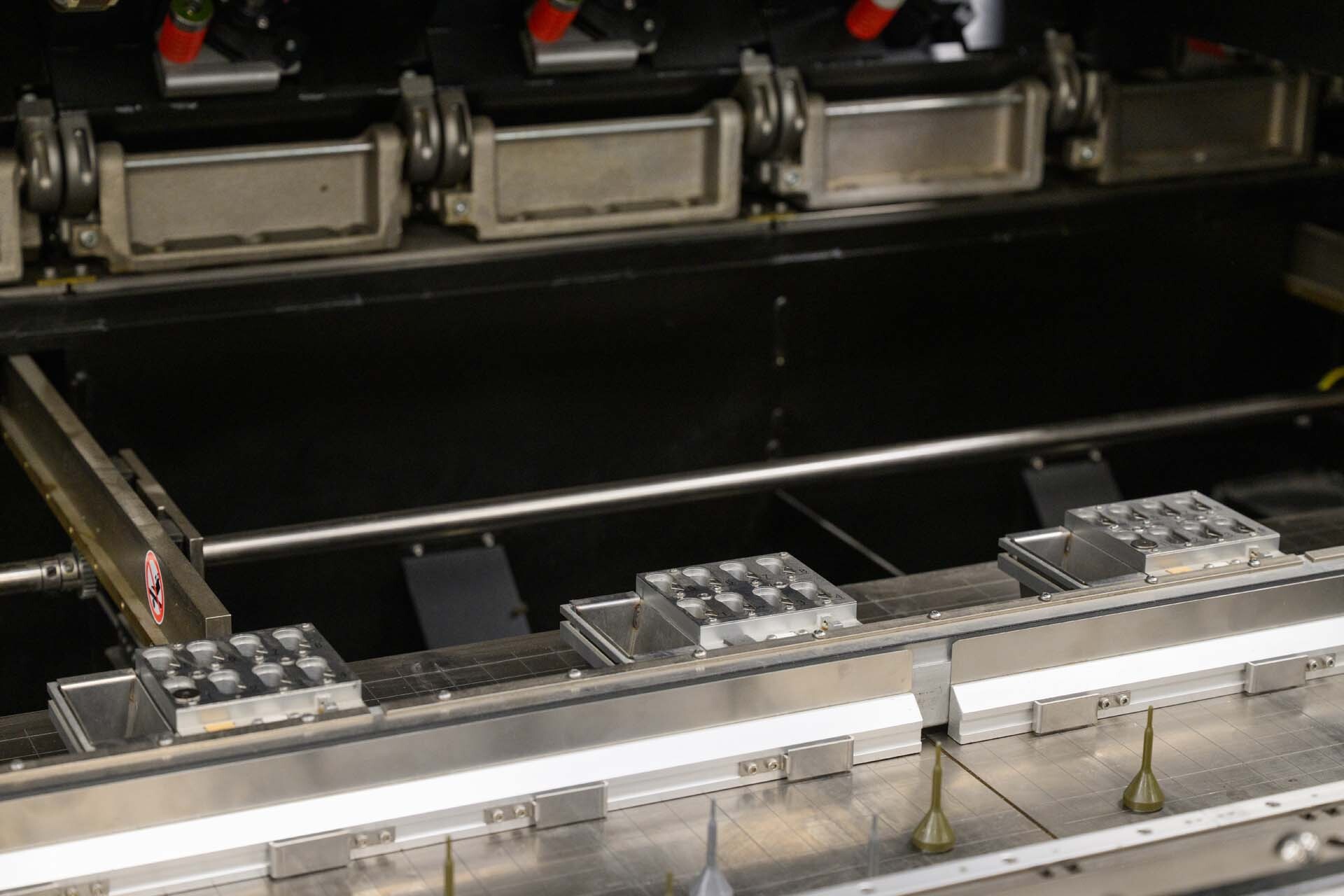

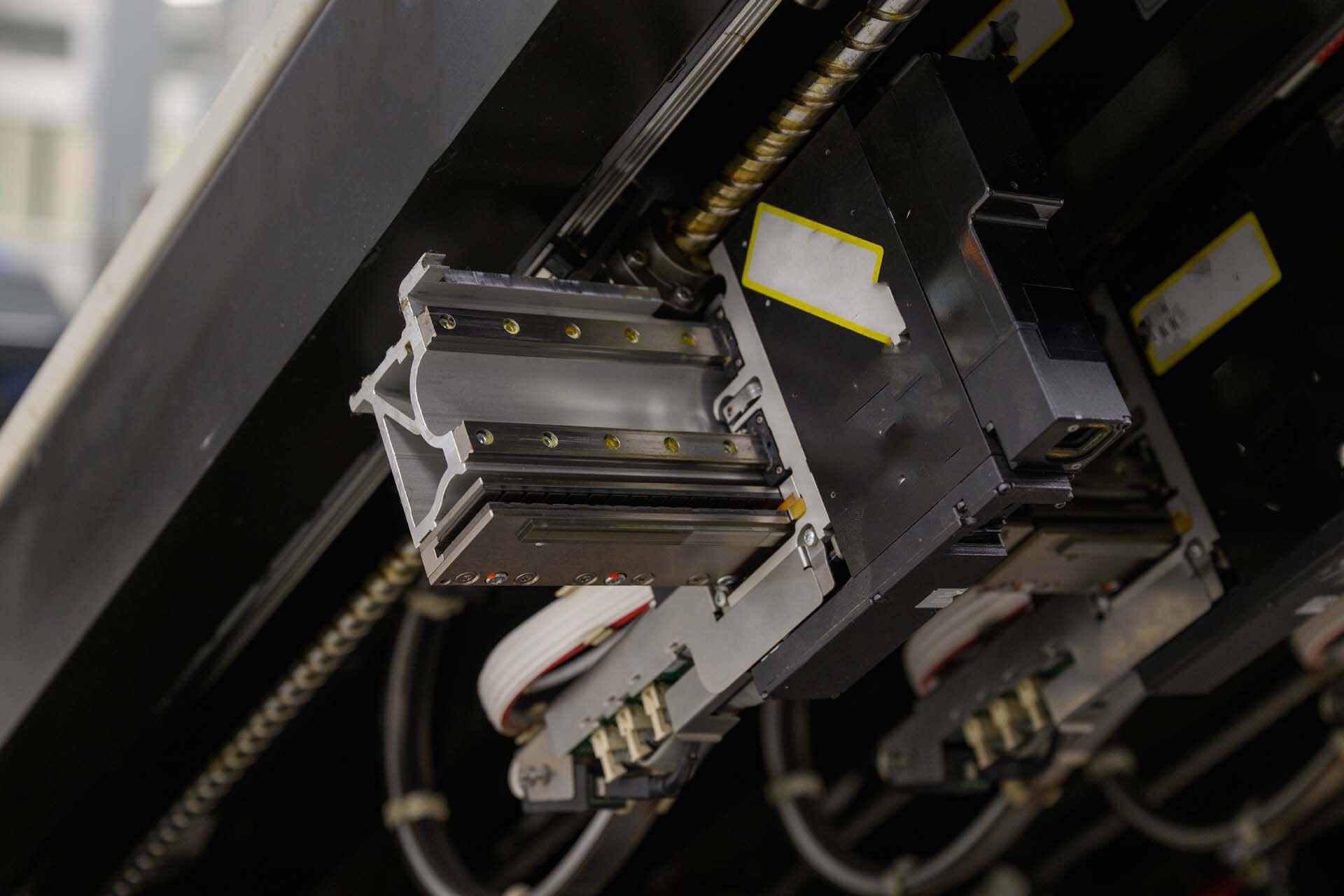

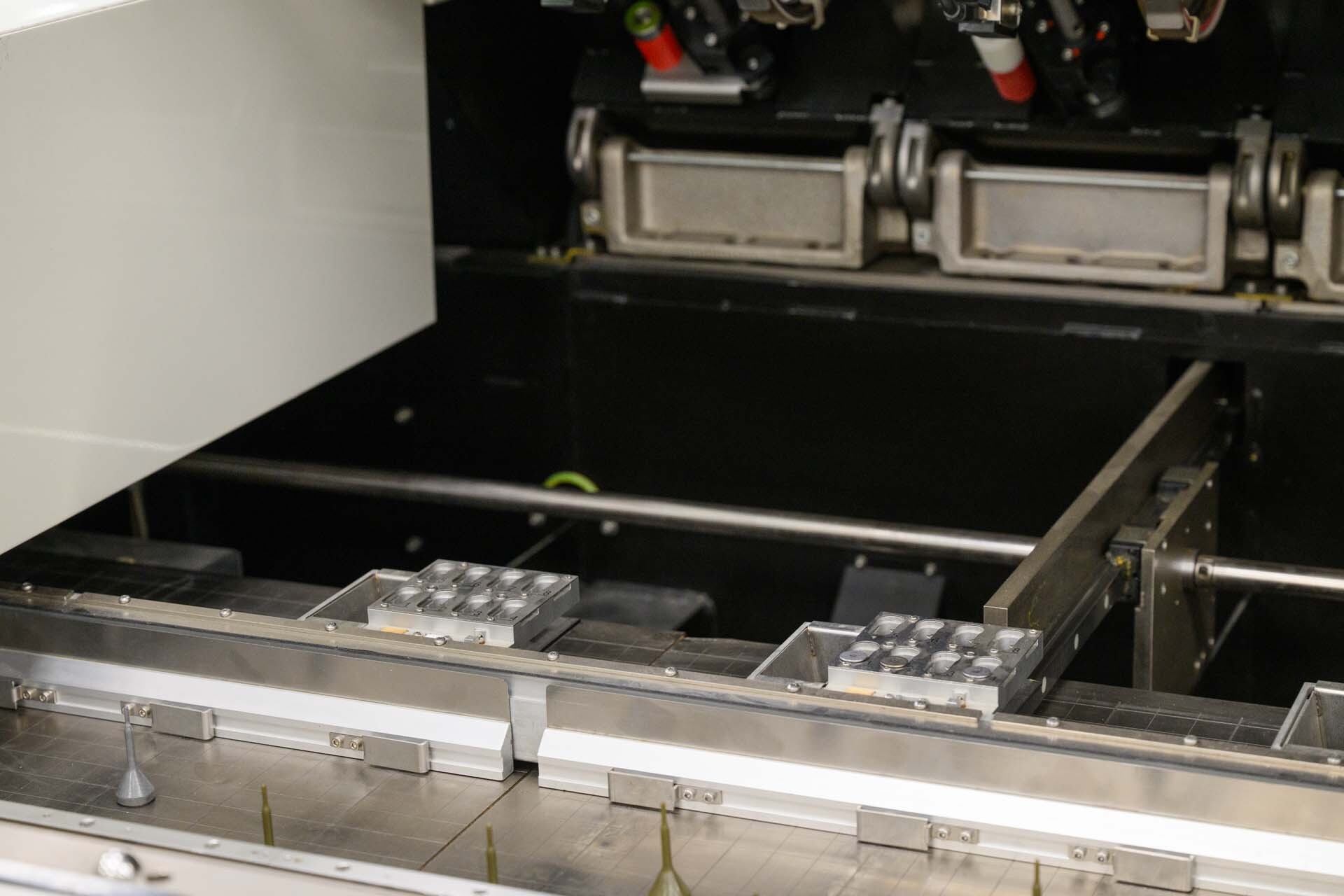

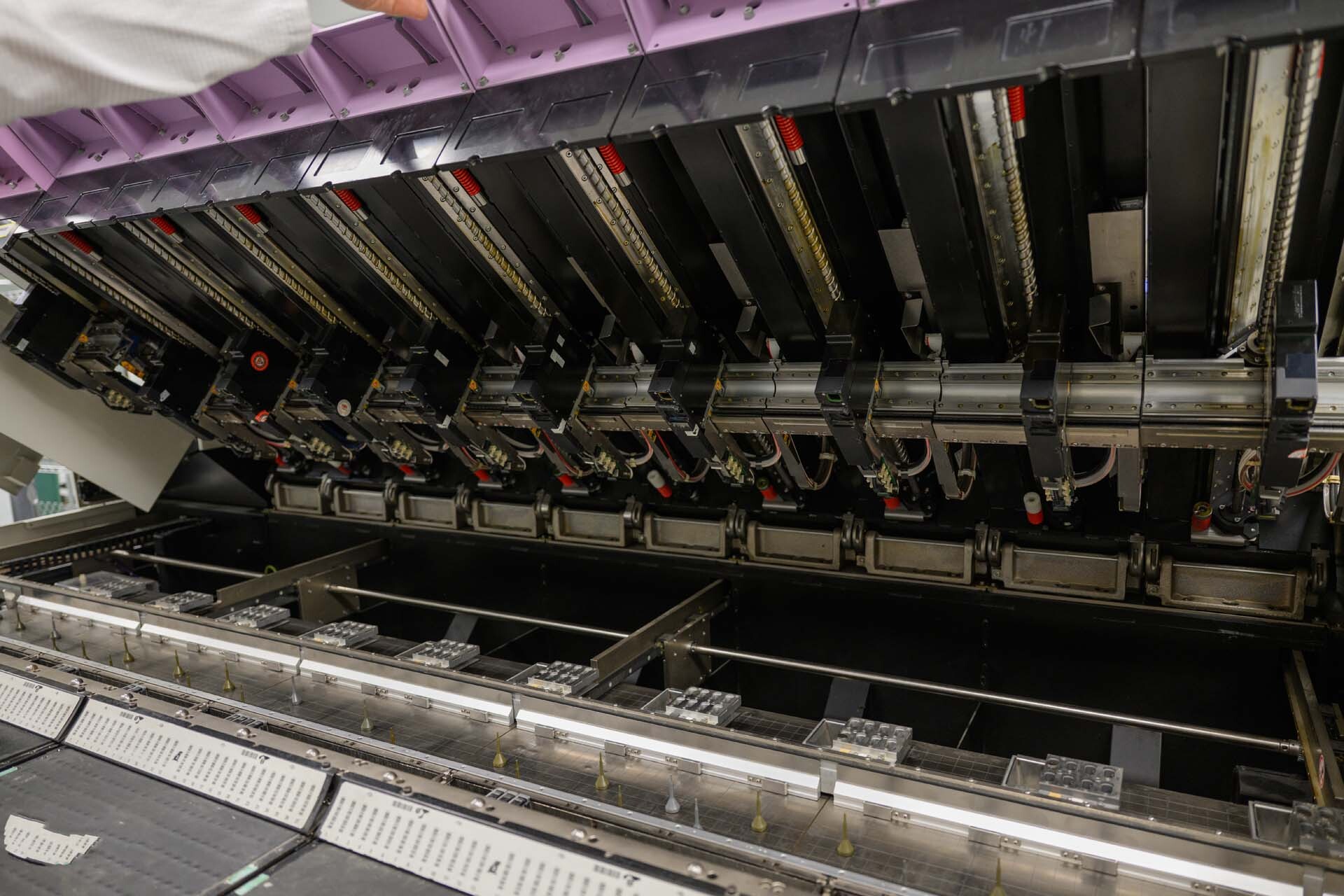

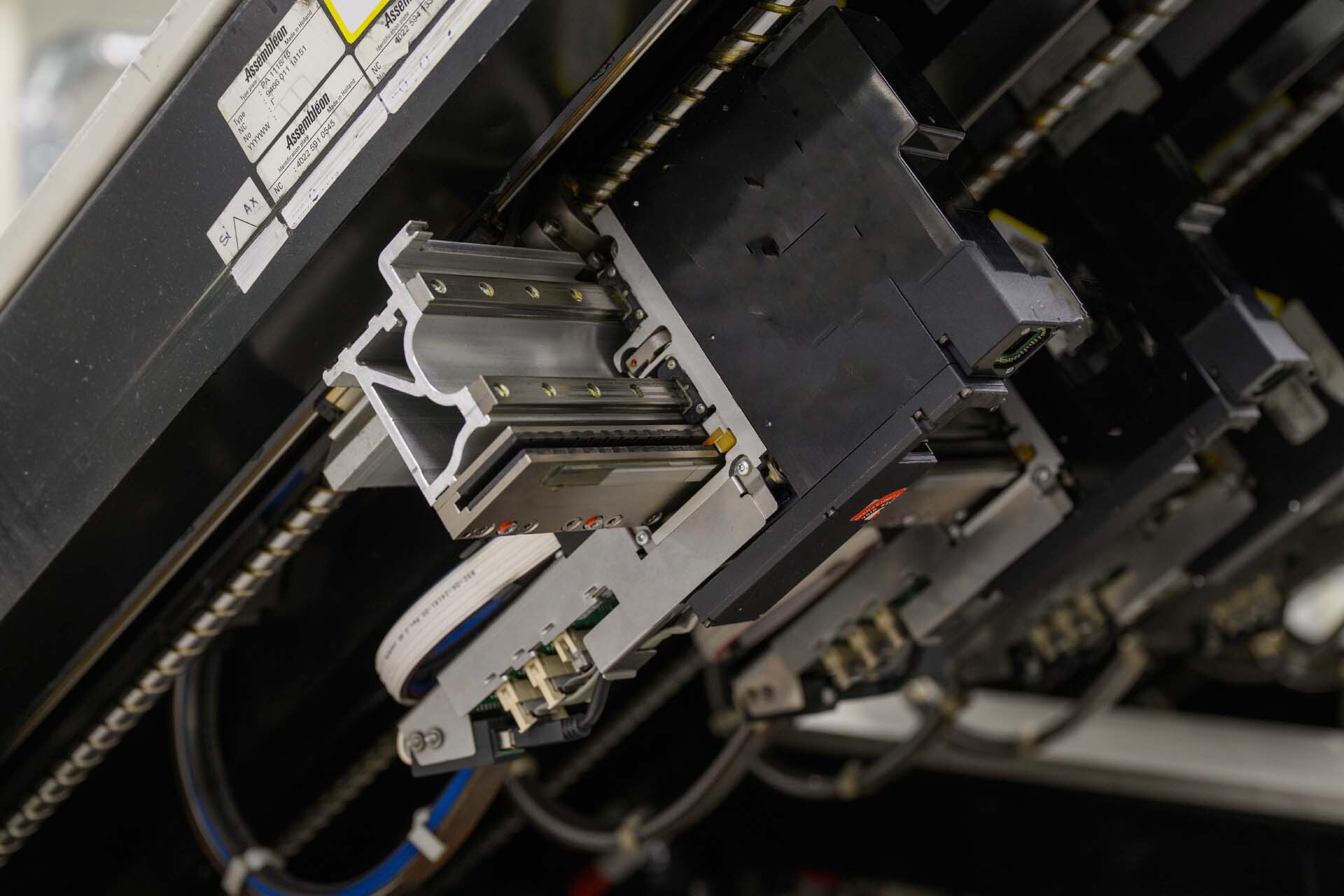

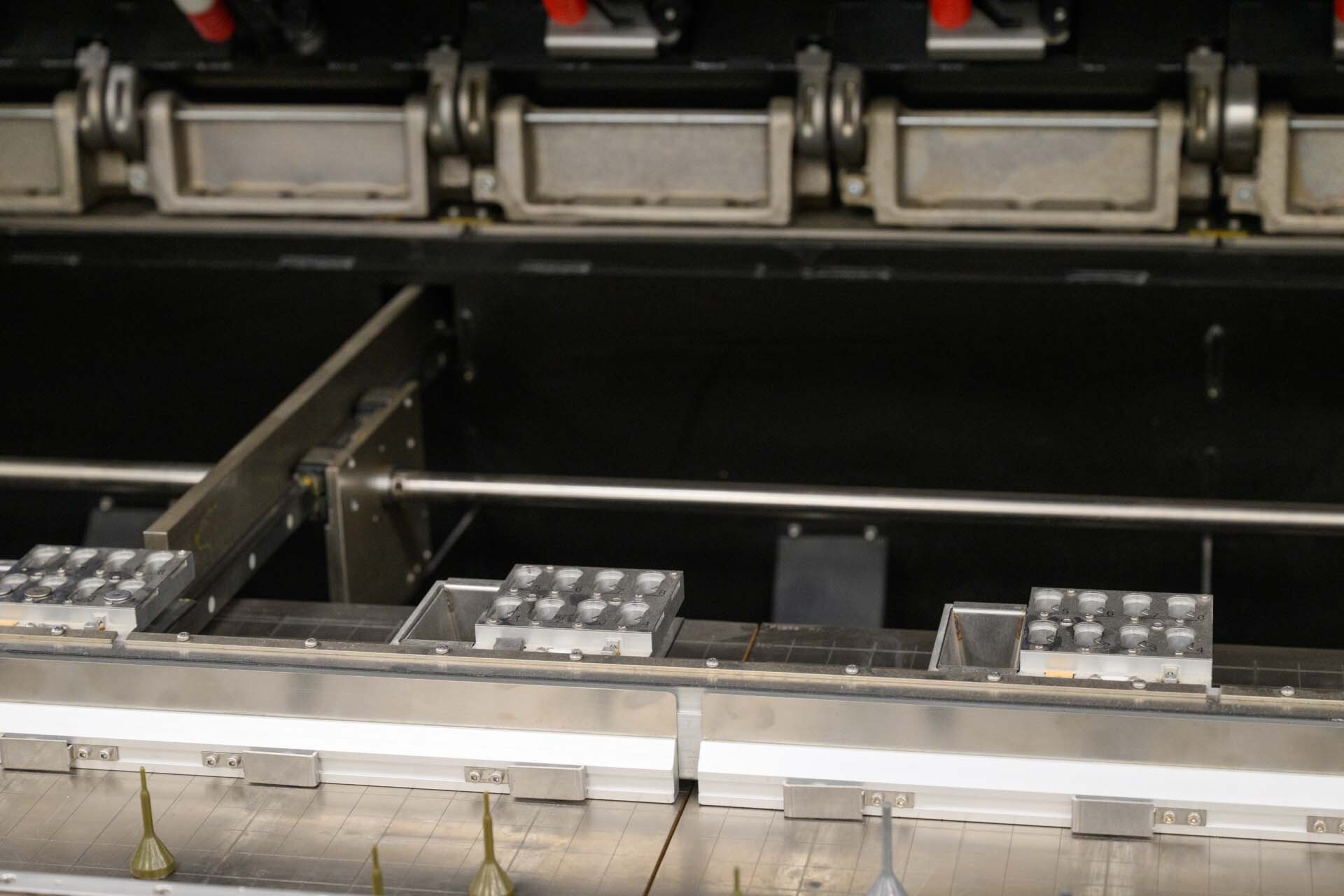

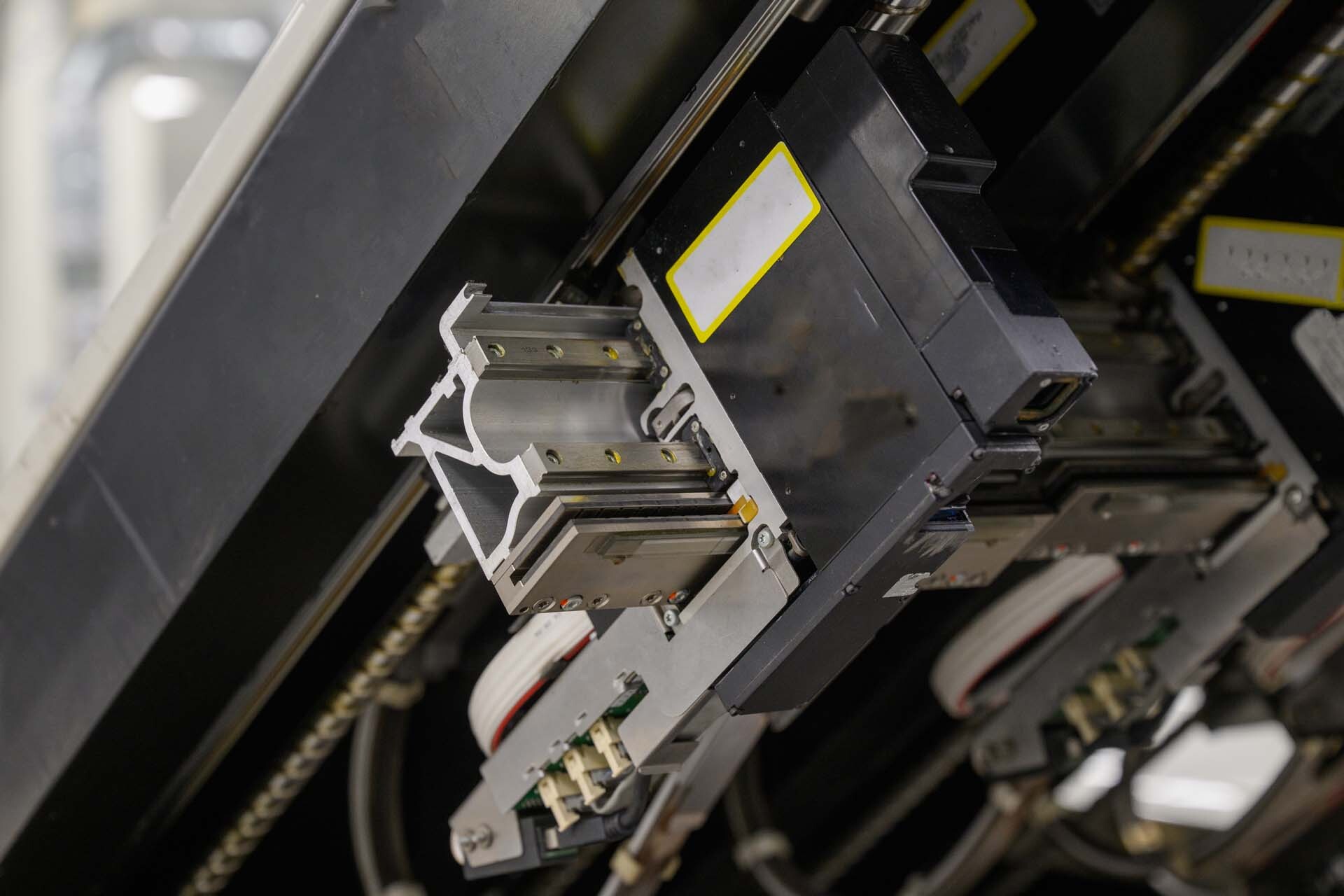

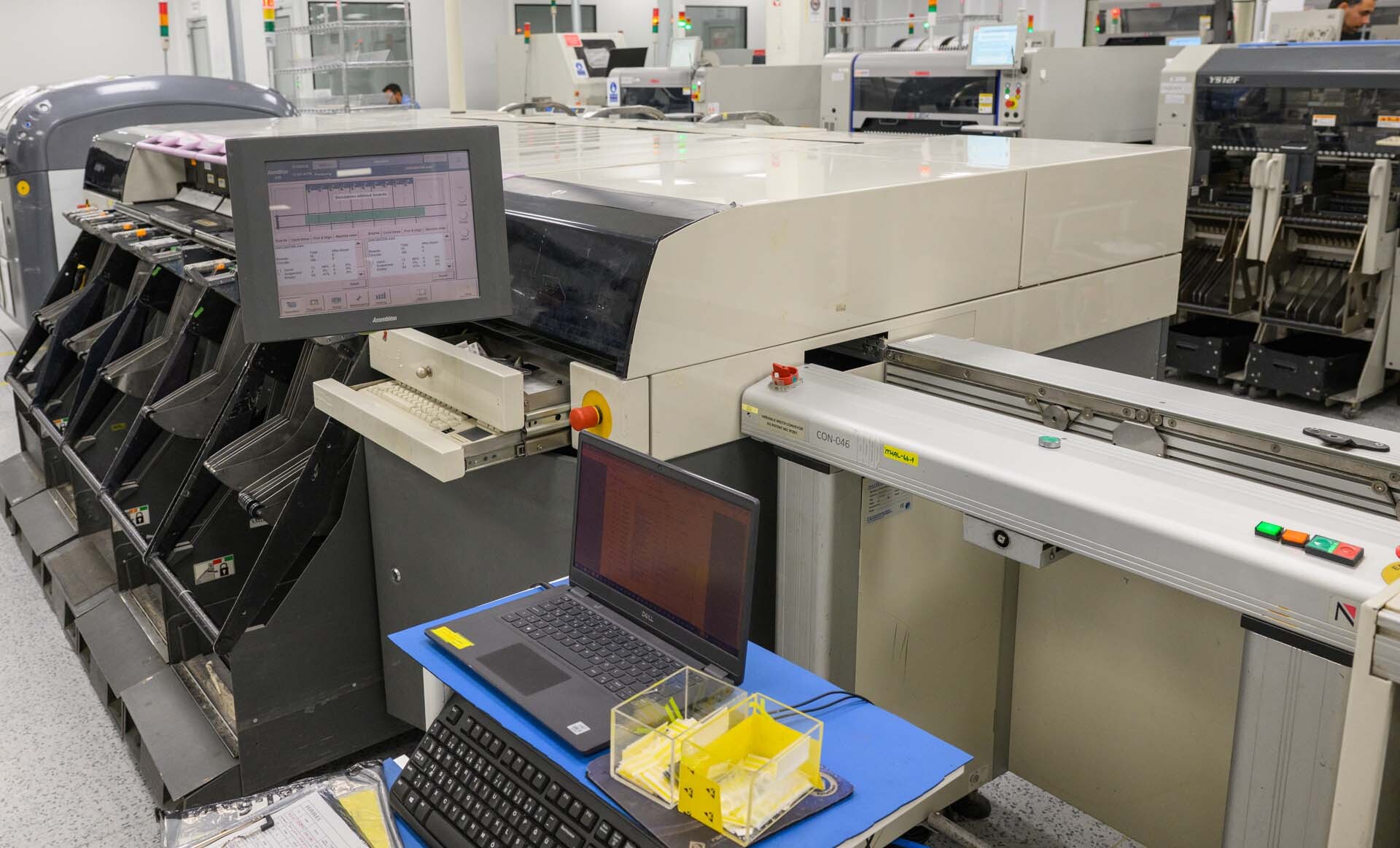

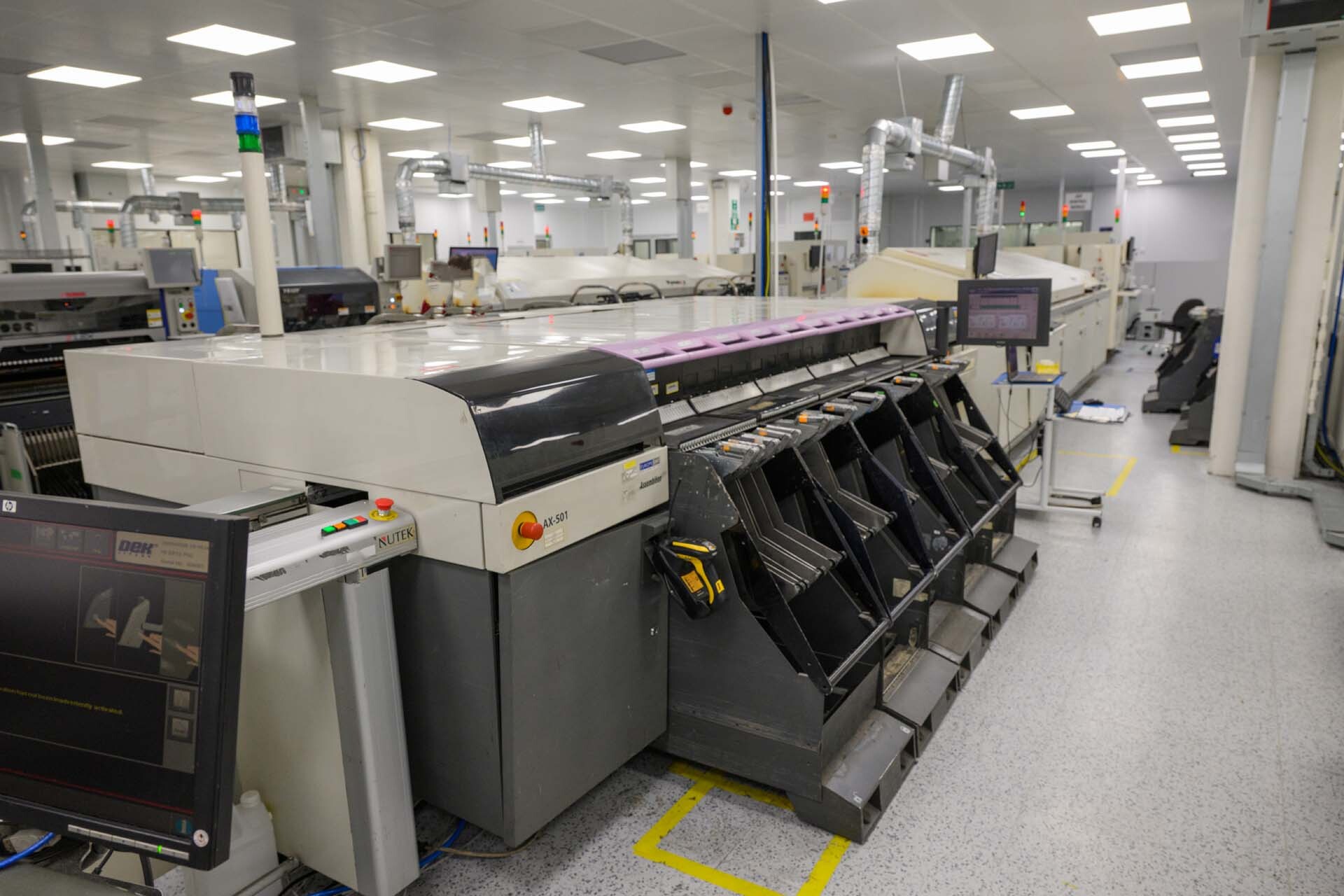

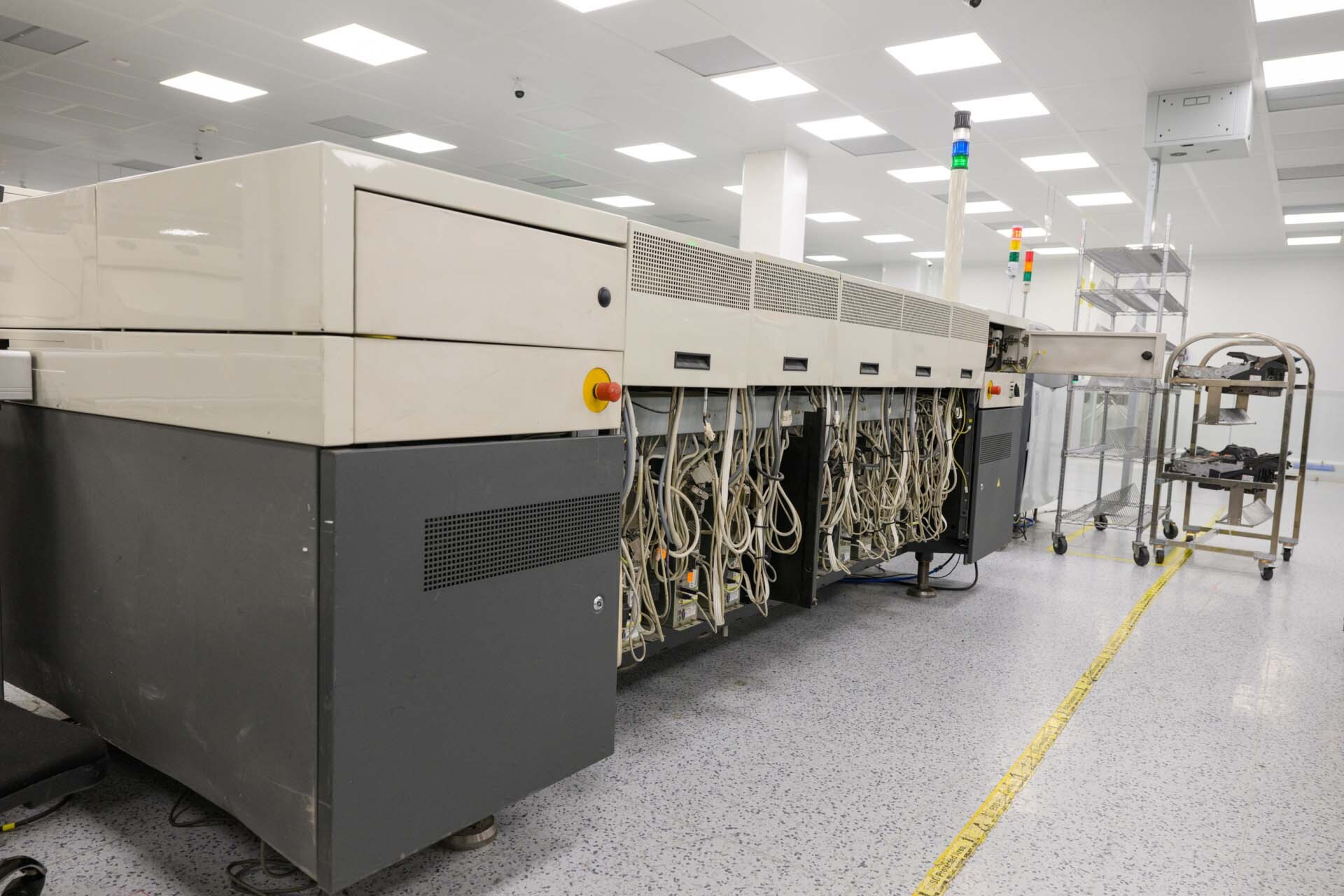

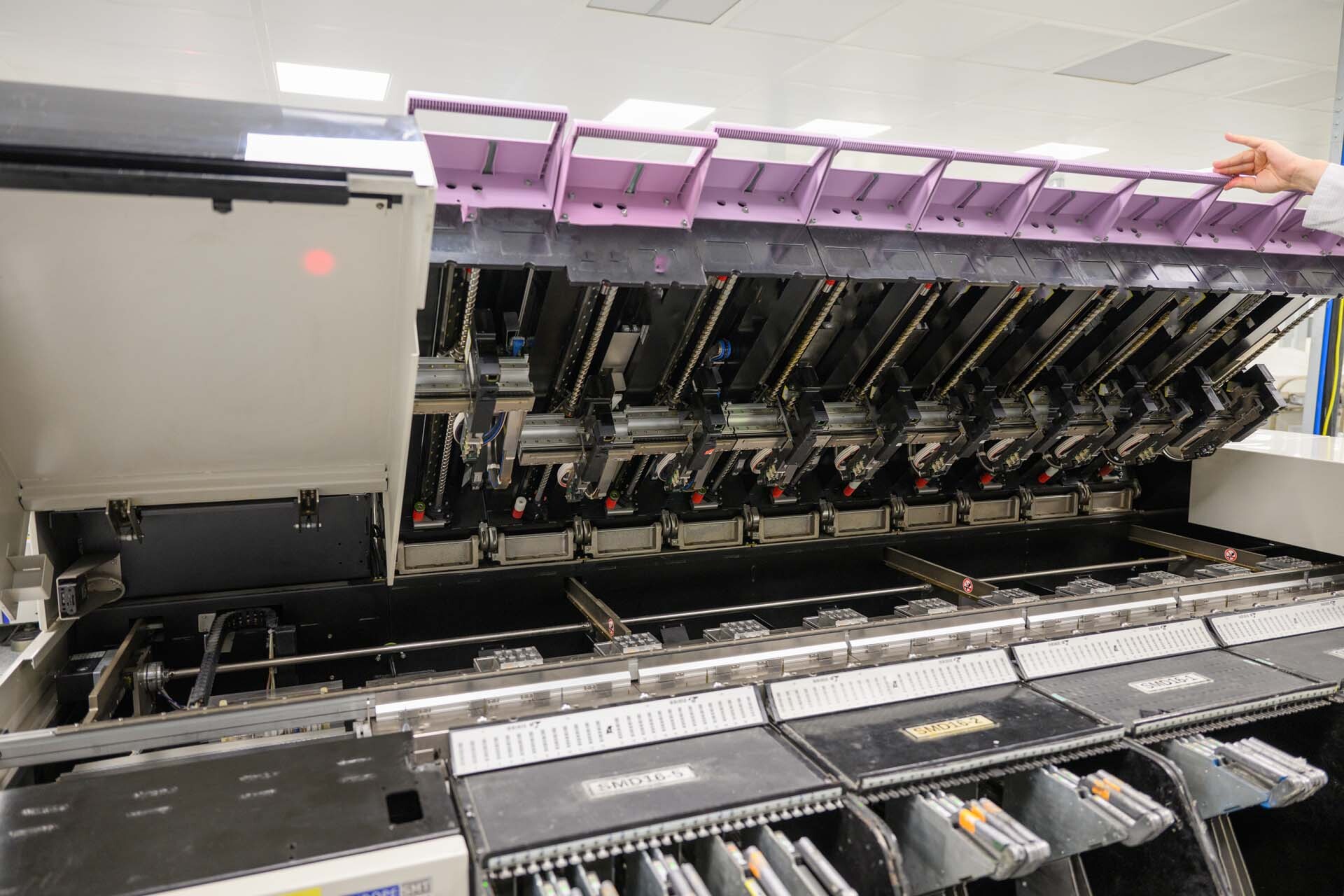

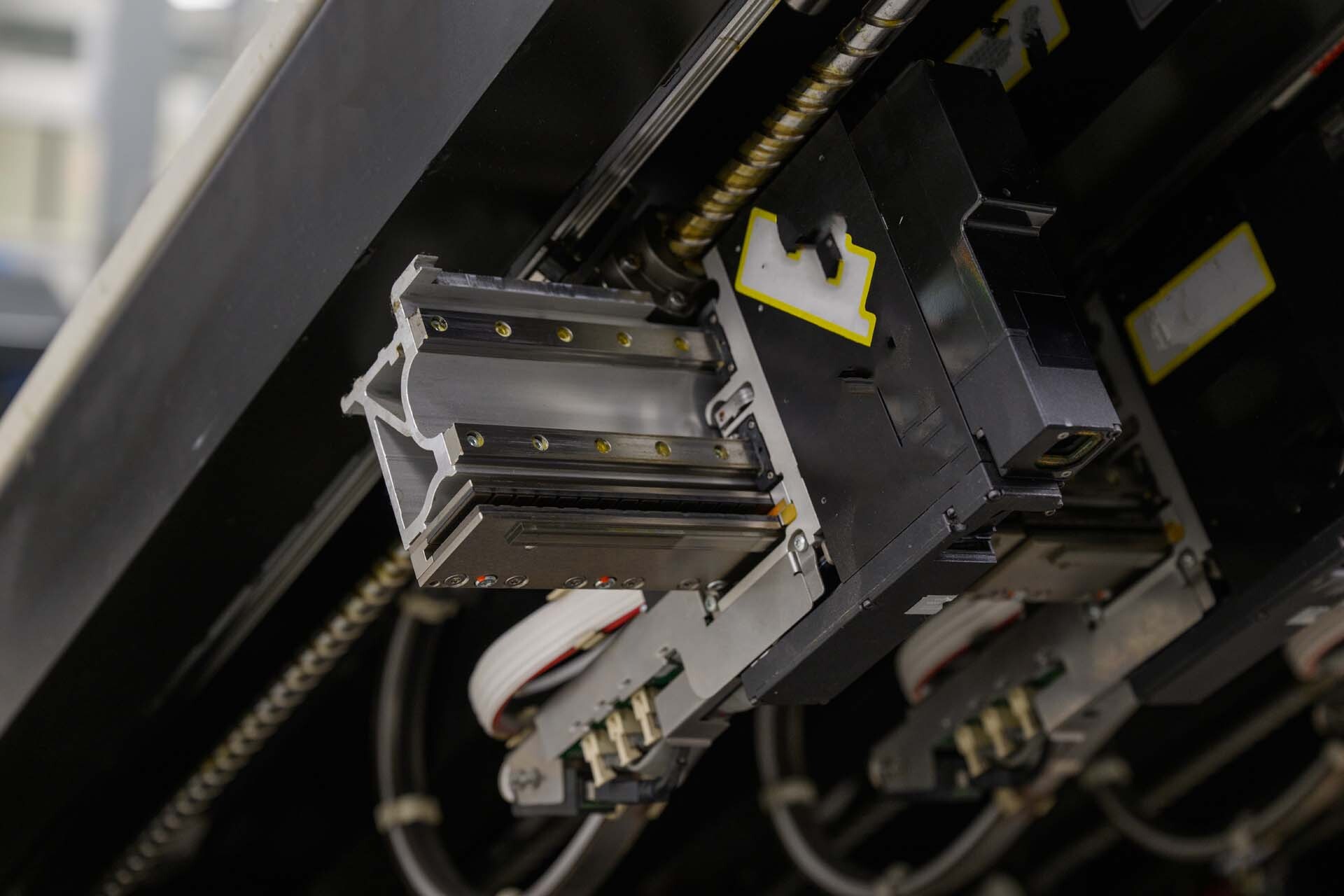

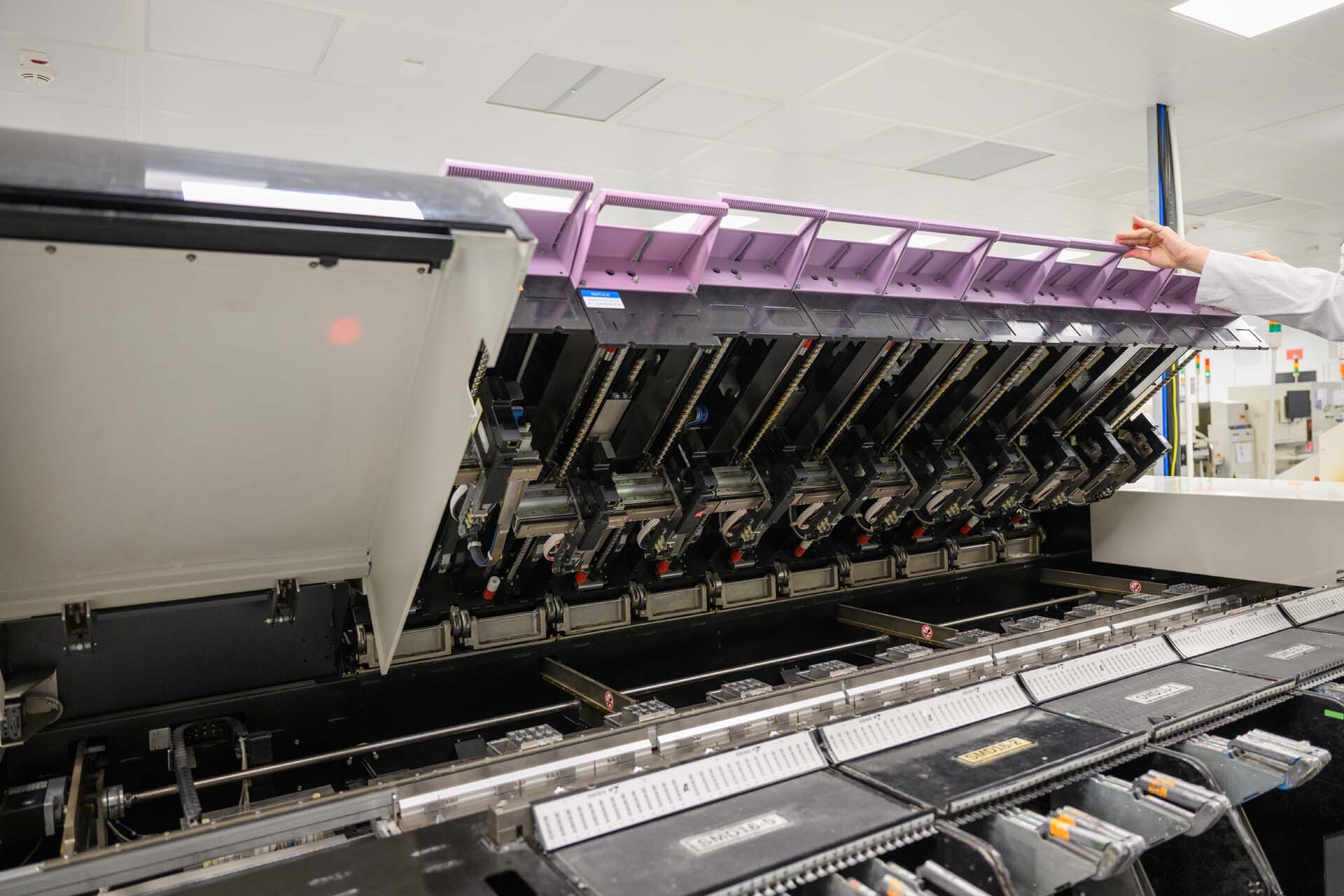

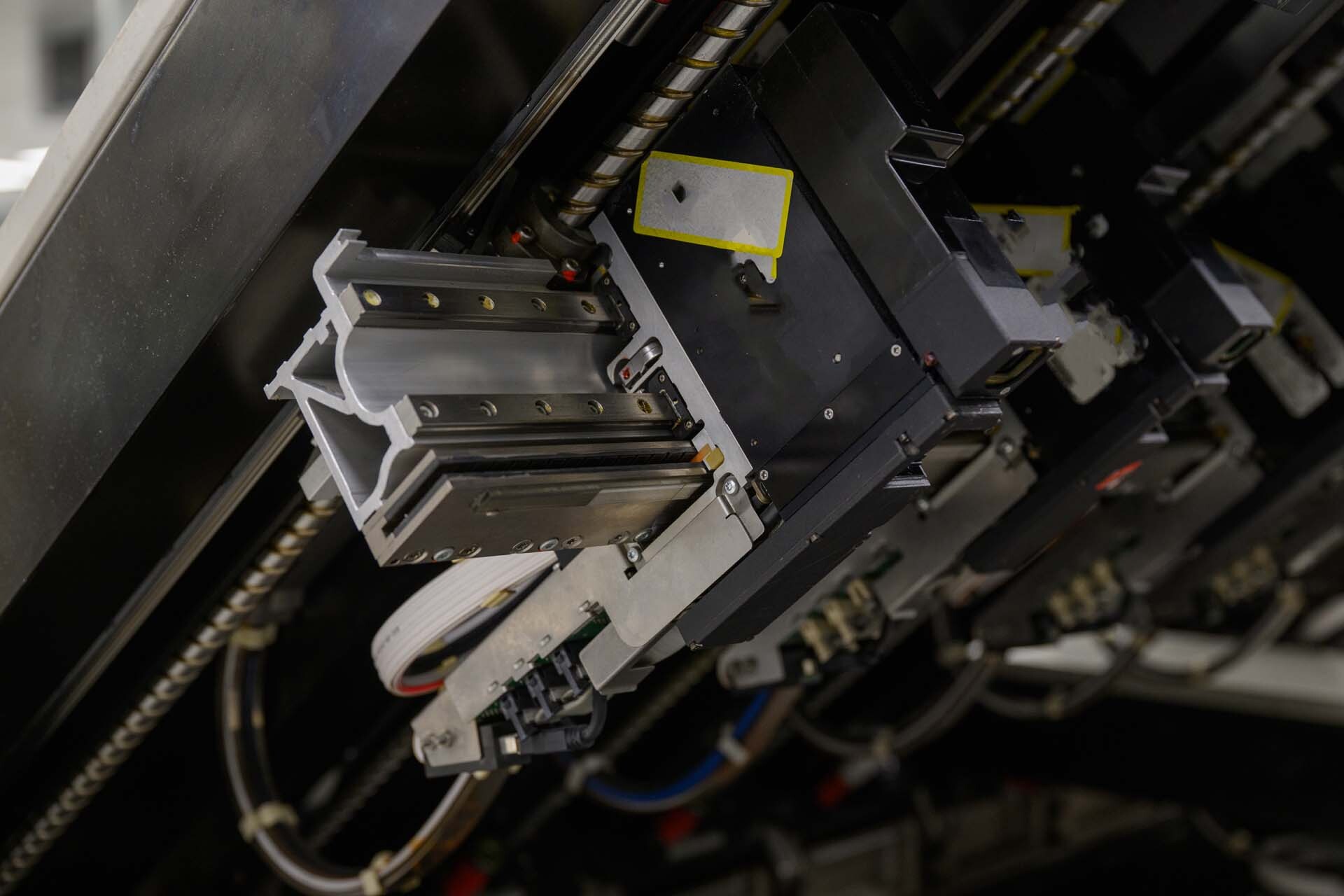

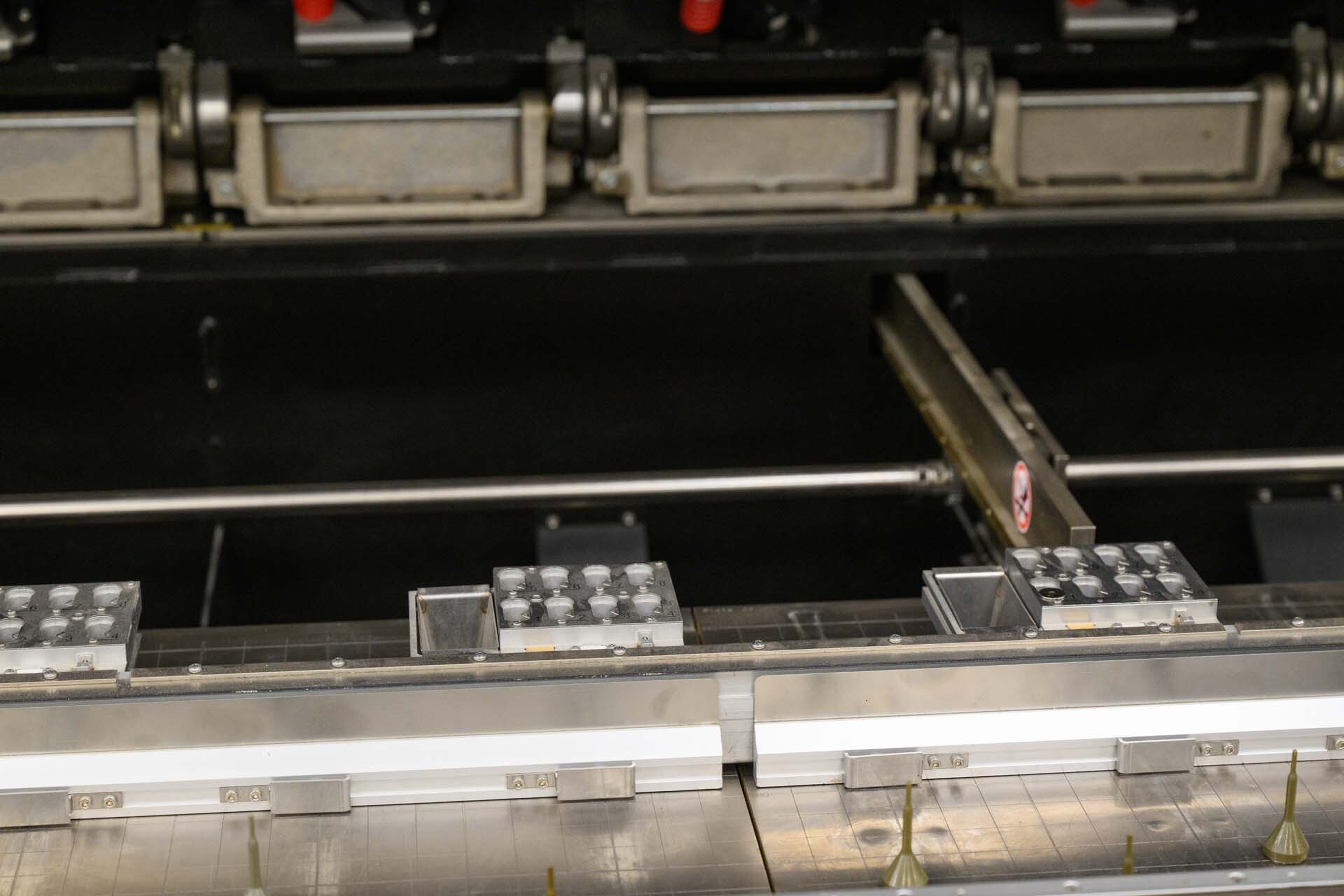

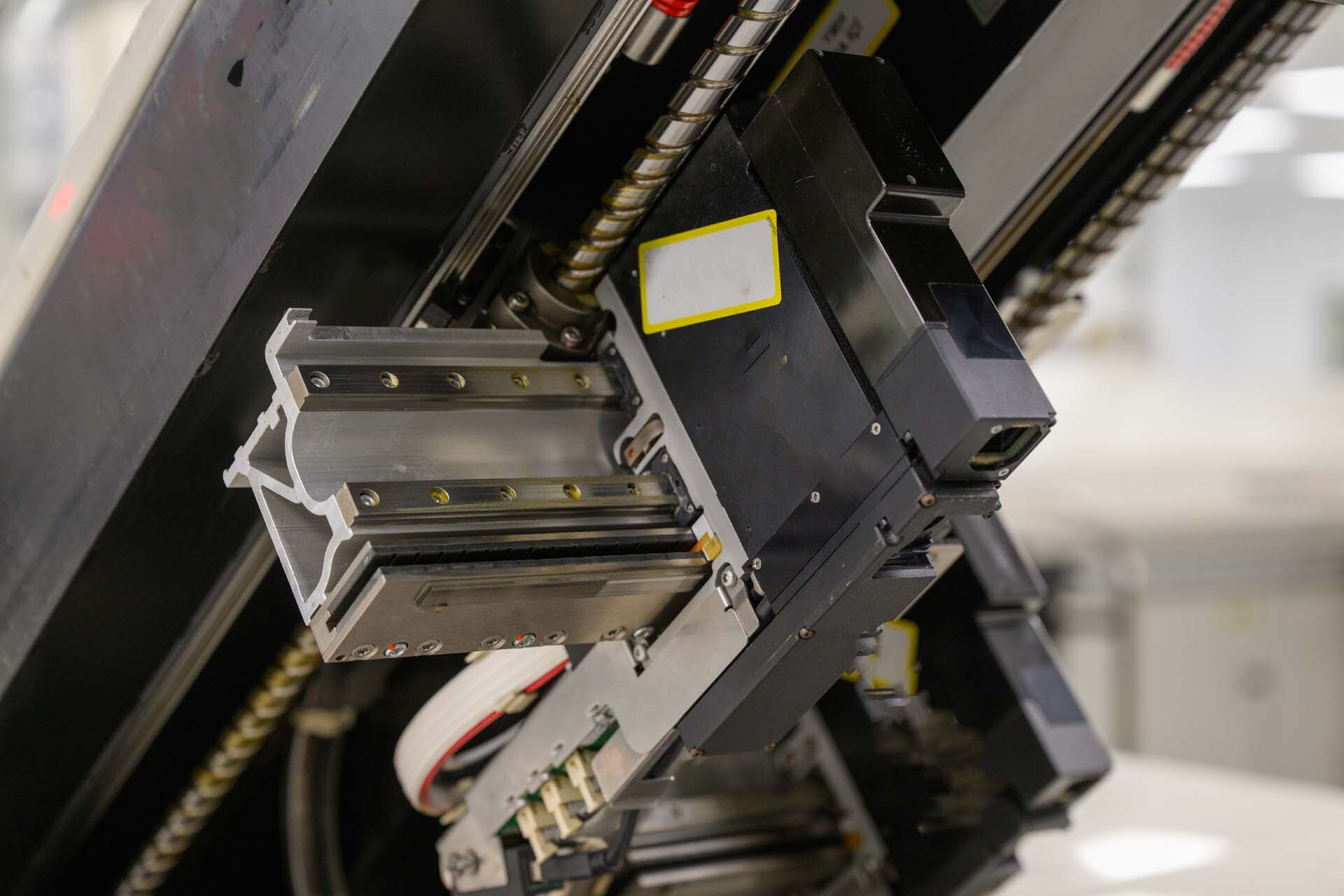

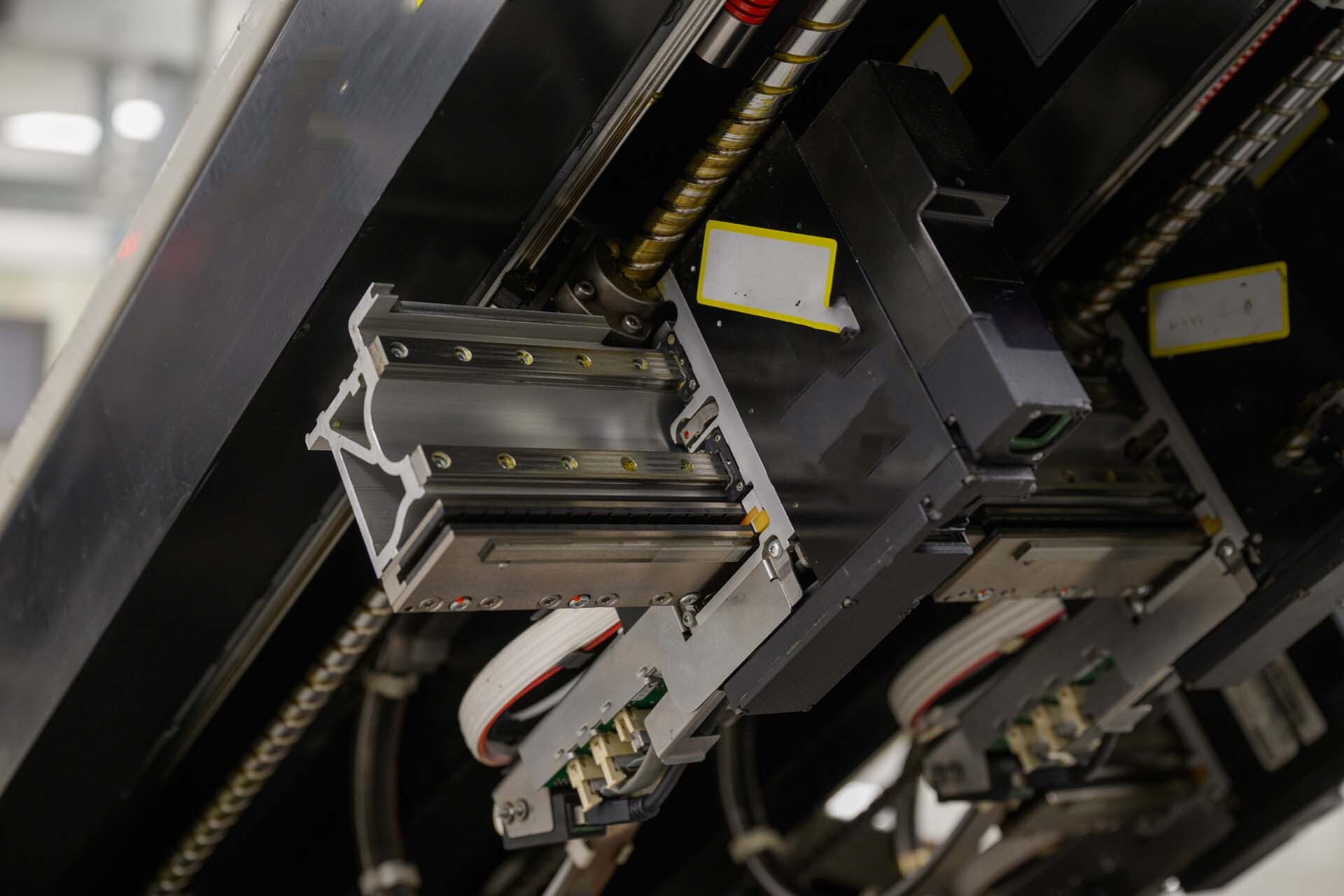

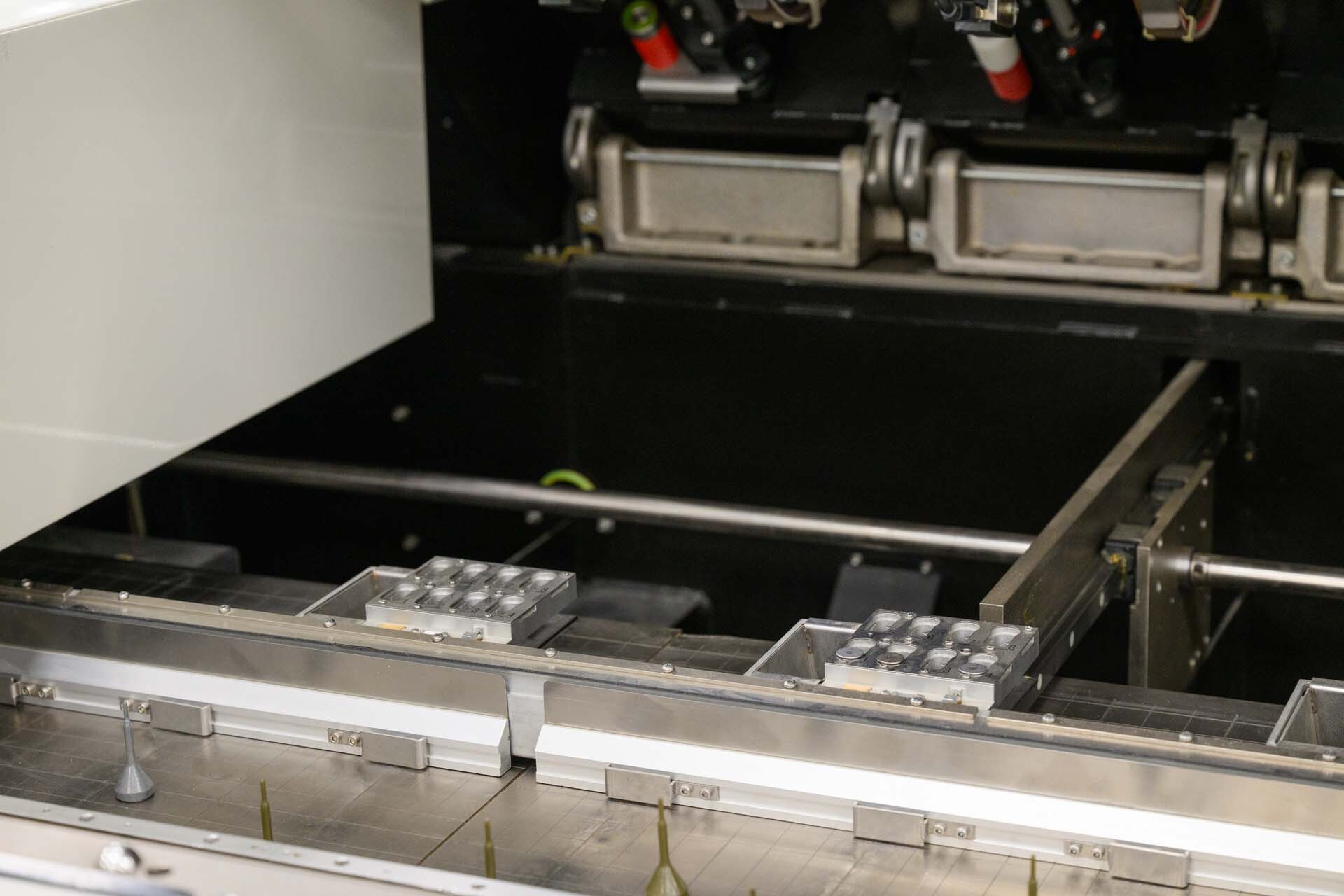

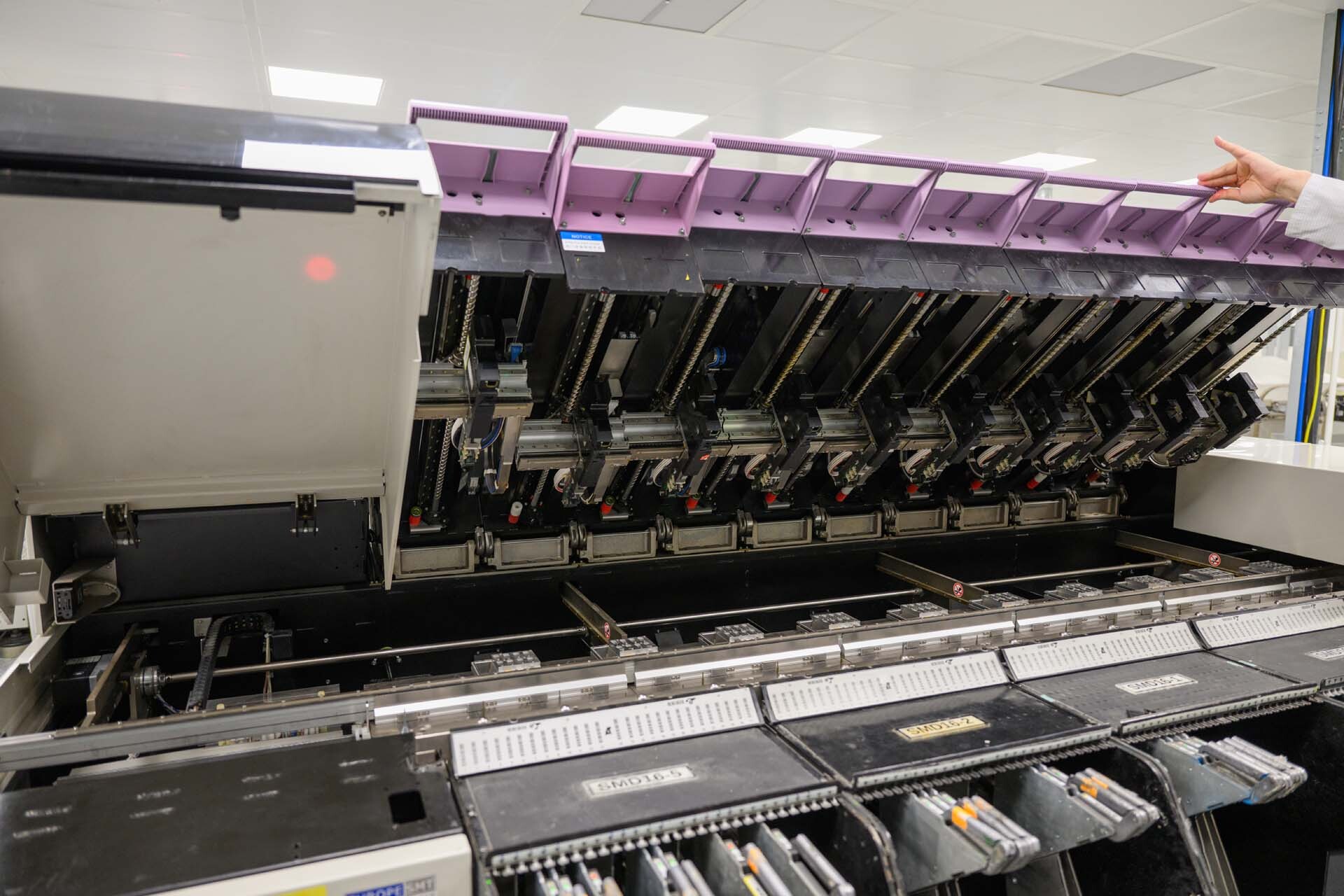

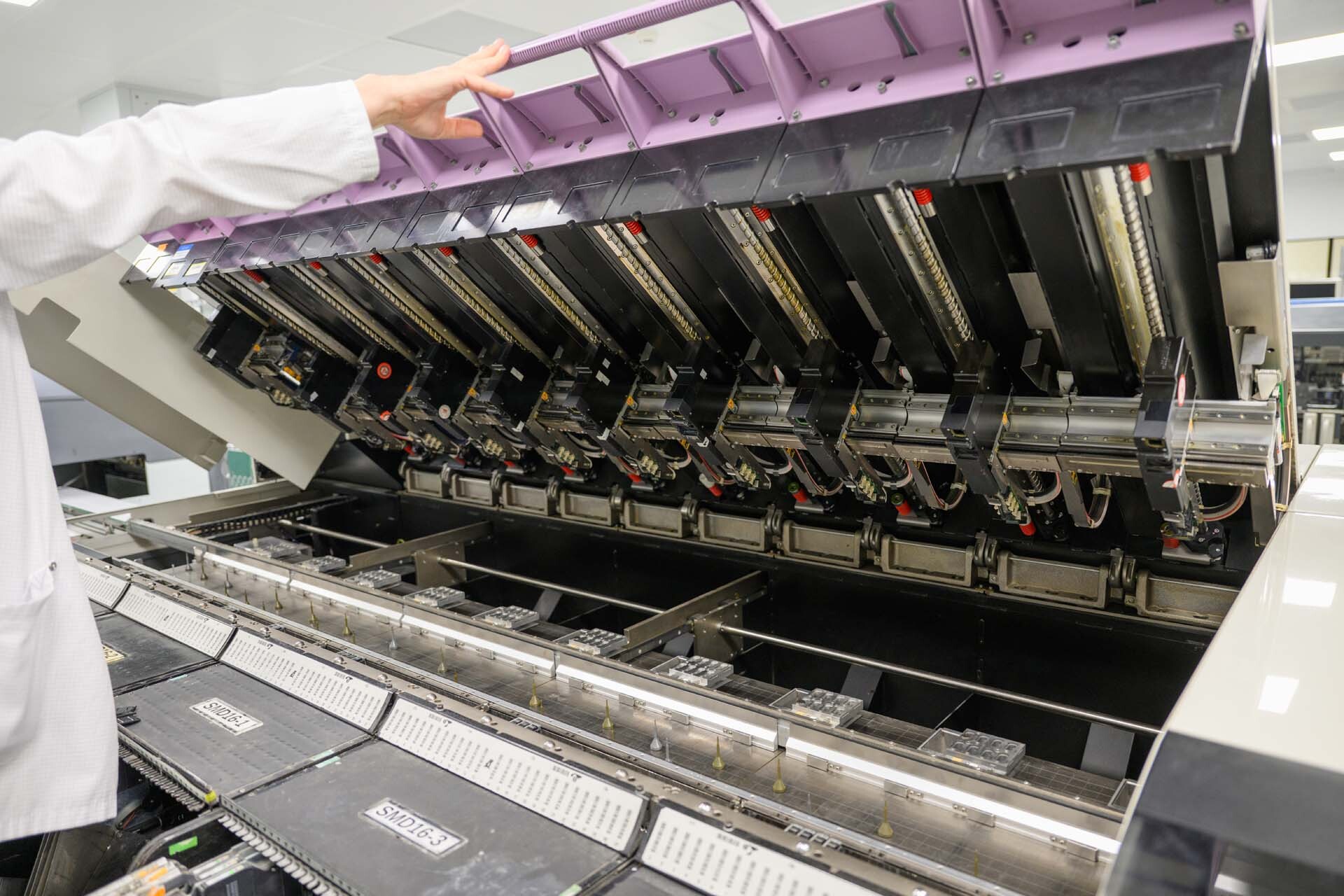

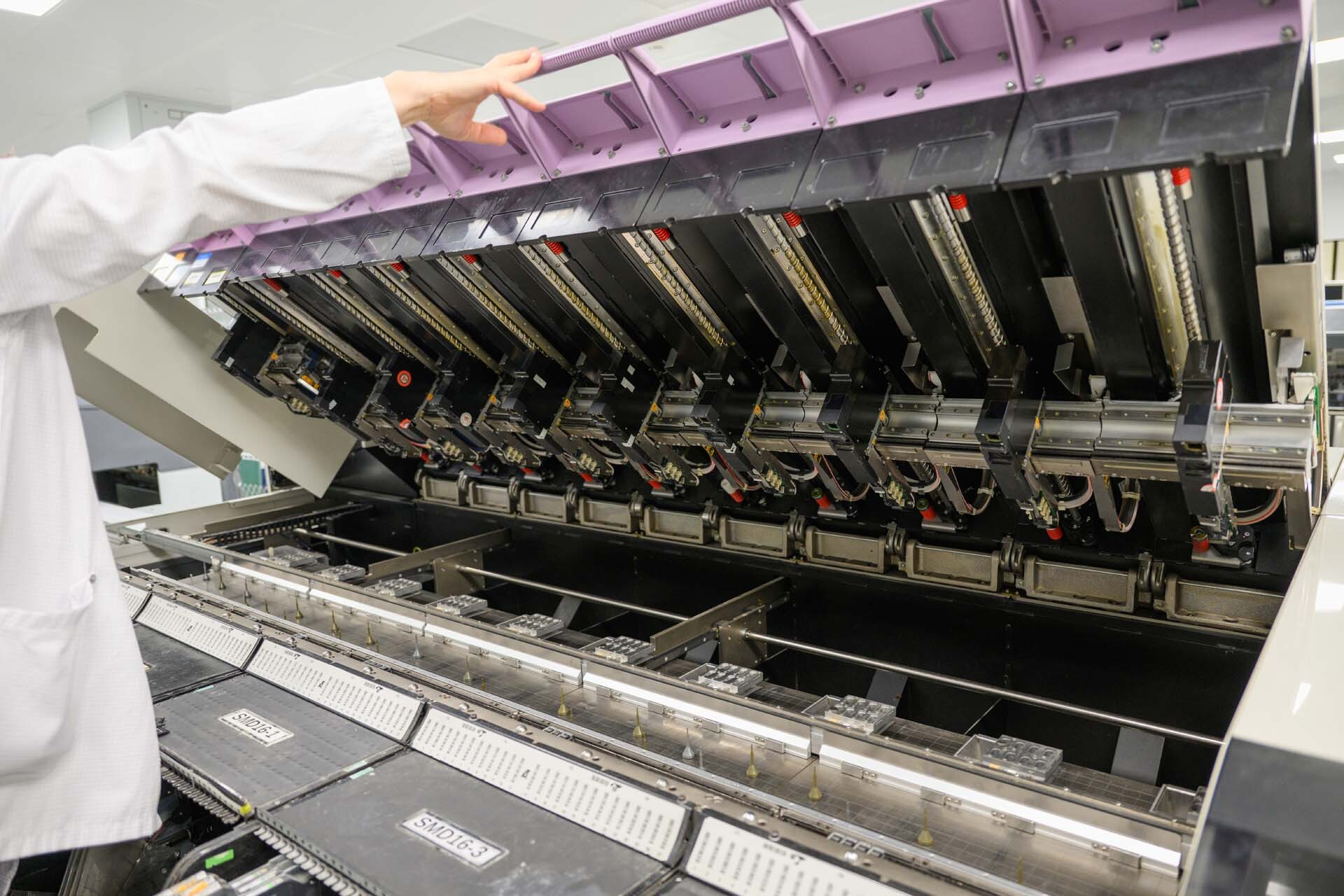

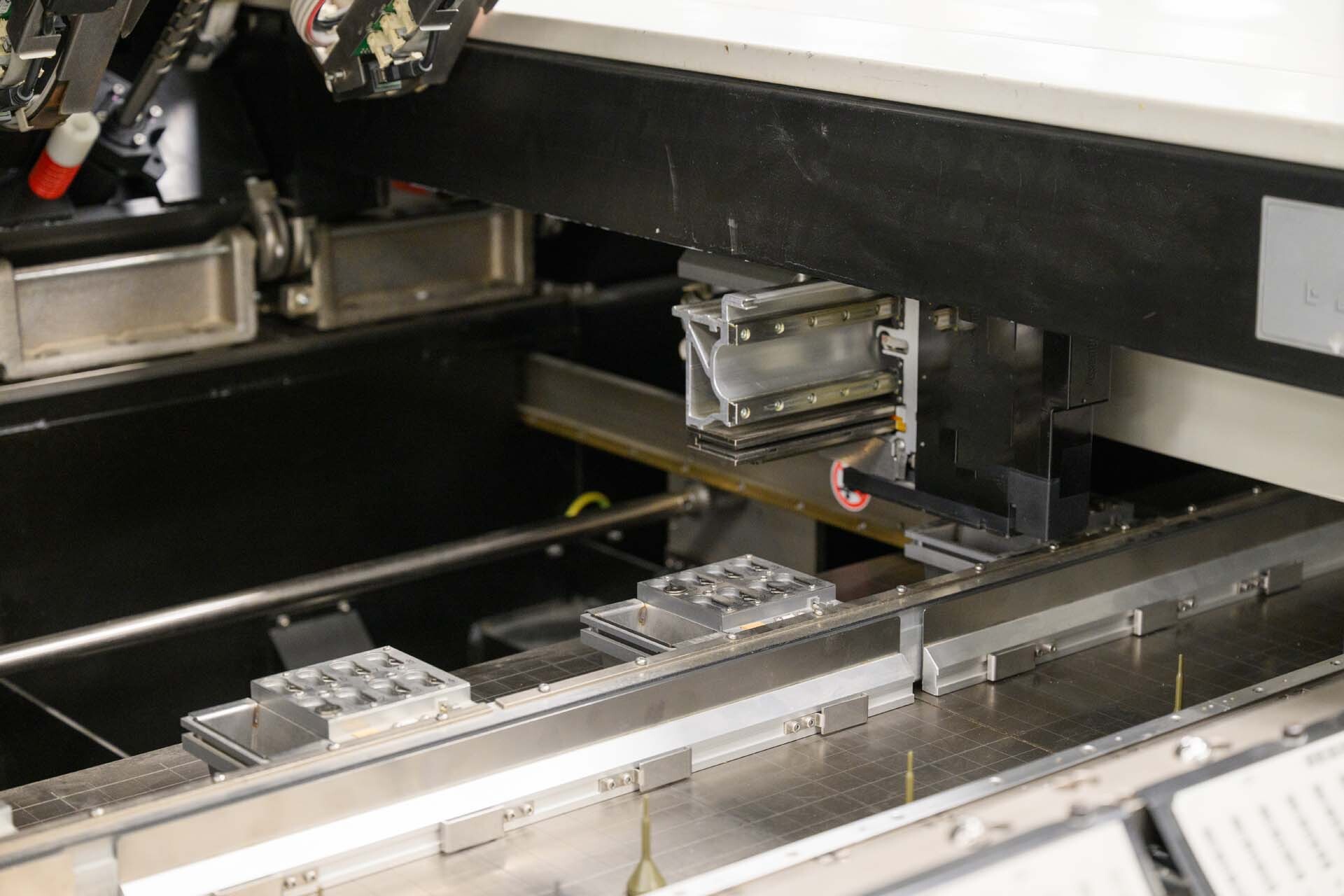

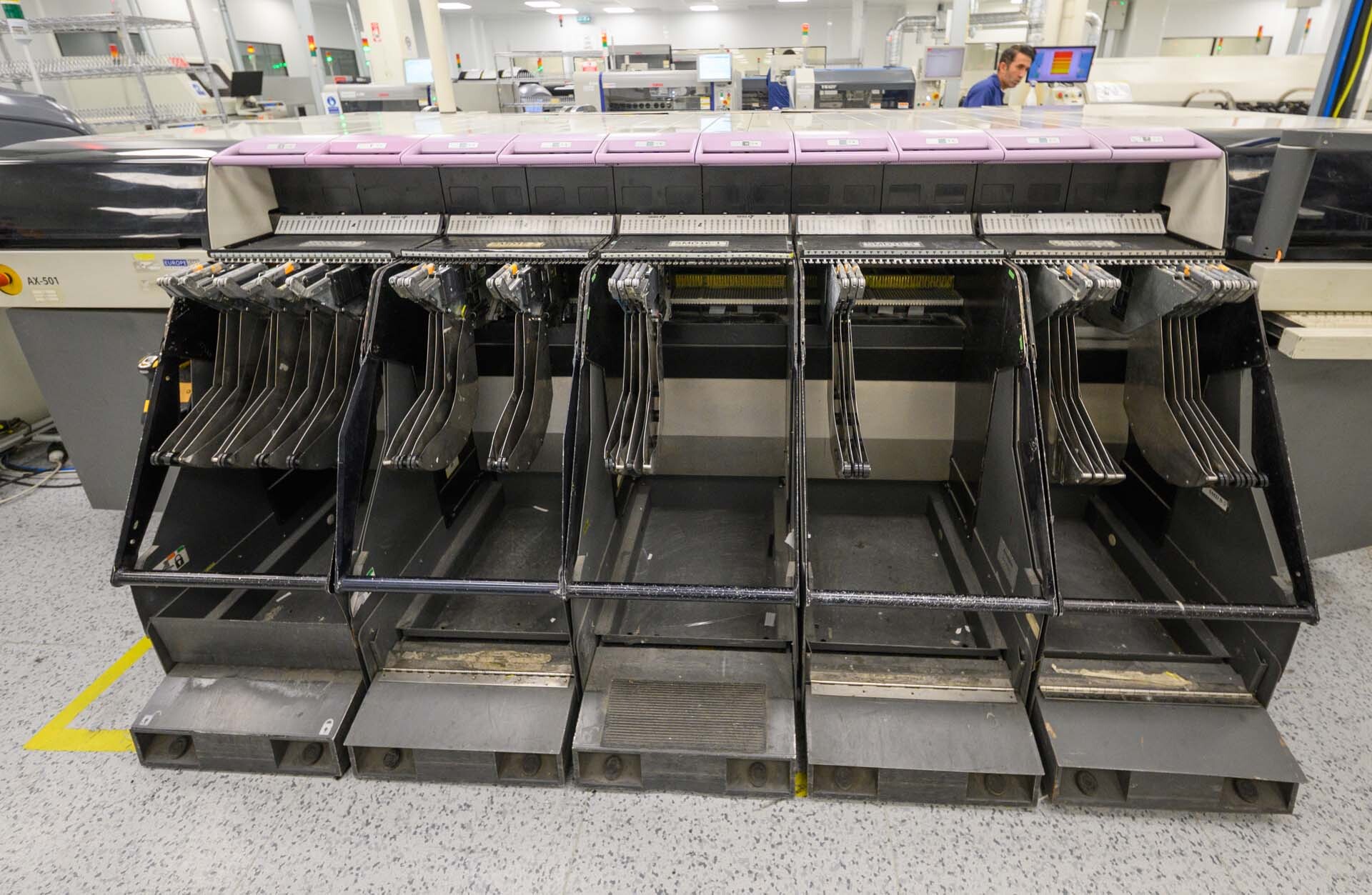

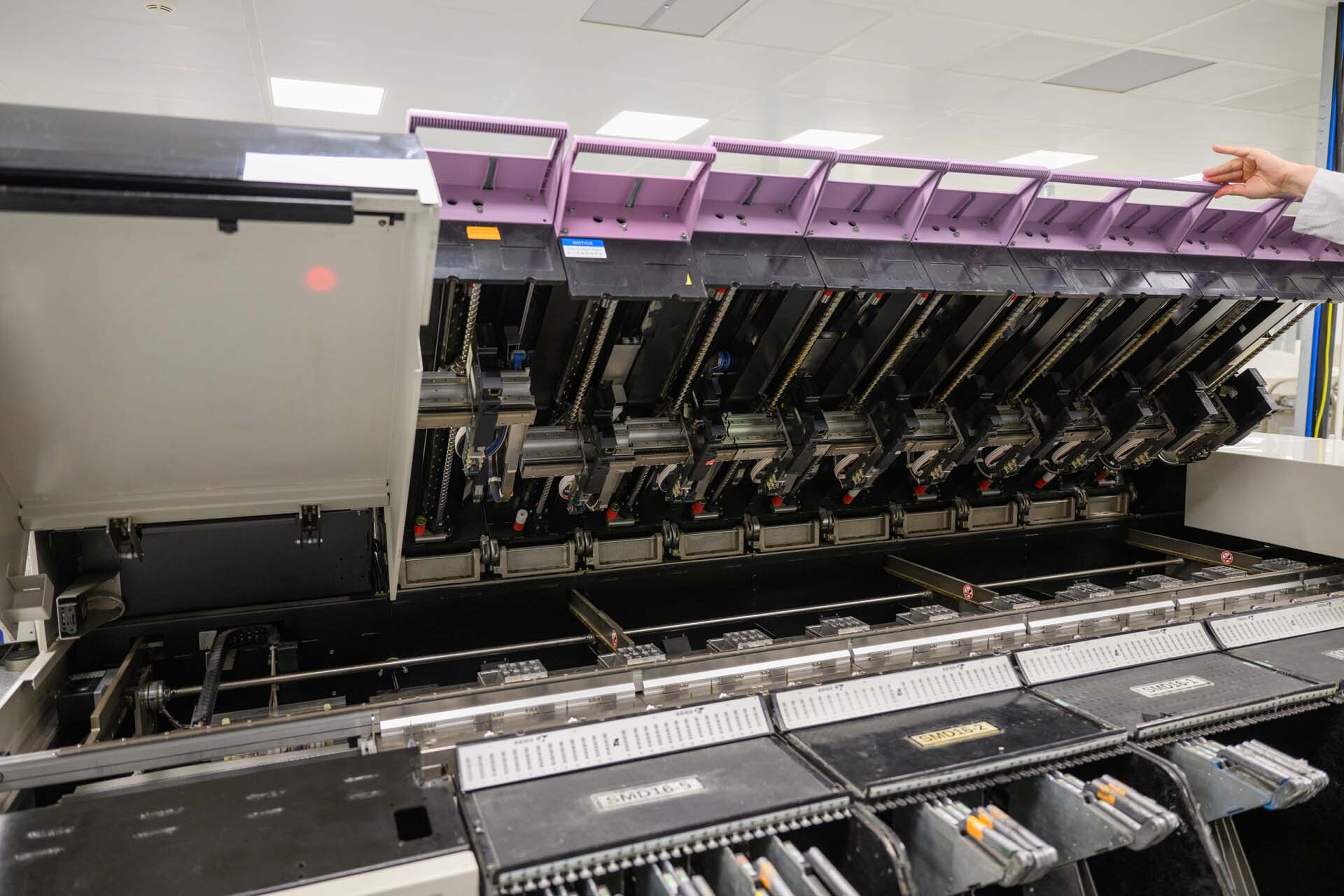

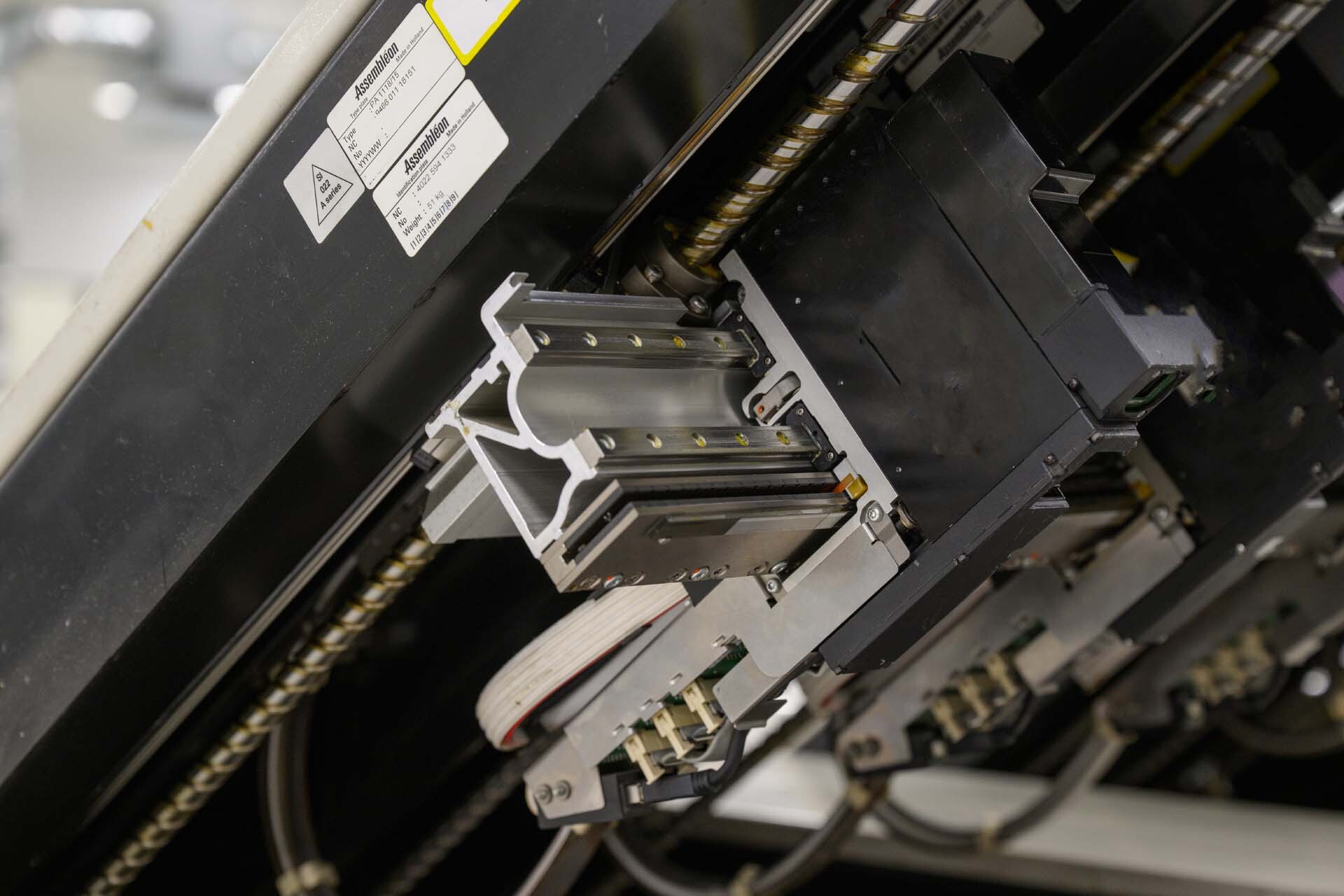

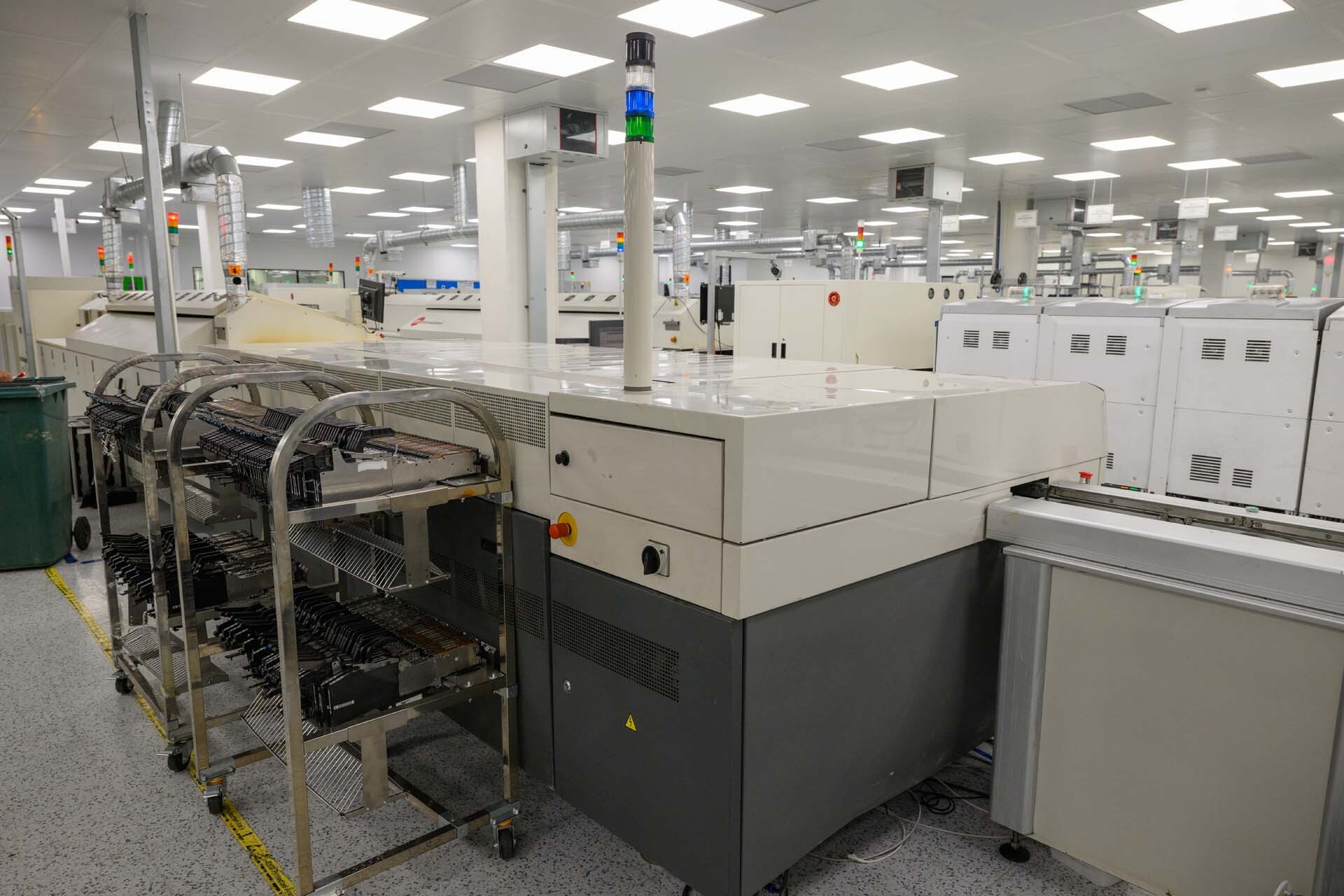

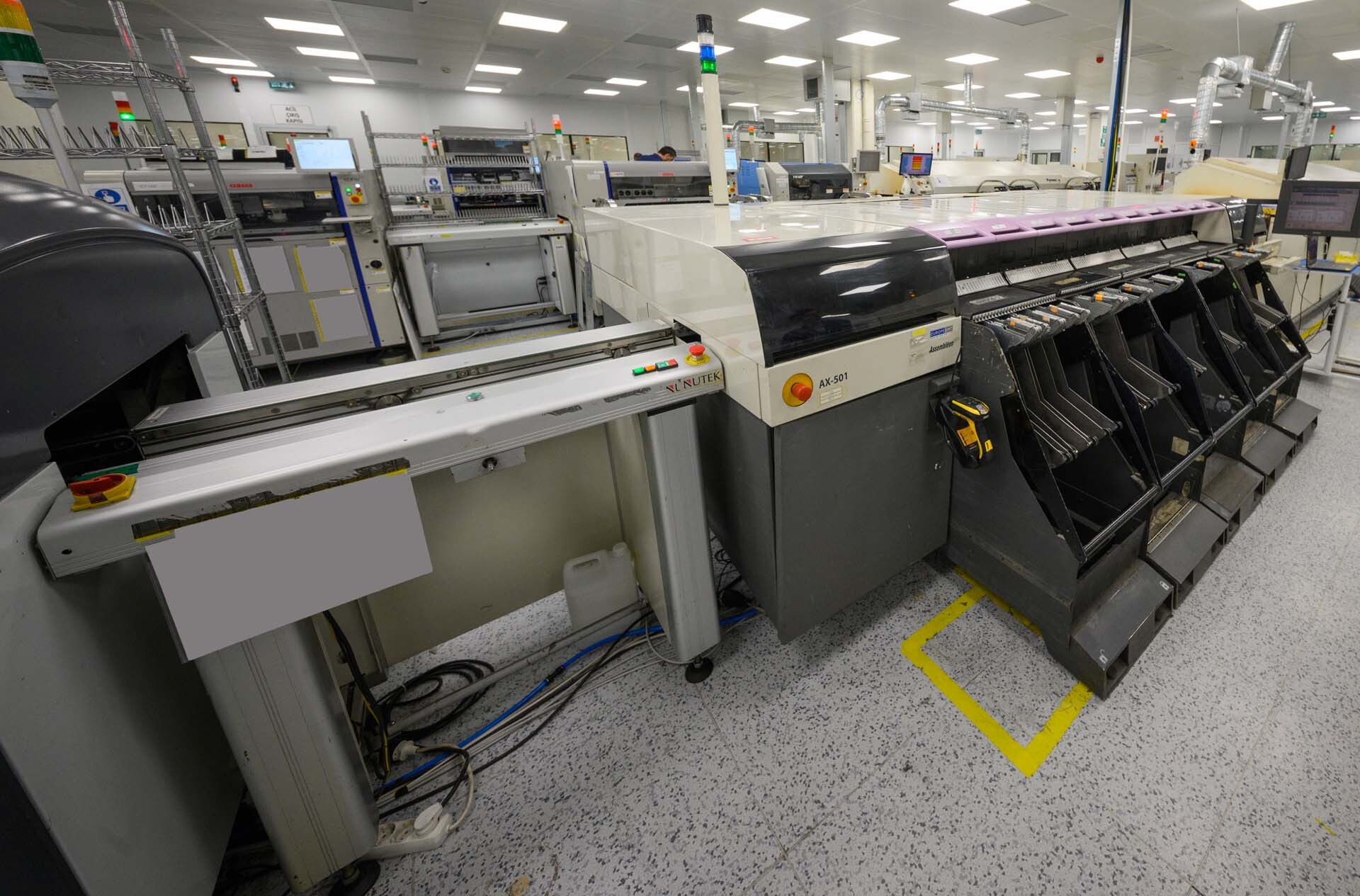

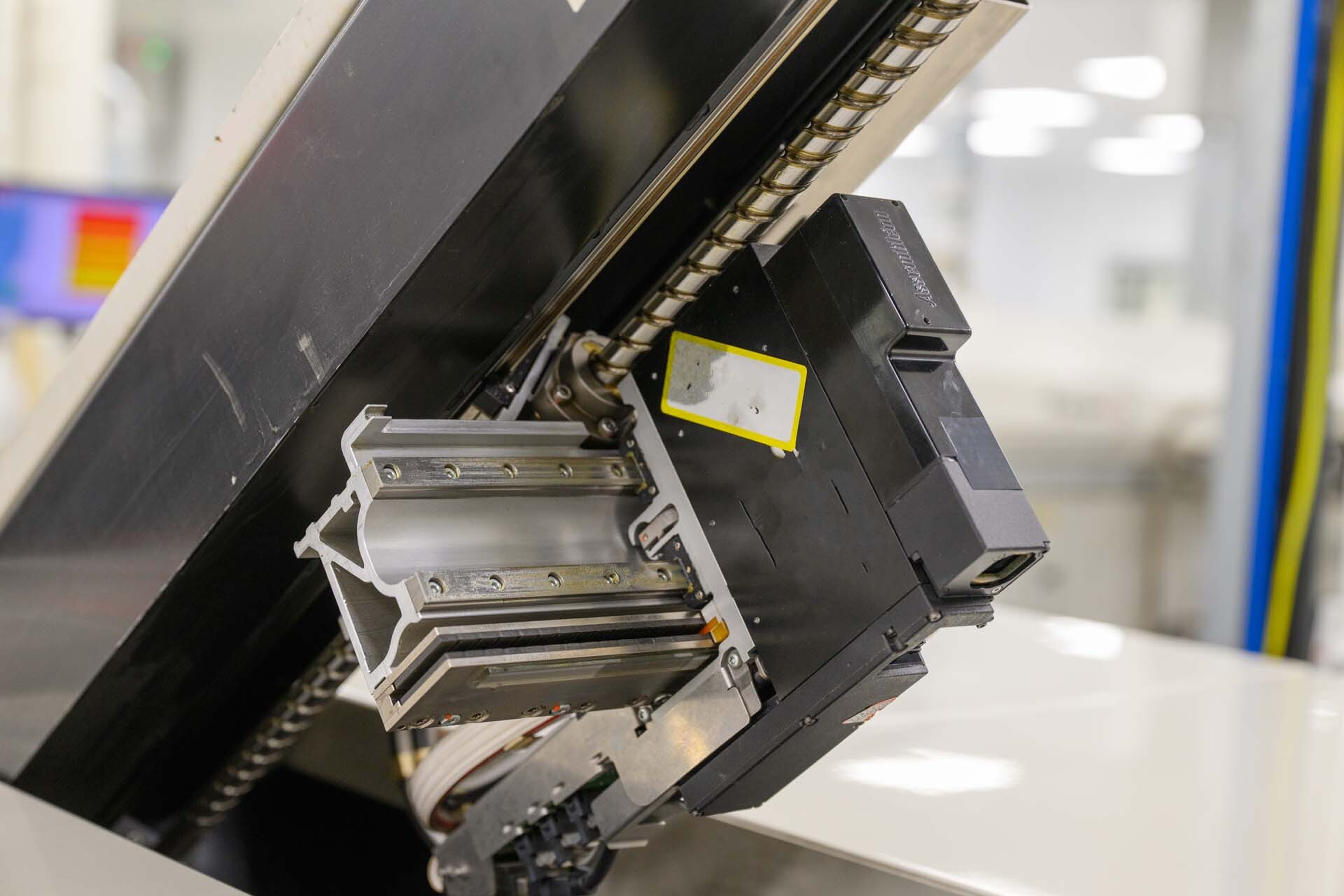

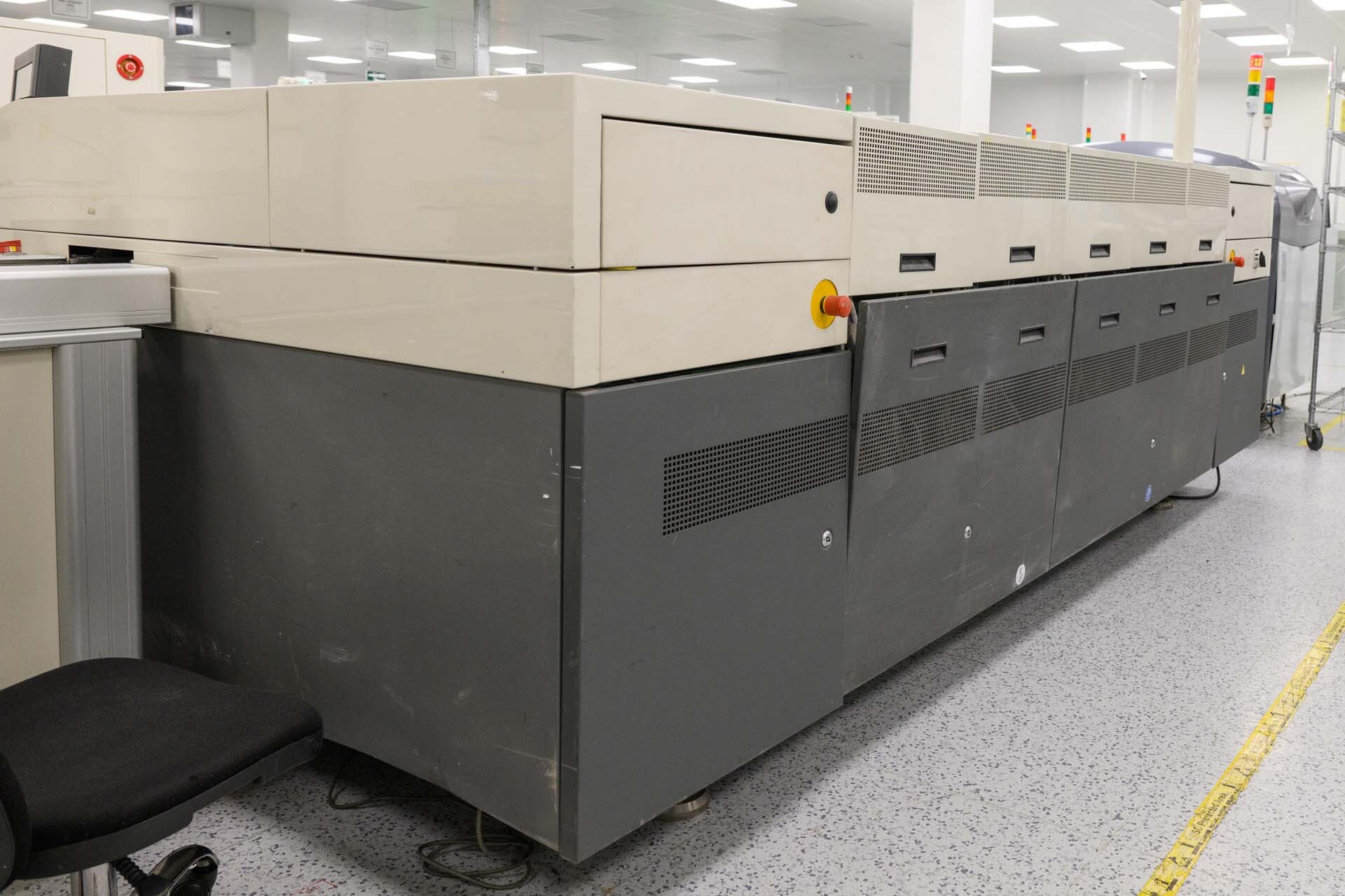

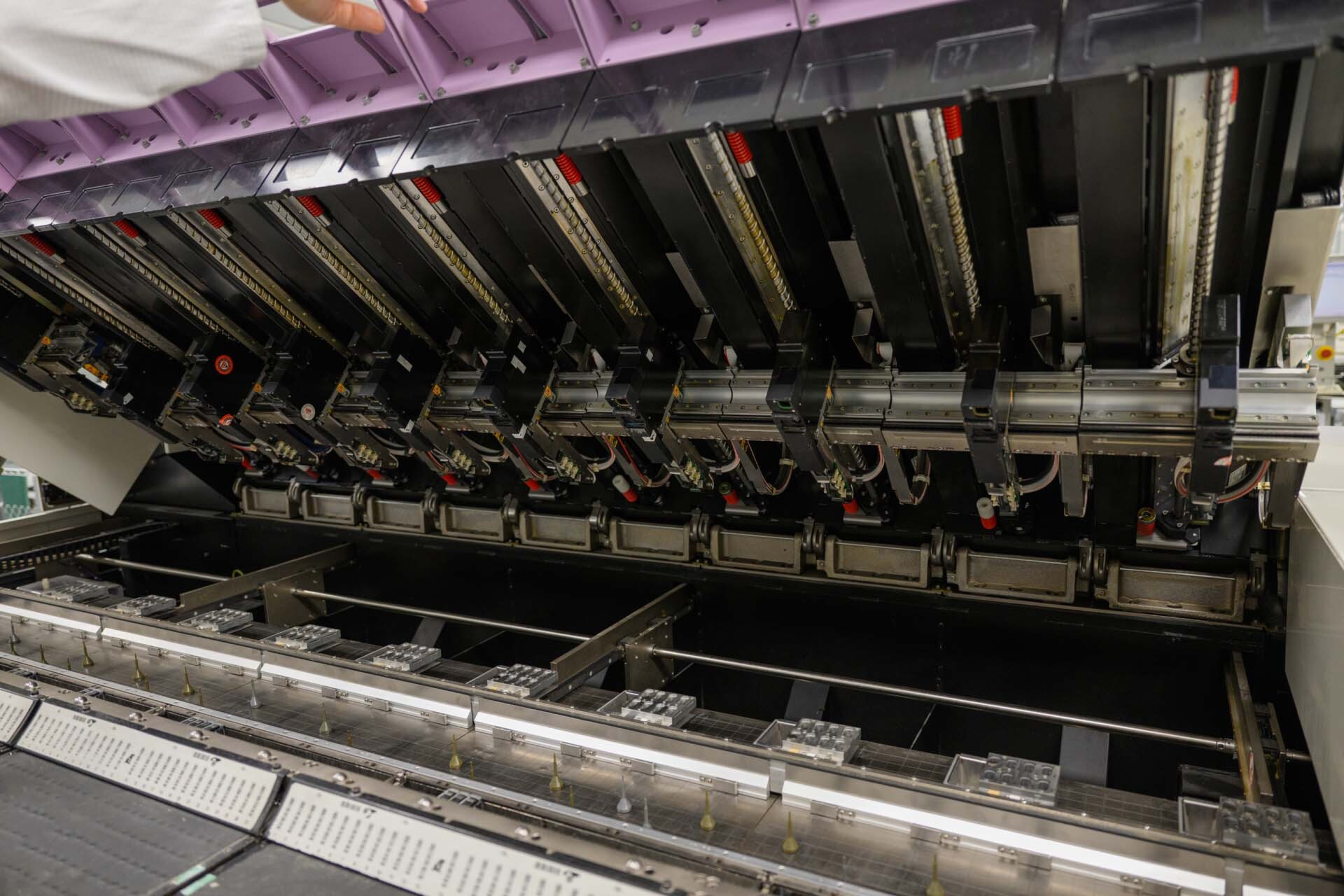

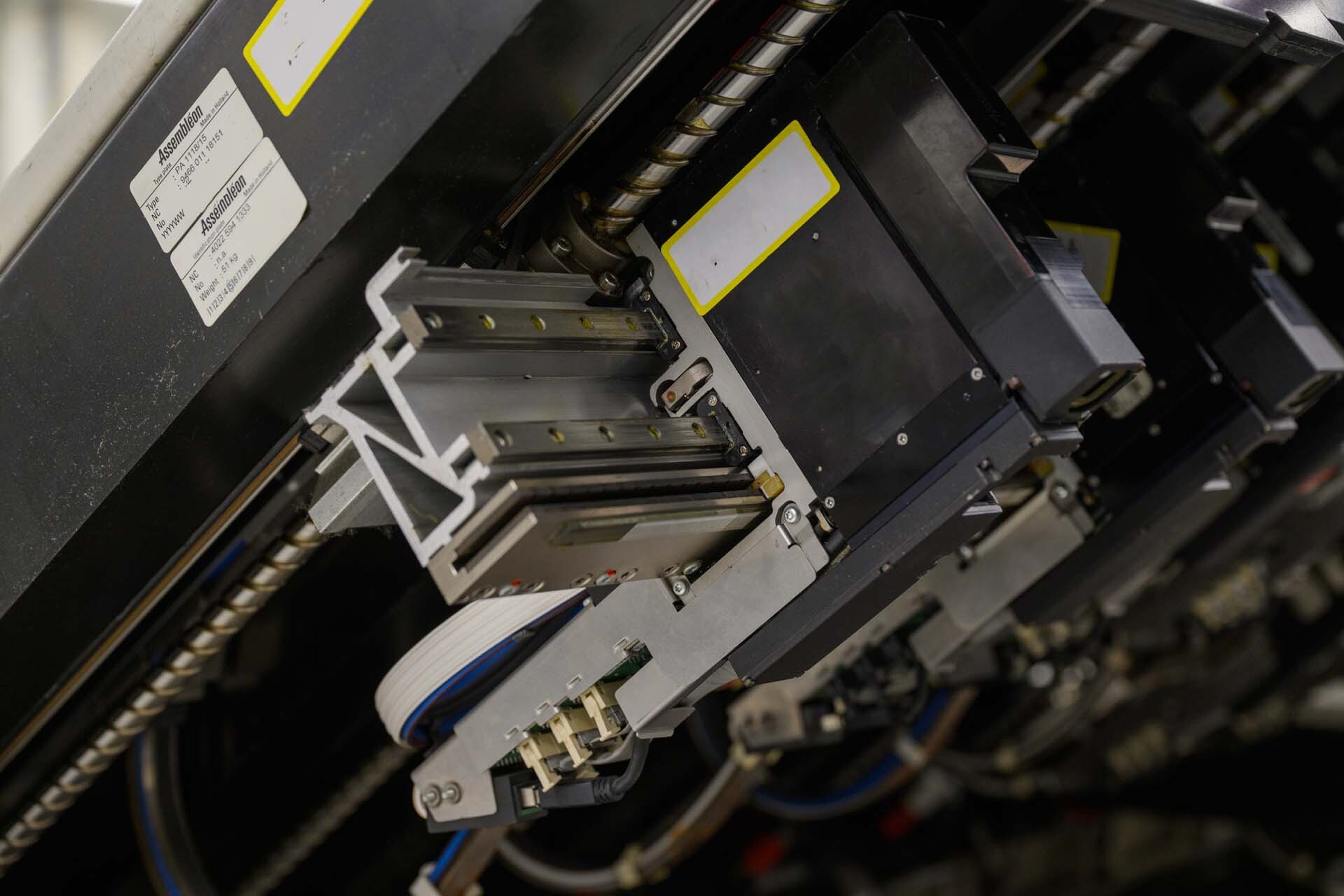

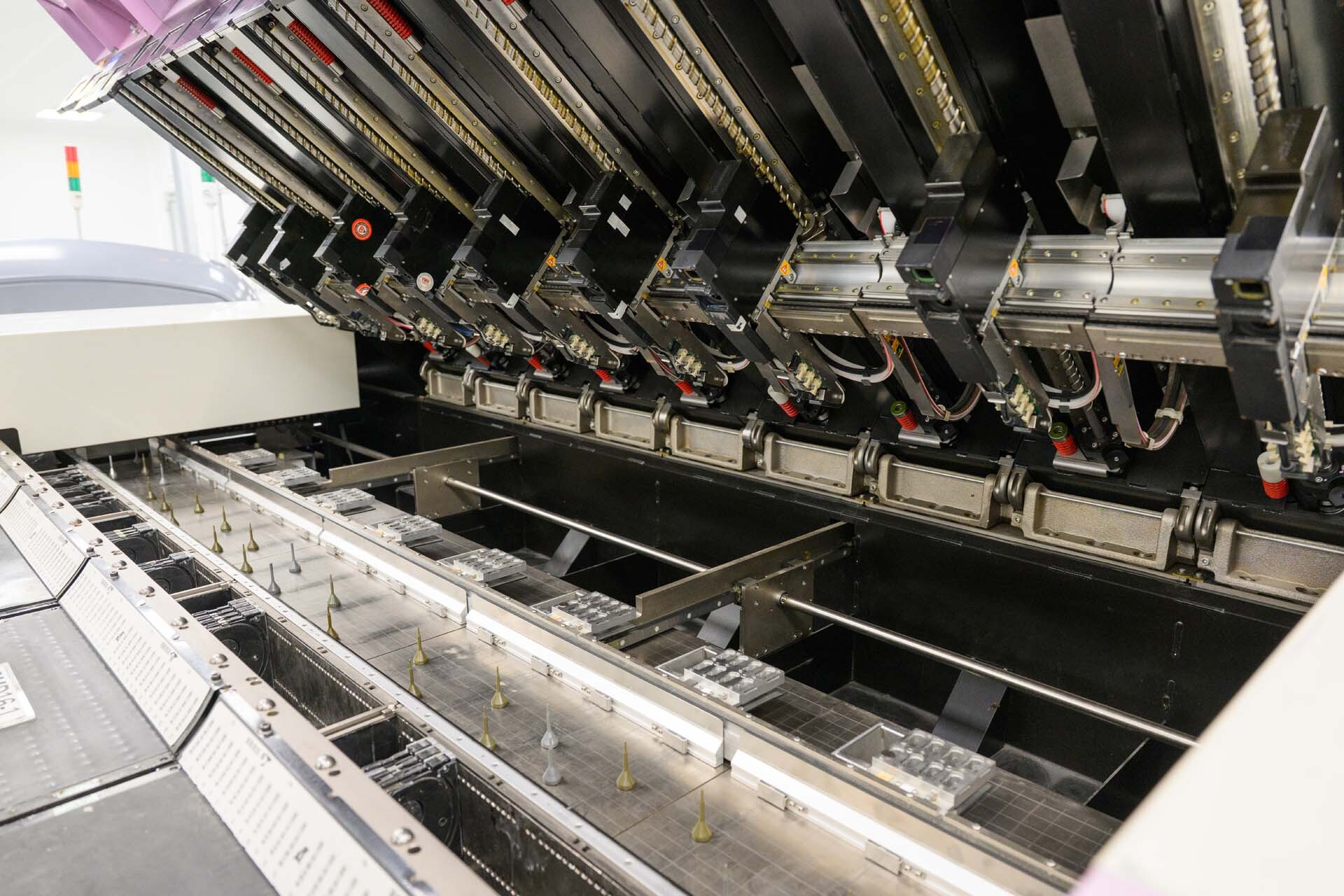

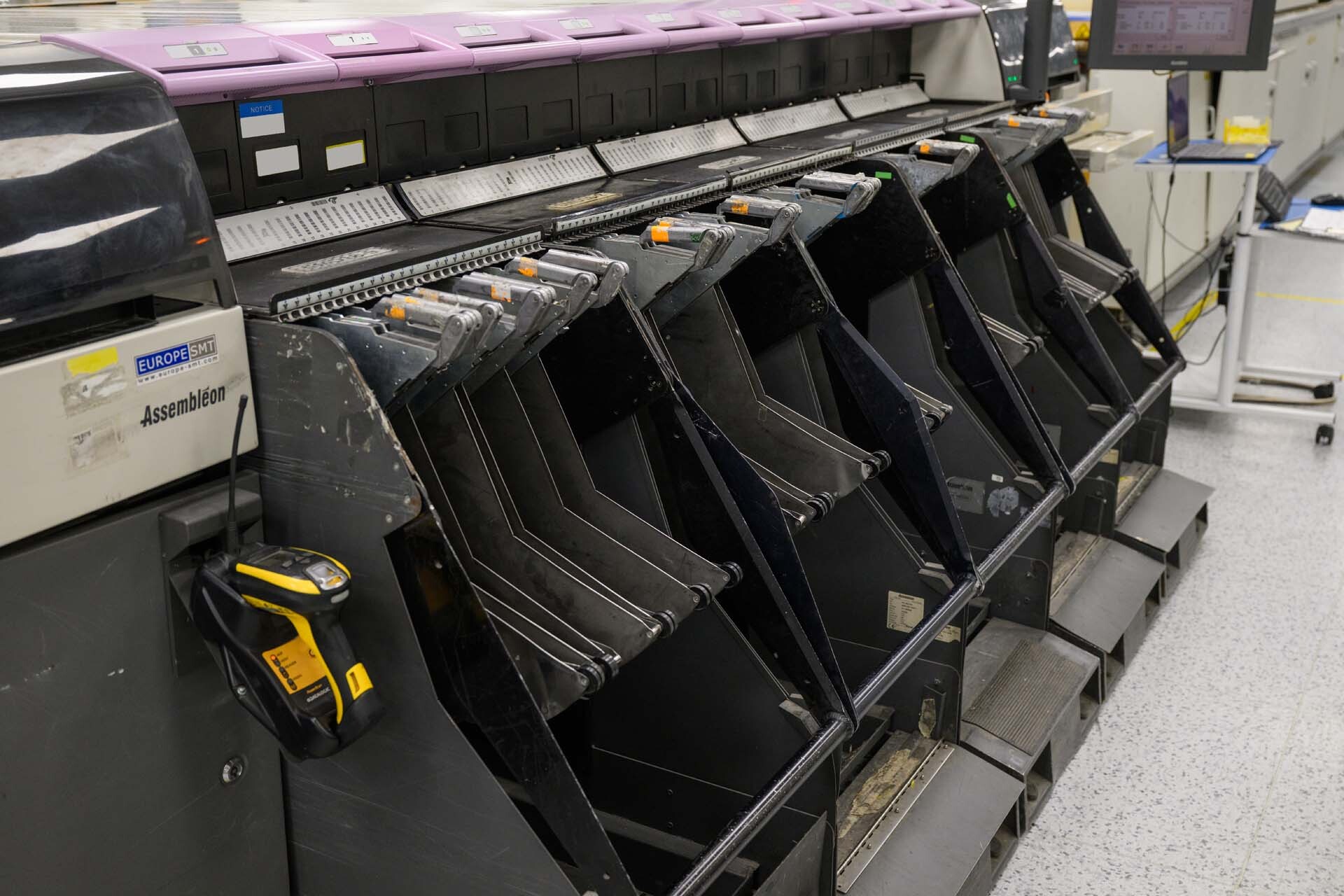

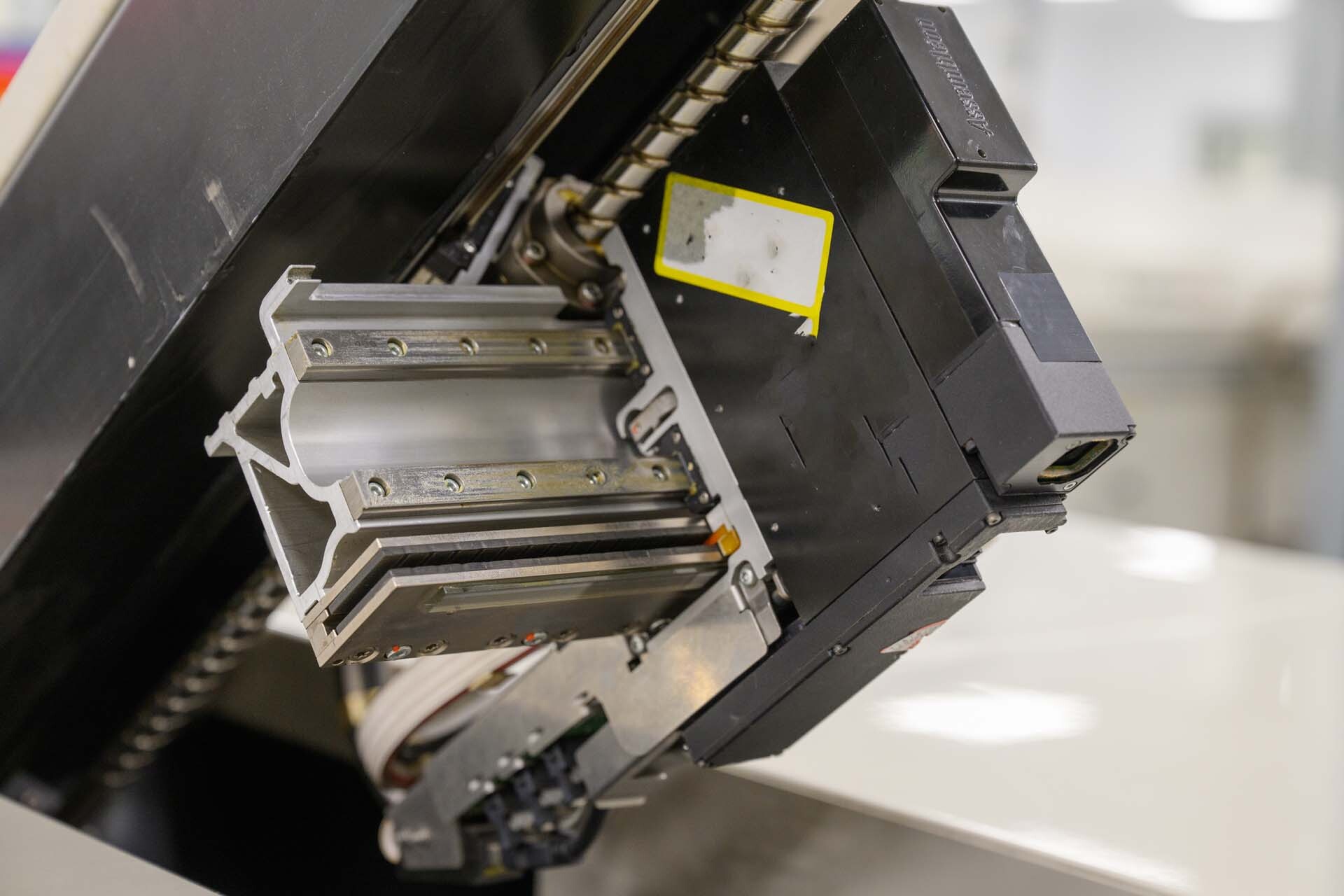

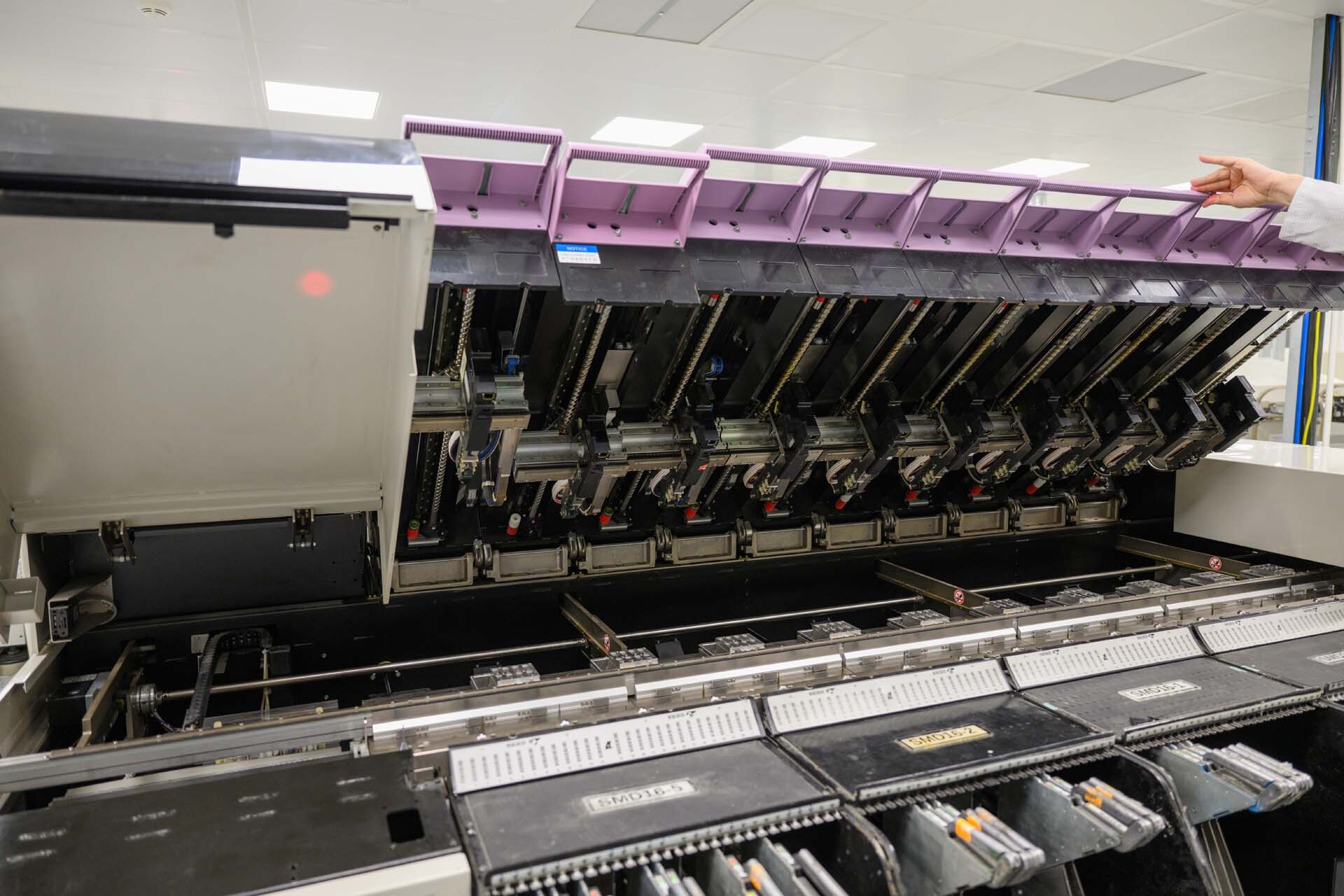

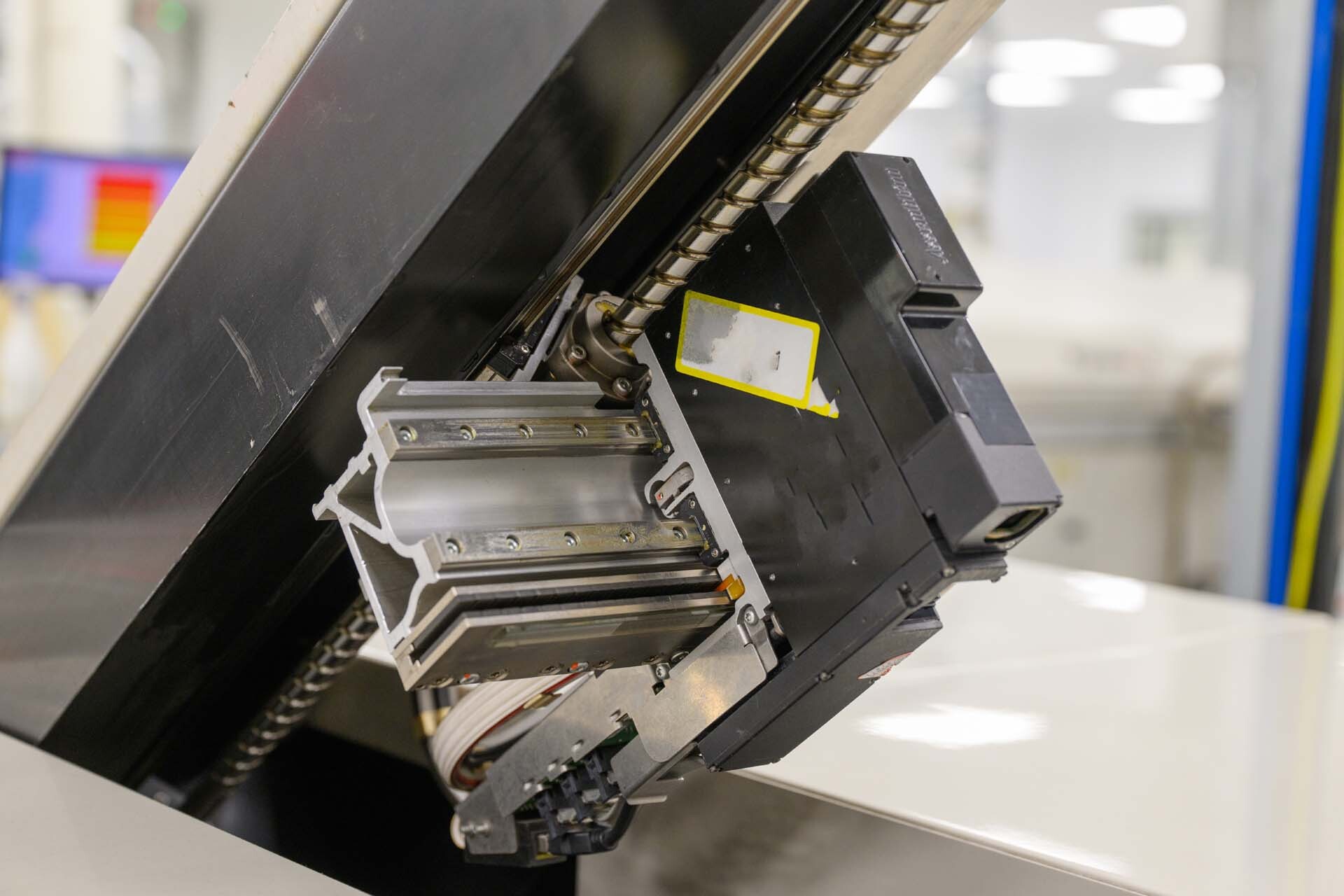

PHILIPS / ASSEMBLEON AX501 is a pc board assembly and manufacturing equipment that provides high-accuracy and high-speed assembly solutions for a range of industrial applications. It is part of the AX Series of PCB assembly systems developed by PHILIPS and uses automatic board handling, optical recognition, automated placement and a reliable pickup and placement process to ensure accuracy and speed in assembly. The system comprises of two basic components: the machine and the software. The machine is is composed of two elements: the conveyor and the "Gantry". The conveyor feeds the blank PCBs to the Gantry by way of an interface board. The Gantry is where most of the action happens, where all the components are placed onto the boards in order to build the design. It contains the vision unit, the pick and place heads, the vacuum machine and the vision control module. The vision tool enables the asset to precisely recognize each components and locate mismatched components. It also has an automatic placement model that is capable of positioning boards in both x- and y-axes, allowing quick and accurate placement of components. The software component of PHILIPS AX501 is designed to integrate with existing customer IT infrastructure. It allows customers to modify and program custom board designs using various features such as automatic placement, simplified programming, production monitoring, and quick changeover of components. The software also offers remote diagnostics and servicing capabilities, helping users take preemptive measures against unexpected problems while manufacturing products. ASSEMBLEON AX501 is capable of handling a wide range of components, including Surface Mount Technology (SMT) components, Flip chip package, Small Outline Integrated Circuits (SOICs), Quad-Flat No-Lead (QFN), and Ball Grid Arrays (BGAs). It is also capable of handling up to 102 feeders, allowing it to handle a large number of components and boards in a single job. AX501 is designed to suit the needs of customers in both small and large-scale manufacturing. Its high accuracy and speed, coupled with a broad range of components, allows its use in a wide variety of industrial processes. With remote diagnostics and servicing capabilities, it provides a reliable and efficient PCB assembly and manufacturing solution.
