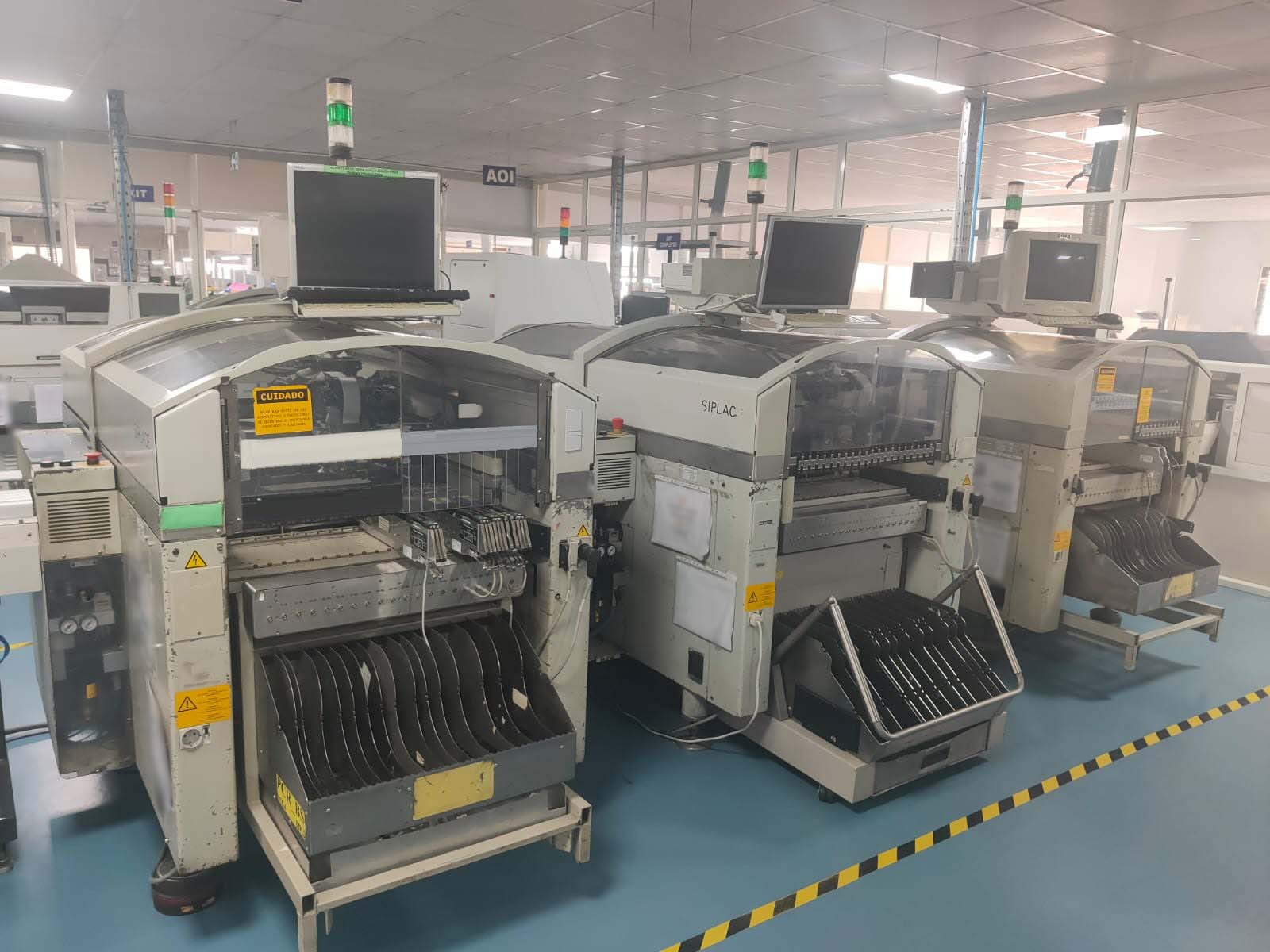

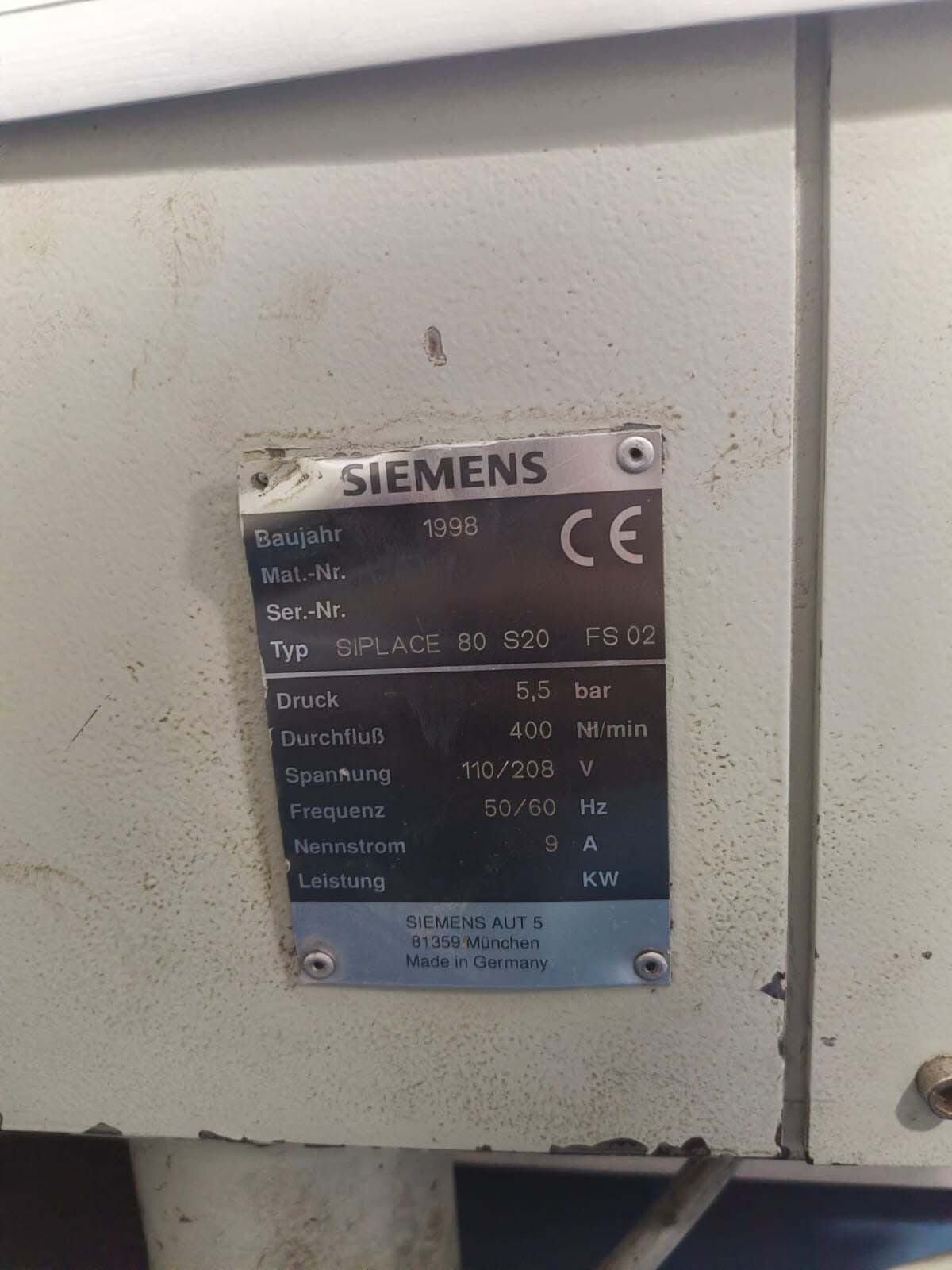

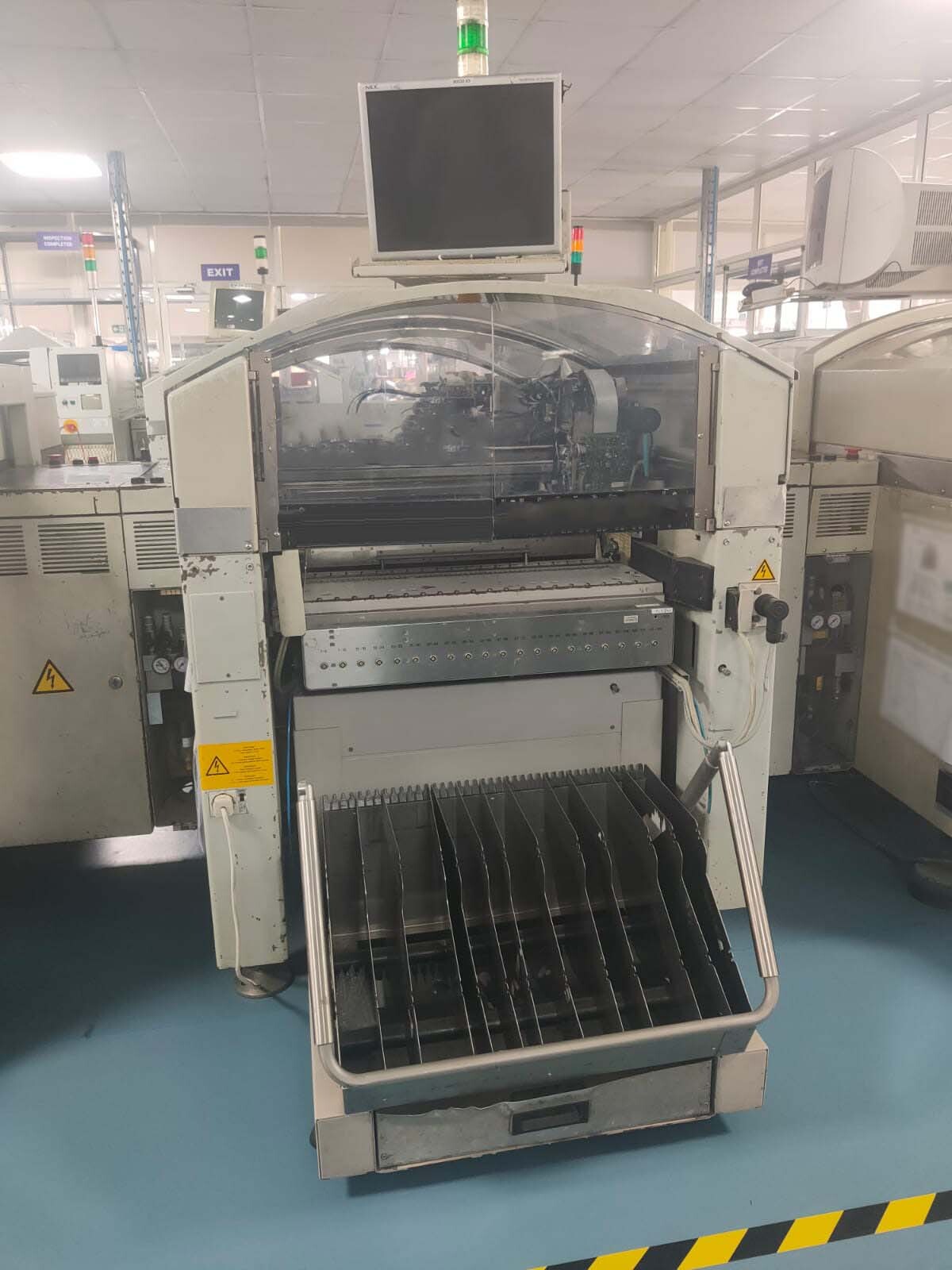

Used SIEMENS Siplace 80 S20 #293689593 for sale

SIEMENS Siplace 80 S20 is a state-of-the-art PC Board assembly and manufacturing equipment that is designed to meet the demands of high speed, high precision, electronic assembly production. The system is designed to provide complete automatic programmable placement of components on boards with a range of components from 0201 metric to BGA packages and a reliable, repeatable accuracy of +/-20µm. The process of loading and unloading the PCBs onto the Siplace is automated. The Siplace is built with an advanced platform that facilitates modularity and flexibility to meet changing production needs. It features cutting-edge alignment cameras for precise component placement, as well as feeder modules for different types of components. For each step in the process, the unit can be configured with automatic sensors and vision systems to accurately monitor the board assembly and detect any issues before the final board inspection. The Siplace machine is capable of placing any type of component, including BGA, through-hole, and SMD chips at a high speed. For SMD components, the tool is able to inspect and identify the origin and orientation of components before placement on the board. In addition, Siplace 80 S20 is equipped with an automated vision asset programmed to detect improper or incorrect component placement in each stage of the assembly. By actively monitoring each board, the vision model is able to detect misalignments, defective components, mis-orientations, or other errors that could result in failure. SIEMENS Siplace 80 S20 can also be connected to in-line monitoring systems to inspect the board on a continuous basis and compare the results against predetermined requirements. This ensures that all products are of the highest quality and accuracy. The equipment features a modular design for quick setups and changeovers, allowing more production to be carried out in a shorter timeframe. The user-friendly interface and integrated data management system make it an ideal solution for ensuring accurate placement of components for presentation and sells. Siplace 80 S20 is a reliable, precision unit for achieving exact placement of components, sorting and inspection of electronic components, recognition and inspection of components including their origin and orientation, and secure soldering of components. This machine is designed to be compatible with a variety of components, making it an ideal choice for the efficient and exact placement of PC board assemblies.
