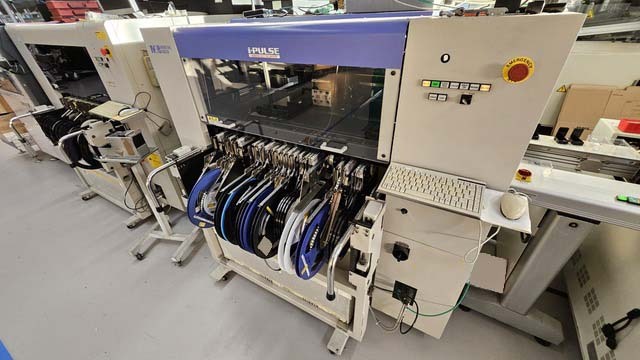

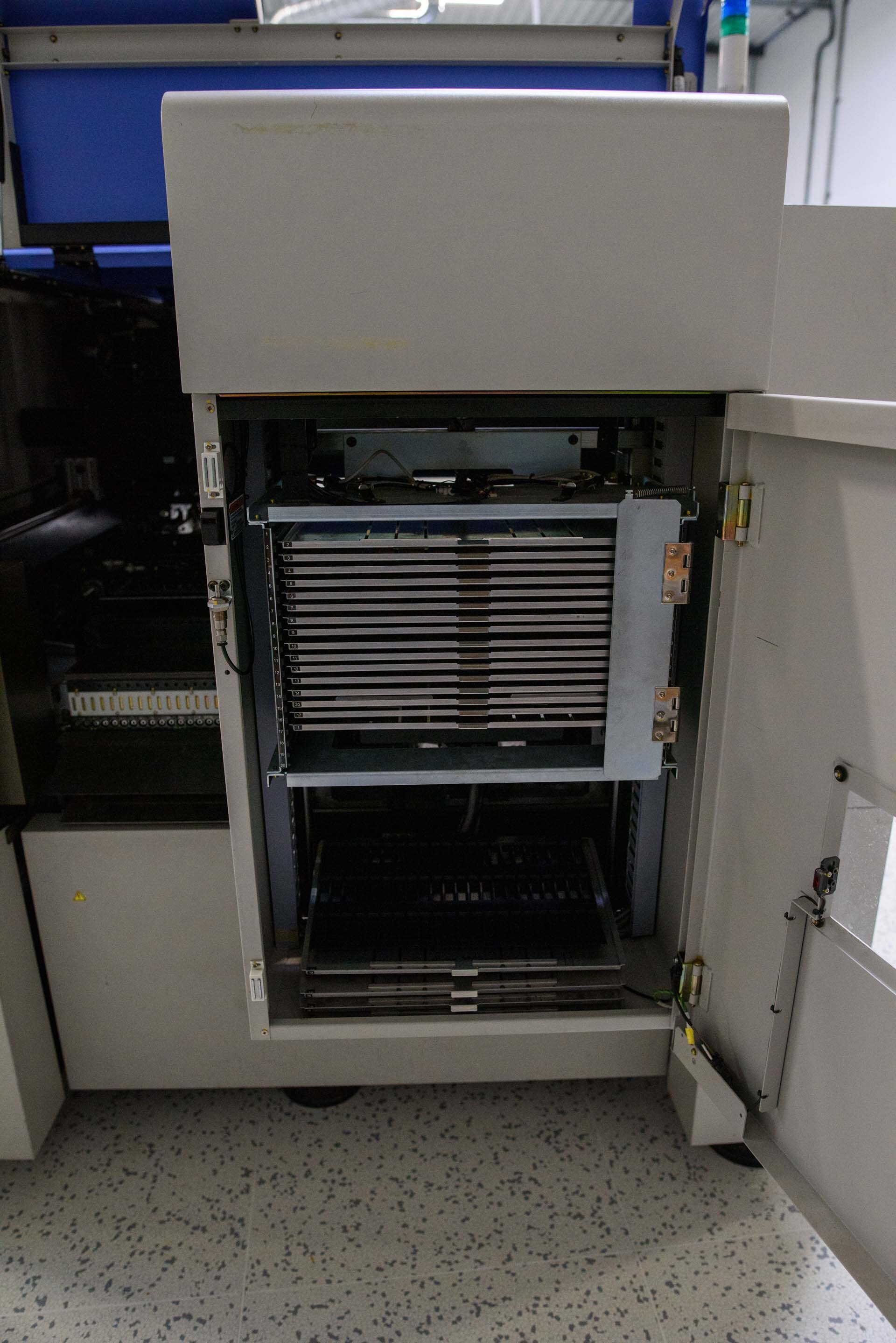

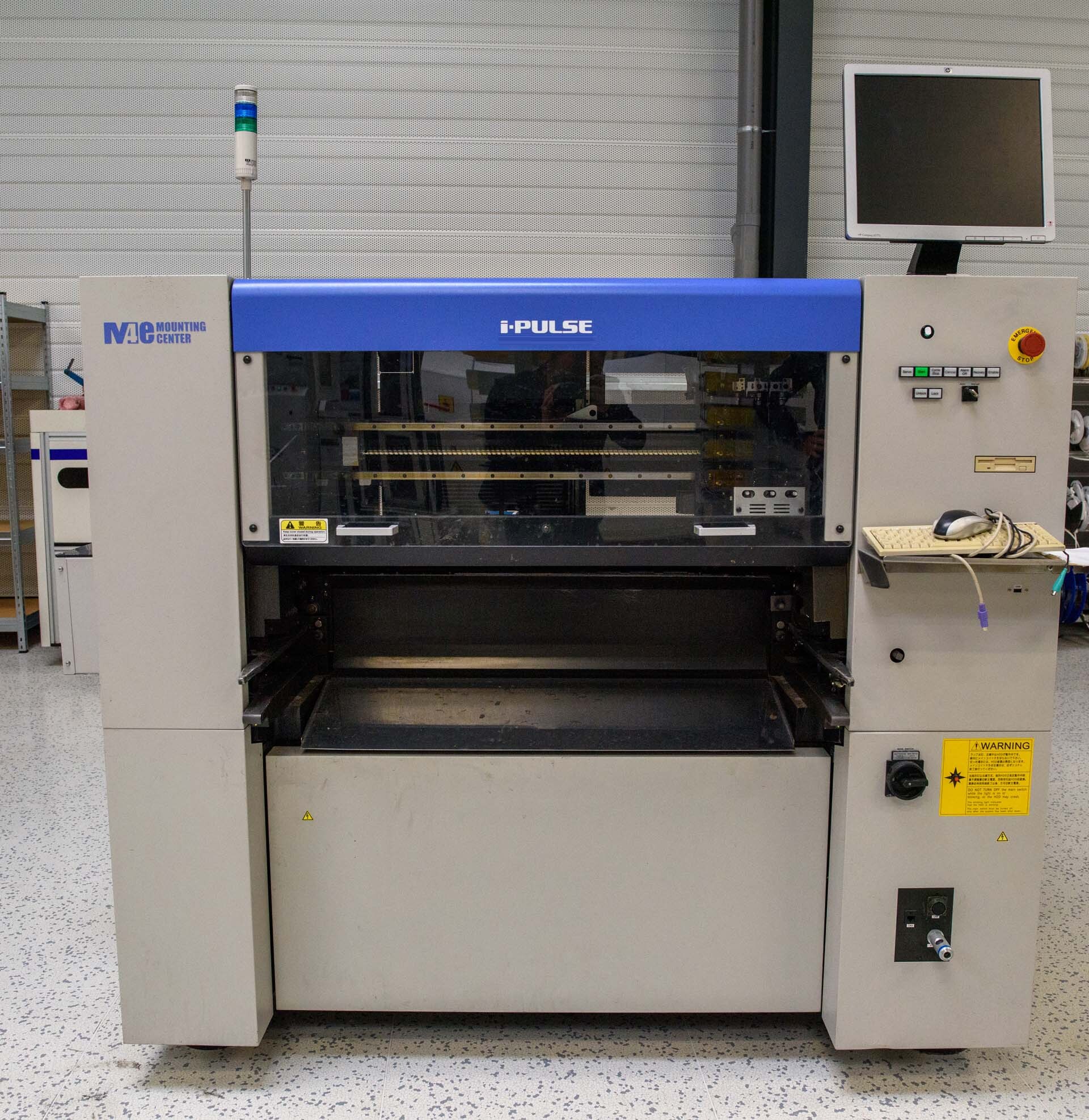

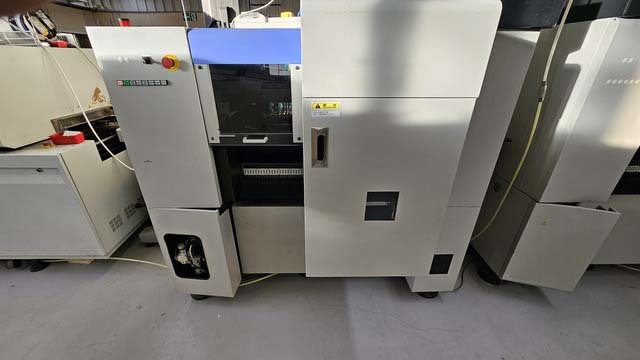

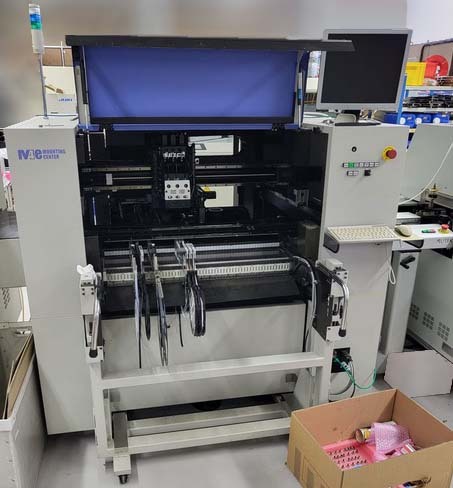

Used YAMAHA i Pulse M4E #293795820 for sale
URL successfully copied!
Tap to zoom
ID: 293795820
Vintage: 2006
Pick and place machine

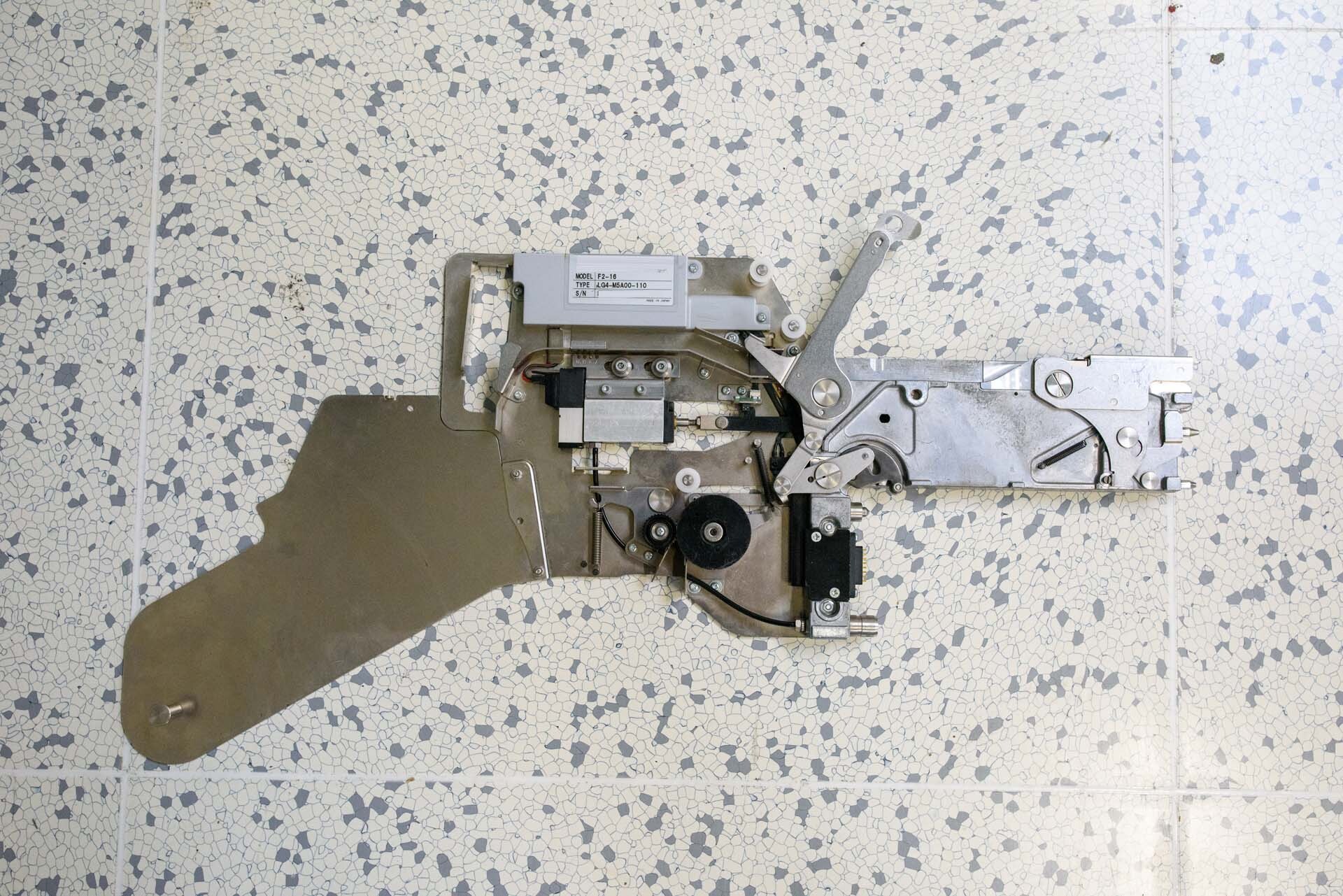

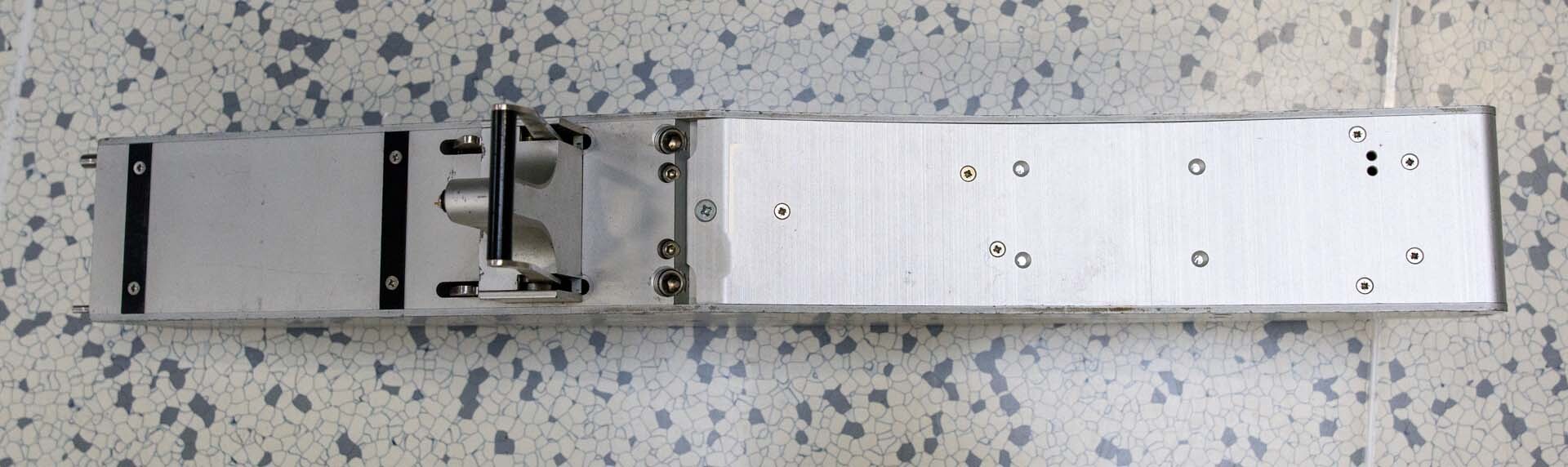

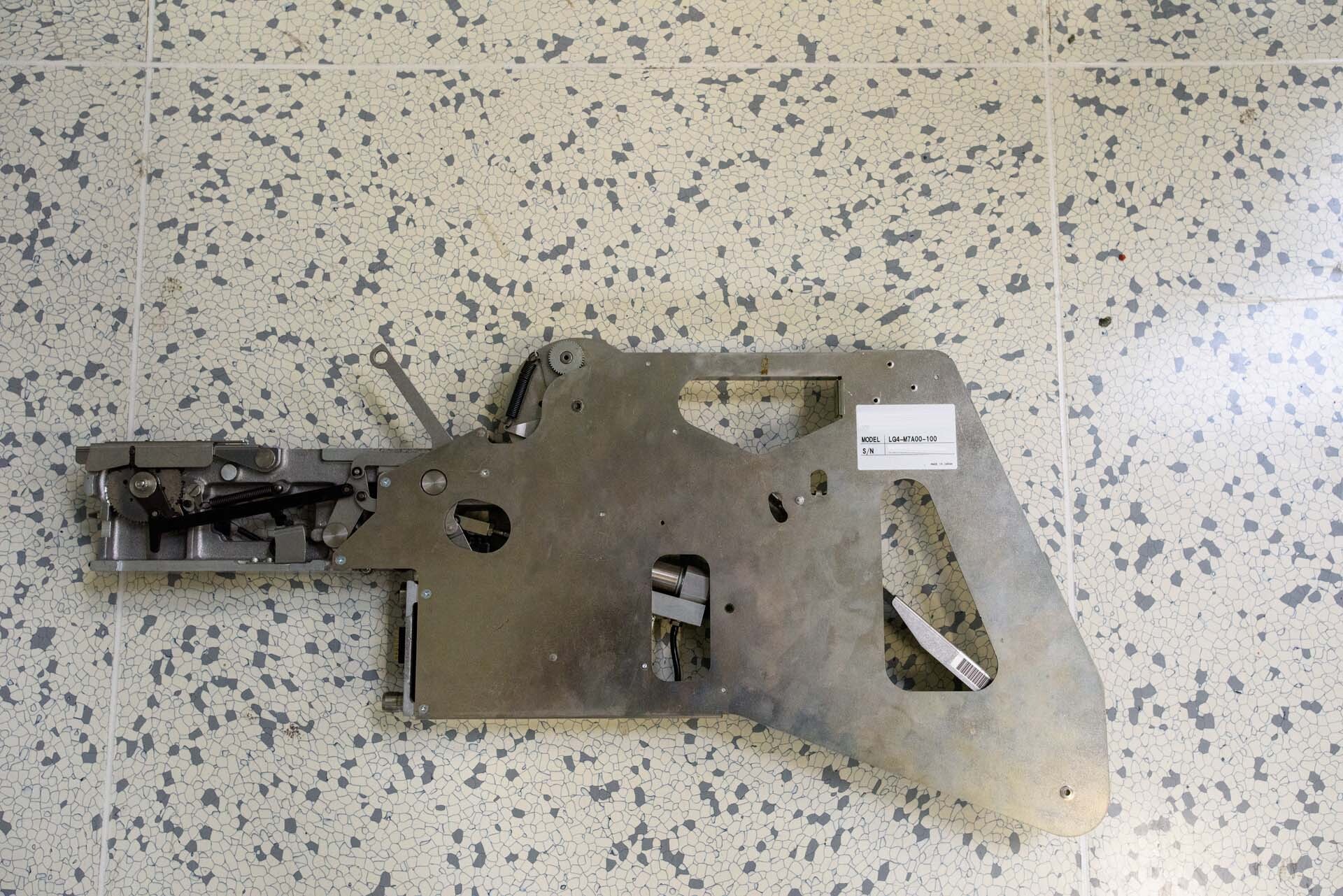

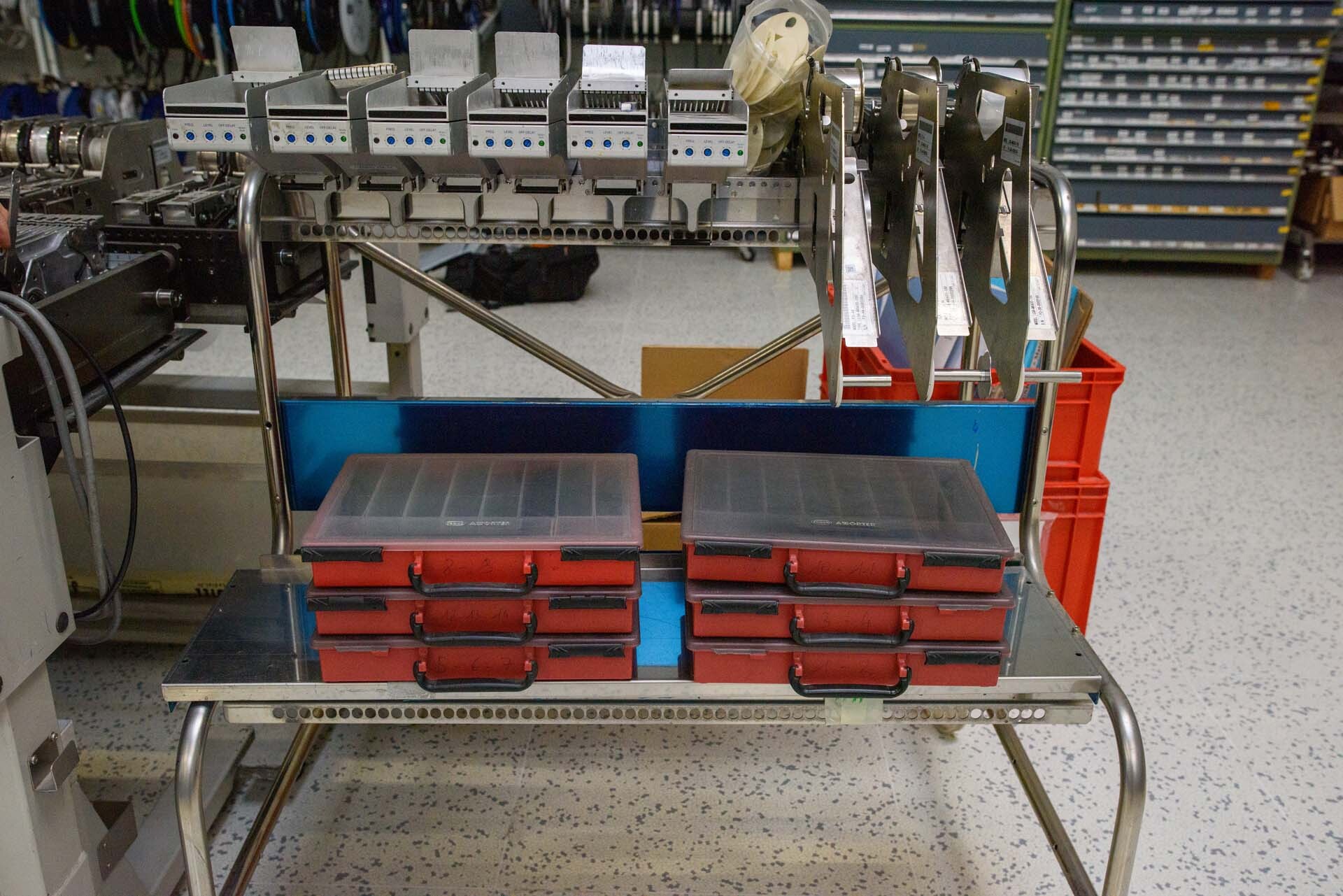

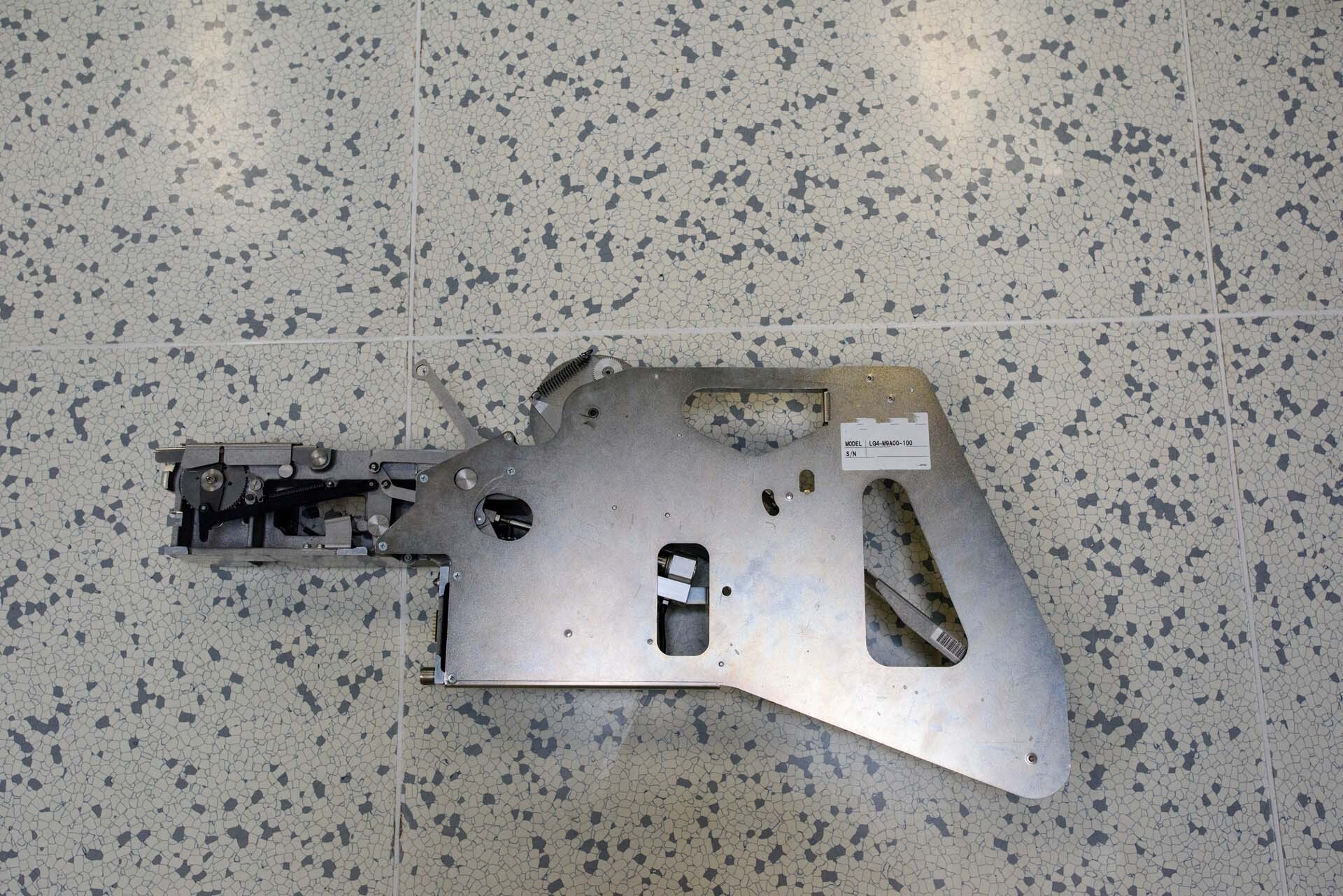

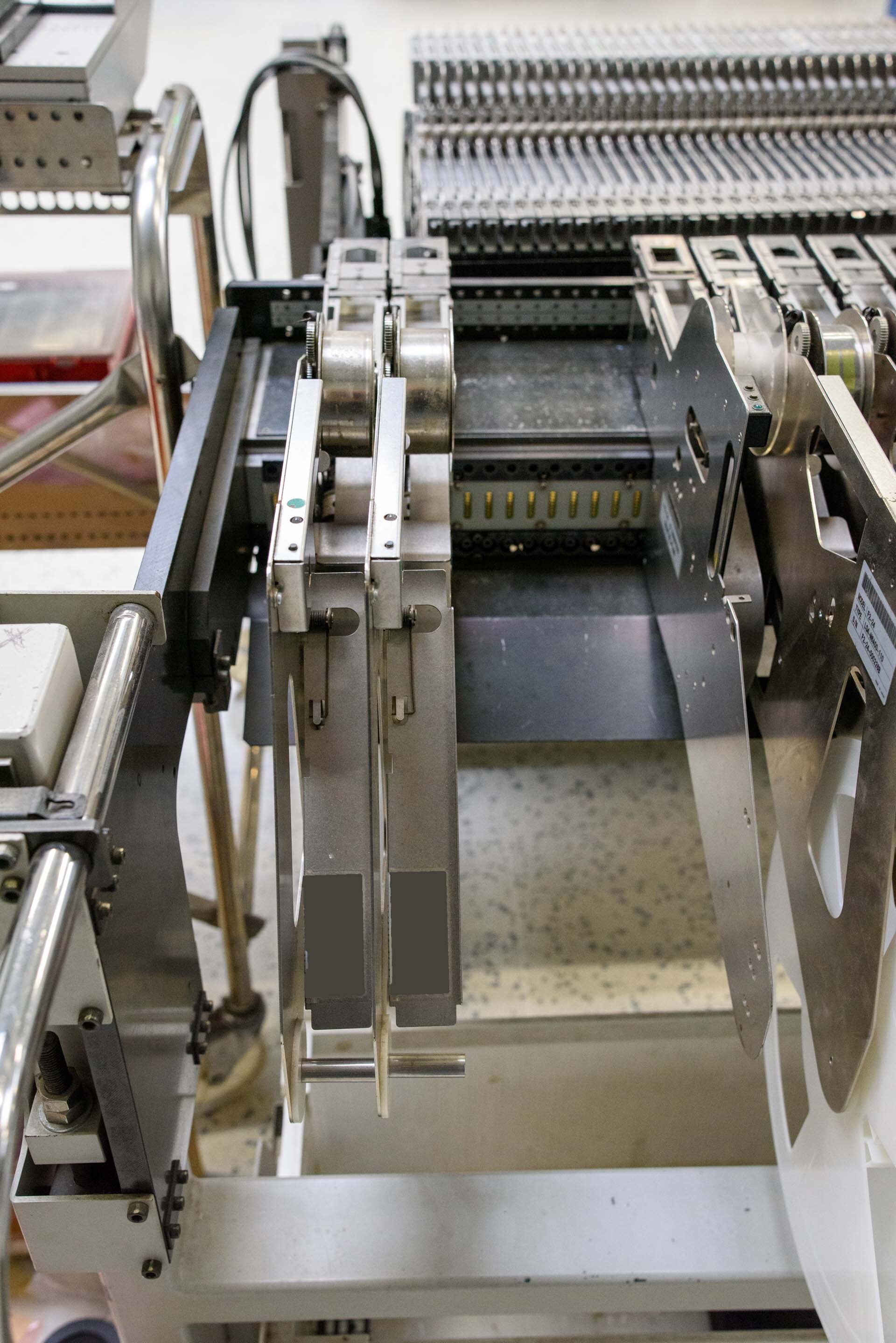

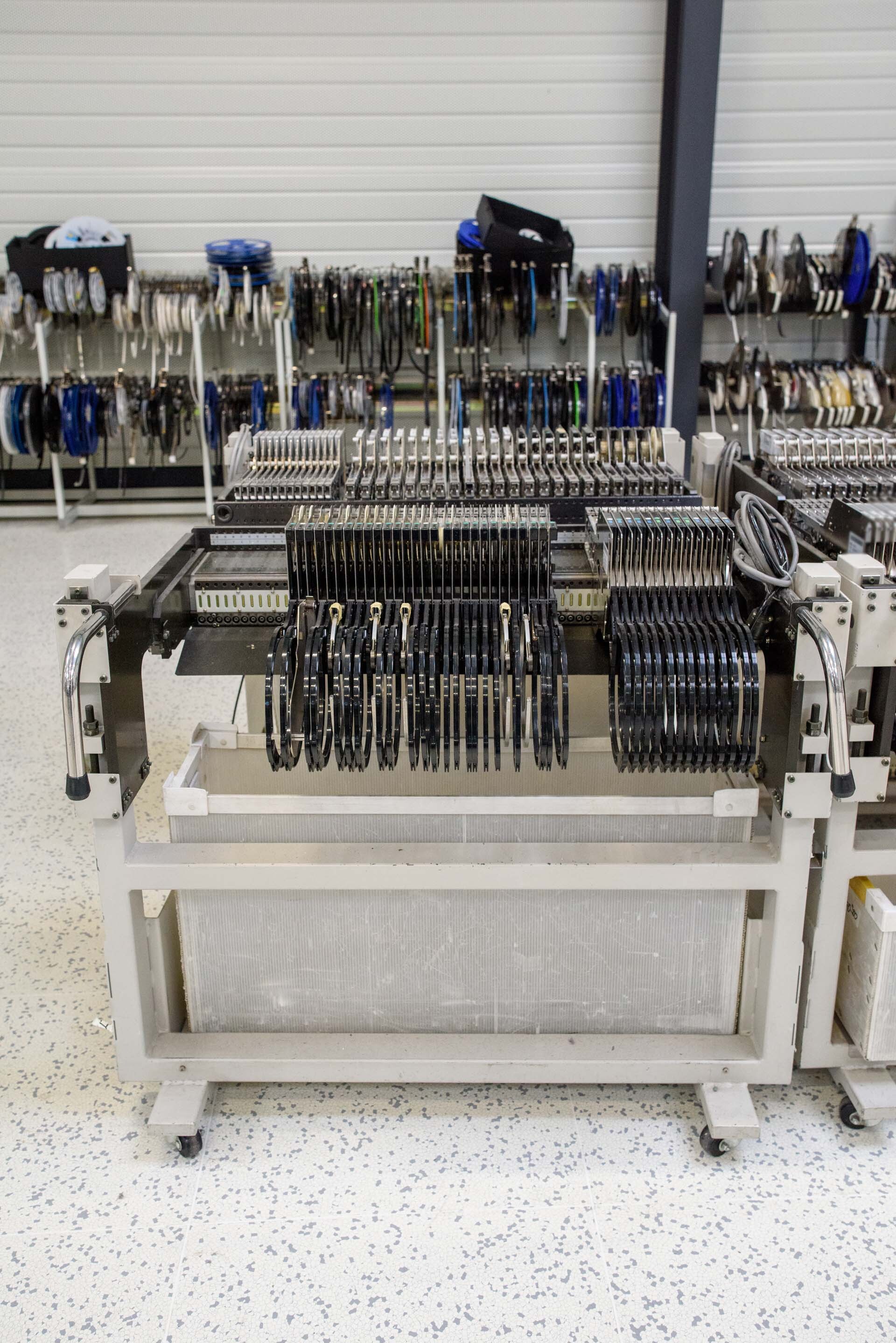

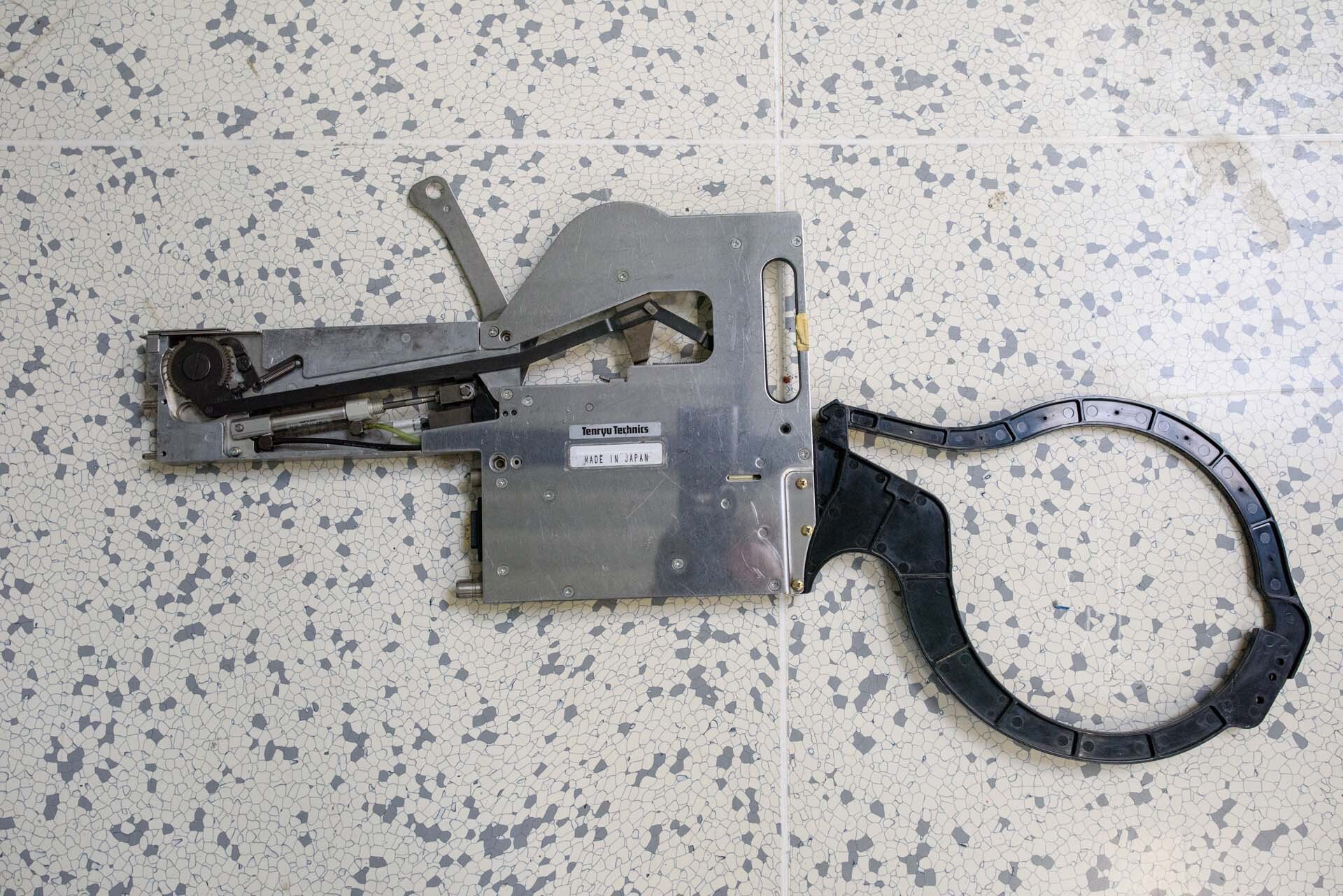

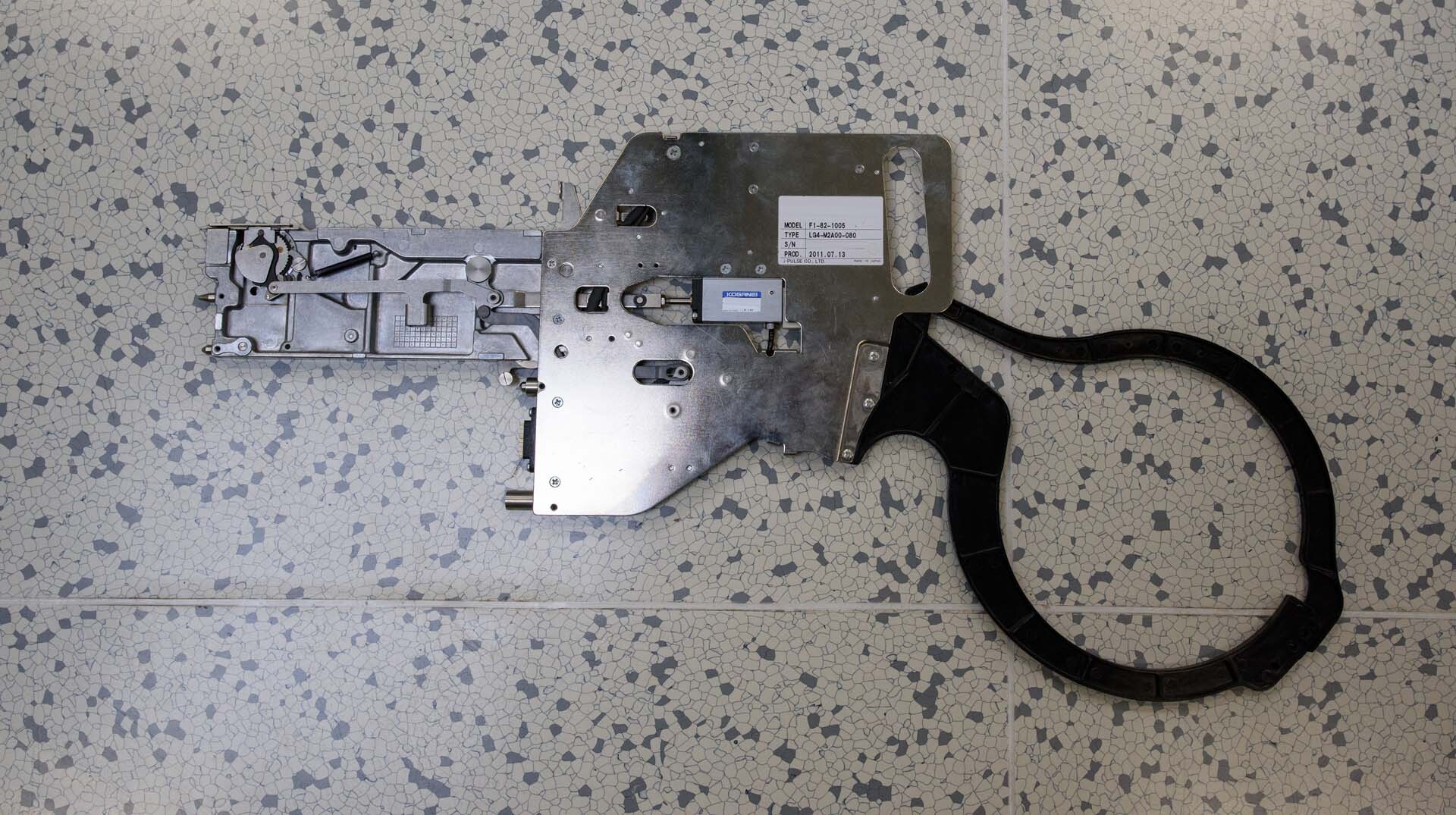

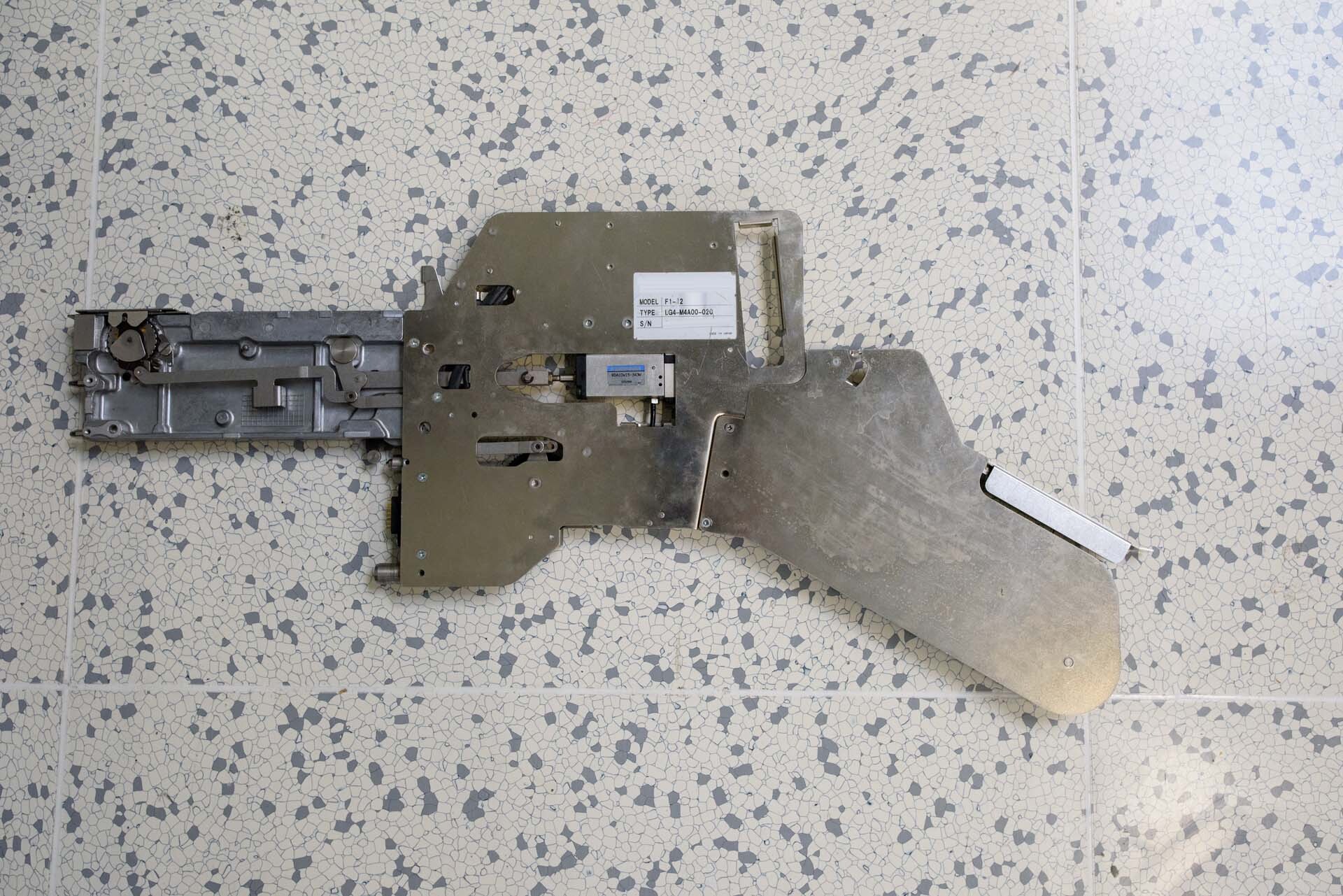

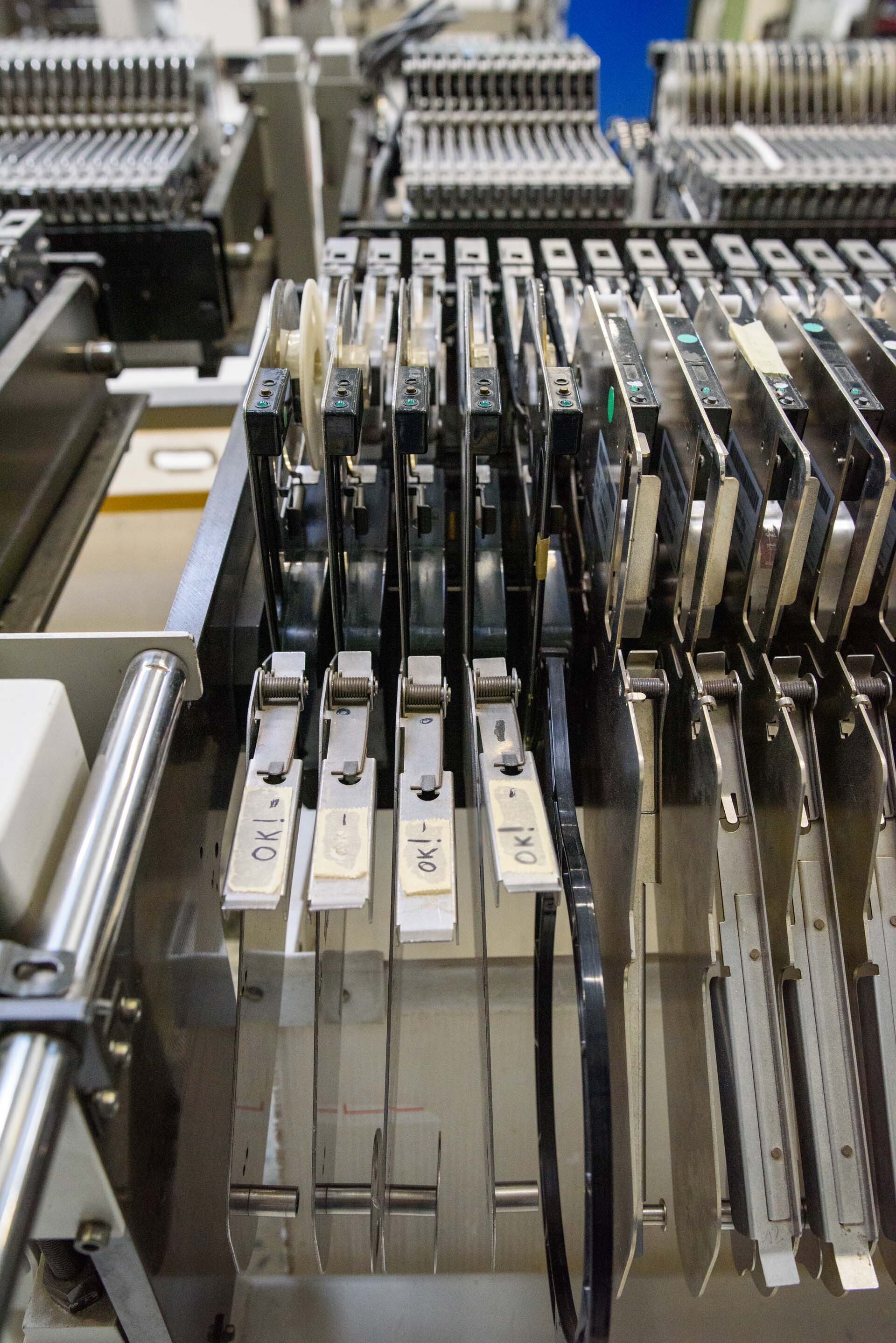

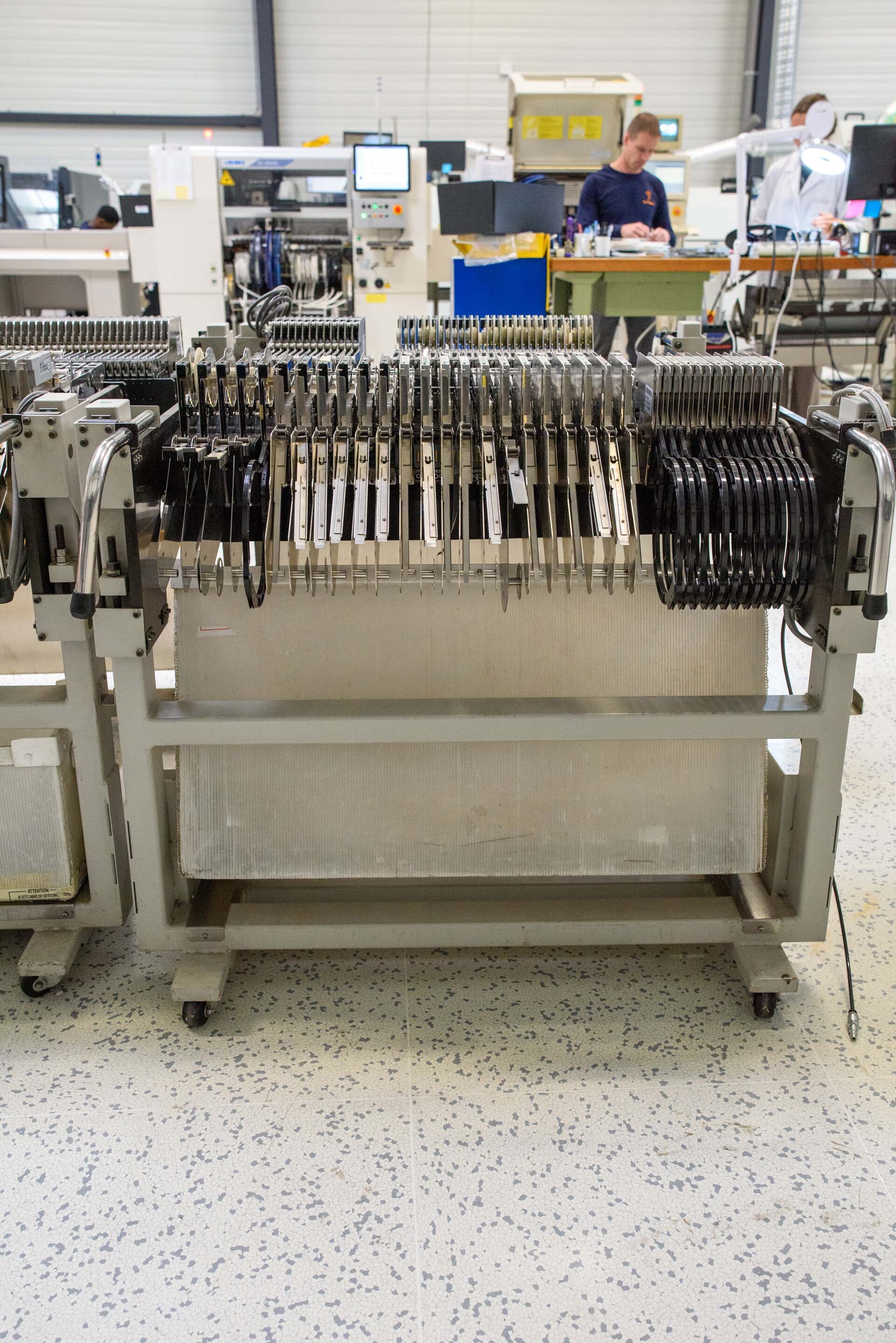

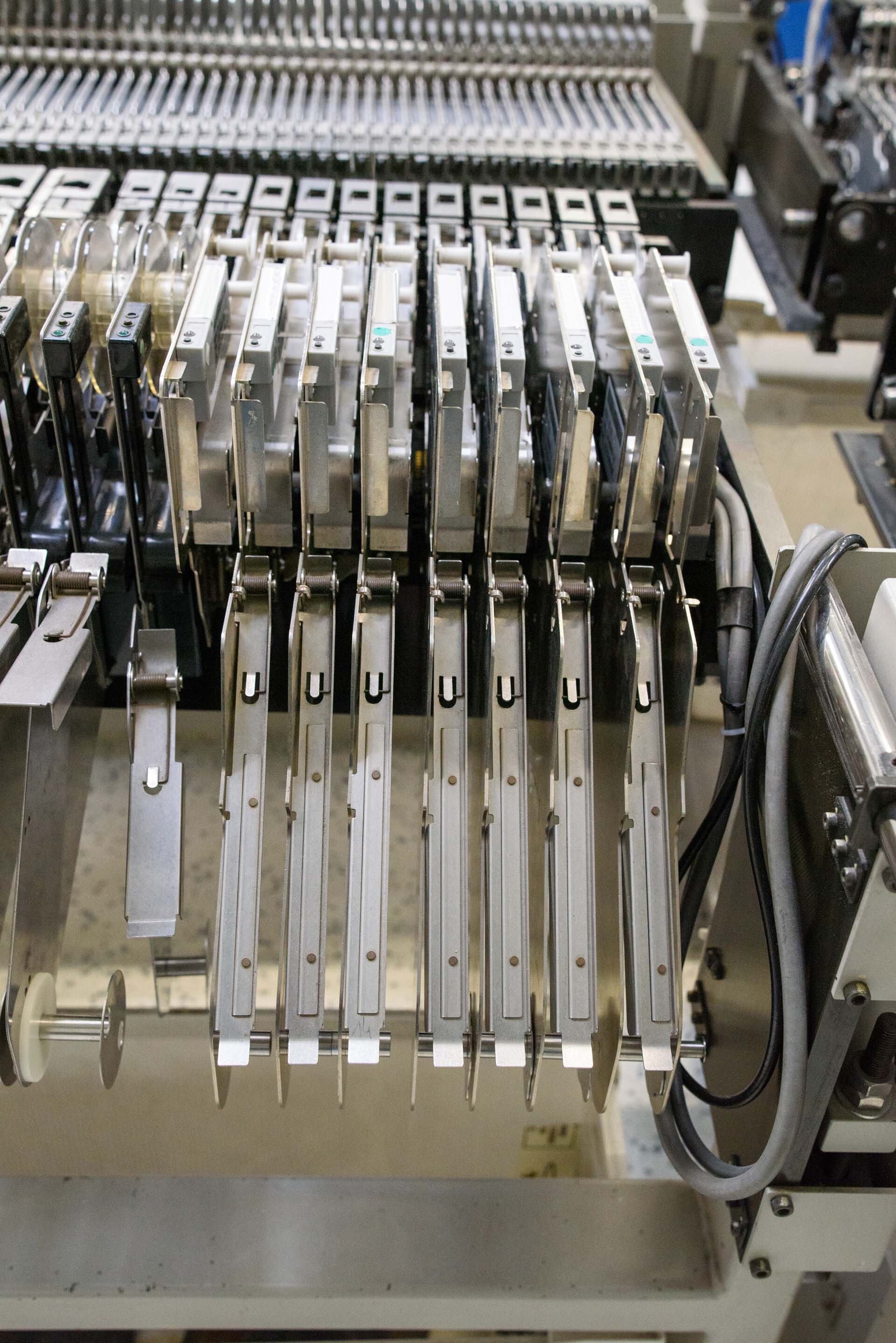

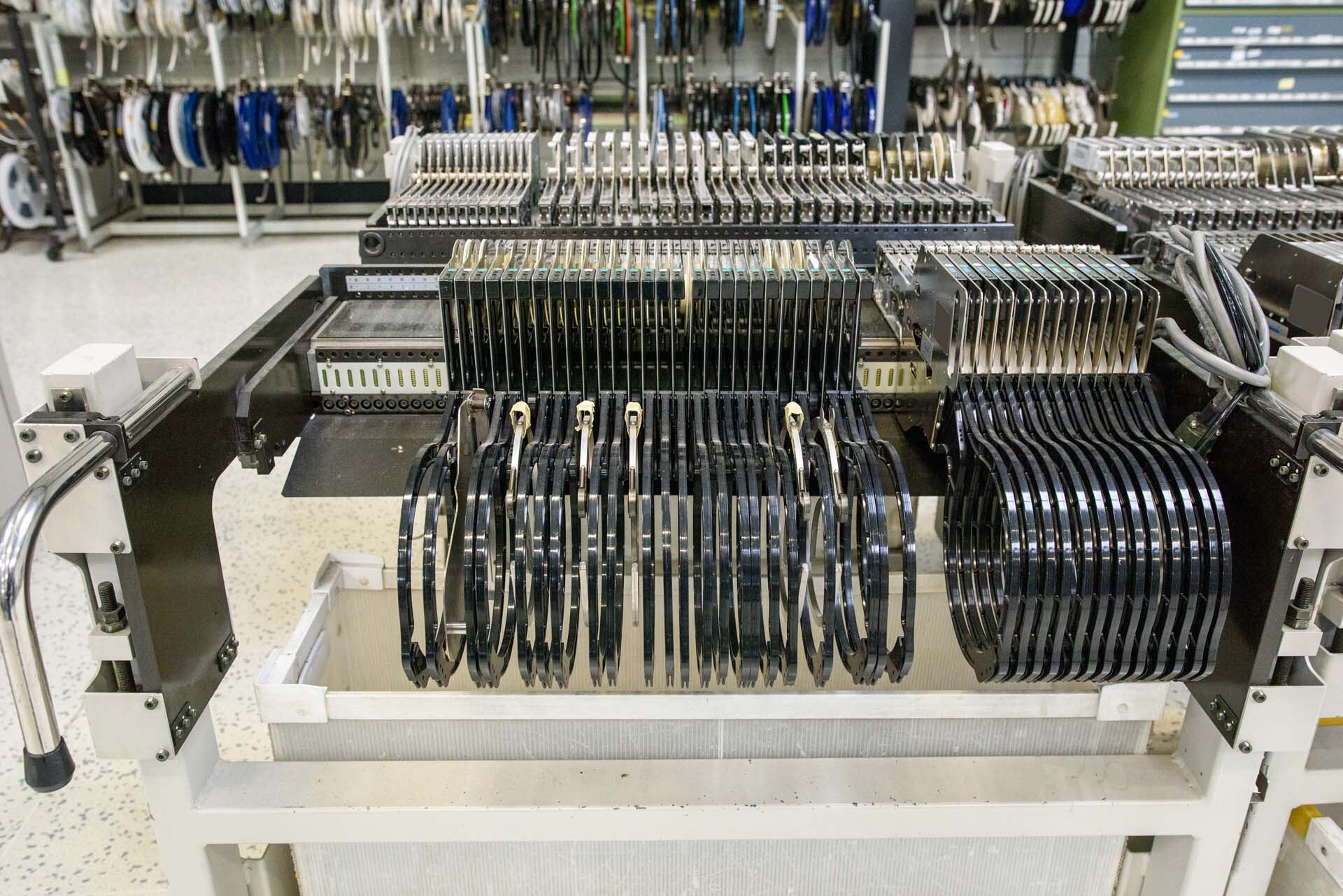

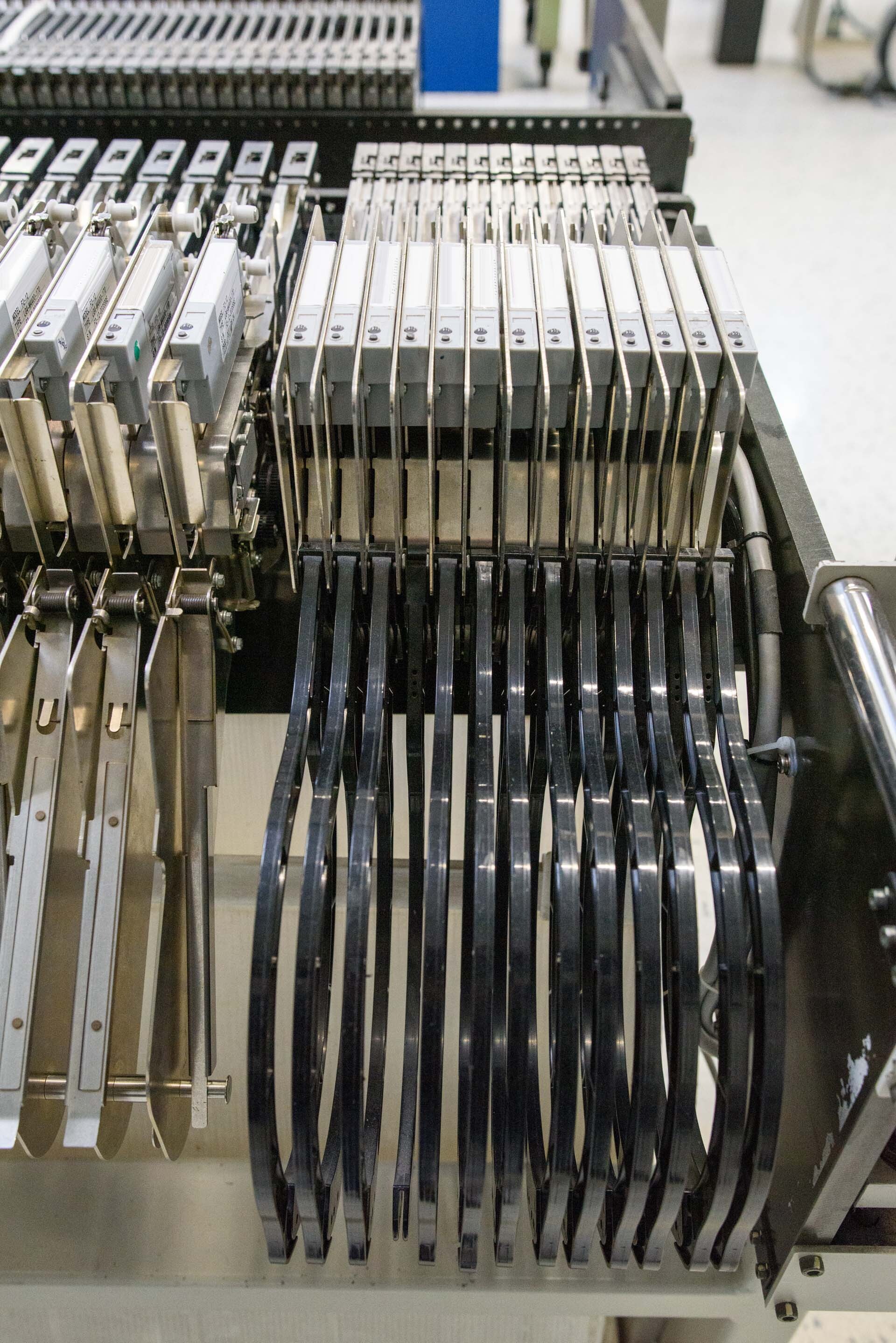

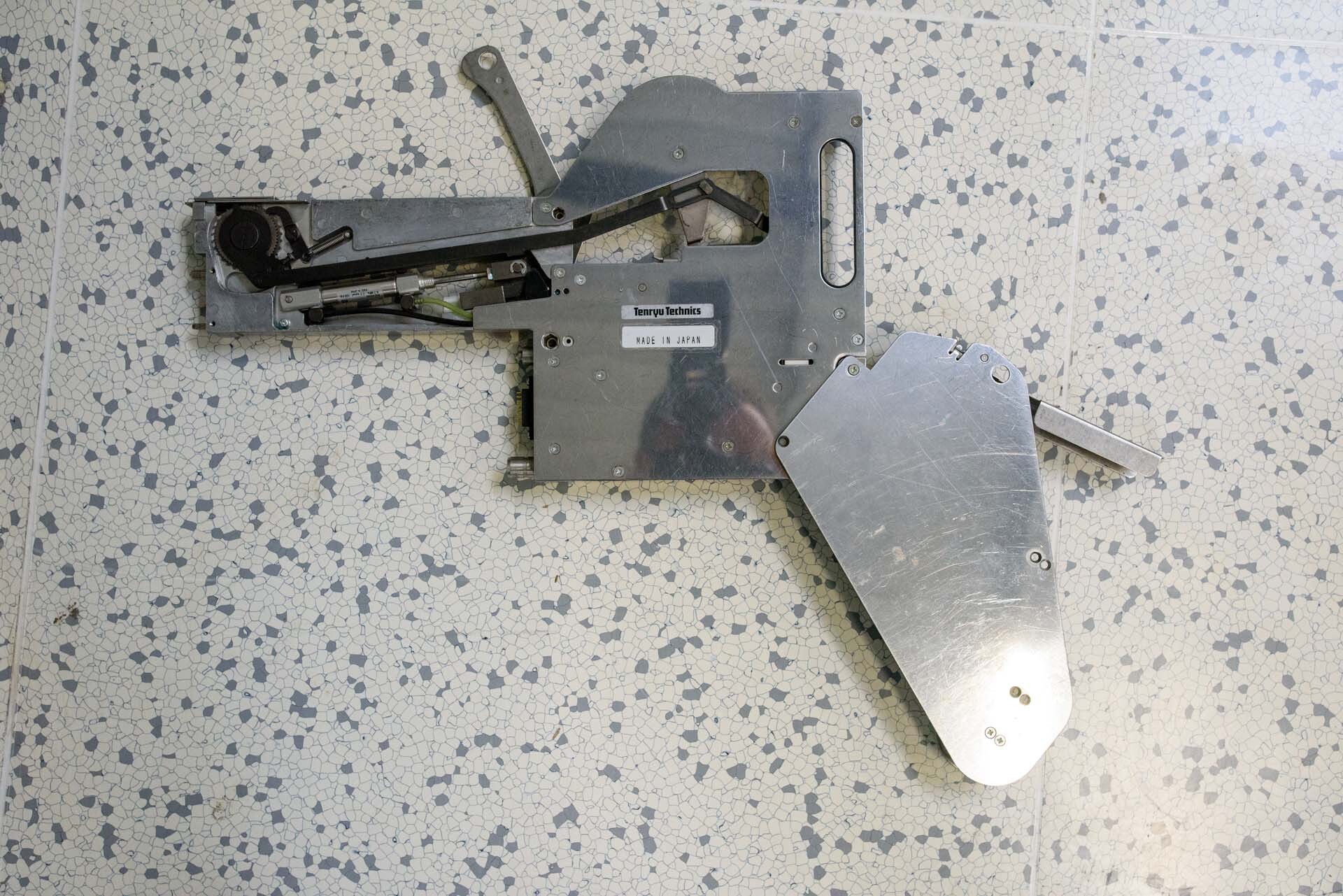

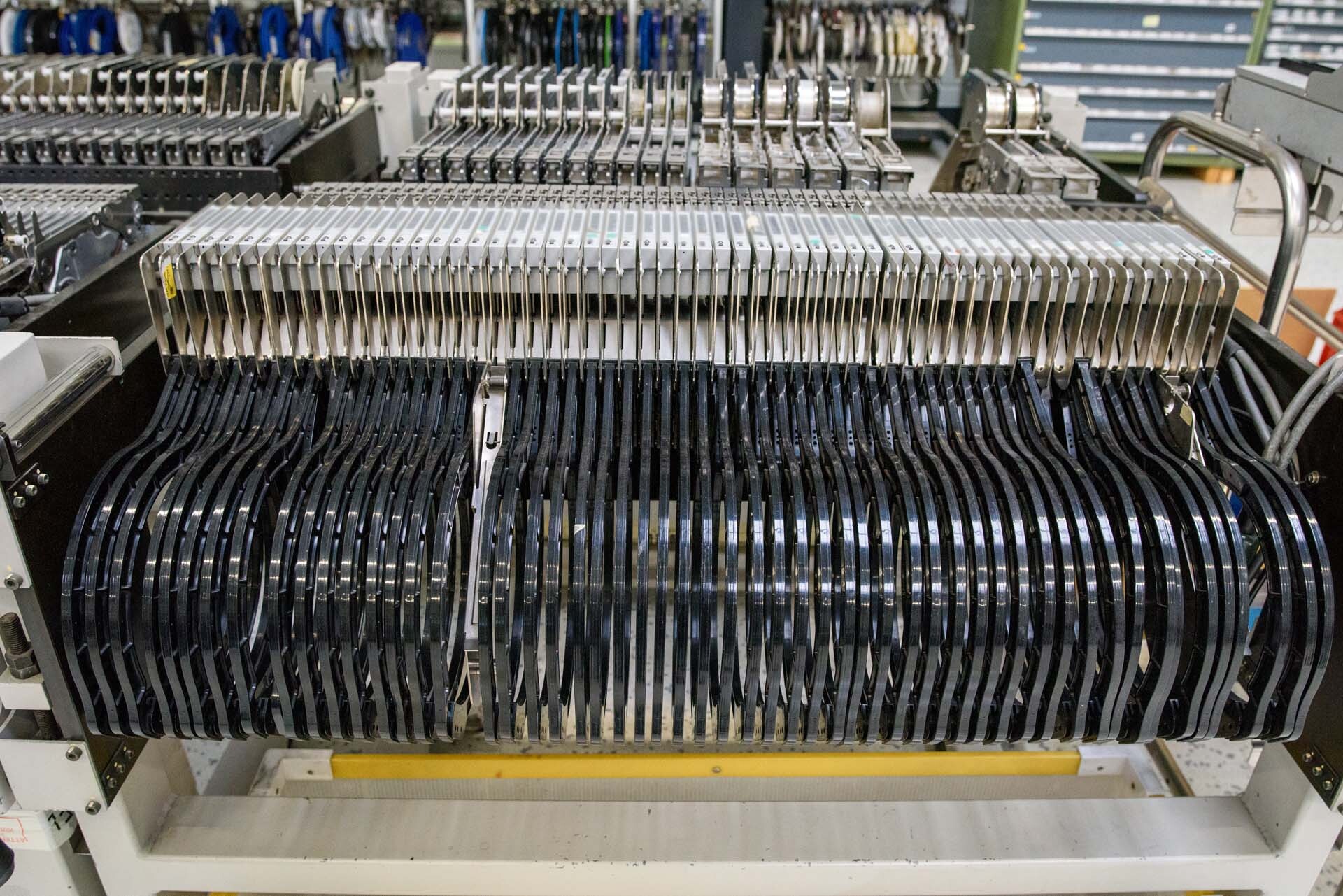

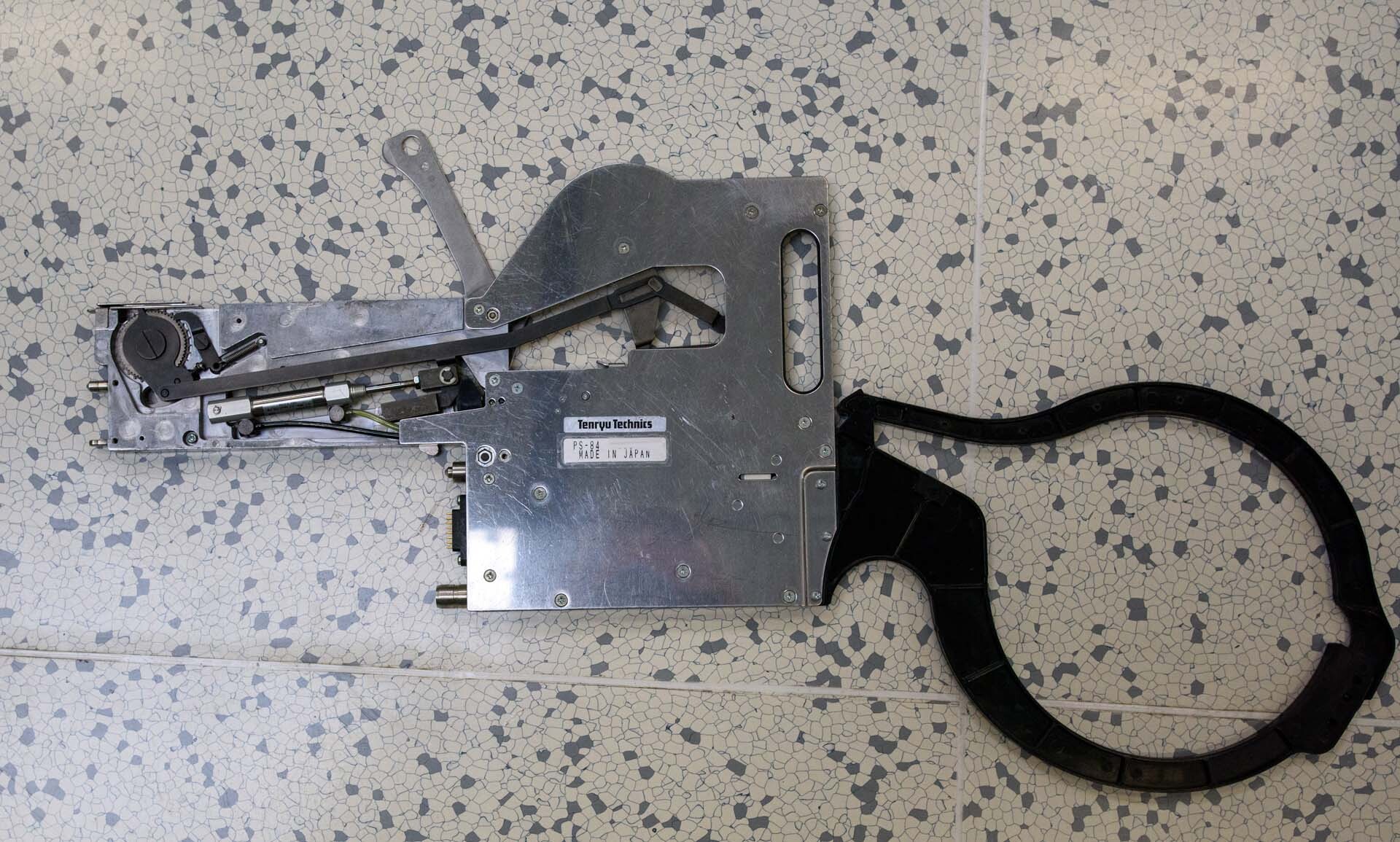

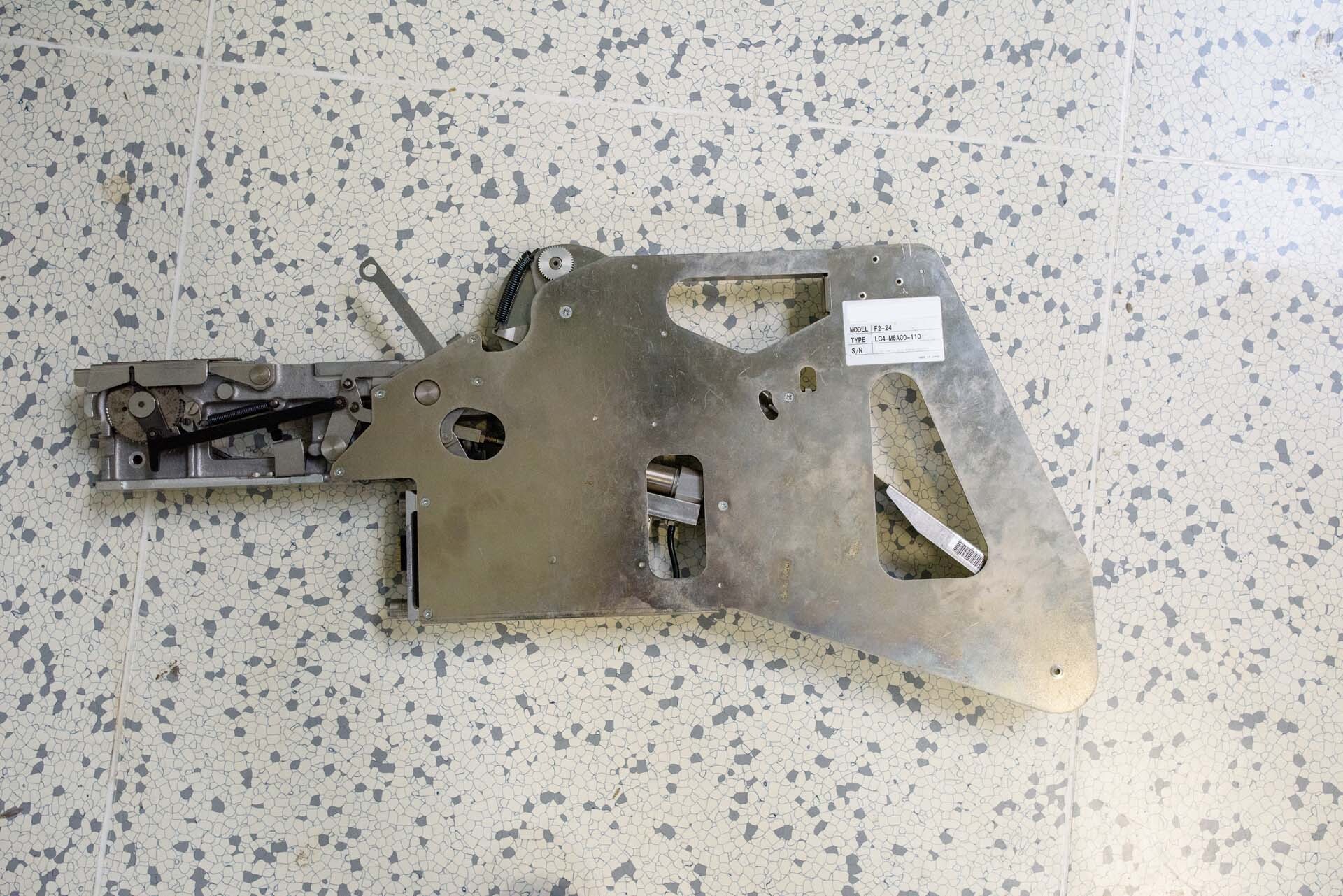

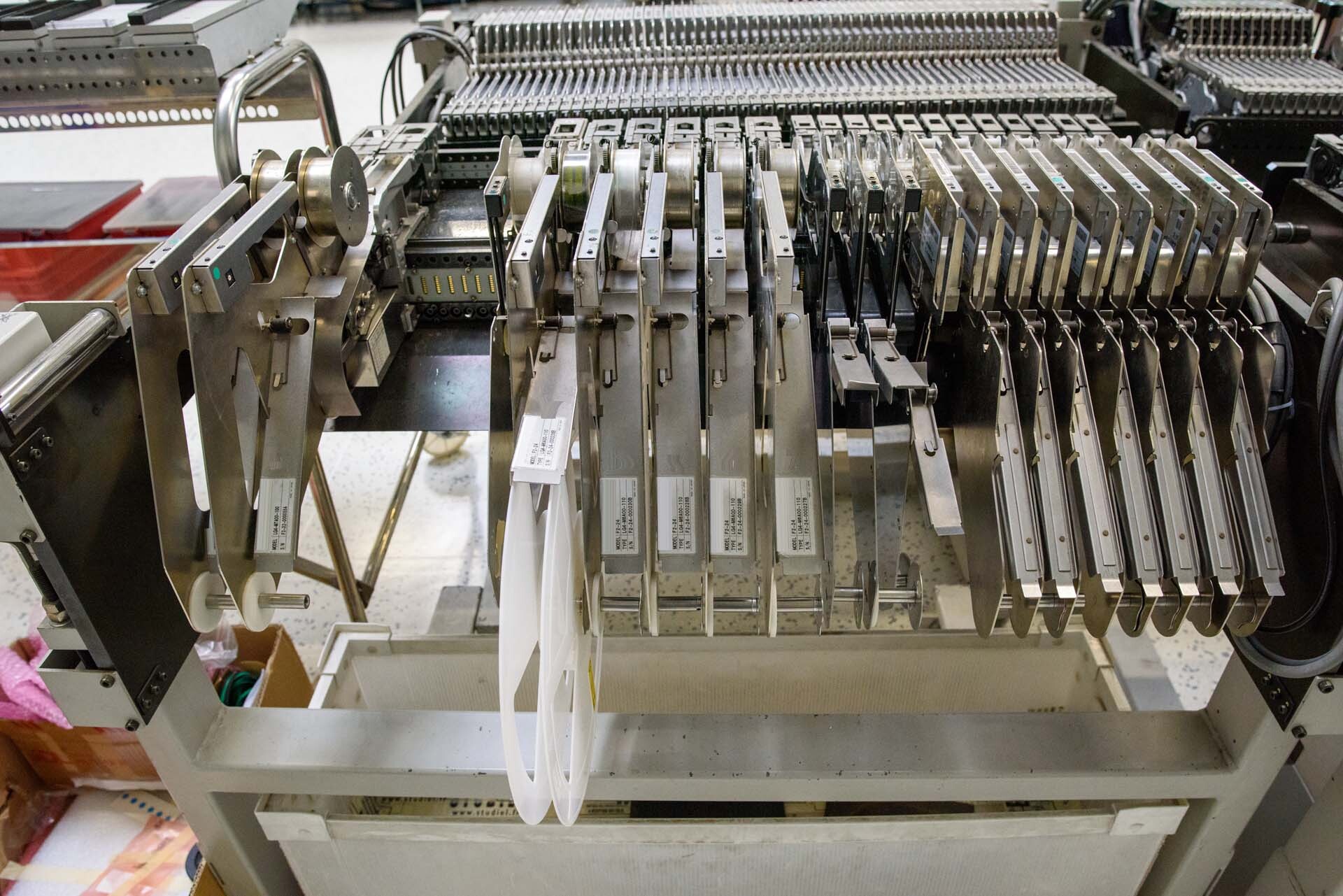

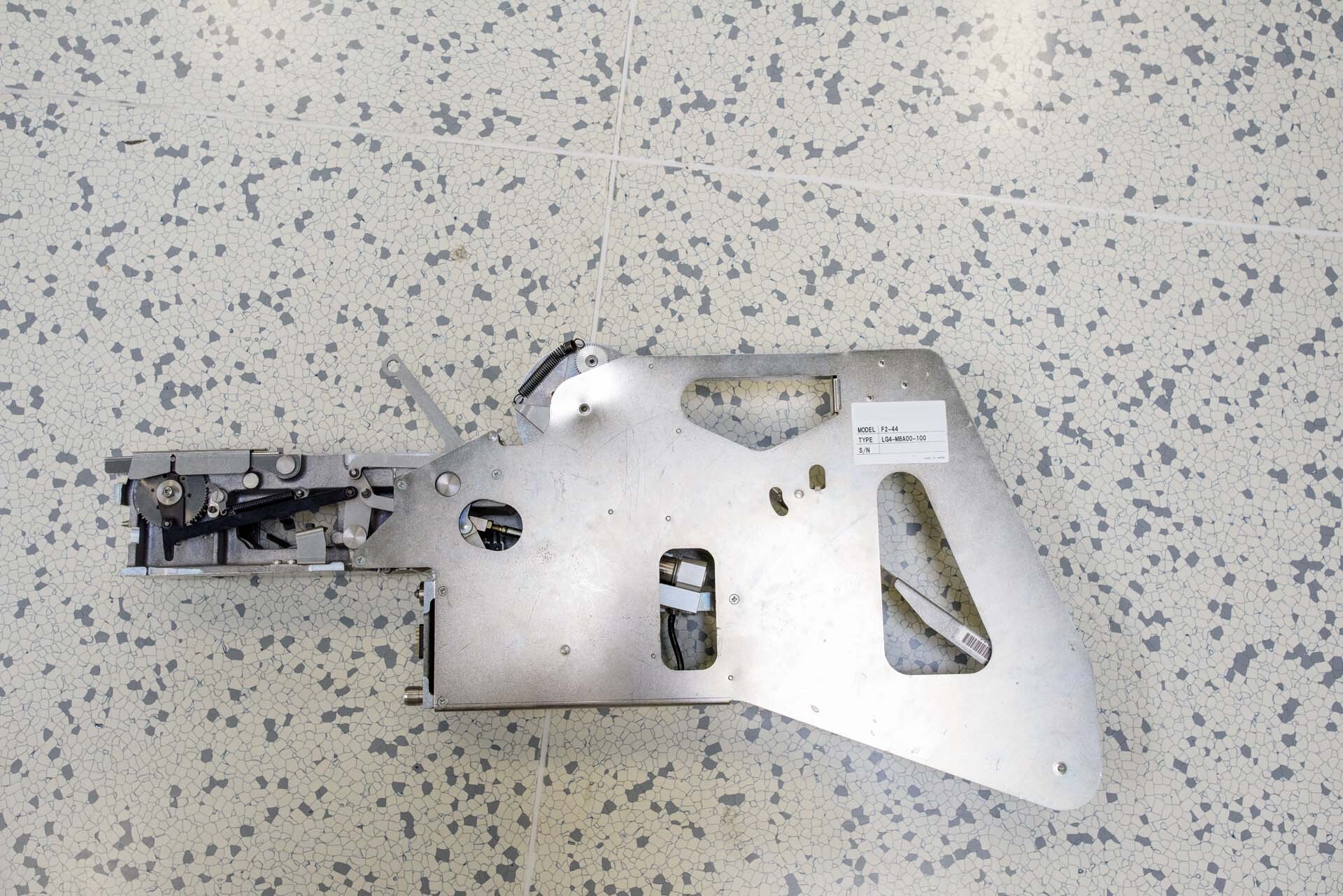

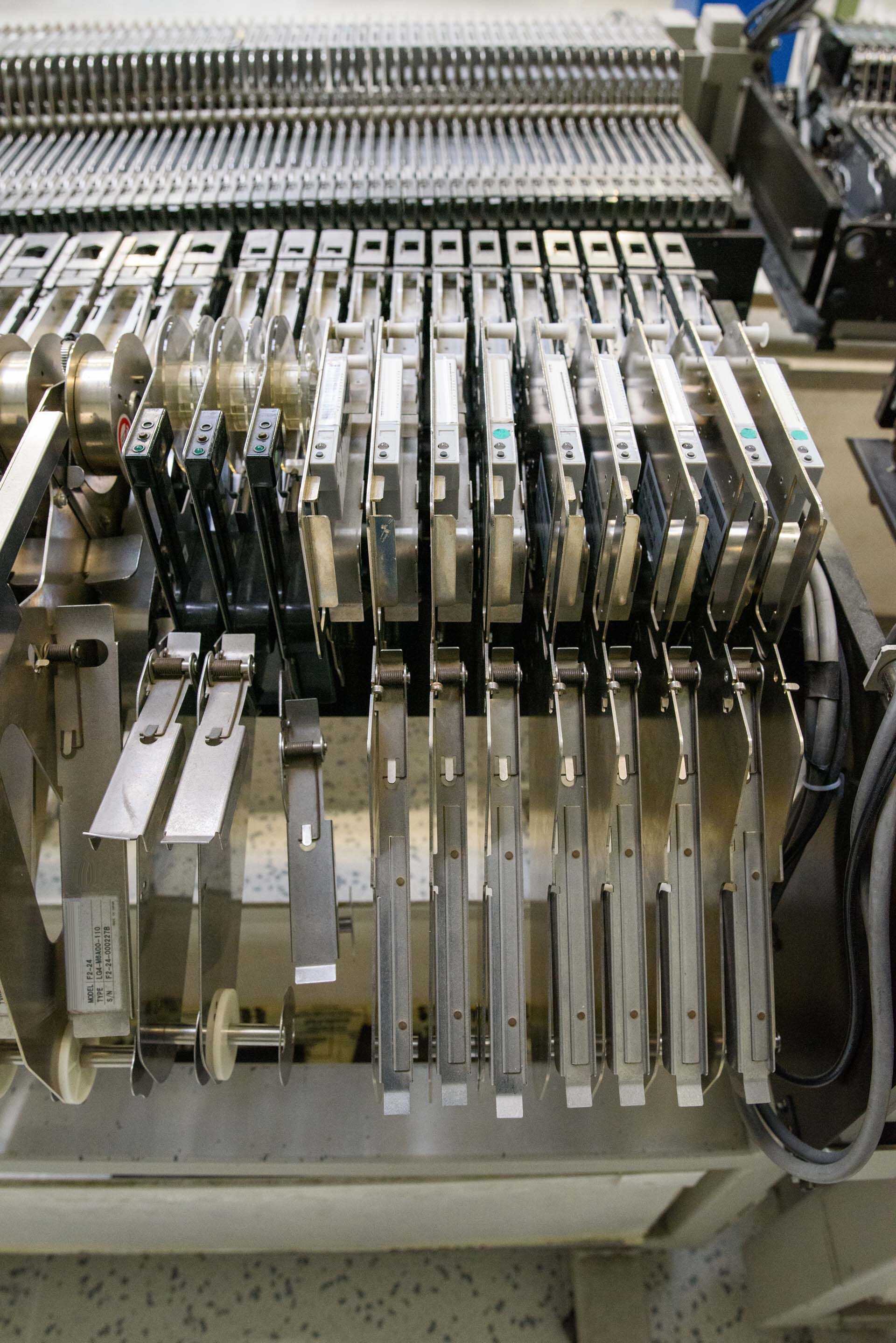

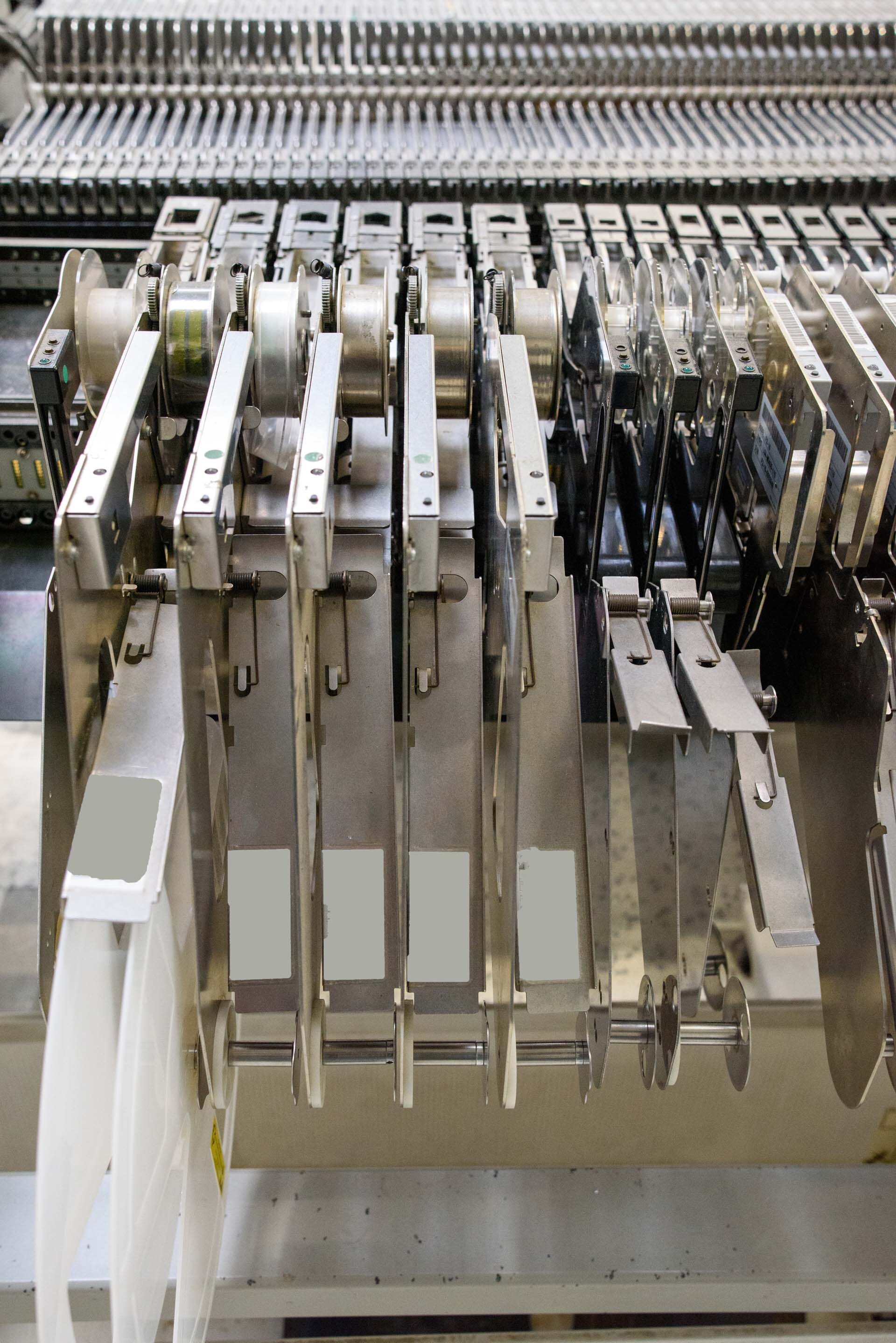

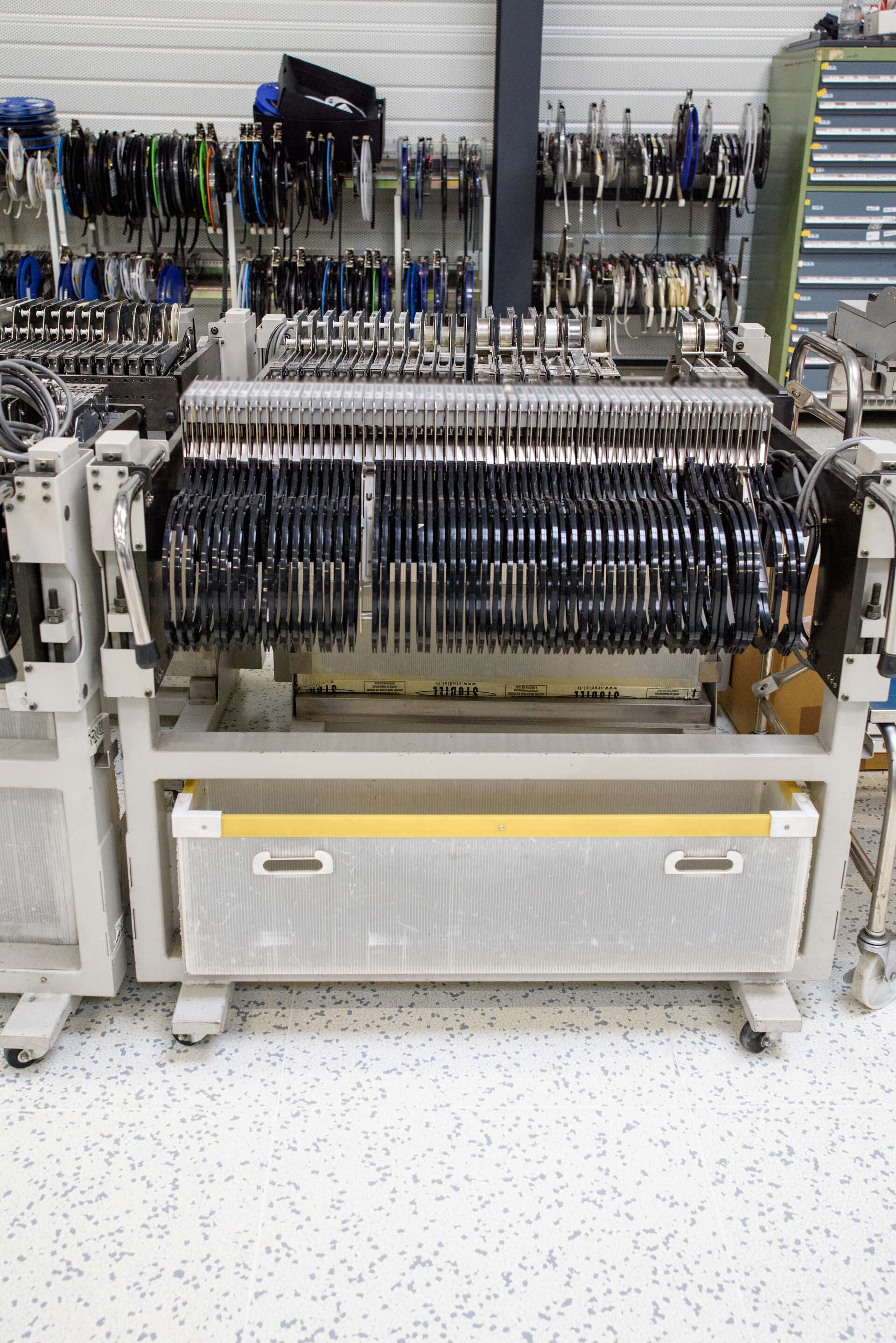

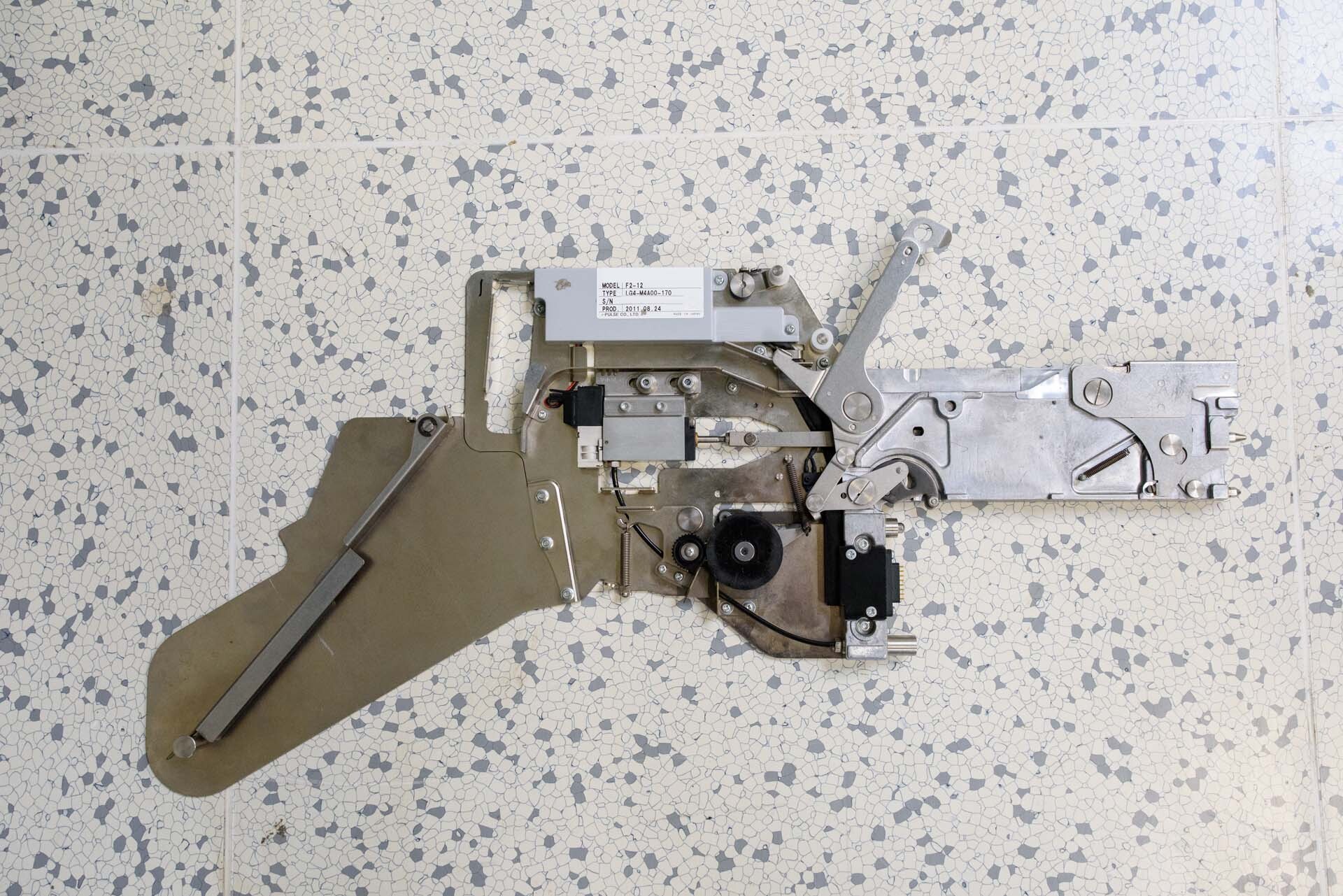

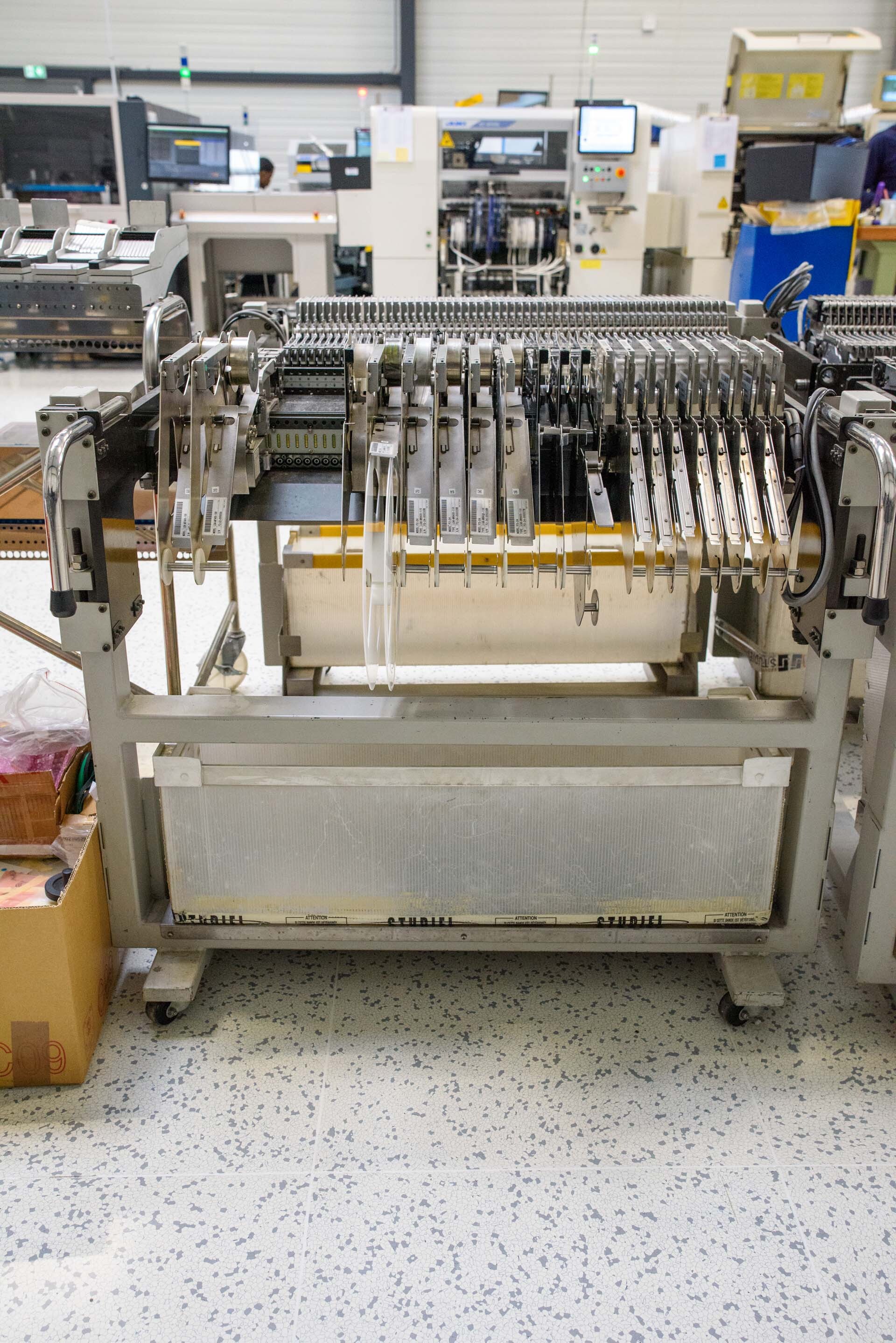

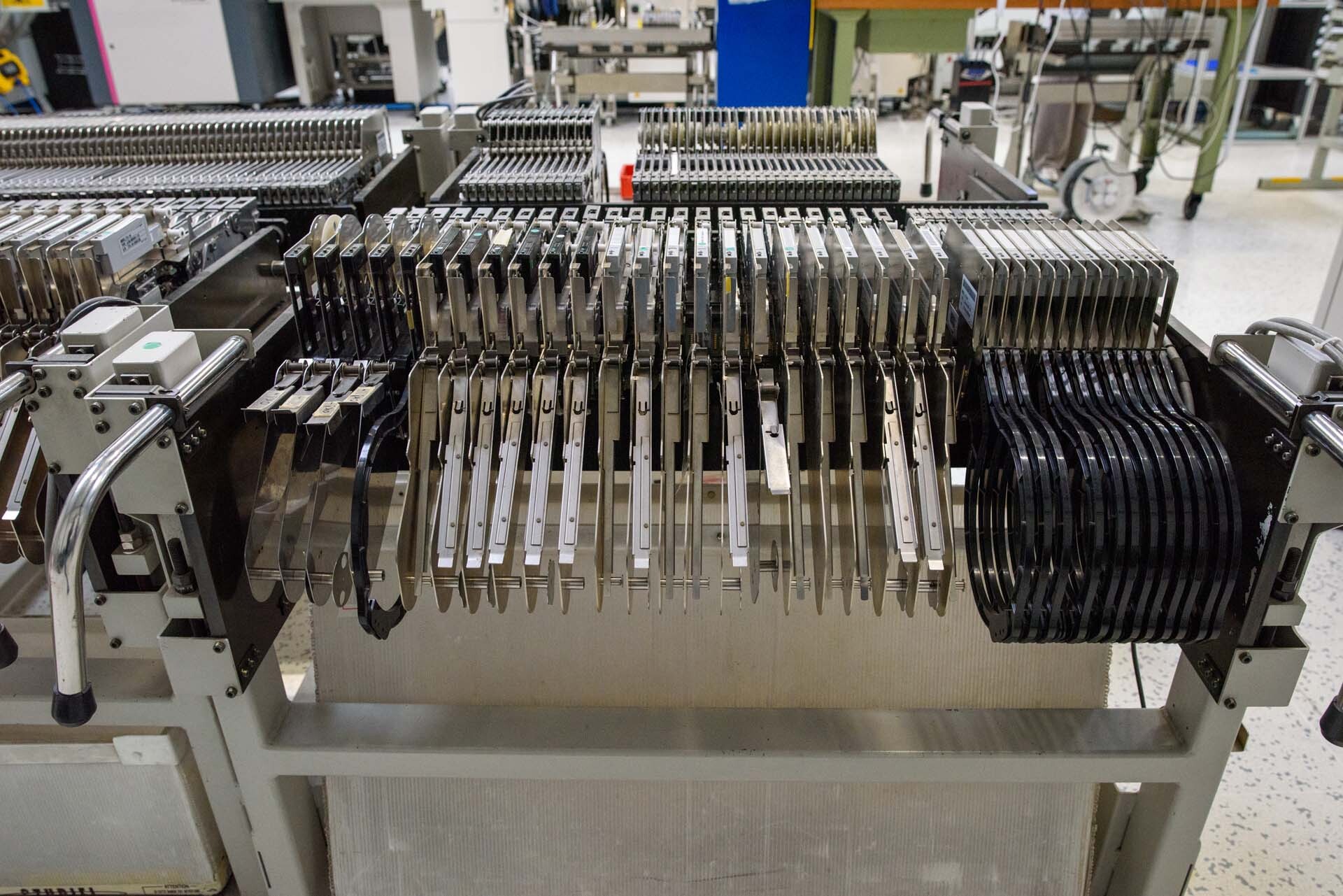

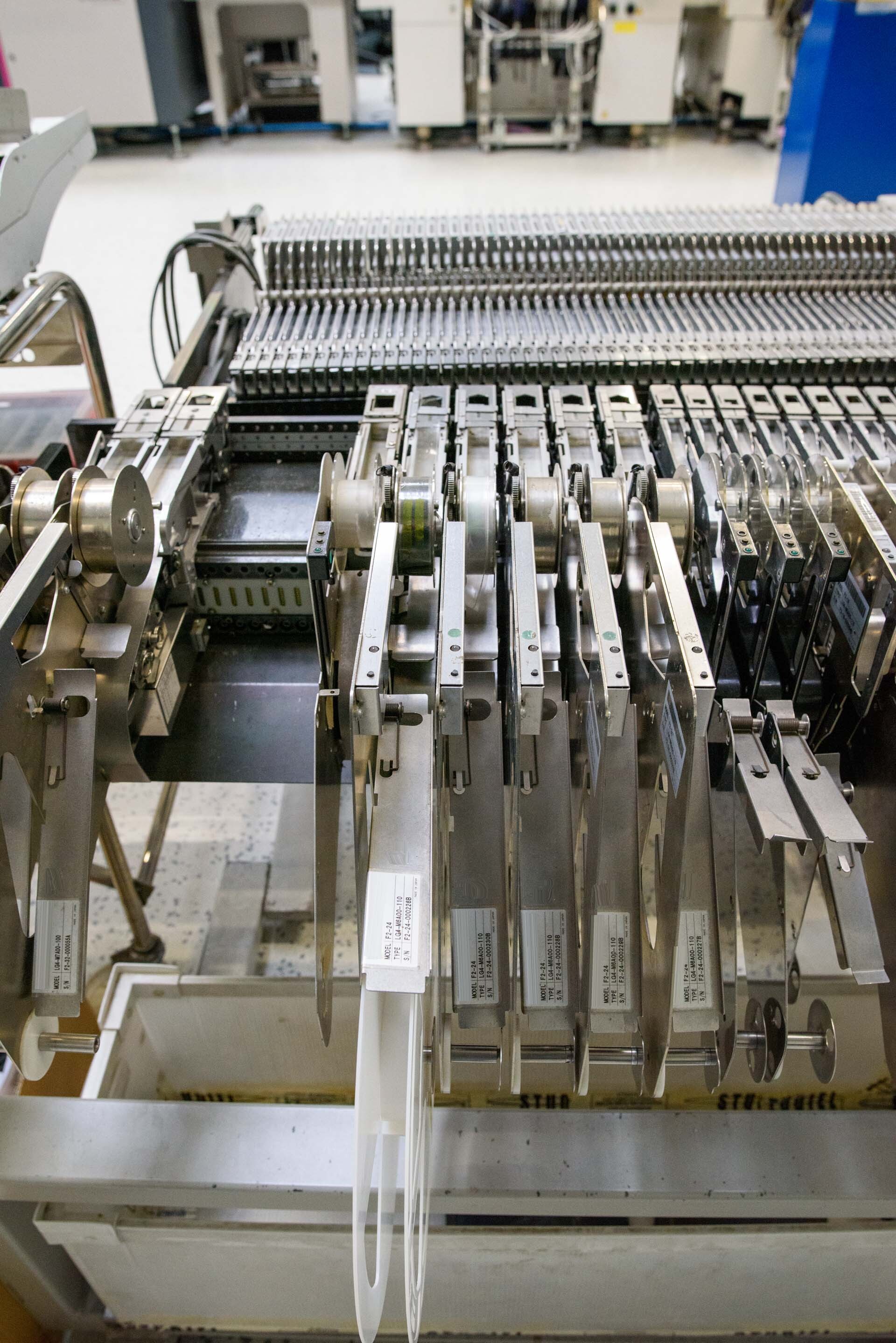

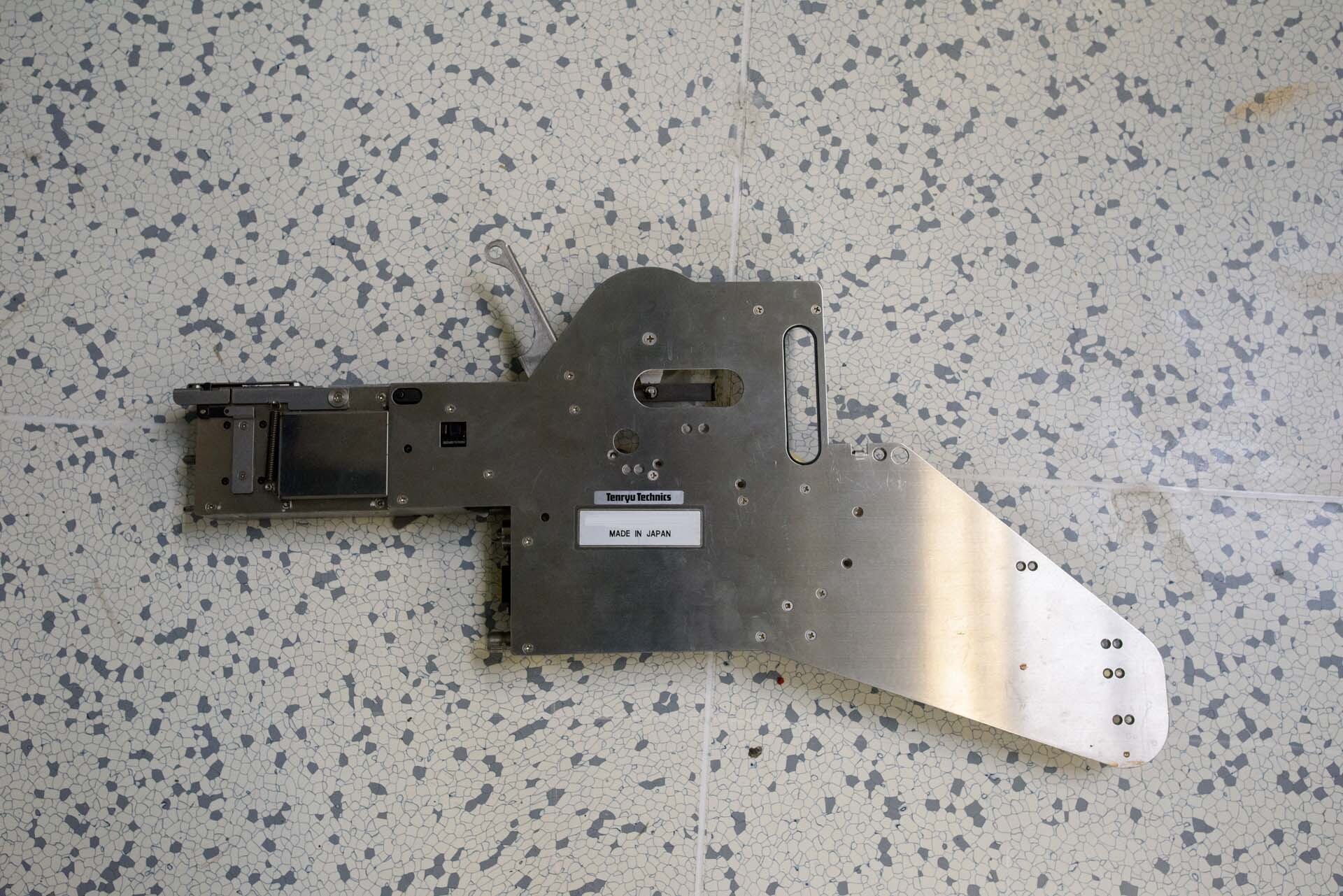

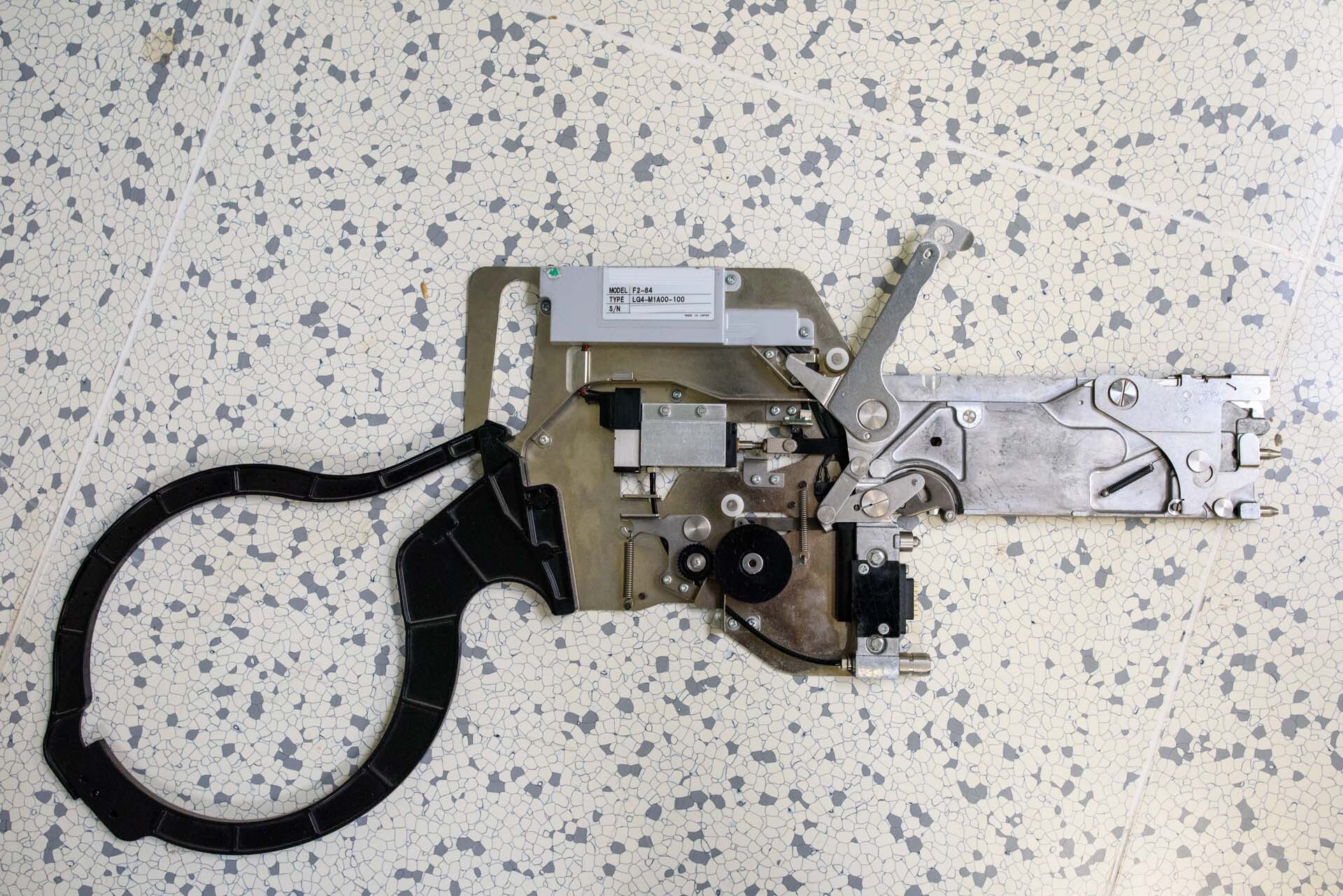

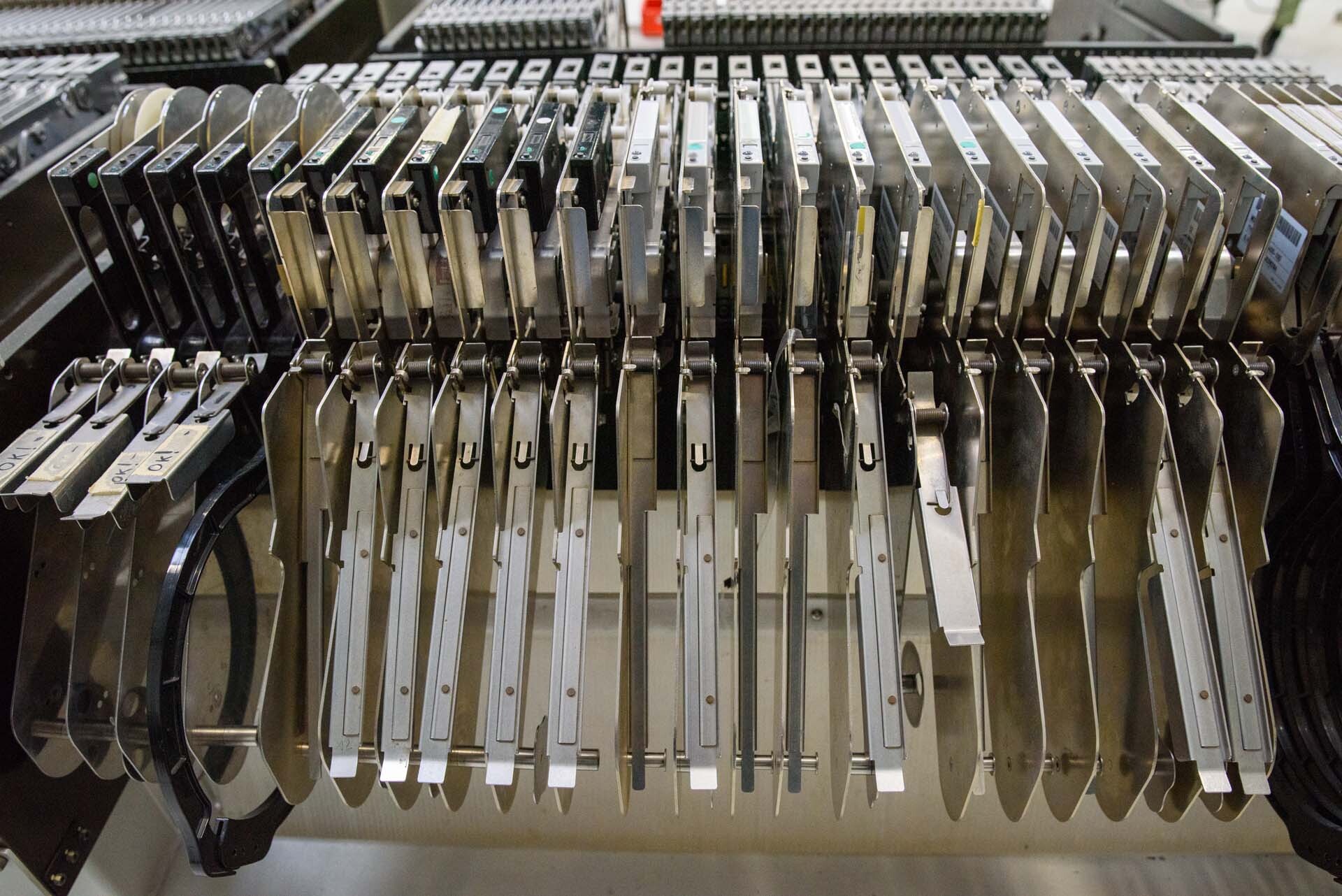

Feeders:
(69) F2-84
(12) F2-12
(6) F1-12
(5) PS-12
(9) F2-16
(3) PS-16
(5) F2-24
(1) PS-24
(2) F2-32
(2) F2-44
(1) F2-56

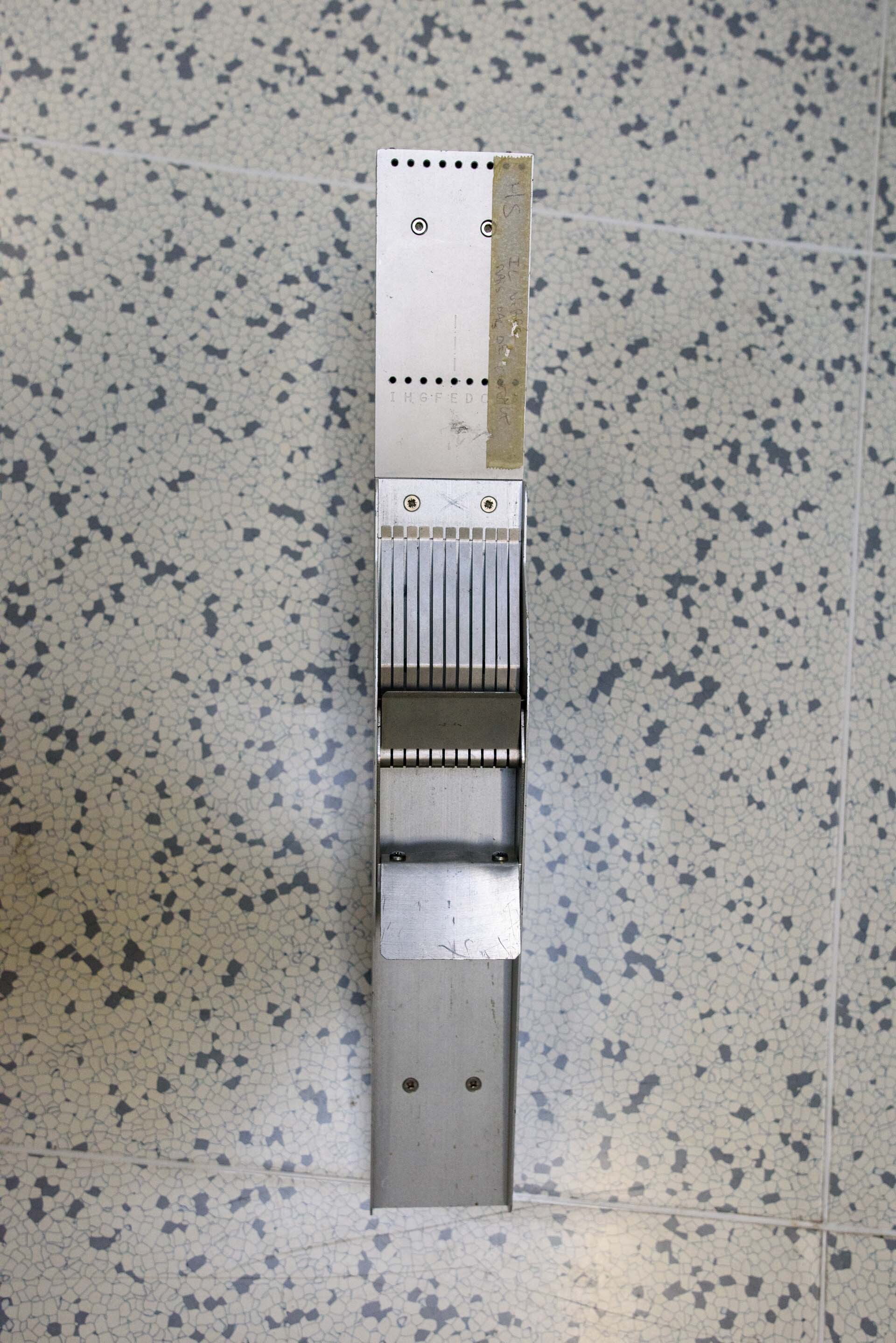

(6) PS-MS3
(13) F1-82
(28) PS-84
2006 vintage.

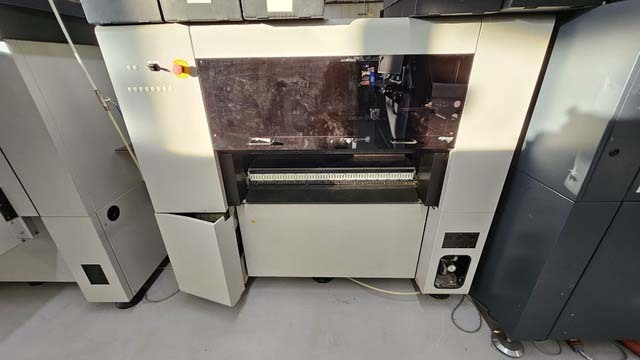

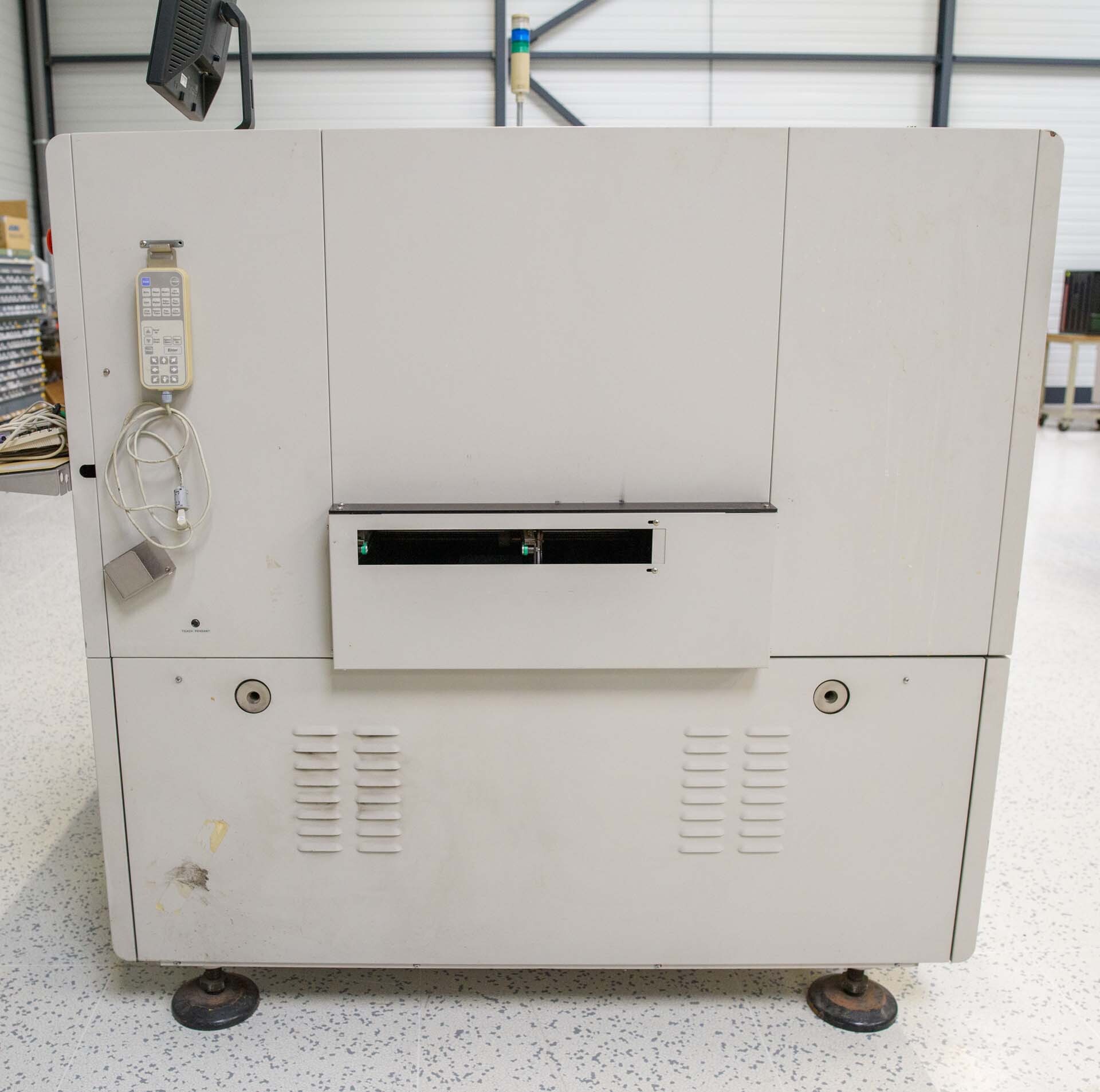

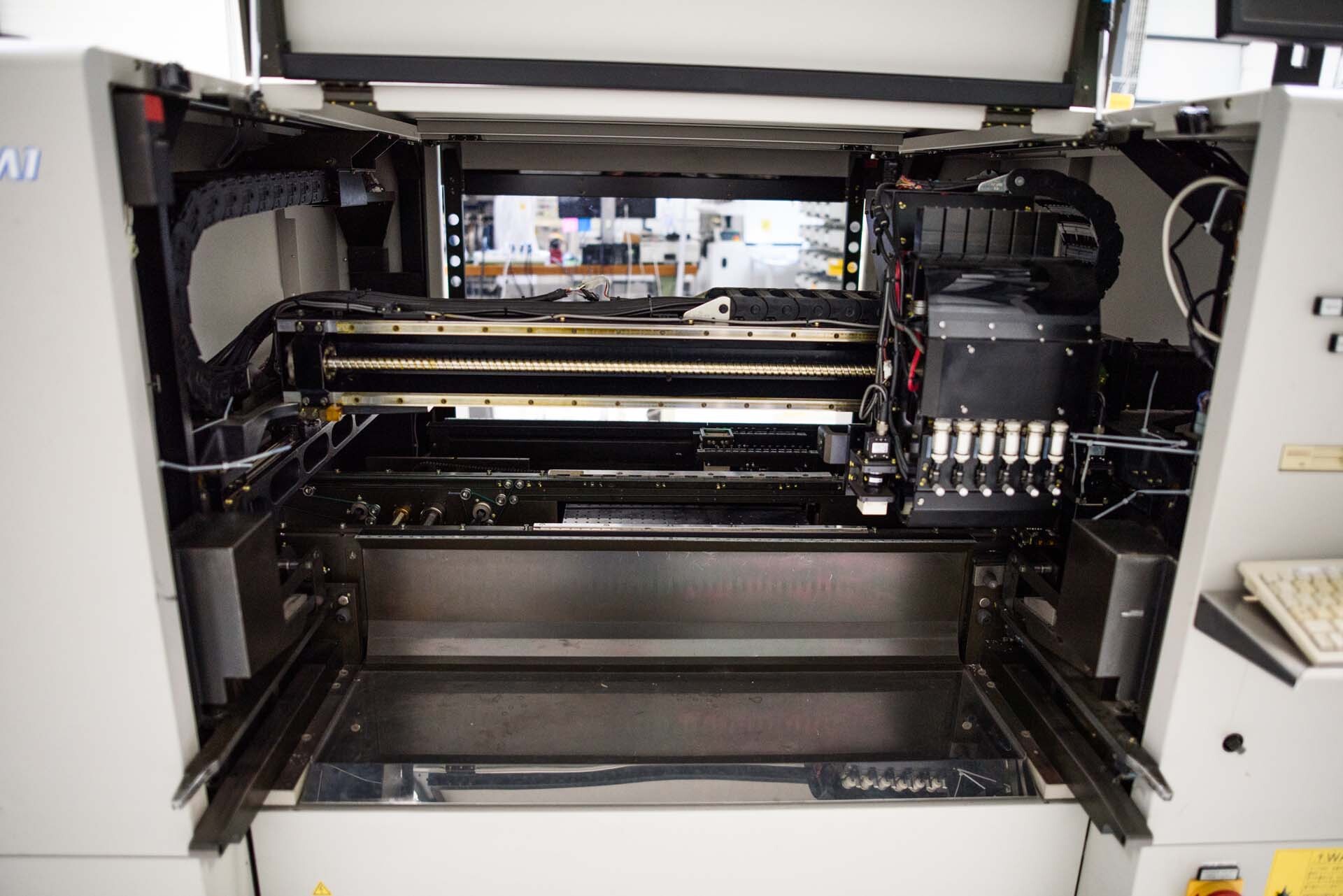

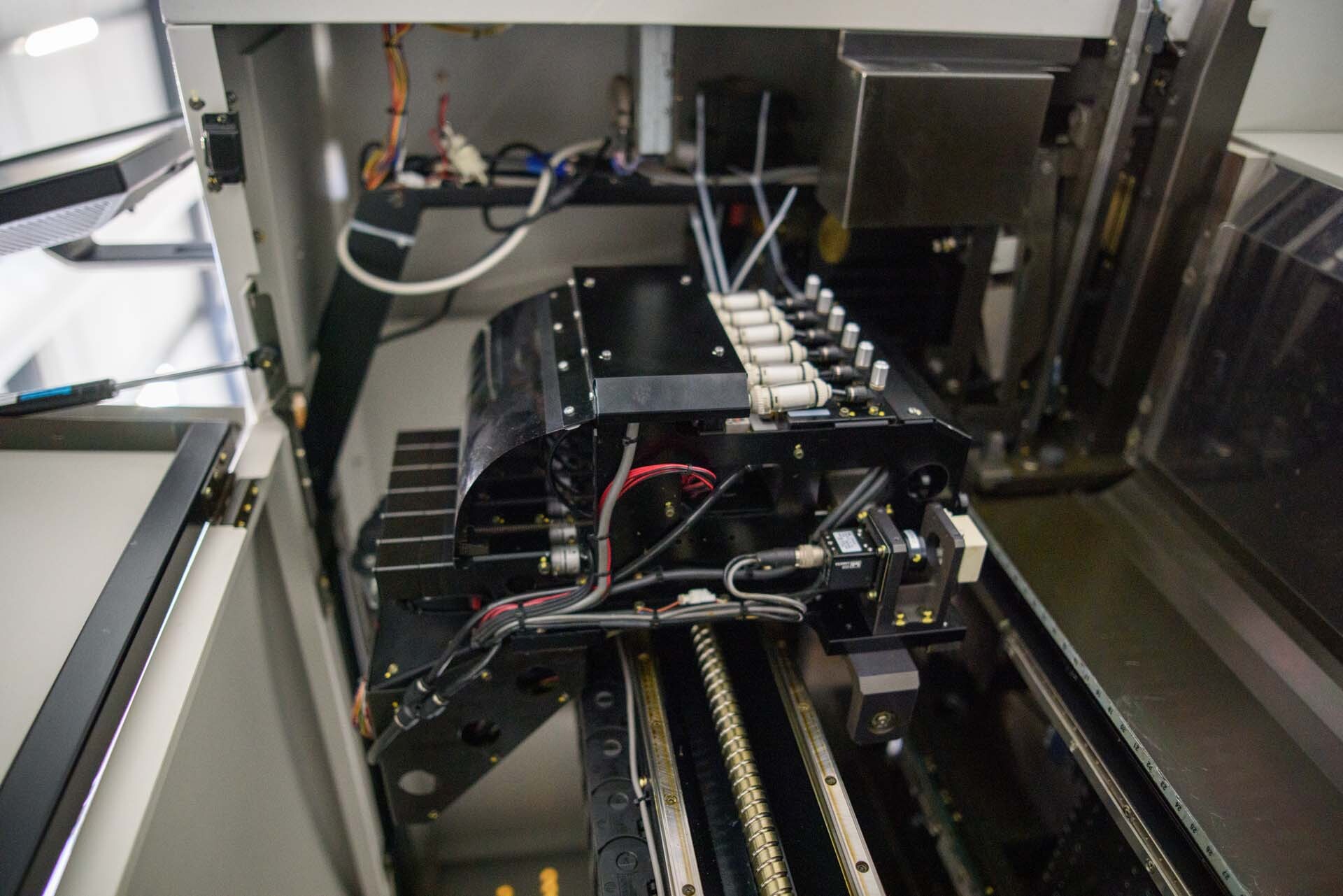

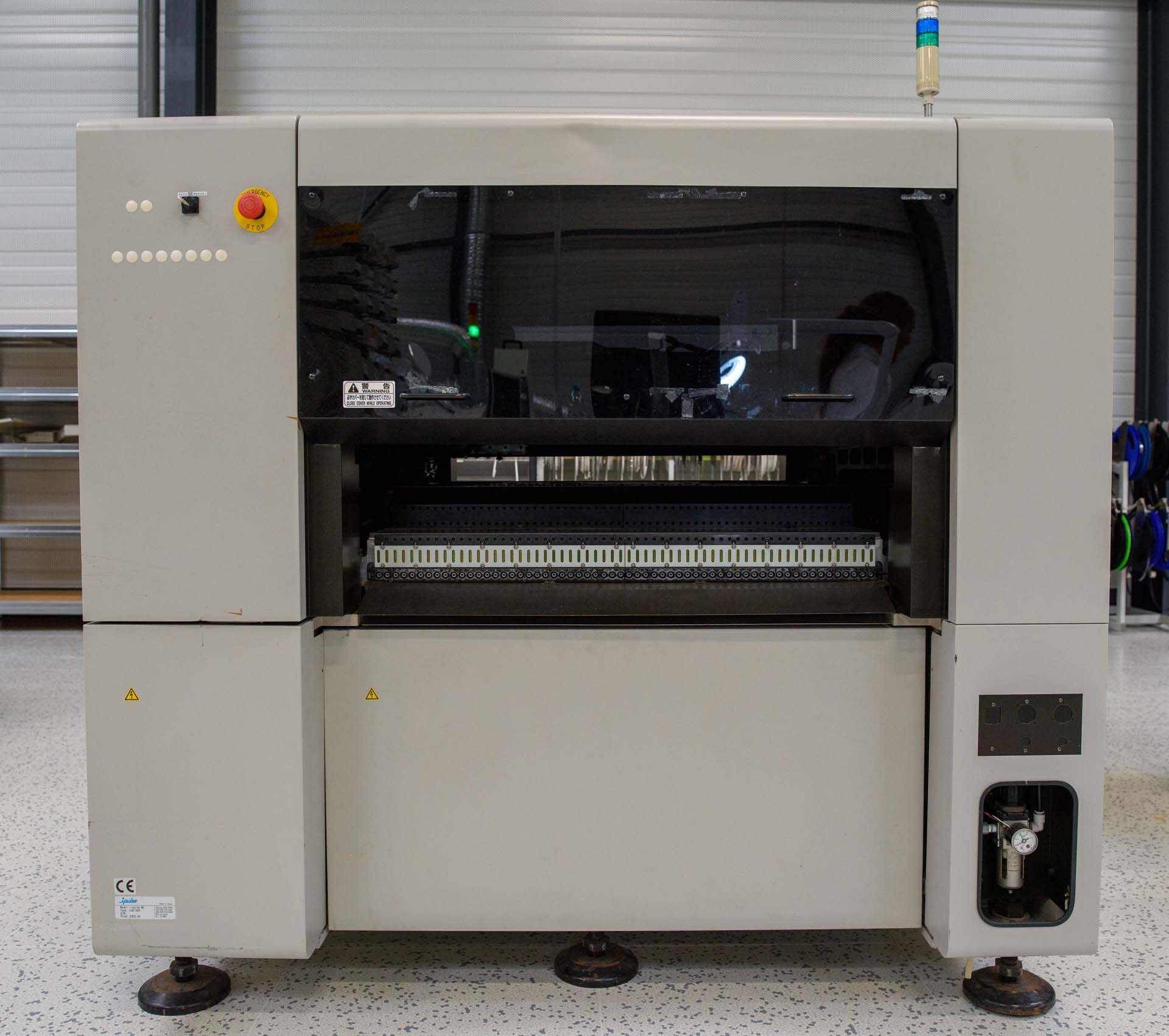

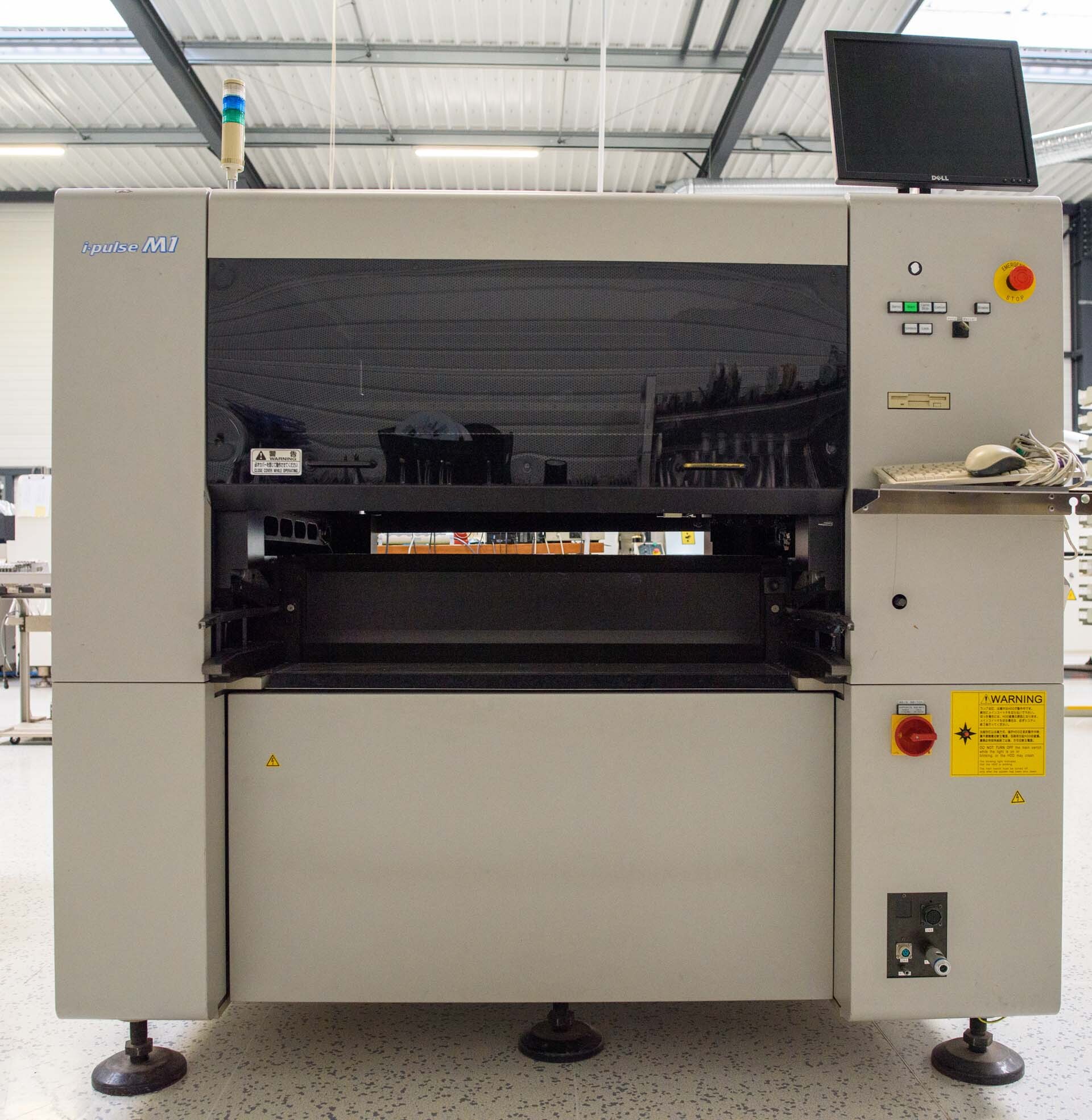

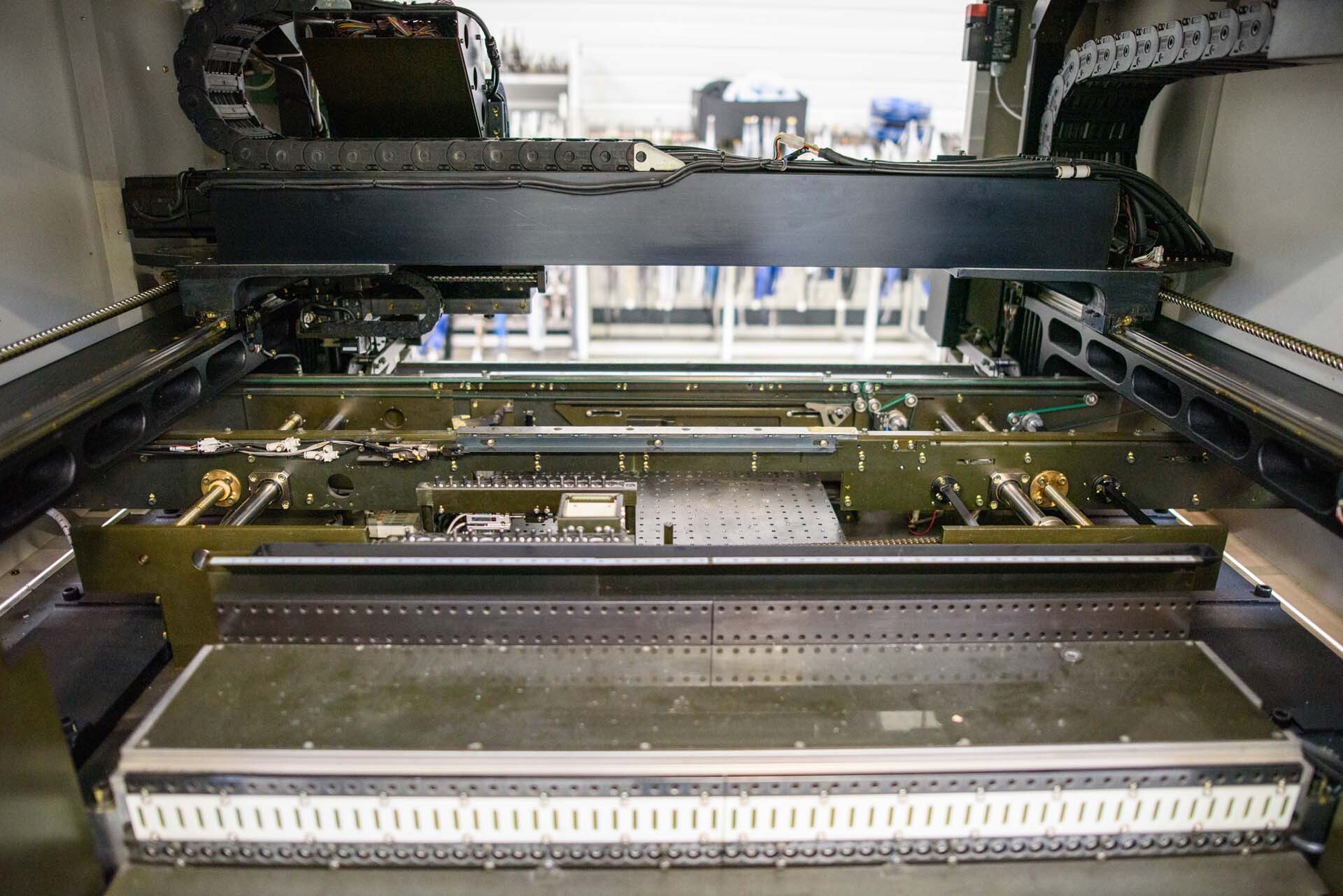

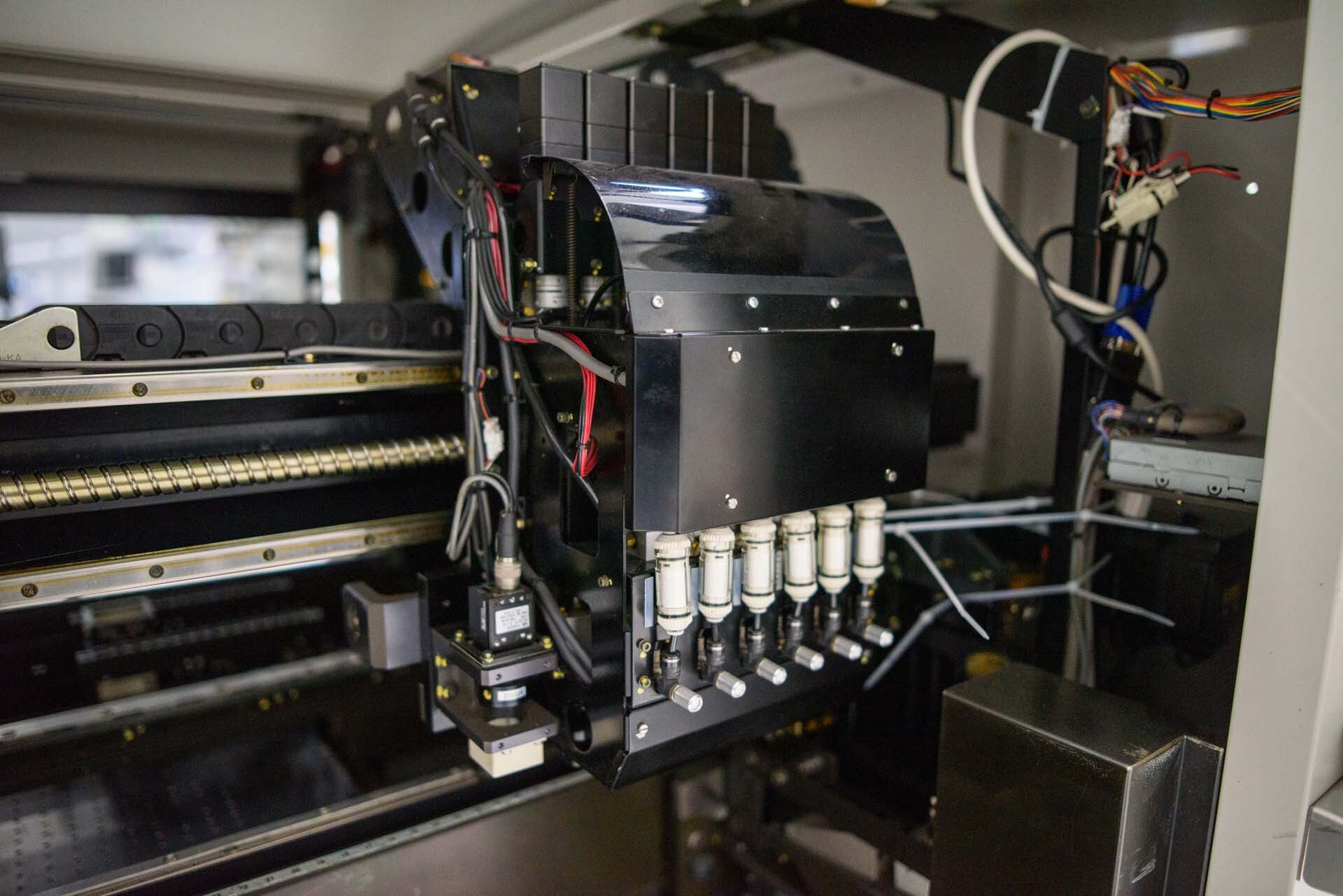

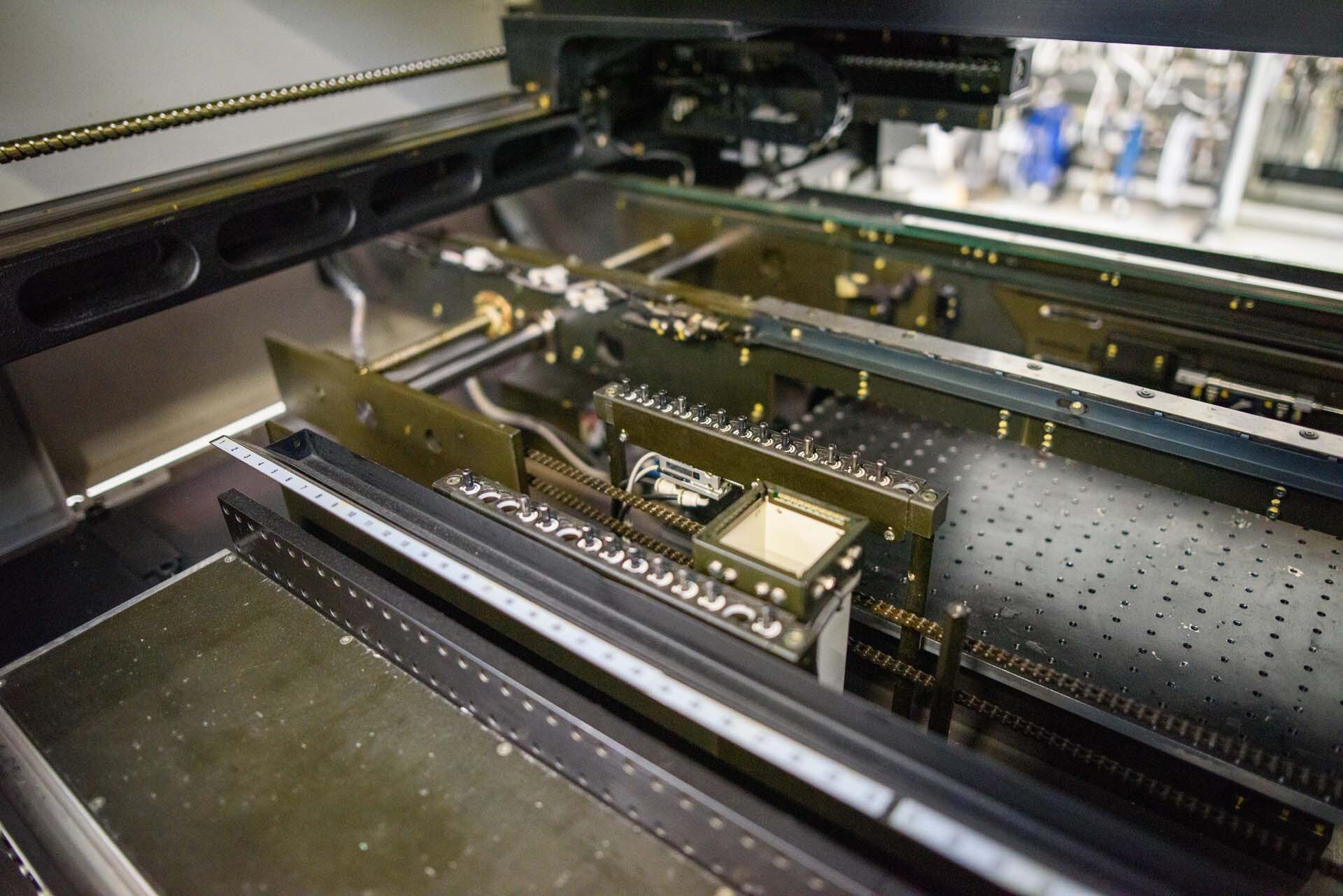

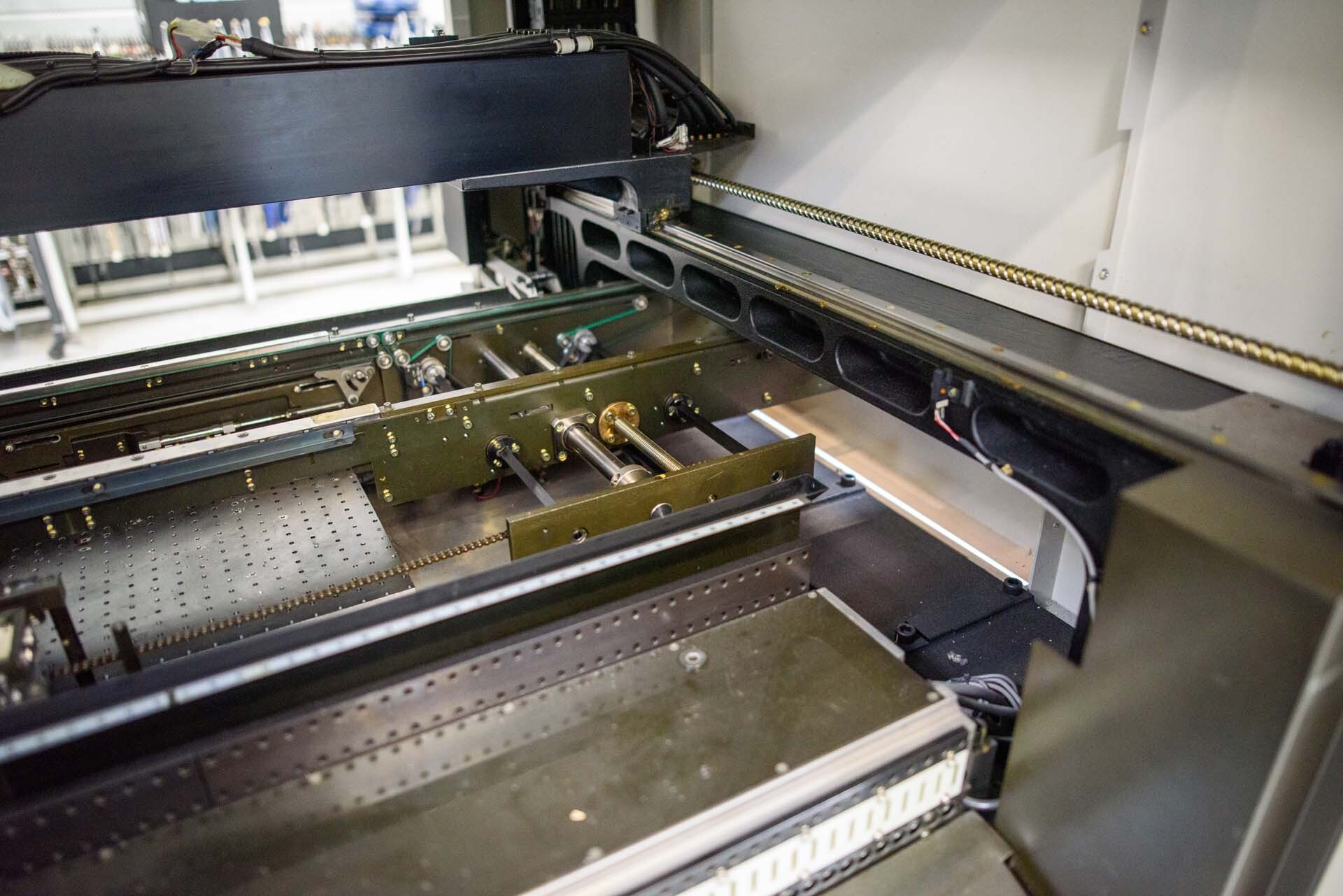

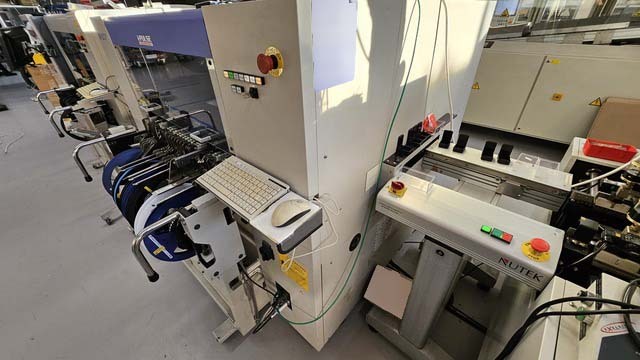

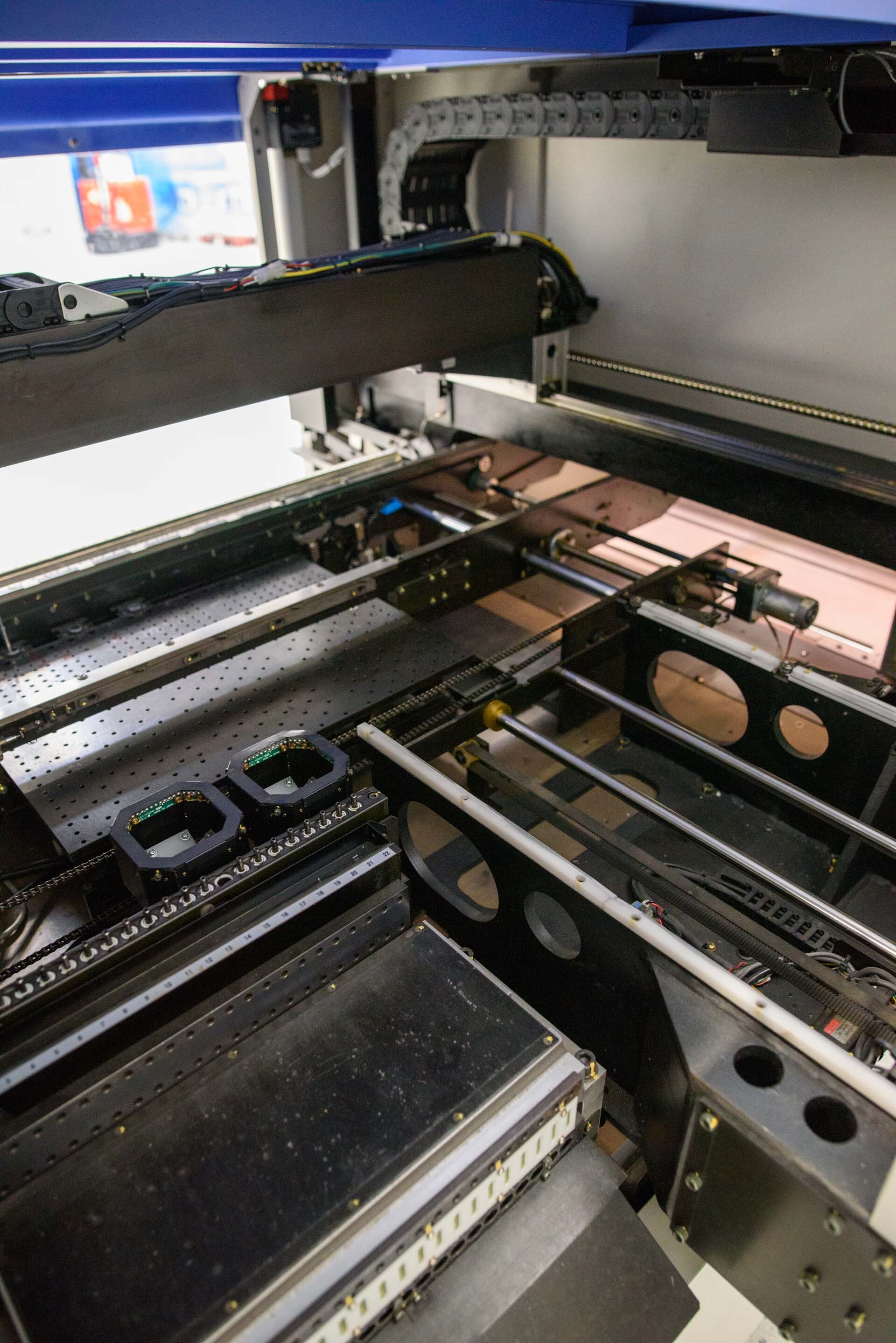

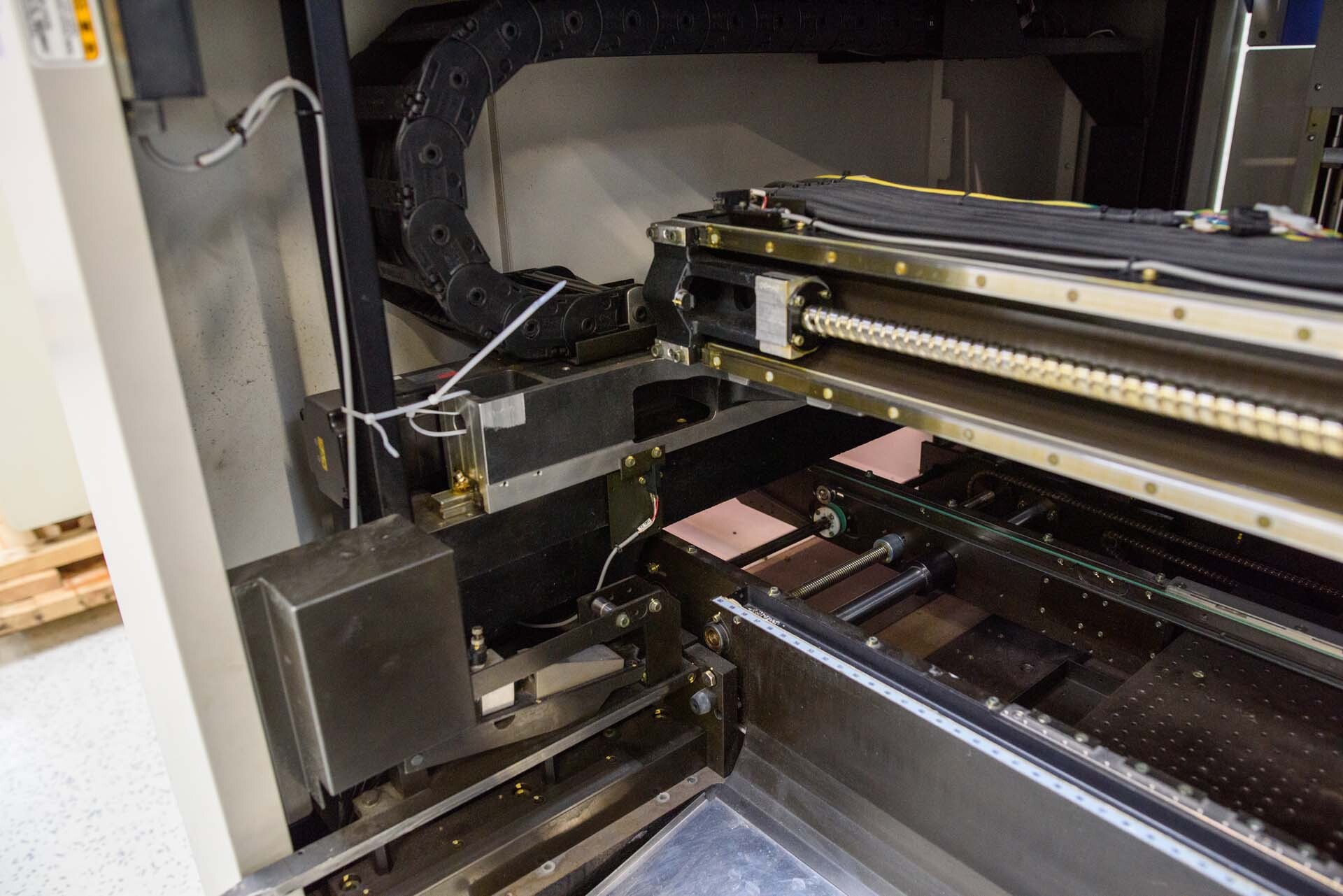

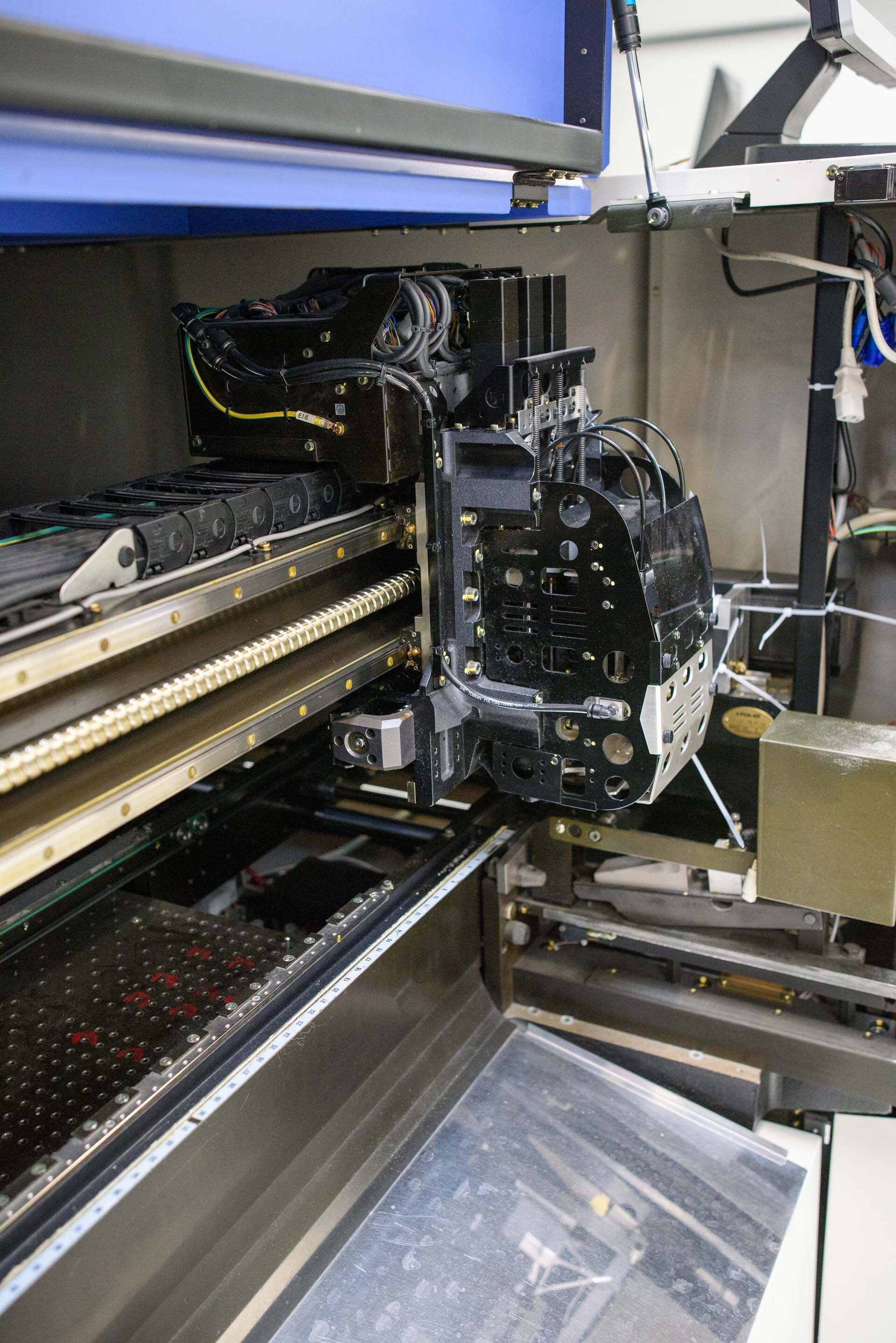

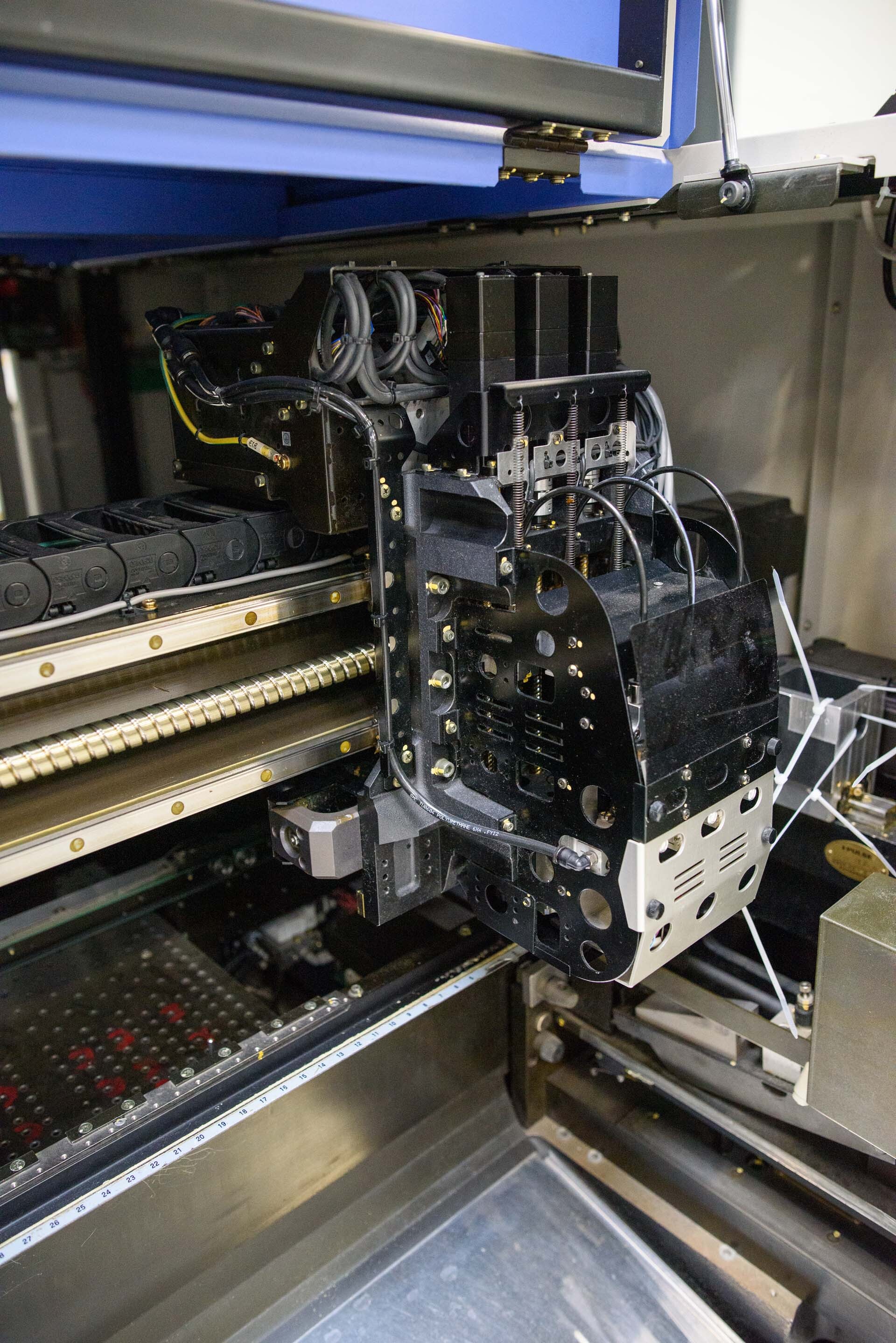

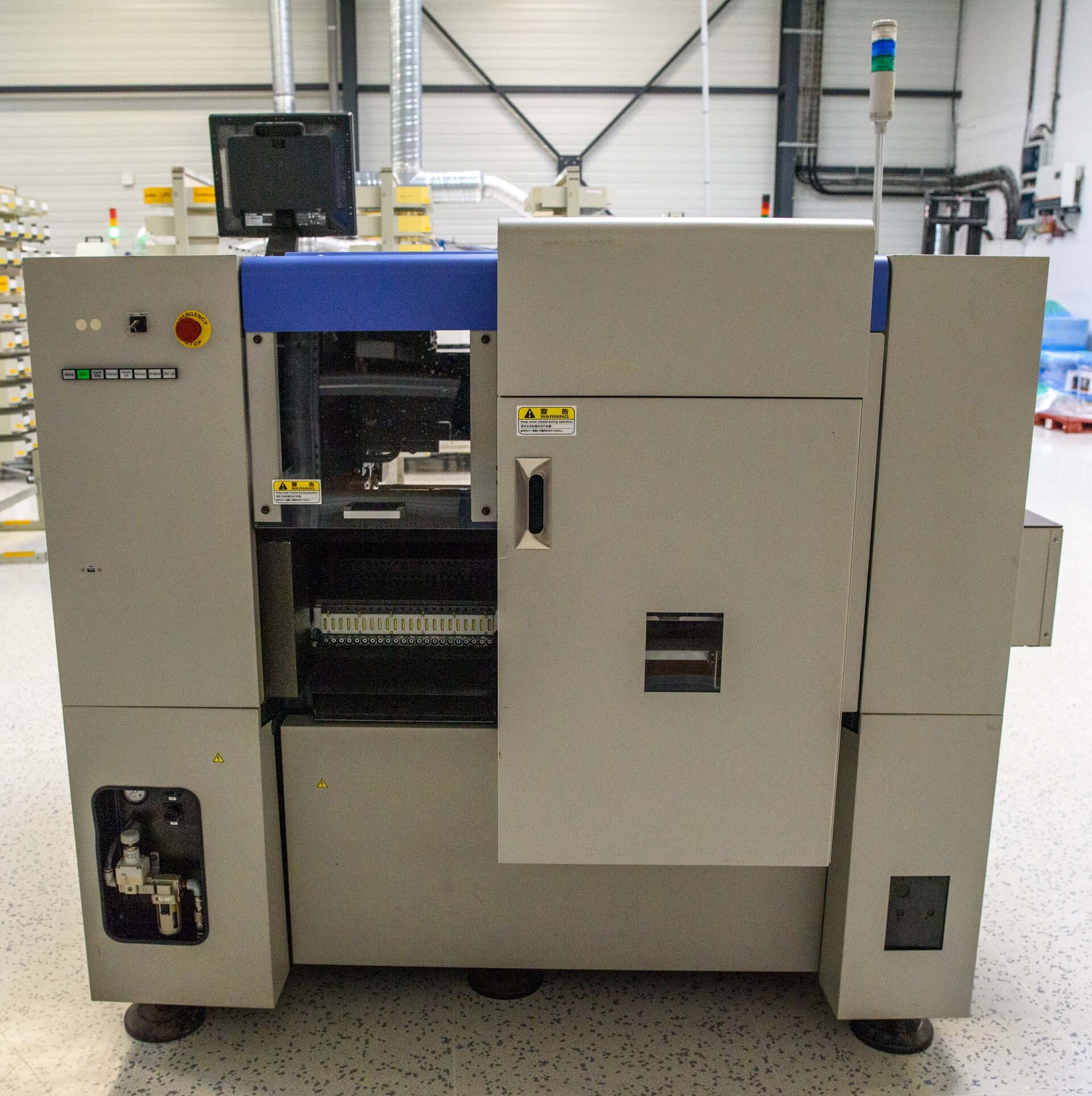

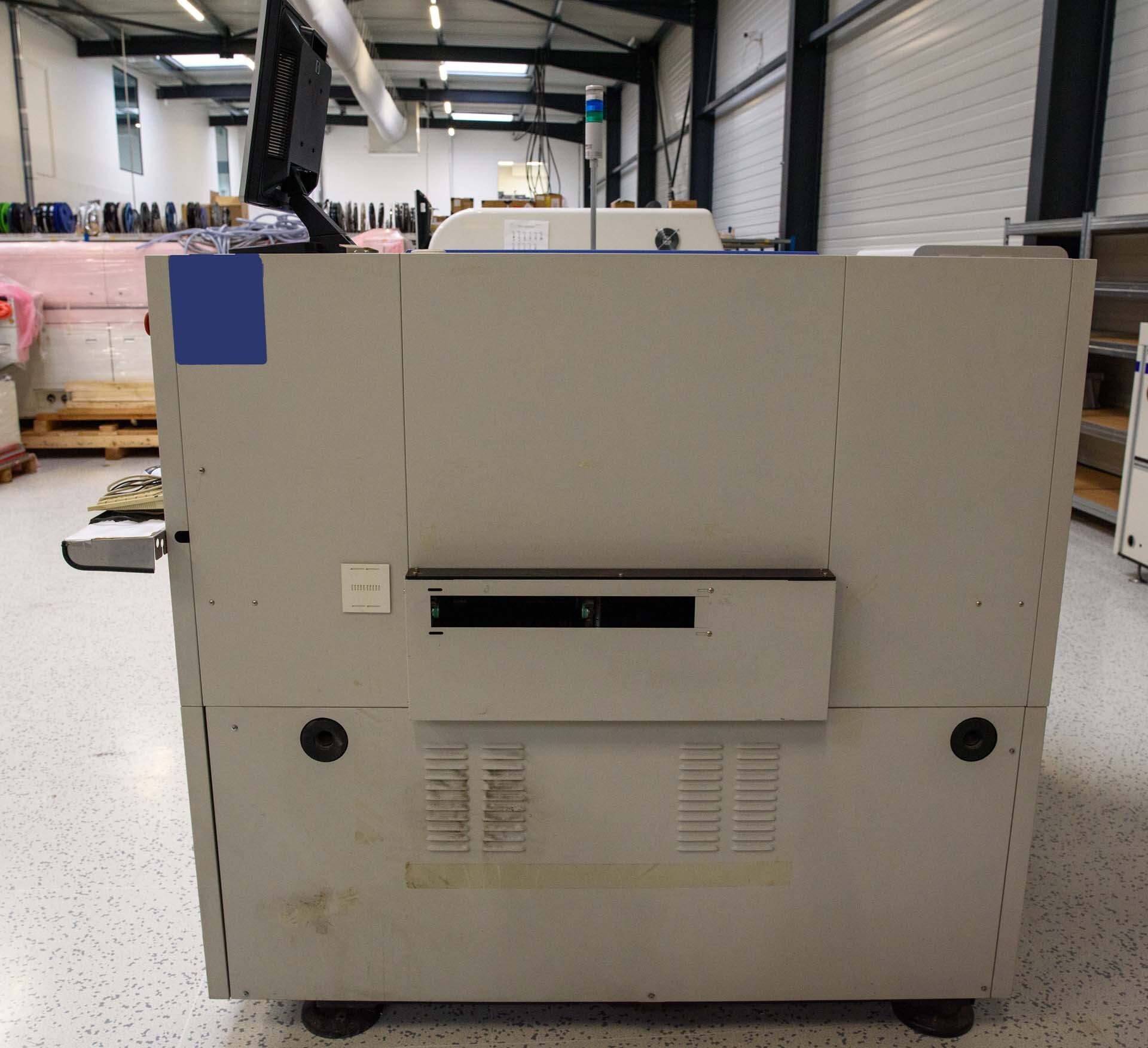

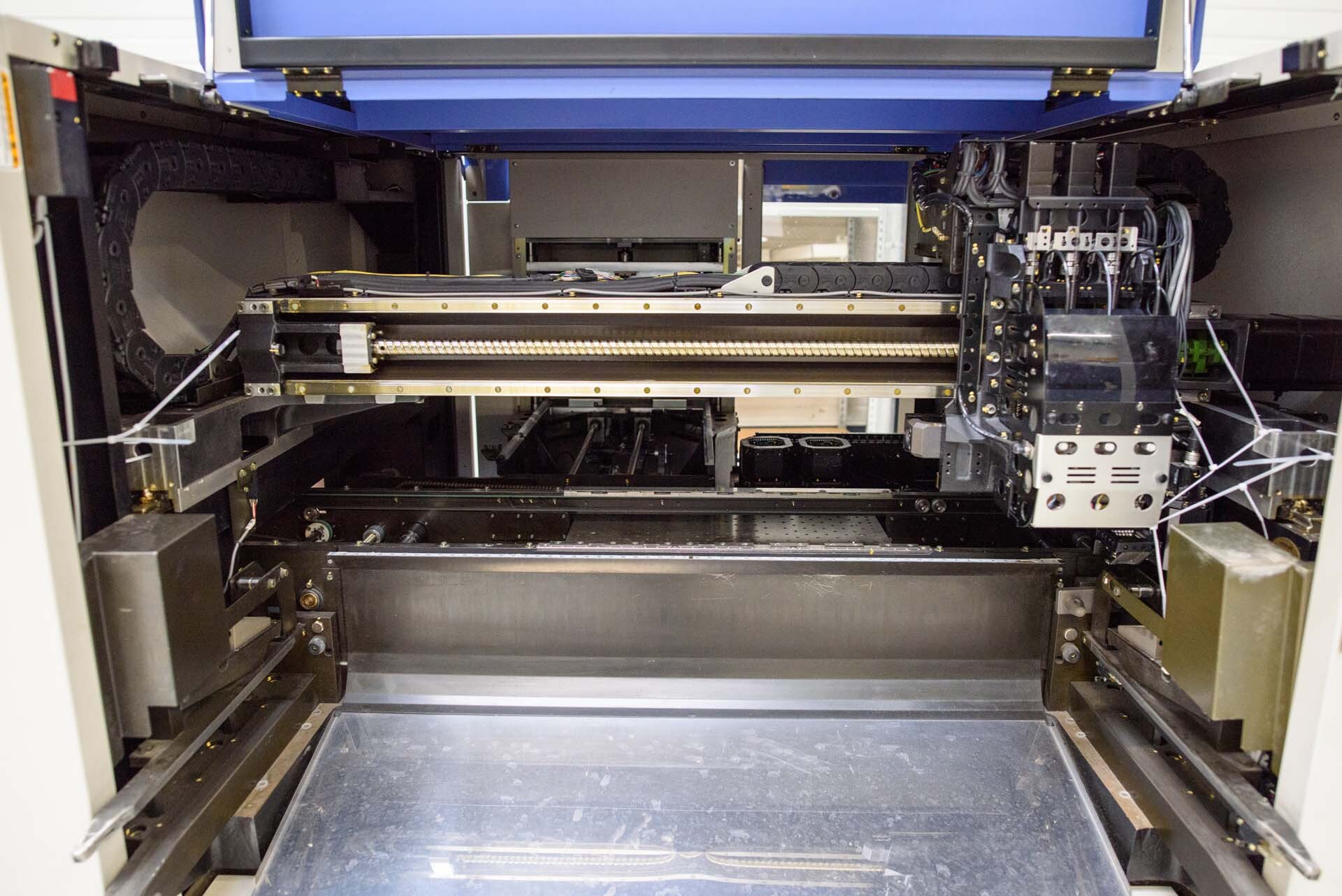

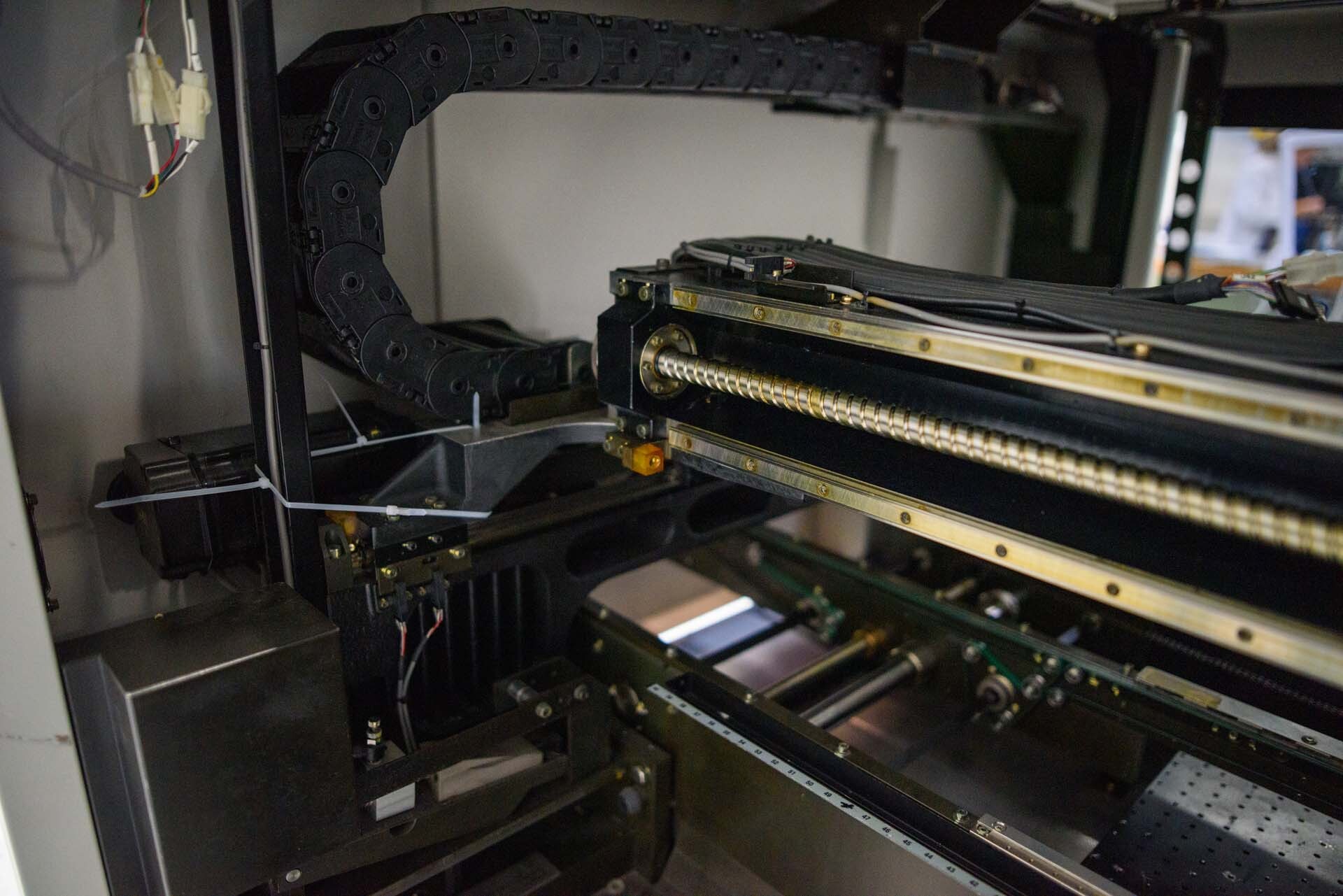

YAMAHA i Pulse M4E is a sophisticated PC board assembly and manufacturing equipment from YAMAHA Motor Corporation. It is a compact, ultra-high-speed, low-cost surface mount technology (SMT) solution for high-volume production of printed circuit boards (PCBs). YAMAHA M4E features a high-precision optical imaging system that offers an unprecedented level of board-to-board registration accuracy, which is critical to production of high-quality and reliable product. It is capable of processing components as small as 0201 size, with an additional option for components as small as 01005, positioning them with a precise placement precision of ±30 micrometers. This ultra-high speed machine has a highly efficient assembly process, featuring a multi-stacking function for high-efficiency loading of components. The machine is also equipped with a wide variety of optional tools to meet production needs, such as laser marking and flexible feeder loading, as well as assembly traceability options. In addition to its superior component placement, i Pulse M4E has a modular design that can be easily configured to meet your production needs. This unit offers options for inline vision inspection, pick-and-place functionality, and a Juki 3026 KE-2050 4-axis robotic arm. The 3 standard conveyor lengths offer flexibility between different production lines and line configurations. M4E is a perfect fit for a wide range of manufacturing environments, offering a range of integrated machine functions to ensure a cost effective and high-performance process. This versatile and fully automated tool is designed to meet the highest production standards. Utilizing a series of precise software-supported functions, it ensures that the product will meet the customer's exact specifications and quality requirements. YAMAHA i Pulse M4E PC board assembly and manufacturing asset is a robust and reliable model that is capable of achieving high levels of accuracy and efficiency, at a fraction of the cost. This versatile and powerful equipment is the perfect choice for a variety of industrial and manufacturing settings.
