Used LPKF ProtoMat S103 #293818749 for sale

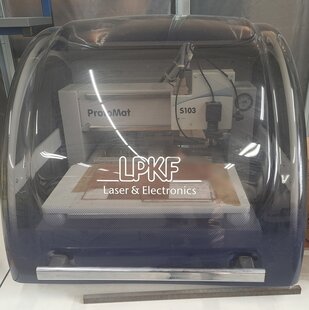

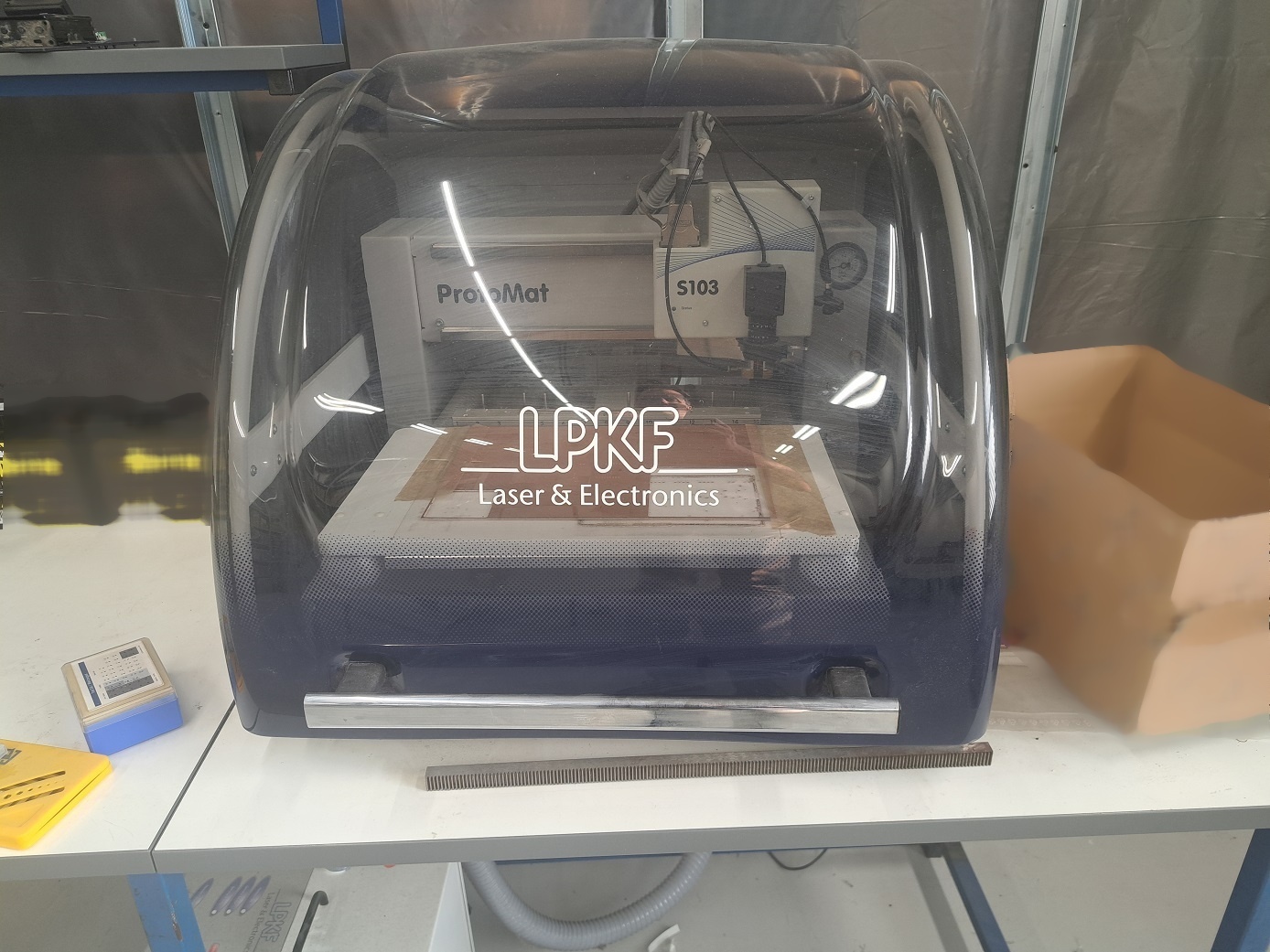

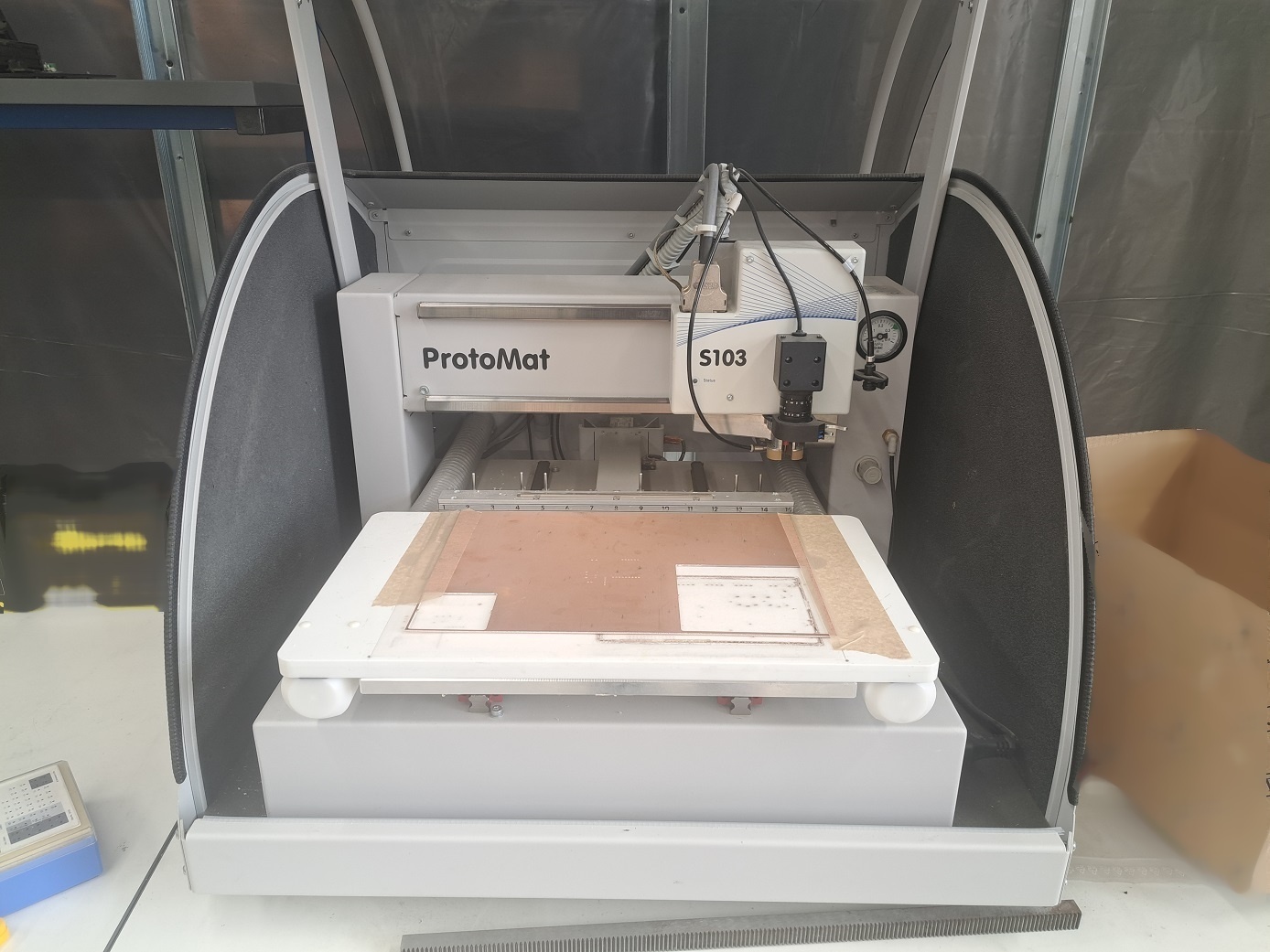

LPKF ProtoMat S103 is a pc board test equipment from LPKF Laser & Electronics. This system is designed to offer rapid prototyping, high accuracy for microcircuit geometries, and cost-effective production. It is well-suited for quickly routing pc boards, enabling design routes to be finalized quickly in both the production and development stages. ProtoMat S103 features a vision camera and software that allows users to easily inspect machining results and make corrections as necessary. It allows for real-time interfacing with CAD/CAM systems, which simplifies the rapid prototyping process as it eliminates the need for manual programming. The machine is able to process conventional FR2 pc boards, polyimide materials used in double-sided circuits, and flexible pc boards. Equipped with a Whistler-type laser, LPKF ProtoMat S103 is designed for a precise milling process using high-precision, high-application milling tools. It features a manual tool changer, as well as constant spindle speed to ensure maximum precision and speed. ProtoMat S103 also includes an optional spindle upgrade with a cooling unit and air-to-water heat exchanger, which is intended to prevent overheating. LPKF ProtoMat S103's built-in safety features include door contact sensors, laser protective glasses and a breakaway fixture to protect from hazardous materials. It is also compliant with CE safety rules and bears the necessary CE markings. The S103's sophisticated controller features Linux OS and is equipped with a full color, touchscreen display; programmable input and output options for unit control; and an Ethernet interface for remote service troubleshooting and software updates. ProtoMat S103 is the ideal pc board testing machine for quick production in the development and production stages. Its flexible machining options, quick setup, and precision results make it an excellent choice for quick prototyping and manufacturing.
