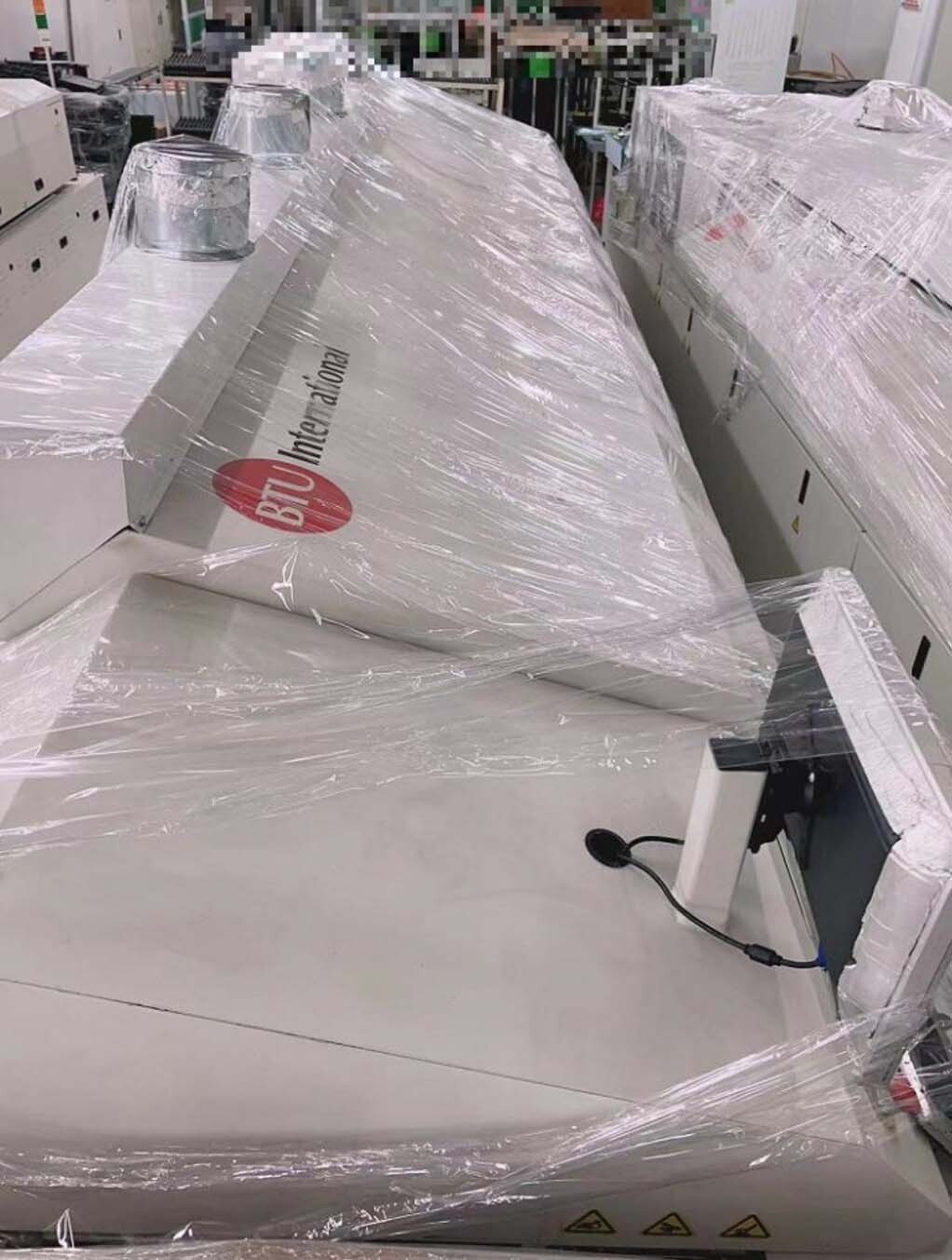

Used BTU Pyramax 125N #293827163 for sale

BTU Pyramax 125N is a high-precision reflow oven developed by BTU International, a global leader in advanced thermal processing solutions. This model features an optimized, high-precision air heating equipment, which ensures a consistent heating rate and heat distribution across the entire reflow zone. BTU PYRAMAX 125 N is equipped with an intuitive 7" HMI touchscreen, which allows users to view various process recipes and quickly adjust parameters with the touch of a finger. It also has a user-friendly physical design and simple operation, which enables fast and easy adjustments that can be completed with minimal operator training. This oven is able to achieve customizable, repeatable results offering a range of conventional reflow options including grained/stage isothermal and ramp-to-peak profiles as well as an optional nitrogen reflow option. The standard temperature control features an advanced PID algorithm and a feedback loop that provides rapid response and precise temperature control. Additionally, the temperature uniformity of Pyramax 125N is less than +/- 1 degree Celsius at any given point in the oven. PYRAMAX 125 N has an efficient, four-zone convection system which, when combined with BTU reflow atmosphere control, is capable of yielding high-quality solder joints. The convection unit also has dedicated multi-speed fans for each zone, which help maintain consistent air circulation throughout the entire reflow process. The oven also has low-thermal mass flow sensors in standard and optional configurations for accurately monitoring the reflow process and optimizing temperatures. BTU Pyramax 125N is capable of processing a vast range of products including cellphones, computers, televisions, tablets, and circuit boards. This model supports a wide range of loads ranging from a maximum of 5kg to a minimum of 15mm, making it suitable for most production lines. Additionally, this oven has a high throughput rate and is able to process up to 800 boards per hour. BTU PYRAMAX 125 N comes standard with safety features including overload protection, door switch, and heating over limit warning. Overall, Pyramax 125N is a high-precision reflow oven that is designed to deliver consistent, repeatable results. Its intuitive touchscreen control, advanced air heating machine, and efficient convection tool make it ideal for production lines requiring fast turnarounds and reliable performance. With its capability to process a wide range of products and loads, PYRAMAX 125 N is a great choice for manufacturers looking for a reliable reflow oven solution.
