Used HELLER 1936 MK 5 #293794402 for sale

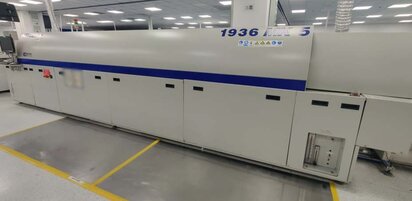

HELLER 1936 MK 5 is a reflow oven used for industrial production of electronic boards and circuits. This oven has a 30-inch by 24-inch usable work area and a total oven chamber measurement of 30-inches by 30-inches. The oven utilizes a convection heating equipment, with a maximum temperature range of 100°C to 300°C. A four-speed, fan-driven recirculation system is used to evenly distribute the convection heat and stabilize the temperature. HELLER 1936MK5 also features a P.I.D. temperature control unit to ensure consistent temperature control throughout the reflow cycle. A PID controller uses a combination of sensors and actuators to keep the oven temperature on target, which is particularly important when producing high-end electronic components. The oven also has a three-stage cooling cycle, which allows the oven to cool down safely at a more consistent rate. 1936 MK5 is also equipped with a programmable process controller to set up and store up to 99 different pre-programmed reflow profiles. This oven includes a data logging feature which records all temperature and control parameters during the reflow process, so operators can review the data to ensure that the desired quality specifications were achieved. The data logger also stores the last 10 reflow oven cycles for easy review. 1936MK5 is a closed edge oven with a 25-micron masking machine used to protect surrounding components from the heat. The oven also features replaceable quartz heating elements that allow for faster heat-up and quicker cooling times, as well as increased repeatability and longer machine life. In addition, 1936 MK 5 also features several safety features including temperature control set points that will turn off the oven to prevent over-temperature conditions. The oven is designed to terminate the heating process and start the cooling cycle, even in the event of a power failure. This oven is CE certified, indicating that it meets the international standards for safety and longevity. HELLER 1936 MK5 is a professional-grade reflow oven that is both reliable and easy to operate. With its efficient convection heating tool and PID control, it provides fast, accurate, and consistent reflow results. These features make HELLER 1936 MK 5 a great choice for any production environment.
