Used DEK Galaxy APi #293633091 for sale

Name: DEK Galaxy APi
Brand: DEK
SKU: 293633091
Availability: InStock

URL successfully copied!

Tap to zoom

Screen Printers

Manufacturer

DEK

Model

Galaxy APi

ID: 293633091

Vintage: 2009

Screen printer Machine alignment capability: >2 cpk at ±12.5 µm, 6 Sigma Process alignment capability: >2 cpk at ±12.5 µm, 6 Sigma Core cycle time: 7s Maximum print area (X*Y): 510 mm x 508.5 mm Camera: CYBEROPTICS CBA40, Graphite 198040 Camera positioning: High accuracy linear motors and encoders Squeegee pressure mechanism Image position: Center, front Stencil positioning: Automatic loading incorporating squeegee drip tray Stencil alignment: Motorized actuators X, Y and Theta Squeegee: Clamped double trailing edge Substrate handling size: Minimum (X*Y): 50 mm x 40.5 mm Maximum (X*Y): 620 mm x 508.5 mm Substrate thickness: 0.2 mm to 6 mm Operating system: Windows XP 2009 vintage.

Read More Close

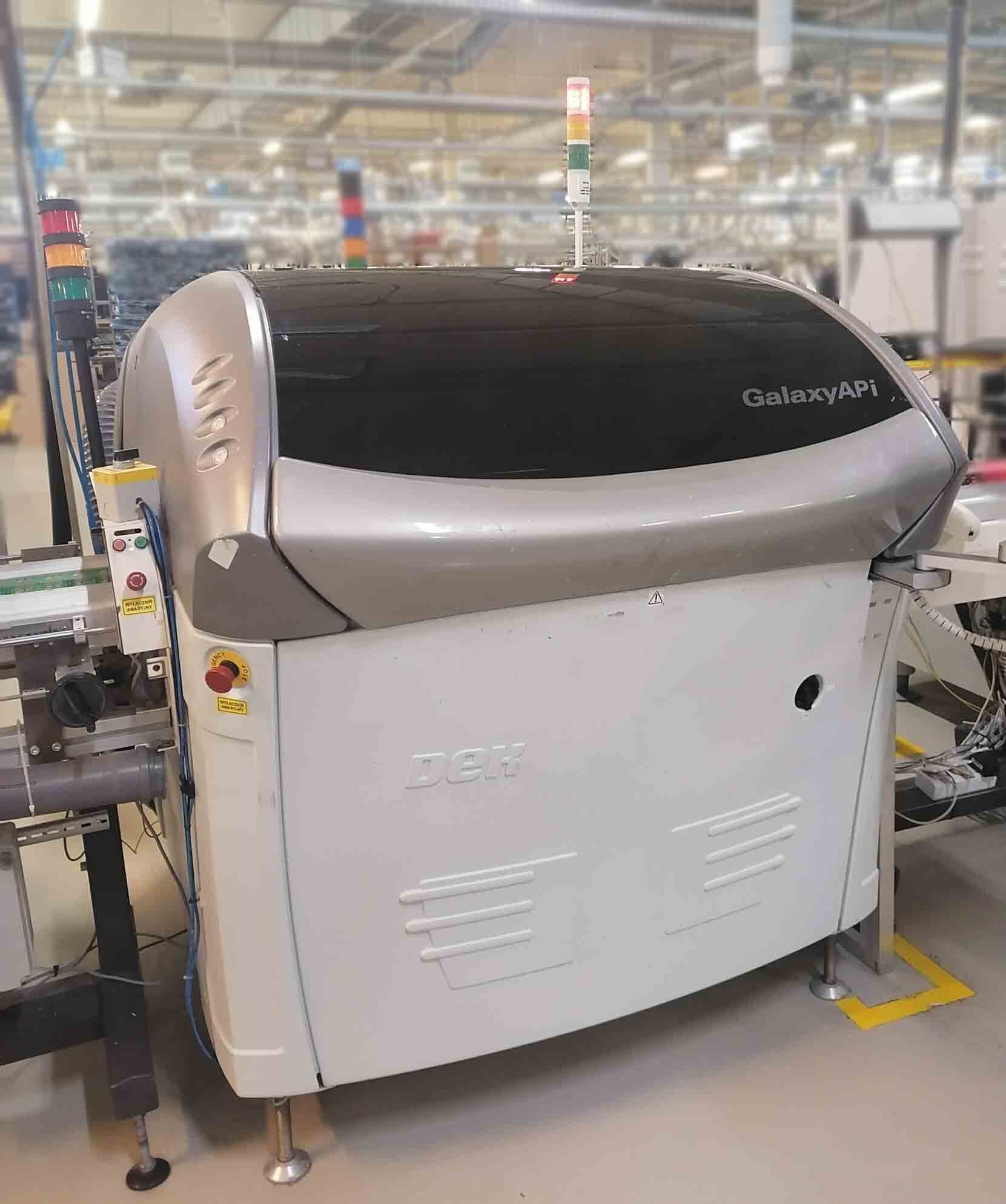

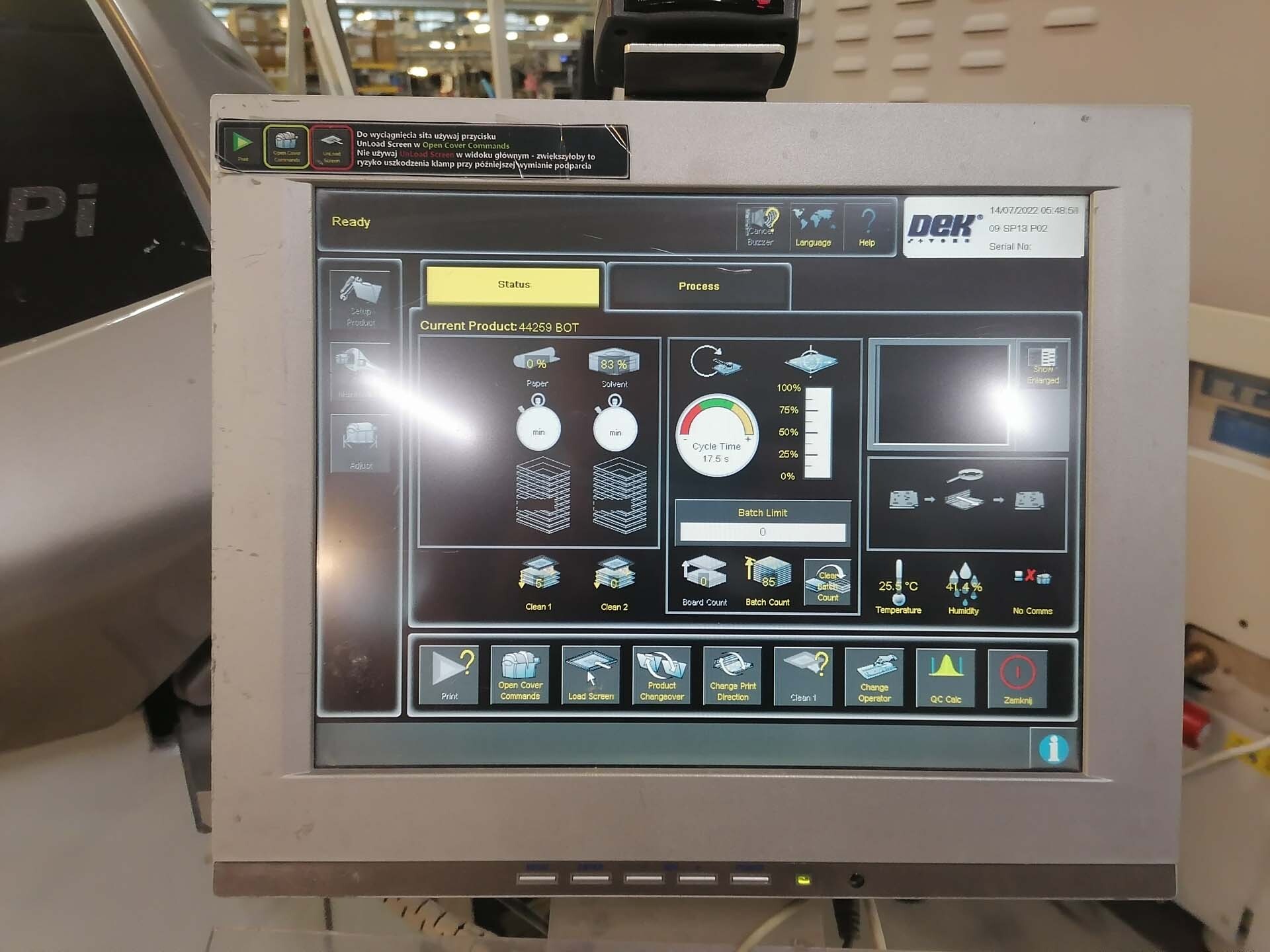

DEK Galaxy APi is a versatile digital screen printing machine designed for 24/7 high-volume production. This modern piece of equipment can be configured for both single and double sided printing, and can be used for a wide range of applications in electronics assembly, including printed circuit boards (PCB), semiconductors, and other substrate materials. Galaxy APi allows users to create prints with resolutions of up to 50 µm (microns). This means users can get ultra-refined prints, with exceptional precision and accuracy, even on the most complex of PCB's. The Galaxy offers a wide range of capabilities, both in terms of the materials and the components it can print on. From the most common substrate materials to the more challenging ones, the Galaxy can accurately and efficiently print everything with amazing results. DEK Galaxy APi also uses a state-of-the-art quick-change tooling system, which allows for a rapid set-up time, as well as a very minimalist operator interface. This interface is designed to be as user-friendly as possible, making it both intuitive and simple to use and maintain. This helps to ensure that the printer is kept in optimum condition and running at high speeds consistently. In addition to its superior printing capabilities, Galaxy APi is equipped with a wide range of safety and security features, making it not just an efficient but a reliable machine. The printer includes a comprehensive range of sensors, which detect any potential issues or malfunction, and then take the necessary corrective action to ensure continuous and uninterrupted operation. DEK Galaxy APi is also a very versatile printer and can be upgraded over time with new modules. This means users can adapt the machine to suit their needs and maximize the number of applications for which it can be used. Overall, Galaxy APi is an advanced yet user-friendly digital screen printing machine that is designed for high-volume production in a range of electronic assembly processes. Its superior resolution and quick-change tooling system allows for accurate and efficient printing, and its range of safety and security features means that users can be confident in their equipment. DEK Galaxy APi is a great choice for anyone looking for a reliable and cost-effective digital screen printing solution.
