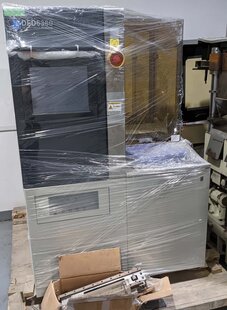

Used DISCO DFD 6360 #9305009 for sale

DISCO DFD 6360 is an industrial scribing / dicing equipment used to cut a variety of materials including Si, GaAs, and Ceramics. The system utilizes a 3-axis computer controlled stage to move the scribe onto the material surface and precise positioning of the scriber. The computer-controlled stage ensures the accuracy of the scribing position and a motor-driven down force unit manages the pressure required to engrave the design onto the surface. The motor-controlled scribing head comes with a selection of electrodes for maximum cutting depth depending on the material being cut. A rotary control sync-feedback machine maintains the down force for optimal scribing operations. Positioning accuracy of the head is very precise (less than 0.01 mm) and repeatability is also high (less than 0.02 mm). The tool also features automated movement of the scribing head after the cut is made. This movement asset allows for the scribed line to be followed with a laser light scanner to record the features of the cut. The line displacement can be adjusted according to the scribing source and conditions. The model is able to cut a variety of materials such as glass, quartz, diamond electrodes and more. It offers high-quality finish, as well as, a high-precision cutting depth and repeatability. Additionally, the route design and scribing speed are adjustable, allowing to cut complex designs with high-precision. User-friendly control and the high accuracy of the scribing head make DISCO DFD6360 a superior choice for cutting a variety of materials. It is suitable for both batch production and prototyping. The equipment supports various software, such as CAD/CAM, to enable quick pattern generation. In conclusion, DFD 6360 scribing / dicing system is an efficient and precise machine for cutting a variety of materials. Its features contribute to simpler programming and operation, high position accuracy and repeatability, as well as a high-yielding process.
